Chain Pin Bronze Bushing 202320 Bronze Bearing
| Place of Origin | China |
|---|---|
| Brand Name | Chain Pin Bushing |
| Certification | ISO 9001/ISO 3547 |
| Model Number | 232020 |
| Minimum Order Quantity | Consultations communication |
| Price | Negotiable |
| Packaging Details | Communication consultation |
| Delivery Time | Confirm the time according to the order |
| Payment Terms | T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CUSn8P Bronze | Type | Bronze Wrapped Bushing Sliding Bush |
|---|---|---|---|
| Bushing | Made In China | Size | 232020 Bronze Bushings |
| Design | Lubricating Holes | Lubricant | (wall Thickness 1.5mm) |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . | Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | 202320 Bronze Bearing,CUSn8P Bronze Bearing |
||
Product Description
The Chain Pin Bronze Bushing 202320 Bronze Bearing is a precision-engineered component specifically designed for use in chain pin applications. Made from high-quality bronze alloy 202320, this bushing offers exceptional wear resistance, corrosion resistance, and durability.
Bronze alloy 202320 is a widely used material for bearings due to its excellent mechanical properties and machinability. The combination of copper, tin, and other alloying elements in this alloy provides a balance of strength, hardness, and corrosion resistance.
The Chain Pin Bronze Bushing 202320 Bronze Bearing is designed to fit precisely into chain pin assemblies, ensuring a smooth and reliable operation. It helps reduce friction and wear, extending the life of the chain and improving overall performance.
With its superior material properties and precision engineering, the Chain Pin Bronze Bushing 202320 Bronze Bearing is an essential component for maintaining the smooth and efficient operation of chain-driven machinery in various industrial applications.
We are an innovative Chinese of companies specializing in the Lubrication Copper Bush development, design, production, and marketing of plain bearing wrapped bronze bushings products and technologies.
FB092 Good Lubrication Copper Bush Buje Bronce Con Perforaciones
These bearings are wrapped from a cold formed homogenous bronze alloy. The
material has high load and wear resistance properties. The diamond shaped
lubrication indent is designed for grease lubrication and the incorporated hole is
designed for oil lubrication. We strongly remind to ensure a sufficient preserved
grease or oil before the installation of the bushings in order to provide lubrication
film during the initial running of the components.
The inner diameter
20 (mm)
Outer diameter
23 (mm)
The thickness of the
20 (mm)
The weight of the
(0.005 kg)
Direction of the load
The radial
The bearing mechanism of
Boundary friction
lubricant
Grease lubrication
Oil lubrication method
Lubrication oil pad
The lubrication state
Boundary lubrication
Bronze Sleeve & Flanged Bearings. bronze bushing & Custom size. leading bronze bushing Manufacturer. In Stock. bronze wrapped bushing sliding bush bronze bushing cheap price.

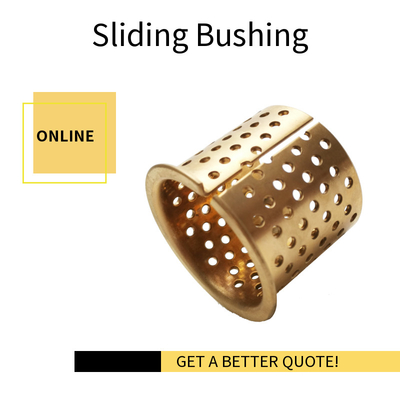

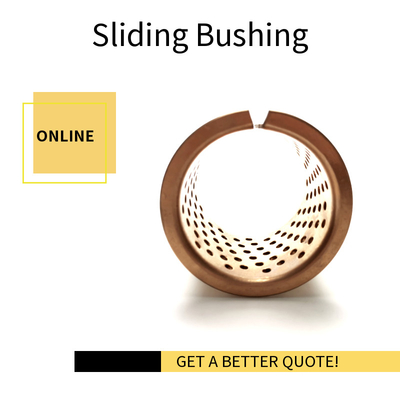

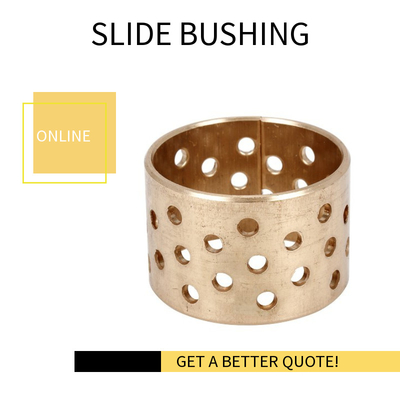

Wrapped bronze bushing slide bearing
Bronze Bushing Type: WF-WB802, FB092
Specification: 2320 , 20x23x20mm
Inner diameter: 20mm
Outer diameter: 23mm (wall thickness 1.5mm)
Straight Type: Sleeve Bronze Bushings, cylindrical wrapped bronze bearings
Totally Height: 20mm
Standard: DIN1494 / ISO3547

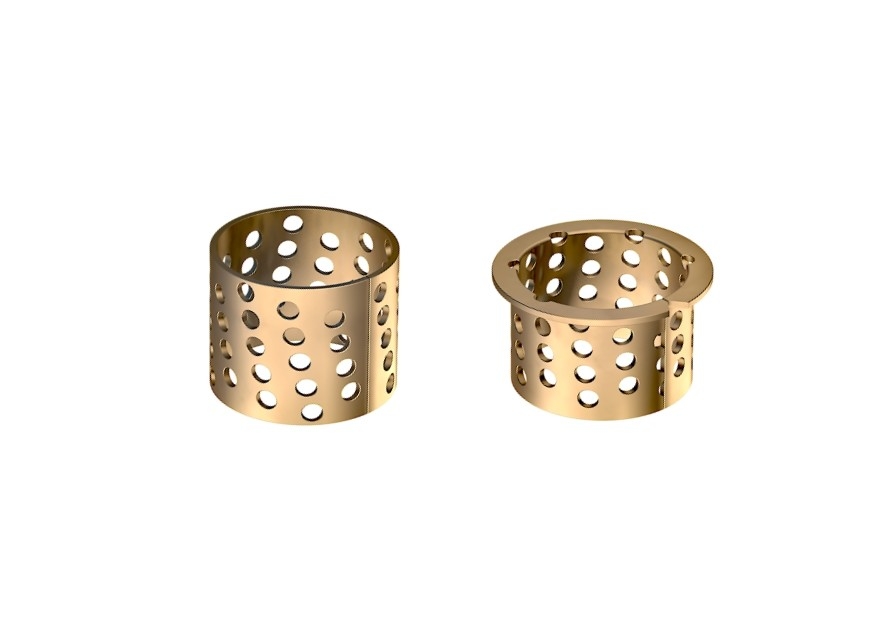

Wrapped bronzed sliding bearing with perforations - Punched - Low-maintenance - DIN 1494 / ISO 3547
Cylindrical bushings, flanged bushings and strips are standard fabrication.
- Cylindrical bushing
- Flanged bushing
- Strips
FB092 bronze bearing is a thin wall bearing made of uniform and orderly oil injection holes based on bronze material, which is injected with lubricating grease after assembly and then used with end face seal. The bearing has the advantages of large oil storage, convenient installation and small structure. It can replace copper bushing and greatly reduce the cost. At present, this product has been used in conveyors, elevators, winders, leveling machines, and another medium load, low-speed occasions.
Product parameters:
Basic material
CuSn8P0. 3 or CuSn6.5 P0.1
hardness
HB90 ~ 120
Maximum bearing pressure
60N/mm2
Applicable temperature range
- 100 ℃ ~ 200 ℃
Maximum sliding speed
2.5 m/s
Wrapped Bronze Bushing Properties
Good load capacity and stability at low abrasion. Because of perforations lubrication clearances are reduced to a minimum!
Lubricating
Lubrication should be achieved through the shaft or radially through the bearing housing. All commonly used grease types or oils can be used.
Application field
The wrapped bronze bushings are widely used in construction machinery, agricultural machinery and so on.
Bronze Bushings Types
Ordinary cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Wrapped Bronze Bushing Material
Support material: CuSn8P (DIN 17662)
Wrapped Bronze Bushing Material Properties
| Specific load capacity static | ≤ 120 [ N/mm² ] |
| Specific load capacity dynamic | at max. 0,01 m/s ≤ 40 [ N/mm² ] |
| Sliding speed | at max. 2,0 m/s ≤ 2,5 [ m/s ] depending on lubrication |
| Friction value | 0,05 to 0,20 [ µ ] depending on lubrication |
| Temperature strain | -40 to +250 [ °C ] |
| Max. Pv - value | 2,8 [ N/mm² x m/s ] |
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
Assembly For Bronze Sleeve Bushings
The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
Shaft Material
Steel, hardened or untempered, surface roughness ≤ Rz 6,3
Maintenance
It is a low-maintenance bronze sliding bearing, primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets lubrication clearances are reduced to a minimum!
+86 (0)57384499350 www.viiplus.com
FB092-5050 product drawing.pdf
