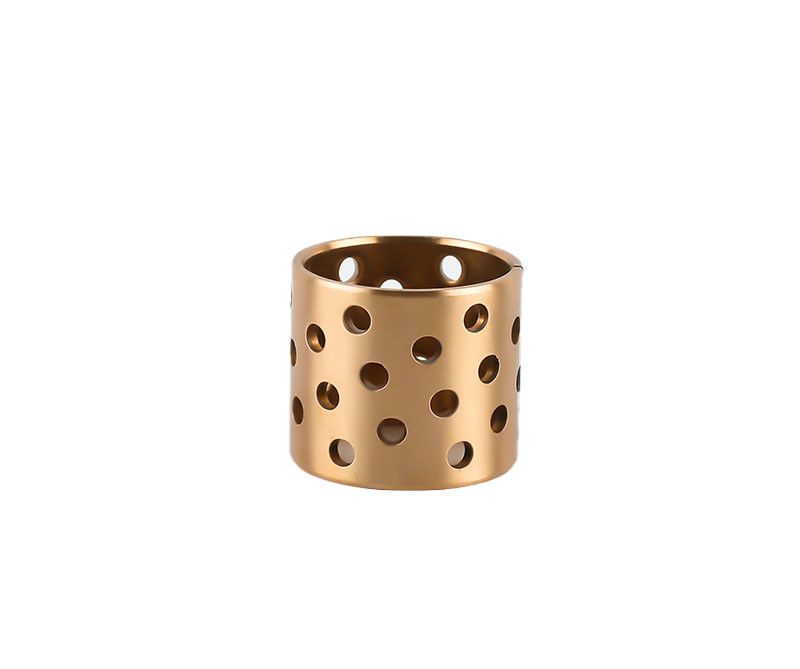

7080 CuSn8P Slide Bearing Bushing
| Place of Origin | China |
|---|---|
| Brand Name | Bronze Gleitlager |
| Certification | ISO 9001/ISO 3547 |
| Model Number | FB092-5050 |
| Minimum Order Quantity | Consultations communication |
| Price | 2.96USD/PSC |
| Packaging Details | Communication consultation |
| Delivery Time | Confirm the time according to the order |
| Payment Terms | L/C, T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CUSn8P Bronze | Type | Bronze Wrapped Bushing Sliding Bush |
|---|---|---|---|
| Bushing | Made In China | Size | 7080 Bronze Bushings |
| Application | Hydraulic Cylinder Piston Slide Bearing | Lubricant | (wall Thickness 2.5mm) |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing | Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . |
| Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| High Light | CuSn8P Slide Bearing Bushing,7080 Bearing Bushing |
||
Product Description
Industrial Bronze Bearings, The industrial bronze bushings are an integral element of all machines and installations in every sector of the industry.7080 CuSn8P Slide Bearing Bushing
Quality bronze bushings (wall thickness 2.5mm) made by bronzegleitlager.com Order Today, discount price! CuSn8P Hydraulic Cylinder Piston Slide Bearing Bush 70x75x80mm, Split Wrapped Bronze Bush sleeve plain bearing made to order from china.
WB802 FB092 7080 CuSn8P Hydraulic Cylinder Piston Slide Bearing Bush 70x75x80mm Oil holes Wrapped Bronze sleeve Bearing Bushing
Bronze Sleeve & Flanged Bearings. bronze bushing & Custom size. leading bronze bushing Manufacturer. In Stock. bronze wrapped bushing sliding bush bronze bushing cheap price.

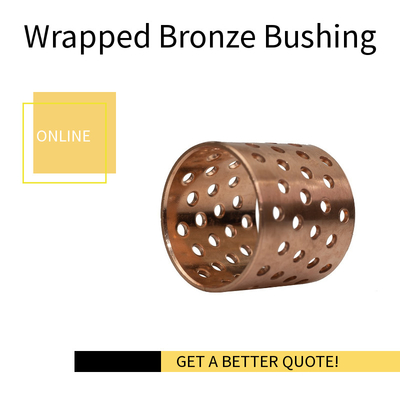

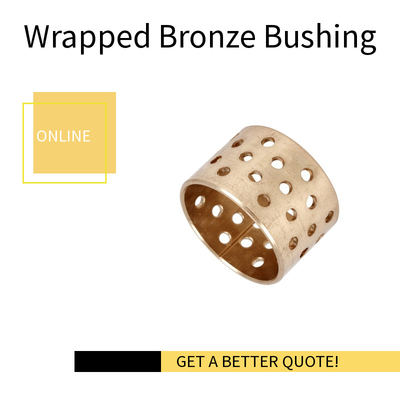

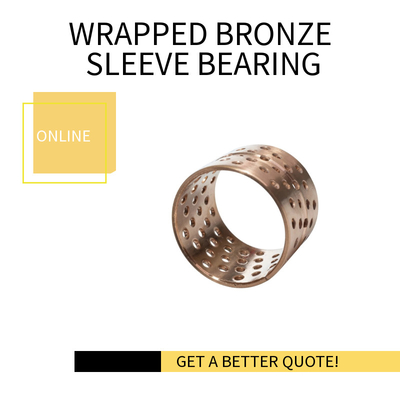

Wrapped bronze bushing slide bearing
CuSn8P Slide Bearing Bushing, Split Wrapped Bronze Bush Sleeve Plain Bearing
Bronze Bushing Type: WF-WB802, FB092
Specifications: 7080,70x75x80mm
Inner diameter: 70mm
Outer diameter: 75mm (wall thickness 2.5mm)
Totally Height: 80mm
Straight Type: Sleeve Bronze Bushings, cylindrical wrapped bronze bearings
Standard: DIN1494 / ISO3547
Material: CUSn8P Bronze
Hardness: HB110- HB125
Wrapped Bronze Bearing is made of bronze material with lubricating holes. It is a kind of wrapped greased (also sometimes graphite) lubricating bushing bearing. Bronze material normally in CuSn6.5 or CuSn8, the bronze is made as a particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond-shaped indentations or/and oil grooves as required by customers.
Composition
CUSn8P
(standard values) Cu 91.3 % Sn 8.5 % P 0.2 %
Lubricating
Lubrication should be achieved through the shaft or radially through the bearing housing. All commonly used grease types or oils can be used.
Application field
The wrapped bronze bushings are widely used in construction machinery, agricultural machinery and so on.
Bronze Bushings Types
Ordinary cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Wrapped Bronze Bushing Material
CUSn8P Bronze
Bronze alloy bushings (CuSn8P) with special compositions as the base, the alloy surface is dimpled oil type diamond rolled. High load capacity, good performance properties, longer service life and good chemical resistance to corrosive agents. It is widely used in many fields such as earthmoving equipment, hoisting machinery, construction machinery, machine tool industry and mining machinery.
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
| Bearing Properties | Unit | Value |
|---|---|---|
| Bearing Properties | Unit | Value |
| Maximum specific load Static | N/mm² Psi | 150 |
| Maximum specific load dynamic | N/mm² Psi | 60 |
| Maximum sliding speed | m/s fpm | 2 |
| Maximum PxV factor | N/mm² · m/s | 3 |
| Maximum PxV factor (short periods) | N/mm² · m/s | 4 |
| Dry coefficient of friction | µm | 0.06 – 0.15 |
| Maximum temperature | °C °F | +150°C |
| Minimum temperature | °C °F | -40°C |
| Shaft finish Ra (recommended) | µm | 0.4 Ra |
| Shaft hardness (recommended) | HB | >200 |
| Operating Conditions | |
|---|---|
| Dry | Fair |
| Oil | good |
| Grease | Very good |
| Water | Fair |
Assembly For Bronze Sleeve Bushings
The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
