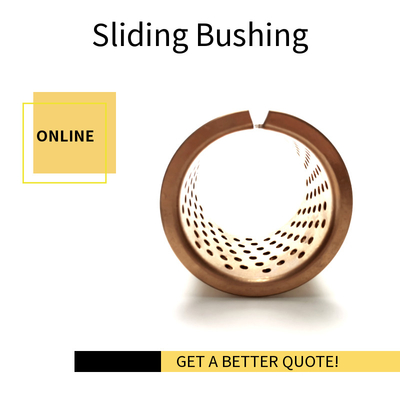

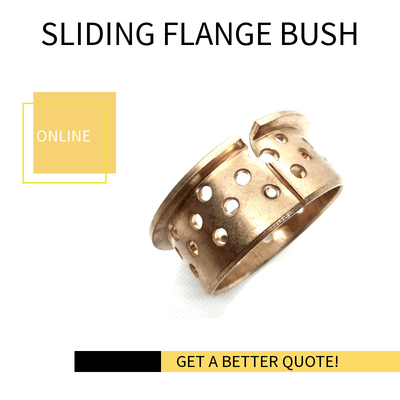

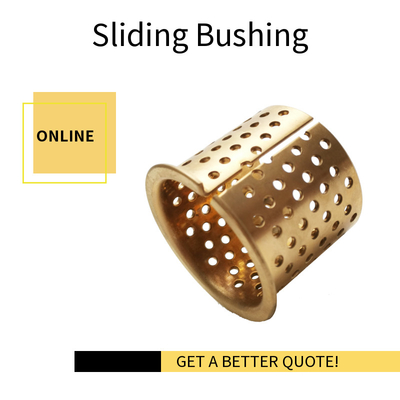

Bronze Wrapped Bushing Sliding Bush 5025F

  • Bronze Wrapped Bushing Sliding Bush 5025F
  • Bronze Wrapped Bushing Sliding Bush 5025F
  • Bronze Wrapped Bushing Sliding Bush 5025F
  • Bronze Wrapped Bushing Sliding Bush 5025F
Place of Origin China
Brand Name Bronze Gleitlager
Certification ISO 9001/ISO 3547
Model Number FB092-5050
Minimum Order Quantity Consultations communication
Price 2.96USD/PSC
Packaging Details Communication consultation
Delivery Time Confirm the time according to the order
Payment Terms L/C, T/T
Supply Ability Perforated Bronze Bearing，Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CUSn8P Bronze Type Bronze Wrapped Bushing Sliding Bush
Bushing Made In China Size 5025F Bronze Bushings
Design Lubricating Holes Lubricant (wall Thickness 2.5mm)
APPLICATIONS Industrial Mechanical Handling And Lifting Equipment, Hydraulic Cylinders, Pneumatic Equipment, Medical Equipment, Textile Machinery, Agricultural Equipment, Etc. Cylindrical Bushes Bearing Forms Available In Standard Dimensions
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary .
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

5025F wrapped bronze bushings

,

Flanged wrapped bronze bushings
Leave a Message
Product Description

The Bronze Wrapped Bushing Sliding Bush 5025F is a precision-crafted component designed for sliding applications. The sliding bush features a bronze wrapping, typically made from a high-grade bronze alloy, that offers excellent wear resistance, corrosion resistance, and durability.

The 5025F designation likely refers to the specific dimensions or model number of this sliding bush. However, regardless of the exact measurements, the bronze wrapping ensures a smooth and reliable sliding surface.

Bronze Wrapped Bushing Sliding Bushes are commonly used in various industries and applications where a low-friction and long-lasting sliding interface is crucial. They are particularly suitable for applications involving heavy loads, high speeds, or harsh environmental conditions.

The bronze wrapping provides a hard and durable surface that can withstand continuous sliding contact and resist wear and tear. This results in extended service life and reduced maintenance requirements.

In summary, the Bronze Wrapped Bushing Sliding Bush 5025F is a high-quality sliding bush designed for demanding applications. The bronze wrapping ensures a smooth and reliable sliding surface, providing excellent wear and corrosion resistance.



Bronze Wrapped Bushing Sliding Bush 5025F



Premium Flanged Wrapped Bronze Bushings - Large Range Of Sizes!



Get Verified Bronze Bushing Sellers for Kevlar Fiber and Stainless Steel kevlar fabric-lined Bushings From China
See Our Online CUSN8 BRONZE bushing Catalog & Request A Quote! Sleeve Bushing Bearings & Flange Materials Made To The Highest Standards. Shop Our Huge Range Of Sizes! Made to order from china. Top Customer Service. Unmatched Product Quality.

Quality bronze bushings (wall thickness 2.5mm) made by bronzegleitlager.com Order Today, discount price! Self-lubricating flange bronze bushings 5025F 50x55x65x25mm WF-WB802 WB702 FB092 slide bearing bronze wrapped bushing sliding bush.

Other Bushing Type Recommendations For You
Perforated Bronze Bushing



Bronze Sleeve & Flanged Bearings. bronze bushing & Custom size. leading bronze bushing Manufacturer. In Stock. bronze wrapped bushing sliding bush bronze bushing cheap price.



Wrapped bronze bushing slide bearing



Model Number: WF-WB802, FB092

Specificaiton: 5025F, 50x55/65x25mm

Inner diameter: 50mm

Outer diameter: 55mm (wall thickness 2.5mm)

Flange diameter: 65mm

Totally Height: 25mm

Standard: DIN1494 / ISO3547

Material: CUSn8P Bronze

Hardness: HB110- HB125

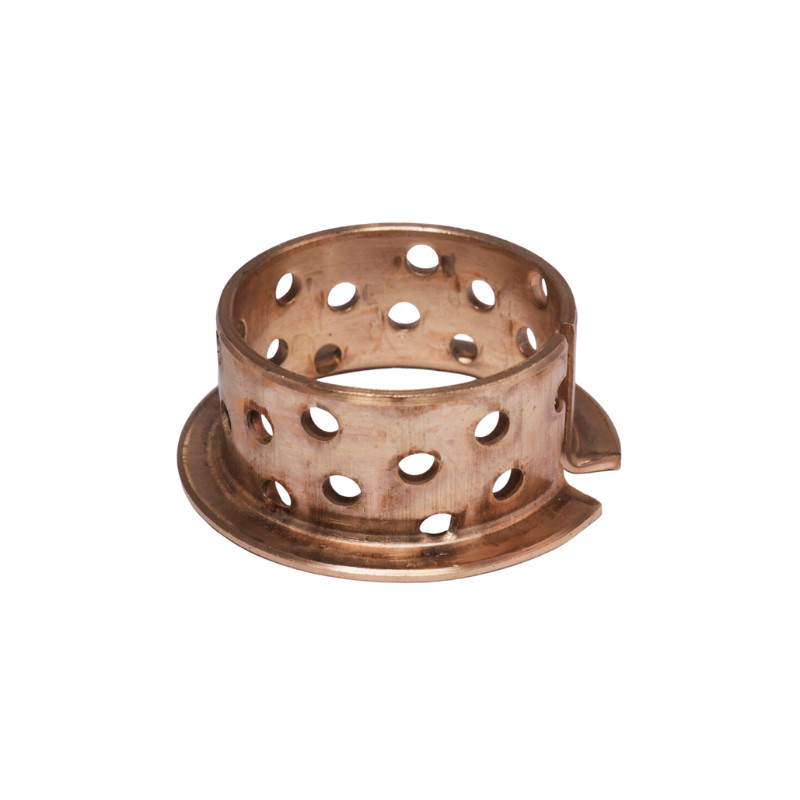

Flange wrapped bronze bushings with lubricating oil holes

WF-WB802 FB092 5025F CuSn8P Slide Bearing Bushing 50x55x65x25mm Split Wrapped Bronze Bush sleeve self lubricating plain bearing



  • Ultra-high load capacity

  • Good lubrication performance

  • Wide operating temperature range

  • Easy to install



lubricating


Lubrication should be achieved through the shaft or radially through the bearing housing. All commonly used grease types or oils can be used.


Installation


WF-WB802 FB092 5025F CuSn8P Slide Bearing Bushing 50x55x65x25mm Split Wrapped Bronze Bush sleeve self lubricating plain bearing should be pressed into the H7 tolerance housing. The inner diameter tolerance of the sliding bearing is H9.


Application field


Forestry, construction and agricultural machinery, cranes, forklifts and lifting equipment, etc.


Bronze Bushings Types


Ordinary cylindrical bearings, flanged bearings, thrust washers, sliding plates.


Wrapped Bronze Bushing Material



Characteristics


– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble



Bearing Properties Unit Value
Bearing Properties Unit Value
Maximum specific load Static N/mm² Psi 150
Maximum specific load dynamic N/mm² Psi 60
Maximum sliding speed m/s fpm 2
Maximum PxV factor N/mm² · m/s 3
Maximum PxV factor
(short periods)		 N/mm² · m/s 4
Dry coefficient of friction µm 0.06 – 0.15
Maximum temperature °C °F +150°C
Minimum temperature °C °F -40°C
Shaft finish Ra (recommended) µm 0.4 Ra
Shaft hardness (recommended) HB >200



Operating Conditions
Dry Fair
Oil good
Grease Very good
Water Fair





Assembly For Bronze Sleeve Bushings


The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.

Bronze Wrapped Bushing Sliding Bush 5025F 2

Bronze Wrapped Bushing Sliding Bush 5025F 3 +86 (0)57384499350 Bronze Wrapped Bushing Sliding Bush 5025F 4www.viiplus.com
FB092-5050 product drawing.pdf
