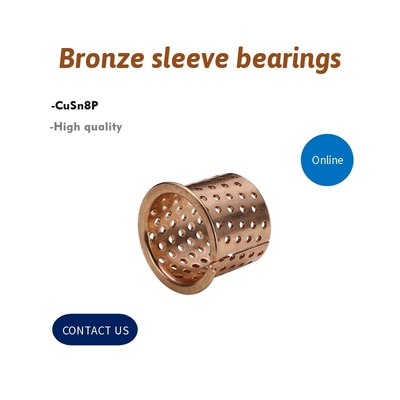

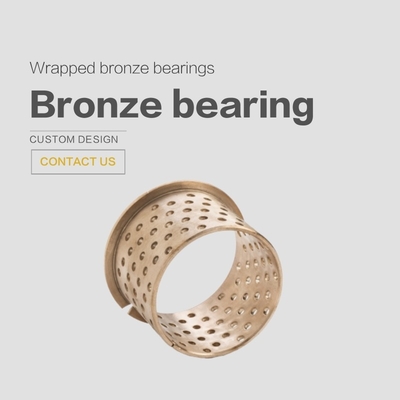

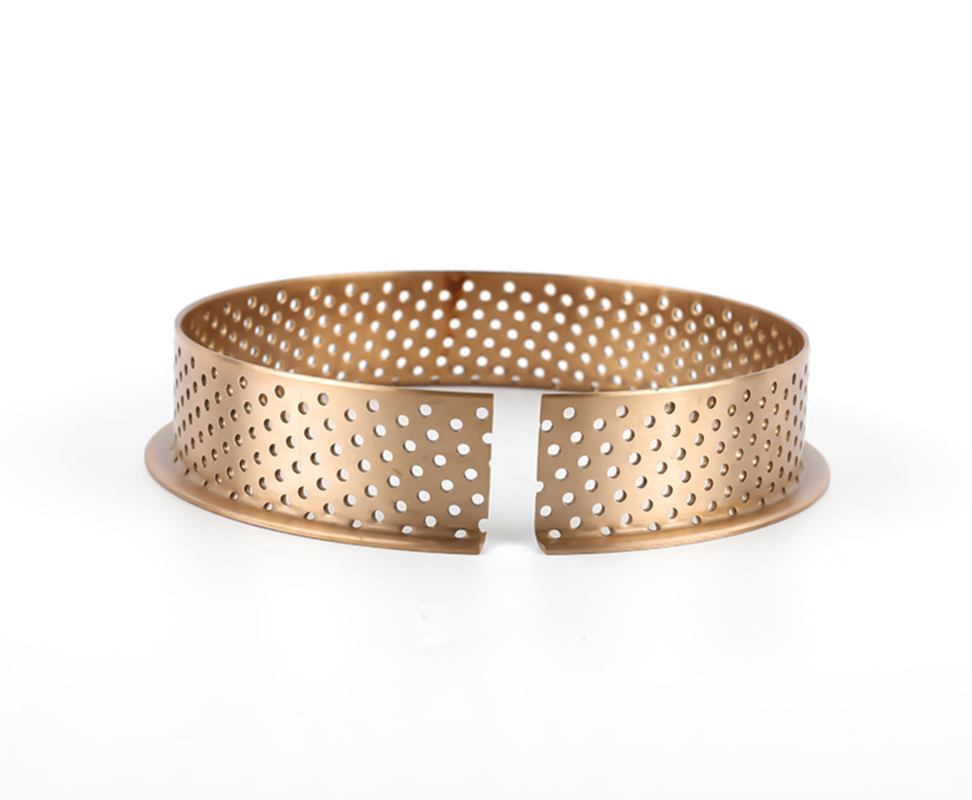

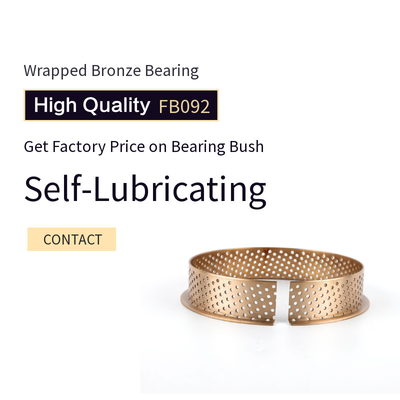

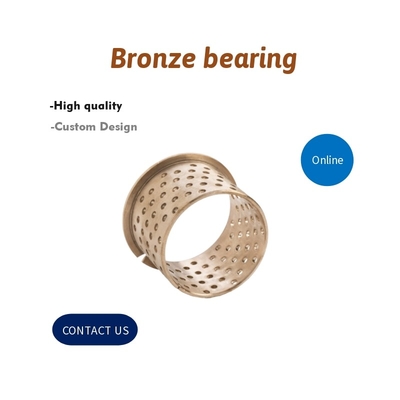

Wrapped Split Sleeve 092 Bronze Flange Bearings

  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
  • Wrapped Split Sleeve 092 Bronze Flange Bearings
Place of Origin Made in China
Brand Name VIIPLUS
Certification DIN 1494 / ISO 3547
Model Number Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability Perforated Bronze Bearing，Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material CUSN8 Feature BRO-MET, FB090, BRM10, WB800
Performance High Load Capacity And Long Life Type Sleeve,Flange,Thrust Washer
Bushings Thinkness Bushing Max. Thickness Of 2.5mm. Self-lubricating Bushings ID40*OD44*40 Flange*L55mm, Perforated
Application Agricultural Machinery, Brakes And Certain Construction Machinery. Bushing Size Special Dimensions And Imperial Sizes Are Available On Request
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing
Specialty Бронзовые втулки Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze flanged sleeve bearings

,

flanged bronze bushing
Leave a Message
Product Description

The Wrapped Split Sleeve 092 Bronze Flange Bearings are precision-engineered components designed to provide reliable and efficient performance in various industrial applications. Constructed from high-quality bronze material, these bearings offer excellent wear resistance and durability, ensuring long-lasting performance.

The split sleeve design allows for easy installation and replacement, making maintenance a breeze. The bronze flange provides additional strength and stability, ensuring the bearings can handle heavy loads and high-speed operations.

The Wrapped Split Sleeve 092 Bronze Flange Bearings are suitable for use in a wide range of machinery and equipment, including pumps, motors, and other rotating assemblies. They help reduce friction and wear, thus improving the overall efficiency and performance of the system.

If you are looking for reliable and durable Wrapped Split Sleeve 092 Bronze Flange Bearings, look no further than our trusted suppliers. We offer competitive prices and fast delivery, ensuring you get the best value for your money. Contact us today to learn more about our products and services.



Source with bronzegleitlager.com. - Copper Bearings



Traditional Sourcing Brought Online. Find Quality Wrapped Bronze Bushing & Contact Us Today! Reduce Costs With Factory Direct Sourcing. Low MOQ, OEM/ODM Available. Source Now! Logistics Service.



Bronze Sleeve Bearings - Factory Direct & Fast Shipping



Bronze Split Bearing, Plain Bearing - High Quality, Factory Price



Choose from our selection of split bushings, including sleeve bearings, flanged sleeve bearings, and more. In stock and ready to ship.



Wrapped Bronze Bearing Produce‎ |Professional Manufacturer



Bronze bushing straight F092 ID200 OD205 L100.pdf



As a manufacturer, we produce almost all possible bronze bushing dimensions. Tailored Solutions. Made In China. Cost-Effective Prices. Highlights: Standard Dimensions, Small Minimum Quantities, Short Periods Of Delivery, Tailored Solutions, Quick Information.



SELF-LUBRICATING BRONZE BEARINGS FB092



Our company's expertise is container bronze bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.
VIIPLUS manufacturer a range of full bronze sliding bearings. Bronze specification is according to UNI EN 1652 (CuSn8P) which is particularly suitable for sliding couplings with steel. This characteristic is highly improved by stamping and/or machine working the surface obtaining lubricant pockets, holes or channels to distribute and maintain the lubricant film between the pieces.
Central items of bronze gleitlager range are the cylindrical bushings (ISO 3547), plain or flanged; in a difference wall thicknesses. 092 bronze bushing series includes all the sliding bearings normally used like thrust washers, sliding strips and in addition to these viiplus can offer a wide variety of special items to customer’s drawings.



Bronze Bearing China | High Quality, Factory Price‎



wrapped bronze bearing



Bronze Bushing Available, Down A Catalog:FB-090 series bronze bushing.pdf,Custom S​olutions.Enquire Online

Bronze Bushing 40-44-40mm ,Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery

Flange Bronze Bushing,ID40*OD44*40 Flange*L55mm Bronze bushing flange F092 ID 40 OD 44 L40 F55.pdf....



  • CuSn8P (DIN 17662)
  • DIN 1494 / ISO 3547

Bronze Wrapped Bearings cusn8

Bronze flange bushing092 is made of high quality, hot-rolled and phosphorous alloy tin bronze. Plain bearings are specially designed to withstand heavy and impact resistant loads. The entire bearing surface is made up of "through holes" which offer improved lubricating properties and fewer maintenance periods that reduce friction, both at start-up and during operation. Bronze flange bushing092 is designed for radial, oscillating and axial movements and are particularly suitable for medium-high loads.

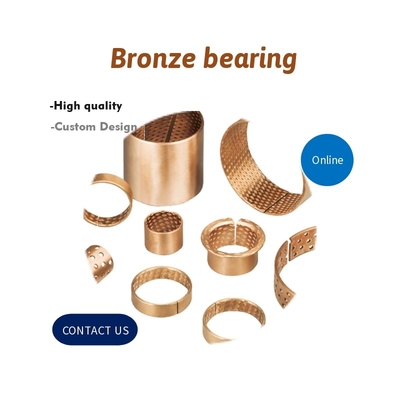

Available products: straight sleeve, thrust gasket, flanged bushing, bearing bush, sliding plate, steel sleeve assembly.



Chemical Composition



Material Cu Sn P Pb Zn
CuSn8 91.3% 8.5% 0.2% / /



Structure



CuSn8 bronze with either grease pockets or holes



Feature



1. Save a lot of copper, save the car copper set time.
2. Light weight and low cost compared with axle sleeve and rolling bearing made by car.
3. It can be processed into various holes and pits on the friction surface and store certain oil and grease. The time to extend the refueling is 5 times that of the copper sleeve.
4. Extremely high bearing capacity, especially suitable for rough friction surface.


Characteristics



1.Easy to assemble

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving



wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.



Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.



TECHNICAL DETAILS



Max.PV  2.8 (N/mm² x m/s)
Max.Static load  120(N/mm²)
Max.Dynamic load  40 (N/mm²)
Max.Sliding speed 2.5  (m/s)
Max.Intermittent temperature  130(°C)
Operating temperature  -100 to 200(°C)
Thermal Conductivity  60(W/mk)
Coefficient of friction 0.08 to 0.25
Hardness  90-120(HB)
Tensile strength  450 min(N/mm²)
Yield point  250 min(N/mm²)
Elongation  40(%)





agriculture application

RANGE OF APPLICATION





·Agriculture machinery
·truck cranes
·construction machinery
·impact loads
·Others



Widely used in lifting equipment and construction machinery, automobile industry, tractors, trucks, agricultural machinery and mining equipment and other fields. The products that can be processed include axle sleeve, axle bush, flanged axle sleeve, thrust gasket and so on.





bronze bushing size chart
[mm] d D L D1
BRONZE BUSHING-FBB092-2515 25 28 15 35
BRONZE BUSHING-FBB092-2525 25 28 25 35
BRONZE BUSHING-FBB092-3020 30 34 20 45
BRONZE BUSHING-FBB092-3030 30 34 30 45
BRONZE BUSHING-FBB092-3520 35 39 20 50
BRONZE BUSHING-FBB092-3530 35 39 30 50
BRONZE BUSHING-FBB092-4025 40 44 25 55
BRONZE BUSHING-FBB092-4040 40 44 40 55
BRONZE BUSHING-FBB092-4530 45 50 30 60
BRONZE BUSHING-FBB092-4545 45 50 45 60
BRONZE BUSHING-FBB092-4550 45 50 50 60
BRONZE BUSHING-FBB092-5030 50 55 30 65
BRONZE BUSHING-FBB092-5050 50 55 50 65
BRONZE BUSHING-FBB092-5530 55 60 30 70
BRONZE BUSHING-FBB092-5550 55 60 50 70
BRONZE BUSHING-FBB092-6030 60 65 30 75
BRONZE BUSHING-FBB092-6035 60 65 35 75
BRONZE BUSHING-FBB092-6060 60 65 60 75
BRONZE BUSHING-FBB092-6530 65 70 30 80
BRONZE BUSHING-FBB092-6560 65 70 60 80
BRONZE BUSHING-FBB092-7040 70 75 40 85
BRONZE BUSHING-FBB092-7070 70 75 70 85
BRONZE BUSHING-FBB092-7540 75 80 40 90
BRONZE BUSHING-FBB092-7570 75 80 70 90
BRONZE BUSHING-FBB092-8040 80 85 40 100
BRONZE BUSHING-FBB092-8080 80 85 80 100
BRONZE BUSHING-FBB092-9050 90 95 50 110
BRONZE BUSHING-FBB092-9070 90 95 70 110
BRONZE BUSHING-FBB092-9090 90 95 90 110
BRONZE BUSHING-FBB092-10050 100 105 50 120
BRONZE BUSHING-FBB092-10090 100 105 90 120
BRONZE BUSHING-FBB092-11050 110 115 50 130
BRONZE BUSHING-FBB092-11090 110 115 90 130
BRONZE BUSHING-FBB092-12050 120 125 50 140
BRONZE BUSHING-FBB092-12090 120 125 90 140
BRONZE BUSHING-FBB092-13060 130 135 60 155
BRONZE BUSHING-FBB092-13090 130 135 90 155
BRONZE BUSHING-FBB092-14060 140 145 60 165
BRONZE BUSHING-FBB092-14090 140 145 90 165
BRONZE BUSHING-FBB092-15060 150 155 60 180
BRONZE BUSHING-FBB092-15090 150 155 90 180
BRONZE BUSHING-FBB092-16060 160 165 60 190
BRONZE BUSHING-FBB092-16090 160 165 90 190
BRONZE BUSHING-FBB092-17060 170 175 60 200
BRONZE BUSHING-FBB092-17090 170 175 90 200
BRONZE BUSHING-FBB092-18060 180 185 60 215
BRONZE BUSHING-FBB092-18090 180 185 90 215
BRONZE BUSHING-FBB092-19060 190 195 60 225
BRONZE BUSHING-FBB092-19090 190 195 90 225
BRONZE BUSHING-FBB092-20060 200 205 60 235
BRONZE BUSHING-FBB092-20090 200 205 90 235
BRONZE BUSHING-FBB092-22560 225 230 60 260
BRONZE BUSHING-FBB092-22590 225 230 90 260
BRONZE BUSHING-FBB092-25060 250 255 60 290
BRONZE BUSHING-FBB092-25090 250 255 90 290
BRONZE BUSHING-FBB092-26560 265 270 60 305
BRONZE BUSHING-FBB092-26590 265 270 90 305
BRONZE BUSHING-FBB092-28560 285 290 60 325
BRONZE BUSHING-FBB092-28590 285 290 90 325
BRONZE BUSHING-FBB092-30060 300 305 60 340
BRONZE BUSHING-FBB092-30090 300 305 90 340



Tolerances



Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.


Request



It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.



BUSHING TYPES FOR SALE



Cusn8p bronze bushing fb092 copper bushes groove bushing fb092 brass bushing cusn8 bushing fb092 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb092 oilless bushing



Wrapped bronze flanged bearings CuSn8 Bronze Bearings



We can offer special sizes, shapes, shapes or lengths on request.

Please contact us for a quote or more information.
