CuSn8 Wrapped Bronze Bearings , Bronze Plain Bearings CuSn6.5P0.1

Place of Origin CHINA
Brand Name viiplus wrapped bronze bushings
Certification DIN 17662-1983
Model Number wrapped bronze bushings
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 work day
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings
Product Details
Material CuSn8 Bronze Material Optional Structure Straight Cylinder, Flange, Gasket
Advantage Easy To Install And Lubricate; Strong Carrying Capacity; Bushings Brass And Bronze Bushings
High Light

wrapped bronze bushings

,

flanged bronze bushings

Leave a Message
Product Description

Self-lubricating Bronze Bearing, Plain Bearings | Bushings & Bearings Supplier



self-lubricating bearing solutions



Provide high quality plain bearing, wrapped bronze bearing products



Besides the standard products displayed in the list of this catalogue, we can also supply non-standard products or develop according to customer design.

Wrapped Bronze Plain Bearings | High Quality - CuSn8 Bronze Bearings

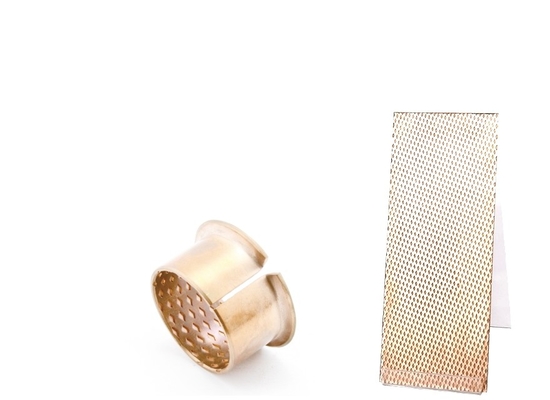

The wrapped bronze plain bearing is made with CuSn8 bronze alloy which is featured with high load capacity and good anti-wearing characteristics. The diamond shape indents on the surface of the CuSn8 Wrapped Bronze Bearings serve as oil reservoir to generate oil film for the lubricating during the initial running.



WRAPPED BRONZE PLAIN BEARINGS MADE OF CUSN8 WITH LUBRICATION INDENTS

wrapped bronze bushing

Wrapped Bronze Plain Bearings Avalibility

  • Wrapped Bronze Plain Bearings forms available in standard dimensions: Cylindrical bushes

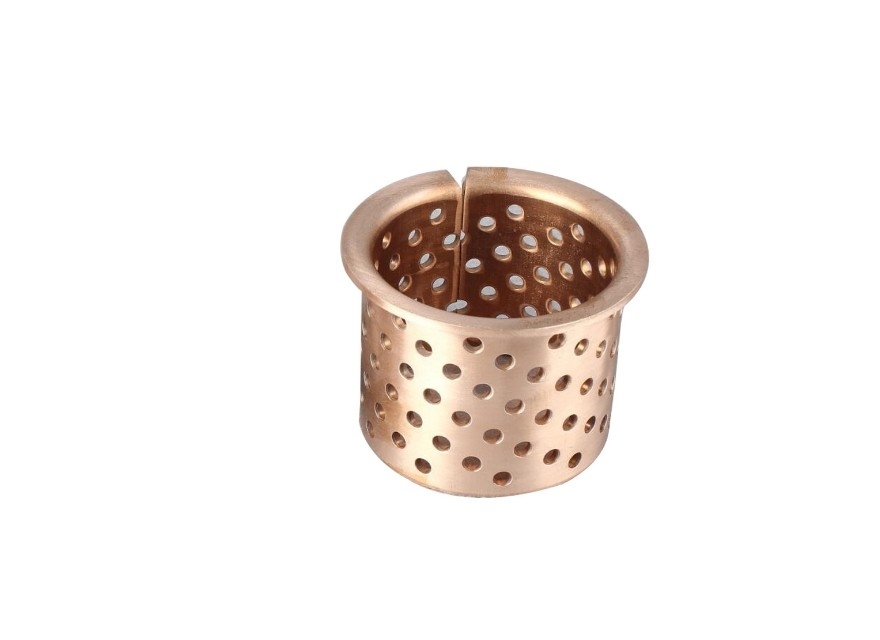

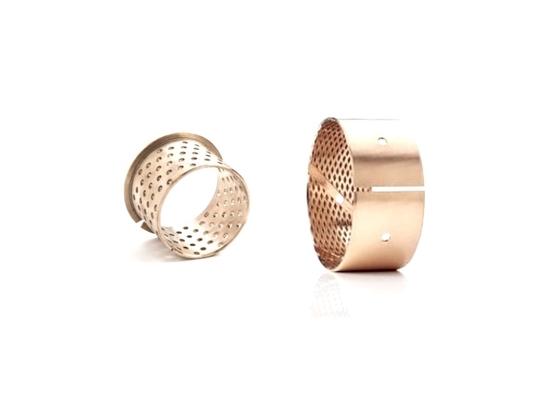

  • Wrapped Bronze Plain Bearings forms made to order: Cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

BUNDBUCHSEN CA.L90

High output CuSn8 bronze bearings products, cost - saving wrapped bronze plain bearings, with oil groove, large supply



The wrapped bronze plain bearing is made of high density copper alloy strip with special formula as the substrate. The surface can be rolled in diamond shape or hemispherical shape as required by the user.It has the advantages of high density, large bearing capacity, good wear resistance and long service life, etc., which can replace the traditional casting copper sleeve, reduce the mechanical volume and reduce the cost.



Wrapped bronze bearing Gerolde tinbronzen glijlagers



CuSn8 Wrapped Bronze Plain Bearings Material Element

CuSn8/DIN 17662-1983
Ni(%) Fe(%) Sn(%) Sn(%) Cu(%)
≦0.3 ≦0.1 7.5~8.5 7.5~8.5 rest







wrapped bronze plain bearing material





CuSn8 Wrapped Bronze Plain Bearings Material characteristics

The strength, corrosion resistance, wear resistance and other performance of copper and its alloy, or in order to meet some special application requirements, on the basis of the existing CuSn8 components to add to the five yuan, six yuan and other components, to achieve the material high elasticity, high wear resistance, high corrosion resistance, free cutting and other different functions.



CuSn8 Wrapped Bronze Plain Bearings Characteristics



Performance indicators Data
Maximum load Static load 120N/mm²
Dynamic load 40N/mm²
Maximum linear velocity 2.5m/s
High PV value 2.8N/mm²・m/s
Coefficient of friction 0.08~0.25
The use of temperature -100℃~+200℃
Coefficient of thermal conductivity 60W/m・K
Coefficient of thermal expansion 15×-6/K







Wrapped bronze plain bearings, CuSn8 bronze bearing, technical parameters







Diameter less than 22, bearing rhombic groove                     Diameter greater than 22, bearing rhombic groove





Rhomboid oil groove, wrapped bronze plain bearing, because the groove has a certain depth, so it has a certain ability to store oil, in the closed use space, can play a very good self-lubricating effect, oil and grease can be stored in the wrapped bronze plain bearing sleeve for a long time.



Factory production wrapped bronze plain bearing production indication

wrapped bronze plain bearing production

Wrapped bronze plain bearing production process



                        Wrapper bronze plain bearing production process





Wrapped bronze plain bearings refer to ISO 3547, you can click here for more technical requirements ISO 3547 part .pdf




You can customize the CuSn8 bronze bearing from us or let us draw machining drawings



Bronze rolled bearing drawingBronze rolled bearing drawing



Therefore, you can customize the types of wrapped bronze plain bearing oil slot holes from us, such as round through hole or type diamond oil slot, flange structure or type straight barrel structure, and more special materials. For example, you can customize cusn6.5p0.1 material from us, which is environmentally friendly and lead-free, suitable for medical treatment, food and other machinery.



choose your correct wrapped bronze plain bearing type



Here you can choose the CuSn8 wrapped bronze bearings sizes of the type part, more sizes you can refer to PDF.





h8 H7 d D T h- 10 12 15 20 25 30
10 0
-0.022
12 +0.018
0
10 12 0.980
0.955
4 1010 1012 1015 1020
12 0
-0.027
14 " 12 14 " " 1210 1212 1215 1220 1225
14 " 16 " 14 16 " "     1415 1420 1425
15 " 17 " 15 17 " " 1510 1512 1515   1525
16 " 18 " 16 18 " "     1615 1620 1625
18 " 20 +0.021
0
18 20 " "     1815 1820 1825
20 0
-0.033
23 " 20 23 1.475
1.445
"     2015 2020 2025 2030
22 " 25 " 22 25 " 6     2215 2220 2225 2230
24 " 27 " 24 27 " "     2415 2420 2425 2430
25 " 28 " 25 28 " "     2515 2520 2525 2530
28 " 32 +0.025
0
28 32 1.970
1.935
"       2820 2825 2830
30 " 34 " 30 34 "         3020   3030
32 0
-0.039
36 " 32 36 " "       3220   3230
35 " 39 " 35 39 " "       3520   3530
36 " 40 " 36 40 " "
37 " 41 " 37 41 " "       3720
40 " 44 " 40 44 " 8       4020   4030
45 " 50 " 45 50 2.460
2.415
"       4520   4530
50 " 55 +0.030
0
50 55 " "
55 0
-0.046
60 " 55 60 " "       5520
60 " 65 " 60 65 " "





Click here for PDF for more CuSn8 bronze bearing information Wrapped Bronze Bushings.pdf





You can refer to this table to select the suitable wrapped bronze bearing.




Standard Dia.

O.D.Size

Housing Bore

I.D.Size

Matching Shaft Diameter
10~18 +0.065
+0.030
+0.018
0
+0.046
0
- 0.016
- 0.043
18~30 +0.075
+0.035
+0.021
0
+0.052
0
- 0.020
- 0.020
30~50 +0.085
+0.045
+0.025
0
+0.062
0
- 0.025
- 0.064
50~80 +0.100
+0.055
+0.030
0
+0.074
0
- 0.030
- 0.076
80~120 +0.120
+0.070
+0.035
0
+0.087
0
- 0.036
- 0.090
120~180 +0.170
+0.100
+0.400
0
+0.100
0
- 0.043
- 0.106
180~250 +0.210
+0.130
+0.046
0
+0.115
0
- 0.050
- 0.122
250~315 +0.260
+0.170
+0.052
0
+0.130
0
- 0.056
- 0.137





CuSn8 Wrapped Bronze Plain Bearings Application



You can choose to be used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry and mining machinery, but also can be made into bearing bush, flanged bushing, thrust gasket and ball bowl and other forms.



Crane bronze bearing                                          Tractor bronze bearing
