Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery

Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery
Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery

Large Image :  Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery

Product Details:
Place of Origin: gleitlagerbuchsen china
Brand Name: VIIPLUS Graphite Bronze self-lubricating bearing
Certification: ISO/9001 DIN 1494, ISO 3547 STANDARD BUSHING
Model Number: self-lubricating bearing
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Carton Wood Pallet Wooden Case
Delivery Time: 7-25 work days
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery

Description
Material: Steel+CuSn6Zn6Pb3 Feature: Self-lubrication Is Maintenance-free
Lubrication: Embedded Graphite And MoS2 Areas Of Use: Metallurgical Machinery, Construction Machinery And Oil Machinery Bearings
Performance: High Quality Cost
High Light:

graphite bronze bushing

,

graphite plugged bronze bushings

VSB-JDB-3 Steel matrix composite self-lubricating bearing

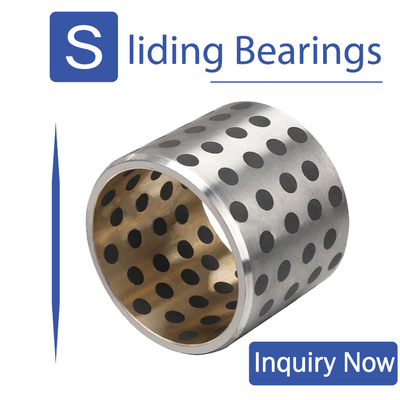

steel-copper inlaid bearing is a solid lubricating product embedded with solid lubricant after sintering tin bronze powder as a whole in the substrate of the steel sleeve, which not only has the function of vsb-jdb-2, but also can save cost and improve compressive strength.Its end face can be used for welding and installation with matrix, so it is suitable for metallurgical machinery, construction machinery and oil machinery and other fields where refueling is not allowed



Stainless steel bearings: stainless steel bearings and ordinary bearings, not only material has an obvious advantage, and in the process, precision control, than the ordinary bearings to be more strict.In the working process, the stainless steel bearings work stably, the noise is small, the corrosion resistance, the stainless steel bearings can organize the batch production, has realized the high strength, the high precision.Can be used in a variety of products easy to rust, strong corrosion, mainly used in medical equipment, ocean engineering, cryogenic engineering, optical instruments, high-speed machine tools, high-speed motors, printing machinery, food processing machinery and other parts.Stainless steel is often divided into: martensitic steel, ferrite steel, austenitic steel, austenitic - ferrite





VSB-JDB-3 Steel matrix composite self-lubricating bearing Technical Data





Substrate material Steel+CuSn6Zn6Pb3 Maximum operating temperature ℃ 300
Limit dynamic load N/mm² 70
The coefficient of friction u <0.15 Maximum sliding speedm/s 2
Basic hardness HB 60~90







ZCuSn6Zn6Pb3
Sn(%) Al(%) Fe(%) Pb(%) Cu(%)
6 0.002 0.05 6 rest
(Tensile strength)σb (MPa) ≥420
(Elongation) δ5 (%) ≥10





Steel matrix composite self-lubricating bearing Alloy material





VSB-JDB-1 VSB-JDB-2 VSB-JDB-3 VSB-JDB-4 VSB-JDB-5
VSB-JDB-2 VSB-JDB-22 VSB-JDB-23
GB1776-87 ZCuZn25
Al6Fe3Mn3
ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15
ISO1338 GCuZn25
Al6Fe3Mn3
GCuSn6Zn6Pb3 GCuAl10Fe3 - Steel+ CuSn6Zn6Pb3
Fe3Ni5
- B1
DIN G-CuZn25
Al5
GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel+ CuSn6Zn6Pb3Ni - 100Cr6
JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
(BS) HTB2 LG2 AB1 PB4 LG2 - -





Industrial graphite bearing Gleitlagerbuchsen







Schematic diagram of lubrication principle





VSB-JDB-1 VSB-JDB-2 VSB-JDB-3 VSB-JDB-4 VSB-JDB-5
VSB-JDB-2 VSB-JDB-22 VSB-JDB-23
GB1776-87 ZCuZn25
Al6Fe3Mn3
ZCuSn6Zn6Pb3 ZCuAl10Fe3 ZCuSu10P1 Steel+ ZCuSn6Zn6Pb3 HT250 GCr15
ISO1338 GCuZn25
Al6Fe3Mn3
GCuSn6Zn6Pb3 GCuAl10Fe3 - Steel+ CuSn6Zn6Pb3
Fe3Ni5
- B1
DIN G-CuZn25
Al5
GB-CuSn5Zn5Pb5 GB-CuAl10Ni GB-CuSn10 Steel+ CuSn6Zn6Pb3Ni - 100Cr6
JIS HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
ASTM/UNS C86300 C83600 C95500 C90500 C83600 Class40 52100
(BS) HTB2 LG2 AB1 PB4 LG2 - -





Steel matrix composite self-lubricating bearing advantage



Graphite bearing has good adsorption, thermal conductivity, chemical stability, strong oxidation resistance and high temperature resistance.Self - lubricating effect and other high - quality characteristics.Highly praised by industrial users.Sometimes in order to achieve more prominent antioxidant characteristics, graphite bearings will be treated with a special process.





Our mode of transportation

Steel And Copper Inlaid Bronze Gleitlager Bearings For Metallurgical Machinery 2

Application field





agricultural Self-lubricating graphite bearingindustrial Self-lubricating graphite bearingThe energy sector Self-lubricating graphite bearing
