Custom Machined Self Lubricating Plain Bearing / Cast Bronze Bushings

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bronze +Graphite,Aluminum-Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3 Model Number Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Bearings Lubrication Graphite,gleitlagerbuchsen
Application Screening Equipment Bucket Scrap Metal Dirt Fertilizer Urea Dap Sorting System Excavator Screener Loader Telehandler Skid Steer Type FLANGE/SLEEVE/WASHER
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bronze plain bearing

,

graphite plugged bronze bushings

Leave a Message
Product Description

Maintenance Free Cast Bronze Bearings & Bronze Bushing | Brass Oilless Bushes



Cast bronze bearings & bronze bushings are ideal for maintenance-free & heavy duty applications.



We manufacture custom and standard machined brass and bronze bushings and bearings to serve in a variety of industrial applications.



How VIIPLUS Help Your Shipping the self lubricating bronze bushing from China


If you’re not familiar with importing bushing bearings from China, shipping from China can be a problem for you. VIIPLUS is a professional self-lubricating bearing bushings supplier in China, we provide very competitive bushing bearings prices for shipping by sea, shipping by air.

ASK Your Best Quote For Your Self-lubricating bearings parts

Gleitlagerbuchsen,Custom Machined Commercial Excavator Screener Loader Truck Self Lubricating Plain Bearing / Cast Bronze Bushings



Cast Bronze Bushings China CuZn25Al5 material Graphite Lubricating Bronze Bushing


Commercial Truck Plain Sleeve Bushings for Screening equipment bucket Scrap Metal dirt fertilizer urea dap sorting system excavator screener loader telehandler skid steer self-lubricating bearings made to order from china.
We Stock and Manufacture Solutions for the Commercial Truck Industry BushingsSleeve Bushings,Slide Bearings,Thrust Bearings,Injection Block Bearings & Thrust Washers.


Availability

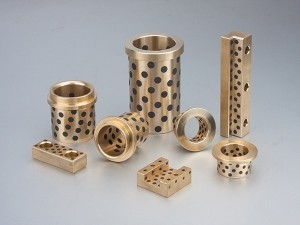

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

We are a major supplier of precision components to a range of commercial industries, providing turnkey solutions to customers at competitive rates. Leveraging our state of the art machining capabilities and on-site materials warehouse, we are able to create parts for critical applications from any combination of materials. Our experience encompasses production for a range of businesses including transportation and commercial trucking.

graphite plugged bushings

Construction Machinery​


Excavators Bushings & Bearings,Self-lubricating Guide Bushing, Self-lubricating Guide BearingsGleitlagerbuchsen
VIIPLUS SLiding Bearings are used in the engines and hydraulic systems of excavators and other construction machinery.The self-lubricating graphite plugged bronze sleeve bushings are machined from continuous cast bronze bar stock. They are then milled and plugged with solid lubricant graphite based plugs. The plugged graphite bushings are great for applications where maintenance is difficult and where normal grease.VIIPLUS cast bronze bushing is based on high strength brass or other material based on your choice, lubricating by oil added in the oil grooves. This type cast bronze sleeve bushing has the same performance with other oiles bearing.but with much higher hardness, twice life time for low speed application compared with tin bronze bushing.

Datong Misumi Dme Bujes Bronze Bushing Motor Gearbox Sleeve Dual Mass Flywheel Repairing Self-Lubricating Bearing PTFE Peek Bushing Sankyo Sliding Bearing MPTZ20 28 25 33 30 38
Solid Bronze Metallic Self-lubricating Bearings

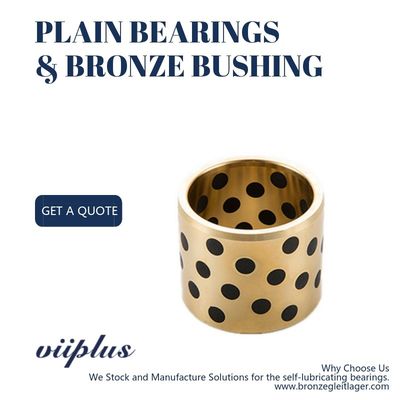

Cast Bronze Bearing with Graphite Plugs

Structure Characteristics and Applications



Small and Middle Size Engineering Machines: Bulldozer, Excavator, Loader Cast Bronze Bearings
Material:CuZn25AI5Mn4Fe3

Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.


Solid Lubricant Casting Aluminum Bronze Bearings Bronze Bushings


with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also availablegleitlagerbuchsen.

Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃


Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Technical Data

Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

Chemical Compositions

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2
