Wrapped bronze bearings, with their customized diameters, offer a flexible and tailored solution for a wide range of industrial applications. Bronze, known for its excellent wear resistance and corrosion resistance, is an ideal material for bearings that require high performance and durability.

The ability to customize the diameter of these bearings ensures a perfect fit for your specific equipment and machinery. Wh you need a bearing with a larger or smaller diameter, our team of experts can work with you to create a custom solution that meets your exact requirements.

Wrapped bronze bearings provide superior load-bearing capacity and stability, ensuring smooth and efficient operation of your equipment. Their precision manufacturing ensures tight tolerances and reduced friction, further enhancing performance and extending the lifespan of your machinery.

Our commitment to quality and customer satisfaction is reflected in every wrapped bronze bearing we produce. We use only the highest-grade materials and employ strict quality control measures to ensure the reliability and durability of our products.

If you're looking for a customized solution for your bearing needs, wrapped bronze bearings with customized diameters are an excellent choice. Contact us today to discuss your requirements and learn more about how we can help you achieve optimal performance and reliability in your industrial applications.

Bronze Wrapped Flanged Bearings | Metric Flanged Wrapped Bronze Bushing

Bronze wrapped plain bearings

Buy low priced Wrapped Bronze Bearings from Wrapped Bronze Bearings factory, We provide good quality Wrapped Bronze Bearings from China.

Flange wrapped bronze bearings with through holes metric size Bronze bushing flange F092 ID100 OD105 F120 L50.pd...

Wrapped Bronze Bearing Bushings for Forage Harvesters & Headers

Dimention in MM: Inner diameter - 170 Outer diameter - 175 Height - 58.Spare part made in china

Bronze Bushings Through Holes CuSn8 ISO3547 Staright Type

Parameters

• CuSn8P (DIN 17662)
• DIN 1494 / ISO 3547

The basic characteristics of 090 bronze bearing

FB090 bronze bearing adopts high density copper alloy strip material with special formula as matrix. The surface can be rolled with diamond or hemispherical oil holes and oil groove according to user's requirements.It has the advantages of high density, high bearing pressure, good wear resistance and long service life, etc., to replace the traditional cast copper cover, can reduce the mechanical volume and reduce the cost.Has been widely used in lifting machinery, construction machinery, automotive tractor industry, machine tool industry and mining machinery, can also be made into bearing bush, flanged bearings, thrust gasket and ball bowl and other forms
Technical parameters

The basic characteristics of 092 bronze bearing

FB092 bronze bearing, based on cusn8p0.3 bronze, is designed with uniform and orderly oil storage holes. After assembly, lubricating grease is injected into the bearing, and the end face seal is configured for use.The bearing has the advantages of large oil storage, easy installation and small volume, and can be used instead of casting copper sleeve, greatly reducing the cost.Suitable for medium and low speed applications.Such as: conveyor, lift, hoist, leveling machine, etc.


Technical parameters

• Basic material: cusn8p0.3

• Matrix hardness: hb90-120

• Maximum bearing pressure: 60N/mm2

• Applicable temperature range: -100 - +200℃

• Maximum sliding speed: 2.5m/s

• Maximum allowable PV value (oil) : 16N/mm2.m/s

Self-lubricating Bronze Bushing Type

• Straight sleeve

• Flanging sleeve

• Washer

• Thrust gasket

• Slide plate

• other non-standard parts, etc.

092 Bornze Gleitlager CuSn8 Chemical Composition

Application

A spare part for the chopper of the Claas forage harvesters and headers.

Destination

Ensuring the optimal level of friction between the elements of the node during its operation.
This spare part is used for replacing worn out or damaged parts during repairs.

Properties

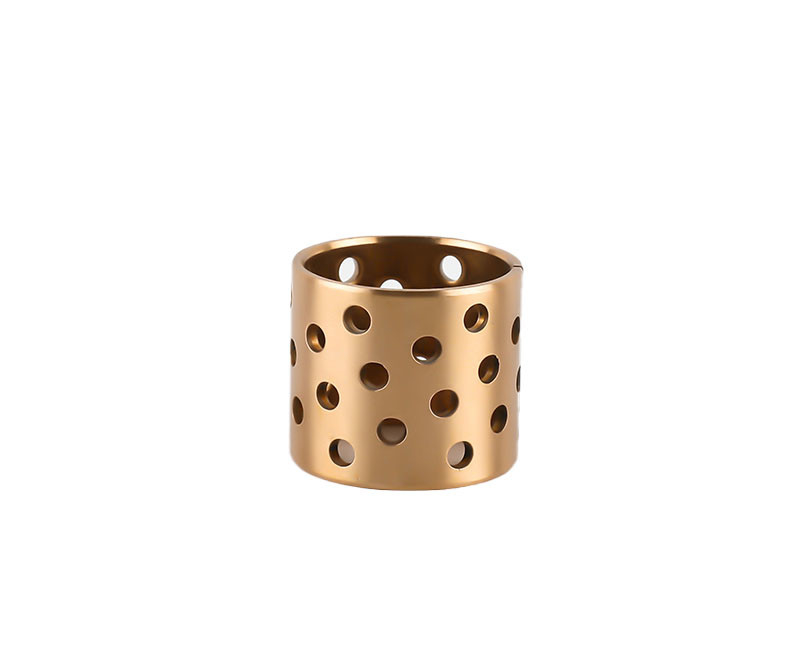

Bronze product in the form of a piece of a hollow cylinder with perforations and a slot on the side surface.

wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.
