Tin Or Copper Plating Dry Bushings Bronze Gleitlager Straight & Shoulder ISO 3547

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Steel Backed, Bronze , PTFE Plating Tin Or Copper
Quality Gleitlagerbuchsen,high Quality Size Std.&Non-std. Customized Sizes
Application PET Preform Mold Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing


graphite plugged bronze bushings

Leave a Message
Product Description

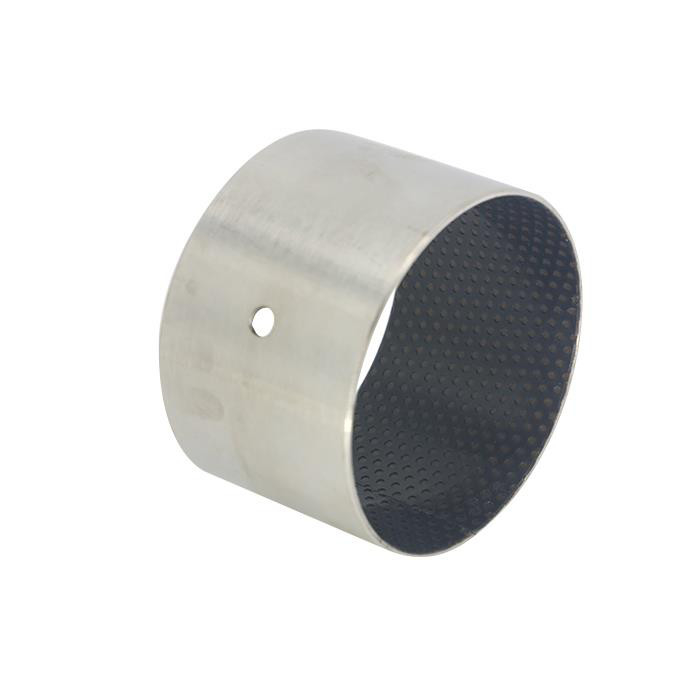

Tin or Copper Plated Dry Bushings made of Bronze Gleitlager Material, available in Straight and Shoulder configurations, are precision-engineered components that adhere to the ISO 3547 standard. These bushings feature a tin or copper plating, which provides excellent wear resistance and corrosion protection, enhancing their durability and longevity. The bronze Gleitlager material offers superior mechanical properties, making these bushings suitable for heavy-duty applications. The straight and shoulder designs offer flexibility in installation and allow for easy integration into various machinery and equipment.

Metal Polymer Composite Bearings - Maintenance-free Steel Backed PTFE Composite Bushing


Order Bronze Gleitlager & Lagerbuchsen Online From bronzegleitlager.com


Beyond Bearings: Enhancing Performance with Polymer Coatings

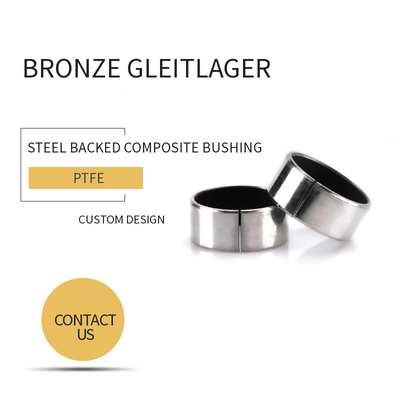

PTFE Composite Bronze Gleitlager Structure


 lined bushings

  • 1. PTFE/Pb mixture 0.01~0.03mm as sliding layer, provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming homogeneous oxide type solid lubricant film.
  • 2. Porous bronze 0.2~0.3mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-lead mixture.
  • 3. Low-carbon steel backing 0.7~2.3mm, provides fundamental structural support and gives exceptionally high load carrying capacity, excellent heat dissipation.
  • 4. Tin-plating 0.005mm or copper plating 0.008mm, provides good corrosion resistance.


PTFE Composite Bronze Gleitlager Characteristics


  • · Good wear and friction performance over a wide range of loads, speeds and temperature without oil
  • · Also perform well with lubrication
  • · Maintenance-free, long life




  • · Standard cylindrical bushings, flange bushings, thrust washers and straps available.
  • ·Lead-free type is also available
  • · All special designs are made according to your requirements.


PTFE Composite Bronze Gleitlager Application

PTFE composite bearing is widely used in lifting equipment, hydraulics and valves, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, construction equipment, material handling equipment, packaging equipment, automotive industry, science equipment, dryers, office equipment etc .

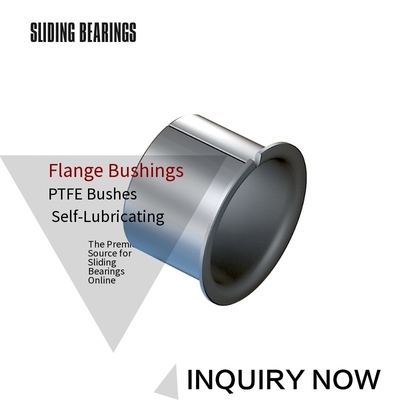

We offers Flanged bushings PTFE composite & Thrust washers PTFE composite products from china,Material PAP bushes. PAF flange bushes. PAW thrust washers. PAS strips. PAP P10. PAF P10. PAW P10. PAP P11 bronze backed bearings cheap price made to order from china.

We have a large selection of plain bushes and flanged bearings for various applications.
gleitlagerbuchsen,lagerbuchse gleitlager,Your development, construction and manufacturing experts!Resistant to high temperatures of 600 degrees Celsius.Made in China.Category: maintenance-free plain bearings, copper sleeves, shaft sleeves.https://www.viiplus.com
Rolled bearings are based on high-quality cold-rolled steel plates with porous spherical bronze powder sintered in the middle, and then a mixture of polytetrafluoroethylene (PTFE) and fibers is sintered on the surface of the porous spherical bronze powder layer, and the rolled sliding Bearings.
This product has the characteristics of small friction coefficient, wear resistance, good corrosion resistance and self-lubrication. The use of this product can reduce the cost, reduce the mechanical volume, avoid the occurrence of shaft biting and reduce mechanical noise.
This product has been widely used in various mechanical sliding parts, such as printing machines, elevators, textile machines, tobacco machines, fitness machines, hydraulic vans, micro-motors, solenoid valves, automobiles and agricultural and forestry machinery.

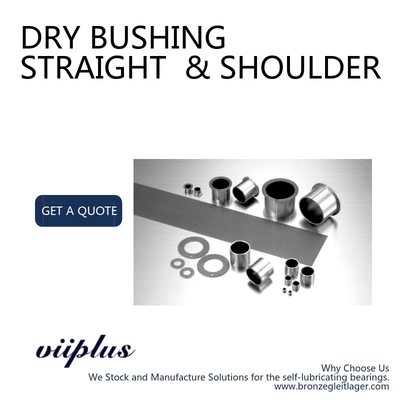

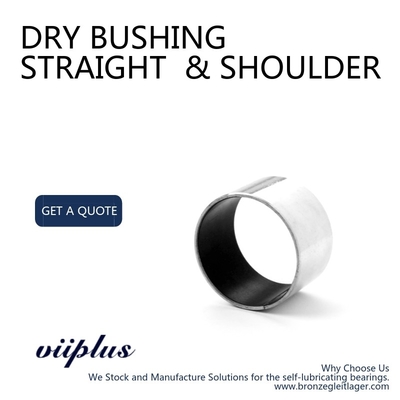

Dry Bushing Straight & Shoulder Heat resistant temperature -195 ~ 280℃
* 1) deburring and flanging the inner and outer diameter chamfering below the inner diameter d10.
2) the chamfering Angle is C0.3 when the inner diameter d is more than 10 and the plate thickness is 1.0.

・ material

tetrafluoride resin layer with filler


Port machinery dry sliding bearing

Bronze sintered layer

Steel metal base
Environment: standard/in oil
Multilayer system: steel, sintered bronze, tetrafluoroethylene
Mounting shaft fit tolerance: e7
Mounting hole fit tolerance: H7
Lubrication condition: no lubrication
Allowable maximum surface pressure P: 49
Permissible maximum speed V: 0.65
Allowable maximum PV value (range) : 2.1 ~ 5.0
Allowable maximum PV value: 3.6


Steel + Bronze powder + PTFE
ISO9001, TS16949
Outside surface Plating
Max load capacity P
Static Load 250N/mm²,Dynamic Load 140N/mm²,Oscoillation Load 60N/mm²
Max line speed V
Dry Lubrication 2.5m/s,Oil Lubrication >5m/s
PV value limit
Dry Lubrication 1.8N/mm²· m/s,Oil Lubrication 3.6N/mm²· m/s
Friction coef u
Dry Lubrication 0.08~0.20,Oil Lubrication 0.02~0.12
Max Working temperature
Mating Axis
Hardness >220 HB,Roughness Ra=0.4~1.25
Thermal conductivity
Coefficient of linear expansion
printing, woven, tobacco and gymnastic machinery


Factors Affecting Life

1: Load P: The larger the load, the shorter the bearing life; in any case, the maximum load must not exceed the theoretical maximum allowable load.
2: Speed V: The higher the speed, the shorter the bearing life; in any case, the maximum sliding speed cannot exceed the theoretical maximum allowable value.
3: PV value: The working life of the bearing depends on the PV value, that is, the product of the actual load P and the sliding speed V. The smaller the PV value, the longer the bearing life.
4: Temperature: The life of the bearing also depends on the temperature at which the bearing is used. The higher the temperature, the shorter the service life of the bearing. Therefore, the heat dissipation characteristics of the relevant components should be considered in the design selection.
5: Surface roughness of the grinding parts: When the grinding parts are made of alloy steel or hard chrome-plated shaft, the bearing life can be significantly improved when the surface roughness Ra=0.4-0.63.
6: Other factors such as bearing housing design, lubrication conditions, etc.
