| Brand Name: | REPLACEMENT PLAIN BEARINGS |
| Model Number: | Bronze Plain Bearings with Grease Reservoirs |
| MOQ: | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price: | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Payment Terms: | T/T |
| Supply Ability: | STANDARD TOLERANCE BUSHINGS |

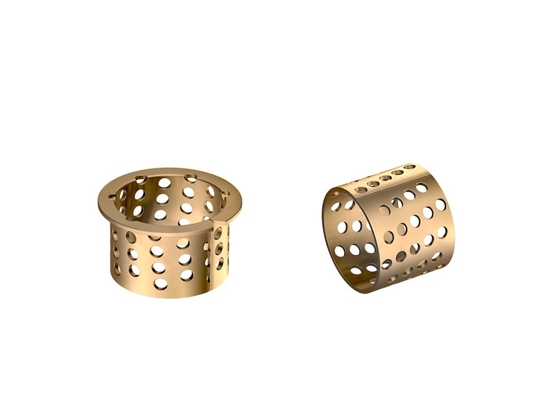

Our Wrapped Bronze Sleeve Bushings with Bronze Flange Bearing offer a unique combination of durability, precision, and performance. These bushings are designed to provide a smooth and reliable operation in a wide range of industrial and automotive applications.
The bronze material used in these bushings is known for its excellent wear resistance and ability to handle high loads. The wrapped design adds an extra layer of protection, ensuring longer service life and reduced maintenance requirements.
The flanged bearing provides additional stability and support, minimizing movement and maximizing precision. This ensures accurate alignment and smooth operation, even under extreme conditions.
When it comes to size and standard tolerance, we understand that every application is unique. Therefore, we offer a wide range of sizes and tolerances to cater to your specific needs. Wh you require a standard size or a custom-made bushing, we can provide it with precision and accuracy.
Our Wrapped Bronze Sleeve Bushings with Bronze Flange Bearing are suitable for various applications, including heavy machinery, automotive components, and other industrial equipment. They can handle high temperatures, high loads, and demanding operating conditions.
So, if you're looking for a high-quality, durable, and precise Wrapped Bronze Sleeve Bushing with Bronze Flange Bearing, look no further than our offerings. Contact us today to discuss your requirements and get a quote. We'll ensure that you get the perfect bushing for your application.
VIIPLUS is dedicated to the research and manufacture of all kinds of bushings,spare parts,machinery parts and precision parts. We are approved by the third party concerning the quality certificate. . The quality and performance have met or exceed international standards.

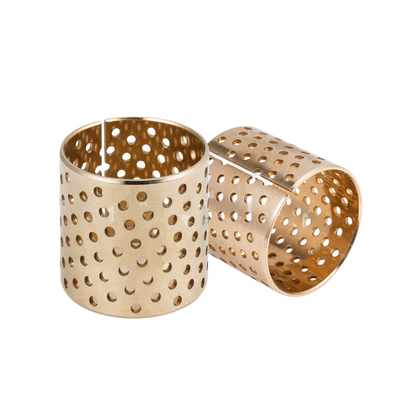

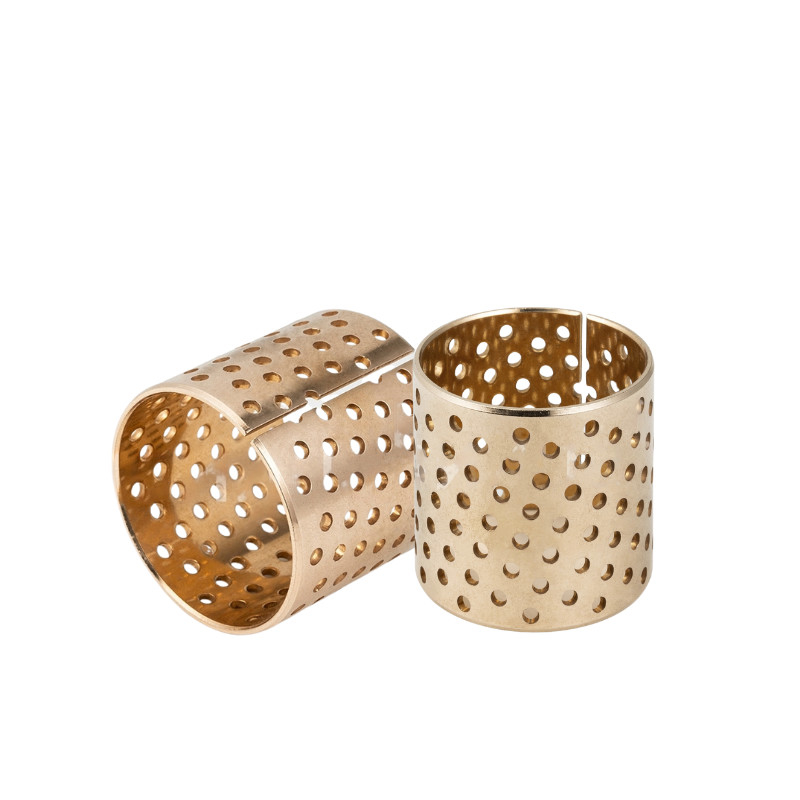

Wrapped Bronze Sleeve Bushings , Bronze Flange Bearing Size & Standard Tolerance Wrapped oilles bushing inside with oil pockets
Tolerances, operating clearance (Bushing data) Shaft and housing tolerances Dimensions Metric (mm)Imperial (inch) made to order.
Standard Tolerance for Flange Bearing (As per to DIN ISO/3547) Cusn8& Cusn6 Bronze-Wrapped Bearing.It is based on high density copper alloy of special formula.
The alloy surface is rolled to diamond or global oil grooves. It has high density, good load capacity and wear-resistant. The product is applied to lifting machinery, construction machinery and mining machinery, etc.High-density bronze roll forming or spherical oil pockets, oil hole special internal surface to reduce wear and tear to extend the use of time and good anti-corrosion function.
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.
Material:CuSn8
Hardness:HB90~120
Temperature limit:-80℃~200℃
Load capacity:75N/mm2
Speed limit:2.5m/s
| Type | Spec. | Type | Spec. | |||
| FLANGED BRONZE BEARINGS | 2515 | 25～28/35～15 | FLANGED BRONZE BEARINGS | 11050 | 110～115/130～50 | |
| FLANGED BRONZE BEARINGS | 2525 | 25～28/35～25 | FLANGED BRONZE BEARINGS | 11090 | 110～115/130～90 | |
| FLANGED BRONZE BEARINGS | 3020 | 30～34/45～20 | FLANGED BRONZE BEARINGS | 12050 | 120～125/140～50 | |
| FLANGED BRONZE BEARINGS | 3030 | 30～34/45～30 | FLANGED BRONZE BEARINGS | 12090 | 120～125/140～90 | |
| FLANGED BRONZE BEARINGS | 3520 | 35～39/50～20 | FLANGED BRONZE BEARINGS | 13060 | 130～135/155～60 | |
| FLANGED BRONZE BEARINGS | 3530 | 35～39/50～30 | FLANGED BRONZE BEARINGS | 13090 | 130～135/155～90 | |
| FLANGED BRONZE BEARINGS | 4025 | 40～44/55～25 | FLANGED BRONZE BEARINGS | 14060 | 140～145/165～60 | |
| FLANGED BRONZE BEARINGS | 4040 | 40～44/55～40 | FLANGED BRONZE BEARINGS | 14090 | 140～145/165～90 | |
| FLANGED BRONZE BEARINGS | 4530 | 45～50/60～30 | FLANGED BRONZE BEARINGS | 15060 | 150～155/180～60 | |
| FLANGED BRONZE BEARINGS | 4545 | 45～50/60～45 | FLANGED BRONZE BEARINGS | 15090 | 150～155/180～90 | |
| FLANGED BRONZE BEARINGS | 4550 | 45～50/60～50 | FLANGED BRONZE BEARINGS | 16060 | 160～165/190～60 | |
| FLANGED BRONZE BEARINGS | 5030 | 50～55/65～30 | FLANGED BRONZE BEARINGS | 16090 | 160～165/190～90 | |
| FLANGED BRONZE BEARINGS | 5050 | 50～55/65～50 | FLANGED BRONZE BEARINGS | 17060 | 170～175/200～60 | |
| FLANGED BRONZE BEARINGS | 5530 | 55～60/70～30 | FLANGED BRONZE BEARINGS | 17090 | 170～175/200～90 | |
| FLANGED BRONZE BEARINGS | 5550 | 55～60/70～50 | FLANGED BRONZE BEARINGS | 18060 | 180～185/215～60 | |
| FLANGED BRONZE BEARINGS | 6030 | 60～65/75～30 | FLANGED BRONZE BEARINGS | 18090 | 180～185/215～90 | |
| FLANGED BRONZE BEARINGS | 6035 | 60～65/75～35 | FLANGED BRONZE BEARINGS | 19060 | 190～195/225～60 | |
| FLANGED BRONZE BEARINGS | 6060 | 60～65/75～60 | FLANGED BRONZE BEARINGS | 19090 | 190～195/225～90 | |
| FLANGED BRONZE BEARINGS | 6530 | 65～70/80～30 | FLANGED BRONZE BEARINGS | 20060 | 200～205/235～60 | |
| FLANGED BRONZE BEARINGS | 6560 | 65～70/80～60 | FLANGED BRONZE BEARINGS | 20090 | 200～205/235～90 | |
| FLANGED BRONZE BEARINGS | 7040 | 70～75/85～40 | FLANGED BRONZE BEARINGS | 22560 | 225～230/260～60 | |
| FLANGED BRONZE BEARINGS | 7070 | 70～75/85～70 | FLANGED BRONZE BEARINGS | 22590 | 225～230/260～90 | |
| FLANGED BRONZE BEARINGS | 7540 | 75～80/90～40 | FLANGED BRONZE BEARINGS | 25060 | 250～255/290～60 | |
| FLANGED BRONZE BEARINGS | 7570 | 75～80/90～70 | FLANGED BRONZE BEARINGS | 25090 | 250～255/290～90 | |
| FLANGED BRONZE BEARINGS | 8040 | 80～85/100～40 | FLANGED BRONZE BEARINGS | 26060 | 265～270/305～60 | |
| FLANGED BRONZE BEARINGS | 8080 | 80～85/100～80 | FLANGED BRONZE BEARINGS | 26090 | 265～270/305～90 | |
| FLANGED BRONZE BEARINGS | 9050 | 90～95/110～50 | FLANGED BRONZE BEARINGS | 28560 | 285～290/325～60 | |
| FLANGED BRONZE BEARINGS | 9090 | 90～95/110～90 | FLANGED BRONZE BEARINGS | 28590 | 285～290/325～90 | |
| FLANGED BRONZE BEARINGS | 10050 | 100～105/120～50 | FLANGED BRONZE BEARINGS | 30050 | 300～305/340～60 | |
| FLANGED BRONZE BEARINGS | 10090 | 100～105/120～90 | FLANGED BRONZE BEARINGS | 30090 | 300～305/340～90 |
cusn8&cusn6 Bronze-Wrapped Bearing, specially formulated high-density copper alloy strip base body surface may be requested by the user or hemispherical rolling diamond oil hole, oil sump. Having a high density, high carrying capacity, wear resistance, long life and other advantages, to replace the traditional casting of copper, and more compact, lower cost.090 has been widely used in lifting machinery, construction machinery, automobile and tractor chassis, the machine tool industry and mining machinery can also be made bearings, flanged bushes, thrust washers and bowl like.
| Technical Parameters | ||
| Data | Grade | FB090 |
| Material | CuSn8P(Qsn8-0.3) | |
| Applications | Application: Hoisting, mining machinery. Forest machinery, agricultural machinery etc. | |
| Density g/cm³ | 8.8 | |
| Max Dynamic Load N/mm² | 100 | |
| Max Linear Velocity V | Grease m/s | 2 |
| Max PV Value | Grease N/mm²·m/s | 2.8 |
| Pressure Strength N/mm² | >460 | |
| Yield Strength N/mm² | >280 | |
| Hardness HB | 90~150 | |
| Friction Coef u | 0.06~0.15 | |
| Mating Axis | Hardness HRC | ≥50 |
| Roughness Ra | 0.4~1.0 | |
| Working Temperature ℃ | -40~+150 | |
| Thermal Conductivity W/mk | 58 | |
| Coefficient Of Linear Xpansion | 18.5×10-6/K |
