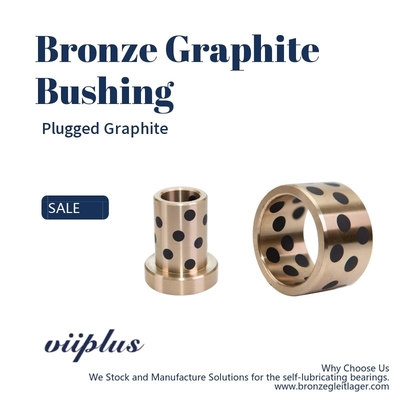

SOB Customized Self Lubricating Bronze Bushing With Graphite Sleeve Flange & Thrust

Place of Origin Graphite Bearings Manufacturers
Brand Name VIIPLUS
Certification ISO 9001
Model Number Customized Self-Lubricating Flange Bronze Bushing With Graphite
Minimum Order Quantity negotiable
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7 - 15 BUSINESS DAYS5
Payment Terms T/T
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuZn25AI5Mn4Fe3 Application Consecutive Casting And Rolling Machines, Mine-exploiting Equipments, Ships, Steam Engine
Type Oiless Bush Type SOB 80-96-80 Size Metric Size And Inch Size
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite impregnated bronze bushings

,

graphite impregnated bushings

Leave a Message
Product Description

Customized Self-Lubricating Flange Bronze Bushing With Graphite, oiless bush type SOB series bushes, Bushings Manufacturers and Suppliers

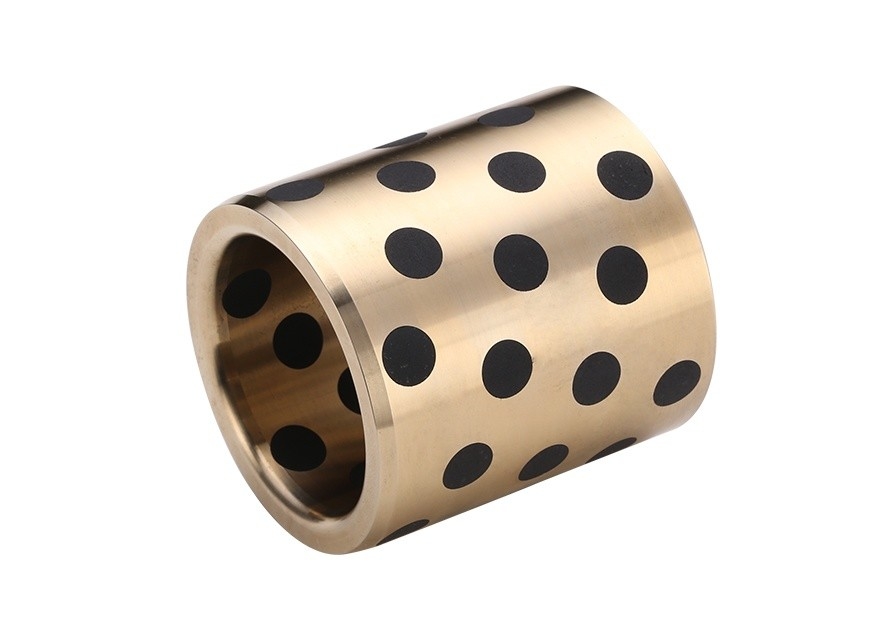

SOB Customized Self-Lubricating Bronze Bushing with Graphite Sleeve, Flange, and Thrust

SOB offers customized self-lubricating bronze bushings that are designed to meet specific application requirements. These bushings feature a graphite sleeve, flange, and thrust, providing exceptional lubrication and wear resistance.

The bronze material used in these bushings is known for its high strength and durability, making it suitable for various industrial and automotive applications. The addition of the graphite sleeve further enhances the bushings' lubrication properties, reducing friction and wear.

The flange and thrust design of these bushings provide additional support and stability, ensuring a secure fit and optimal performance. This design also allows for easy installation and removal, making maintenance and replacement a breeze.

The customization options offered by SOB allow customers to specify the exact dimensions, tolerances, and material properties of their bushings. This ensures that the bushings will fit perfectly into existing systems and meet the specific performance requirements of the application.

In summary, SOB's customized self-lubricating bronze bushings with graphite sleeve, flange, and thrust are an excellent choice for applications that require high wear resistance and reliable lubrication. Their unique design and material composition make them a superior option for various industrial and automotive applications.

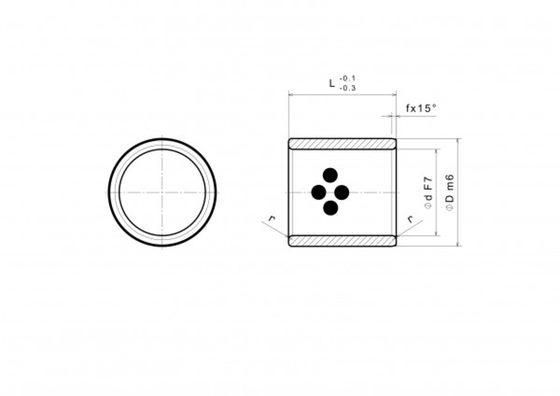

Copper Sleeve and Bearings



Inner diameter d
Outer diameter D
Length L
Please choose

80-96-80
Bushings & Bearings | Sleeve, Flange, Thrust | VIIPLUS SLIDING BEARINGS.
SOB series  oiless industries sob35-44-30 bush


Properties: "SOB"

Base Material: Special Brass (SO#50SP2)
Self-lubricating: Yes
Lubricant: Graphite
Surface Pressure P: 100 N/mm²
Sliding speed v: 30 m/min
P*v-value: 200 N/mm² x m/min
Operating temperature: -50°C / +200°C (max. 300°C)
Friction coefficient: 0,07



Price and delivery time on request
Product information "SOB"

Maintenance-free  bushes bearing and guide bushes, bronze with solid lubricant

VIIPLUS CHINA offers graphite machining of graphite bearings, and graphite bushings, and a wide selection of other graphite parts
Manufacturers and Suppliers of Graphite Filled Bronze Bushes, Graphite Filled Bronze Plates, Bearing, Bush, Bearings, Bushes, Washer, Washers, CHINA, FAST DELIVERY
Bronze graphite bushing: Solid lubrication bearings are made by reinforcing brass, which has good physical performance and good pourability. In addition, the brass material in air, fresh water, and seawater has a fairly good erosion protection. The surface is regularly and finely machined with sleeves, in particular a solid lubricant is filled. Its material is CuZn25Al5Mn4Fe3. The material of the copper alloy can be changed according to customer requirements



SOBF FLANGE BUSHING SIZE CHART



SOBF 8-12-10 8 12 10 20 2 0,5
SOBF 8-12-12 8 12 12 20 2 0,5
SOBF 8-12-15 8 12 15 20 2 1
SOBF 10-14-10 10 14 10 22 2 1
SOBF 10-14-12 10 14 12 22 2 1
SOBF 10-14-15 10 14 15 22 2 1
SOBF 10-14-17 10 14 17 22 2 1
SOBF 10-14-20 10 14 20 22 2 1
SOBF 12-18-10 12 18 10 25 3 1
SOBF 12-18-12 12 18 12 25 3 1
SOBF 12-18-15 12 18 15 25 3 1
SOBF 12-18-20 12 18 20 25 3 1
SOBF 12-18-25 12 18 25 25 3 1
SOBF 12-18-30 12 18 30 25 3 1
SOBF 13-19-10 13 19 10 26 3 1
SOBF 13-19-12 13 19 12 26 3 1
SOBF 13-19-15 13 19 15 26 3 1
SOBF 13-19-20 13 19 20 26 3 1
SOBF 13-19-25 13 19 25 26 3 1
SOBF 13-19-30 13 19 30 26 3 1
SOBF 14-20-15 14 20 15 27 3 1
SOBF 14-20-20 14 20 20 27 3 1
SOBF 14-20-25 14 20 25 27 3 1
SOBF 15-21-10 15 21 10 28 3 1
SOBF 15-21-12 15 21 12 28 3 1
SOBF 15-21-15 15 21 15 28 3 1
SOBF 15-21-20 15 21 20 28 3 1
SOBF 15-21-25 15 21 25 28 3 1
SOBF 15-21-30 15 21 30 28 3 1
SOBF 16-22-12 16 22 12 29 3 1
SOBF 16-22-15 16 22 15 29 3 1
SOBF 16-22-18 16 22 18 29 3 1
SOBF 16-22-20 16 22 20 29 3 1
SOBF 16-22-23 16 22 23 29 3 1
SOBF 16-22-25 16 22 25 29 3 1
SOBF 16-22-30 16 22 30 29 3 1
SOBF 16-22-35 16 22 35 29 3 1
SOBF 16-22-40 16 22 40 29 3 1
SOBF 18-24-15 18 24 15 32 3 1
SOBF 18-24-20 18 24 20 32 3 1
SOBF 18-24-25 18 24 25 32 3 1
SOBF 18-24-30 18 24 30 32 3 1
SOBF 18-24-35 18 24 35 32 3 1
SOBF 18-24-40 18 24 40 32 3 1
SOBF 20-30-15 20 30 15 40 5 1
SOBF 20-30-20 20 30 20 40 5 1
SOBF 20-30-25 20 30 25 40 5 1
SOBF 20-30-30 20 30 30 40 5 1
SOBF 20-30-35 20 30 35 40 5 1
SOBF 20-30-40 20 30 40 40 5 1
SOBF 25-35-15 25 35 15 45 5 1
SOBF 25-35-20 25 35 20 45 5 2
SOBF 25-35-25 25 35 25 45 5 2
SOBF 25-35-30 25 35 30 45 5 2
SOBF 25-35-35 25 35 35 45 5 2
SOBF 25-35-40 25 35 40 45 5 2
SOBF 25-35-50 25 35 50 45 5 2
SOBF 30-40-20 30 40 20 50 5 2
SOBF 30-40-25 30 40 25 50 5 2
SOBF 30-40-30 30 40 30 50 5 2
SOBF 30-40-35 30 40 35 50 5 2
SOBF 30-40-40 30 40 40 50 5 2
SOBF 30-40-50 30 40 50 50 5 2
SOBF 31,5-40-20 31,5 40 20 50 5 2
SOBF 31,5-40-30 31,5 40 30 50 5 2
SOBF 31,5-40-35 31,5 40 35 50 5 2
SOBF 31,5-40-40 31,5 40 40 50 5 2
SOBF 35-45-20 35 45 20 60 5 2
SOBF 35-45-25 35 45 25 60 5 2
SOBF 35-45-30 35 45 30 60 5 2
SOBF 35-45-35 35 45 35 60 5 2
SOBF 35-45-40 35 45 40 60 5 2
SOBF 35-45-50 35 45 50 60 5 2
SOBF 40-50-20 40 50 20 65 5 2
SOBF 40-50-25 40 50 25 65 5 2
SOBF 40-50-30 40 50 30 65 5 2
SOBF 40-50-35 40 50 35 65 5 2
SOBF 40-50-40 40 50 40 65 5 2
SOBF 40-50-50 40 50 50 65 5 2
SOBF 45-55-30 45 55 30 70 5 2
SOBF 45-55-35 45 55 35 70 5 2
SOBF 45-55-40 45 55 40 70 5 2
SOBF 45-55-50 45 55 50 70 5 2
SOBF 45-55-60 45 55 60 70 5 2
SOBF 50-60-30 50 60 30 75 5 2
SOBF 50-60-35 50 60 35 75 5 2
SOBF 50-60-40 50 60 40 75 5 2
SOBF 50-60-50 50 60 50 75 5 2
SOBF 50-60-60 50 60 60 75 5 2
SOBF 55-65-40 55 65 40 80 5 2
SOBF 55-65-60 55 65 60 80 5 2
SOBF 60-75-40 60 75 40 90 7,5 3
SOBF 60-75-50 60 75 50 90 7,5 3
SOBF 60-75-80 60 75 80 90 7,5 3
SOBF 63-75-67,5 63 75 67,5 85 7,5 3
SOBF 65-80-60 65 80 60 95 7,5 3
SOBF 70-85-50 70 85 50 105 7,5 3
SOBF 70-85-80 70 85 80 105 7,5 3
SOBF 75-90-60 75 90 60 110 7,5 3
SOBF 80-100-60 80 100 60 120 10 3
SOBF 80-100-80 80 100 80 120 10 3
SOBF 80-100-100 80 100 100 120 10 3
SOBF 90-110-60 90 110 60 130 10 3
SOBF 90-110-80 90 110 80 130 10 3
SOBF 100-120-80 100 120 80 150 10 3
SOBF 100-120-100 100 120 100 150 10 3
SOBF 120-140-80 120 140 80 170 10 3
SOBF 120-140-100 120 140 100 170 10 3
SOBF 130-150-80 130 150 80 180 10 3
SOBF 130-150-100 130 150 100 180 10 3
SOBF 140-160-80 140 160 80 190 10 3
SOBF 140-160-100 140 160 100 190 10 3
SOBF 150-170-100 150 170 100 200 10 3
SOBF 150-170-120 150 170 120 200 10 3
SOBF 160-180-100 160 180 100 210 10 3
SOBF 160-180-120 160 180 120 210 10 3

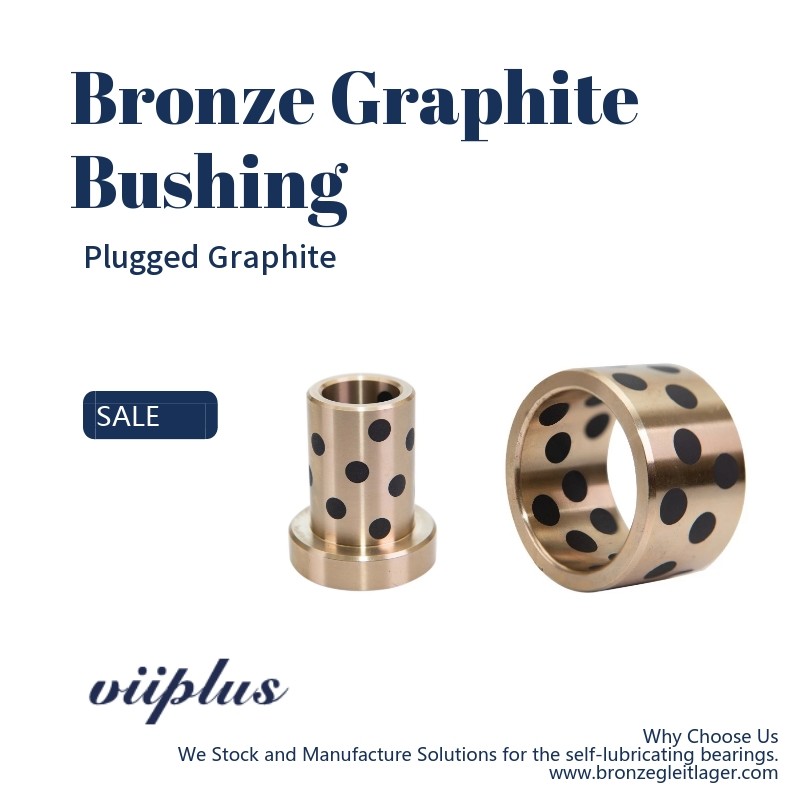

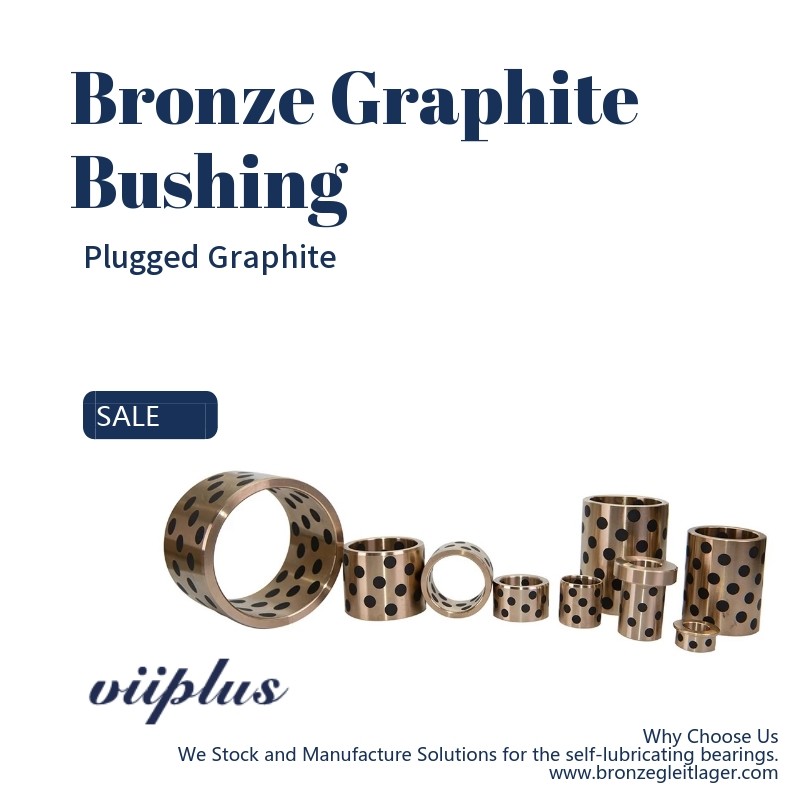

Plugged graphite bushing - online sale


GRAPHITE PLUGGED BUSHINGS

Product Description
plugged graphite bearing, clogged graphite sleeve. graphite bronze end cap. Introduction; 1. Bronze / iron material is ideal for very demanding applications in harsh environments. We offer a standard assortment of slide bushings, flange bushings and slide plates in accordance with ISO 4379 and DIN1850.

Size
Customized
Material
CuZn25AI5Mn4Fe3
Color
BRASS
Certification
ISO9001
Density
8g/cm³
Hardness
>210HB
Tensile strength
>750N/mm²
Yeild strength
>340N/mm²
Elongation
>12%
Coefficient of linear expansion
2.2*10-5/℃
Heat-conducting Coefficient
38~55W(/m.k)
Flexibility Coefficient
100~140KN/mm²
Temp. Limits
-40~+200 ℃
Max. Dynamic Load
98 N/mm²
Max.speed
Dry Lubrication 0.3m/s,Oil Lubrication 1m/s
Max.PV
Dry Lubrication 1.65N/mm²*m/s,Oil Lubrication 3.25N/mm²*m/s
Friction
Dry Lubrication 0.12~0.16, Oil Lubrication 0.03~0.08
Application
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine
