Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders

Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders

Brand Name: VIIPLUS
Model Number: Groove Casting Bronze
MOQ: Standard Size Bushing No Minimum Order Quantity
Price: Bushings High Quality Price Ratio B2B
Payment Terms: T/T
Supply Ability: bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Detail Information
Place of Origin:
gleitlagerbuchsen china
Certification:
ISO 9001
Features:
High Load Capability,Low Weight , Good Corrosion Resistance.
Type:
Bronze Sleeve,Flange
Material:
Metal,Brass,copper
Application:
Loaders
Bushings:
Gleitlagerbuchsen
Size:
Customzied
Other Type:
Washer
Lubrication:
Oil Lubrication
Get A Better Quote:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger:
A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Highlight:

bronze plain bearing

,

graphite plugged bronze bushings

Product Description

We specialize in creating customized oil/grease groove casting bronze sleeves and flanges, tailored to meet the specific needs of loaders. Our range of designs, varying from six to eight options, ensures that you can find the perfect fit for your machinery.

The bronze sleeves and flanges are cast using high-quality bronze material, known for its excellent wear resistance and durability. The oil/grease grooves are precision-engineered to ensure efficient lubrication and extended equipment lifespan.

Wh you need a sleeve with a specific diameter, length, or groove configuration, or a flange with customized mounting holes or attachment points, we can deliver. Our team of experienced engineers and craftsmen will work closely with you to create a solution that meets your exact requirements.

With our commitment to quality and customer satisfaction, you can trust us to provide you with reliable and long-lasting bronze sleeves and flanges for your loaders. Contact us today to discuss your needs and learn more about our custom casting services.



Oil & Grease Groove Bronze Bushings & Bearings | Solid Bronze Bushing Supplier



Wide range of Bronze Bushing ready in stock. Able to satisfy any request and design need.



Stock SAE 660 cast bronze sleeve bearing/bushing with a made-to-order oil/ grease hole and internal groove.



Solid bronze bearings are usually lubricated with grease, but oil is also used in exceptional applications. A good quality lubricant will ensure that friction and wear are reduced by the formation of a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing the bearing. This will protect both the bearing and the grease.

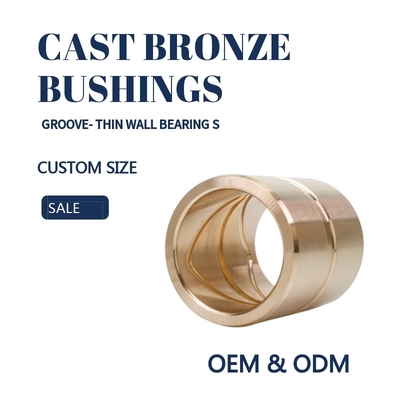

Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders 0



C93200 OIL & GREASE GROOVE BUSHINGS



Our cast bronze bushings are manufactured from C93200 (SAE 660) continuous cast bronze for superior quality and performance.

The continuous casting process provides a uniform bronze structure throughout the bearing, free of porosity and particulate inclusions commonly found in other casting processes.

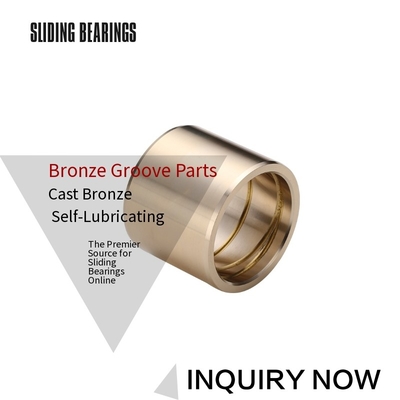

MaterialCustomzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders 1



  • C93200 SAE 660 Cast Bronze



Chemical Composition



- Copper (81-85%), Tin (6.3-7.5%), Lead (6.0-8.0%), Zinc (2.0-4.0%), other elements less than 1.5%



Bronze Bushings Oil Grooves Types



  • Oil Hole
  • Straight Axial Groove
  • Circular or Annular Groove
  • Oval Groove
  • Figure 8 Groove
  • The “V-Shaped” Groove
  • The Rectangular, Cross Sectioned Groove



To form a more perfect oil film between the bearing and the shaft, we recommend a V-shaped groove whenever the design allows, as it allows the total flow of the lubricant through the bearing surface.



Bronze Gleitlager


Bronze Brass Bushing in Standard:ASTM - SAE, DIN - ABTN - UNS - BS - NF - UNI standard JIS - SIS - VSM.Special cast bronze bushings and flange bearings from China Fast Delivery for loaders.We service various loaders bronze bearings including Conventional Designs. Factory cast bronze bushings. Types of oil grooves.Grooved sleeve bearings/bushings meet the customer's initial production schedule.
The customer, working with the distributor and VIIPLUS
sliding bearing manufacturer, gained a better understanding of the six to eight available oil / grease groove designs. Bearing / sleeve made of bronze (without groove) in stock. regular octagonal groove with rounded sleeve.


Application:


A medium-sized OEM needed a standard size bronze plain bearing with an oil / grease hole and an internal groove. Custom bush sleeve from China. The design of the SLIDING BEARINGS included an unconventional square-cut groove. Unconventional groove design. OEM drawing OEM & ODM SOLUTION, bearing distributor, partner of VIIPLUS CHINA.

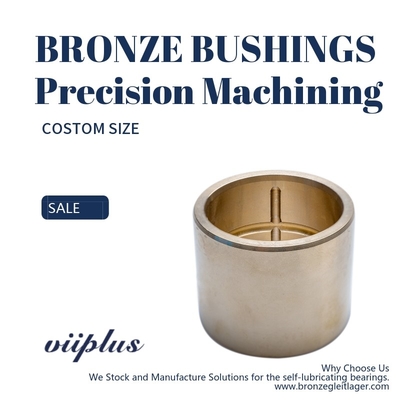

Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders 2



Groove Bronze Bearring Pattern,Selection of bronze bearing size


We are specialists in cutting lubrication bearing grooves in virtually any pattern.
Examples include our "Spira-Lube" Groove and "viiplus 11" Groove.
Other common groove patterns available are figure eight, double figure eight, loop, double loop, circular, wick or straight. Any of these grooves can be contained within the length of the part or breaking out the ends. Call us for assistance in determining which pattern is most appropriate for your application. There are industry standard groove patterns that are available for different applications.








Material

CuSn6Pb6Zn3(Qsn6-6-3)

Max Dynamic Load

60N/mm2

Density

8.7g/cm3

Max Linear Velocity(Grease)

0.85m/s

Max PV value Grease

1.65N/mm2·m/s

Friction Coefficient

0.09~0.15

Working Temperature

40~140℃

Pressure strength

>240

Mating Axis

Hardness≥40, Roughness 0.4~1.0

Coefficient of heat conduction

52W/m·K

Yield Strength

>100 N/mm2

Linear Expansion Coefficient

18.5*10-6m/k

Typical Application

machine-tool, agricultural machinery, crane electromotor, spring pin, steering shaft and transmission

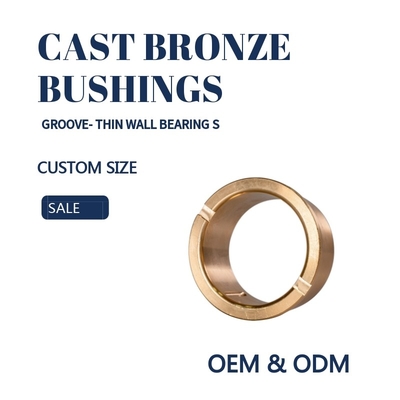

Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders 3
































Packing and Delivery


Packaging Details: anti-corrosive paper, cardboard, wooden crate or pallet
1. Inner packaging
For small products: 100 items - 200 items. In a sealed plastic bag.
For larger products: 2 items - 10 items. Per roll of plastic film (depending on product size)
2. External packaging
8 pieces - 300 pieces in a carton (depends on product size)
3. Packing the shipment
18-24 cartons per box or pallet, shockproof and safe for transport.
Port:ShangHai

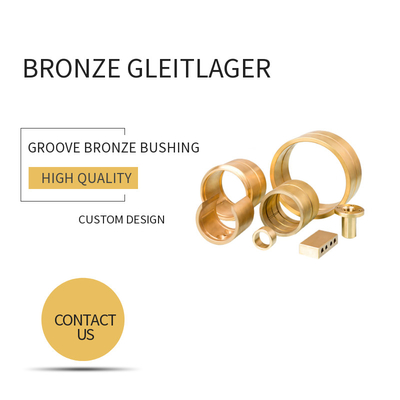

Customzied Oil / Grease Groove Casting Bronze Sleeve & Flange Six To Eight Designs For Loaders 4
