DIN United States ASTM / UNS Standard Cast Bronze Wear Plates Precision Tolerances
| Place of Origin | Graphite Bearings Manufacturers |
|---|---|
| Brand Name | SANKYO,MISUMI，DAIDO，SELF LUBE，GGB,FIBRO STANDARD REPLACEMENT BEARING |
| Certification | DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300 |
| Model Number | solid bushing, bronze with lubricant plugs embedded Maintenance-free |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Product Details
| Material | Brass CuZn25Al5Mn3Fe3 | Model Number | Manufacturer Of Mold & Die Components |
|---|---|---|---|
| Feature | Customized | Lubrication | Graphite,self-lubricating |
| Application | Heavy Duty Equipment，Machinery Repair，Hydraulic，Power Transmission | Type | Wear Plates,Slding Plate |
| High Light | graphite impregnated bushings,graphite filled bronze bushes |
||
Product Description
DIN United States ASTM/UNS SAE Standard Cast Bronze Precision tolerances Wear Plate
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Custom oil hole patterns, grease grooves, & mounting holes copper sleeve bearings Made-To-Order Choose your Groove Style,Continuous Manufacturing,slide plate, bronze, thickness bushings
Our Cast Bronze Wear Platecan be supplied in the following bronze alloys: C95400 Aluminum Bronze/C93200 SAE 660/Bearing Bronze/C86300 Manganese Bronze/C95900 Aluminum Bronze and DIN United States ASTM/UNS Standard for superior quality and performance.Available in journal style bearings and flat wear plate.
The C86300 Brass, the UNS number in the United States.This copper alloy is more wear - resistant and has excellent wear - resistant properties.And bearing capacity, very suitable for high load, low speed working conditions, including gear, stem, bushing, CAM press pulp industrial mold, high strength mechanical accessories, hooks, frames, shafts, self-lubricating bearings, graphite copper sleeve, etc.

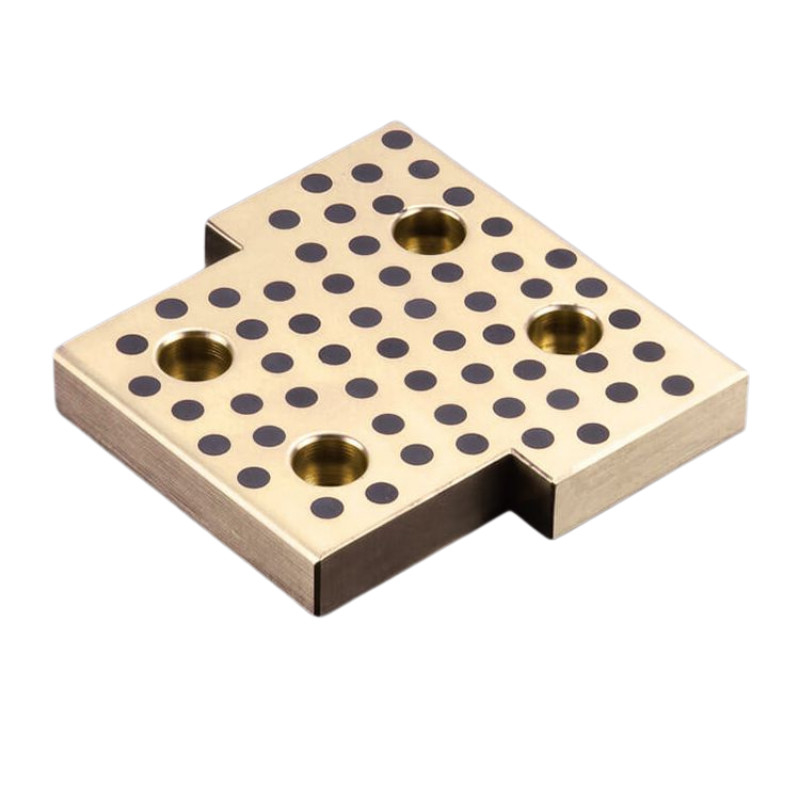

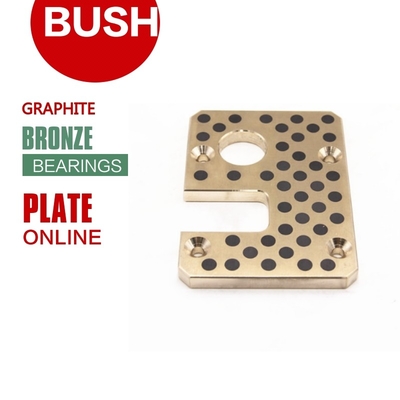

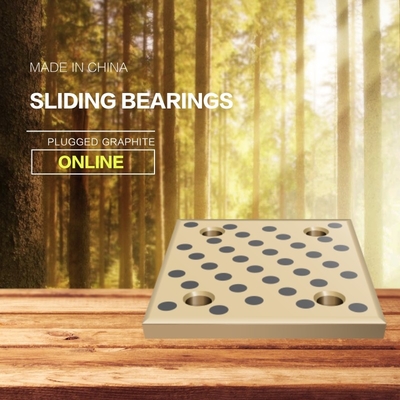

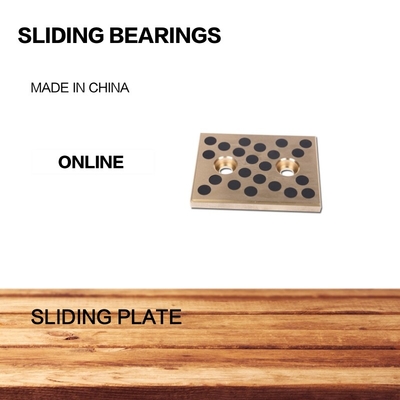

Cast Bronze Wear Plates guide and control linear motion when there are in High load. These wear plates act as guide bearings to guide and control movement. VIIPLUS made-to-order from china offers various types of bronze wear plates, ranging from unfinished cast bronze plate to fully finished machined components. Below are descriptions of the various types we offer.
Precision tolerances Cast Bronze Wear Plate Made-To-Order
|
Structures |
|
Product |
Specification |
|
Centrifugal |
ASTM B271 |
|
Continuous |
ASTM B505 |
|
Ingot |
ASTM B30 |
|
Permanent Mold |
SAE J461, J462 |
|
Sand |
ASTM B584, B763, B66 |
Copper Alloy Bushings Technical Parameters
|
Material Composition and Properties |
||||
|---|---|---|---|---|
|
Grade |
BRONZE |
BRONZE |
BRONZE BUSHINGS |
BURONZE BUSHING |
|
Material |
CuZn25Al5Mn3Fe3 |
CuSn5Pb5Zn5 |
CuAl10Ni5Fe5 |
CuSn12 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
|
Hardness HB |
＞210 |
＞70 |
＞150 |
＞95 |
|
Tensile strength N/mm² |
＞750 |
＞200 |
＞600 |
＞260 |
|
Yield strength N/mm² |
＞450 |
＞90 |
＞260 |
＞150 |
|
Elongation % |
＞12 |
＞25 |
＞10 |
＞8 |
|
Coeffcient of linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
|
Max.temp ℃ |
-40~+300 |
-40~+400 |
-40~+400 |
-40~+400 |
|
Max.load N/mm² |
100 |
60 |
50 |
70 |
|
Max.speed (Dry) m/min |
15 |
10 |
20 |
10 |
|
Max.PV(Lubrication) N/mm² *m/min |
200 |
60 |
60 |
80 |
|
Compression deformation 300N/mm² |
＜0.01mm |
＜0.05mm |
＜0.04mm |
＜0.05mm |
Available Sliding Bearings Form:
Plain cast bronze sleeve bushings,grooved cast bronze sleeve bushings,flanged cast bronze bushings,thrust washer,cast bronze bearings , Oversized Bearings
Bushings Size:Our standard bearing line features over different deminsion & inch size bushings that are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease Application
VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN, BS, EN (DIN/EN), SS, NS, UNS, SAE and China GB standard production of all kinds of bronze, brass bushing, plate and rod products.All products are made of electrolytic copper by centrifugal casting, continuous casting and extrusion sliding bearings.
Bearing solutions
All kinds of hydraulic machinery, metallurgical machinery, forging machinery, oilfield machinery, engineering machinery, mining machinery, electric power facilities, etc.
