| Brand Name: | ,MISUMI，DAIDO，SELF LUBE，,FIBRO STANDARD REPLACEMENT BEARING |
| Model Number: | solid bushing, bronze with lubricant plugs embedded Maintenance-free |
| MOQ: | NEGOTIABLE |
| Price: | Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze |
| Payment Terms: | TT IN ADVANCE |
| Supply Ability: | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Our company specializes in manufacturing high-tolerance CNC centrifugal casting C86300 bronze plain bushings with oil groove bearing bushes. These bushings are precision-engineered to meet the most stringent requirements of industrial applications, ensuring smooth and reliable operation.
The use of C86300 bronze alloy in the manufacturing process guarantees excellent wear resistance, corrosion resistance, and high load-bearing capacity. The centrifugal casting technique ensures a dense and uniform structure, further enhancing the bushings' durability and performance.
The incorporation of an oil groove design within the bearing bush allows for effective lubrication, reducing friction and heat generation. This not only extends the bushing's lifespan but also improves its overall efficiency.
Our CNC machining capabilities ensure precise tolerances and dimensions, guaranteeing a perfect fit for your equipment. Wh you need a standard size or a customized solution, we can provide you with bushings that meet your specific requirements.
In addition to our high-quality products, we also pride ourselves on our commitment to customer service. Our team of experts is always available to provide technical support and assistance, ensuring that you get the most out of your bushings.
In summary, our high-tolerance CNC centrifugal casting C86300 bronze plain bushings with oil groove bearing bushes are the ideal choice for industrial applications that demand superior performance and durability. Contact us today to learn more about our products and how we can help you meet your specific needs.
China supplier of quality bronze bearings,grooving groove bushings made to order the largest inventories of bronze bearings in a wide variety of inch and metric sizes.grooving groove styles:circular straight single loop double loop straight & circular figure 8 double figure 8 style 11. Viiplus offers a broad variety of machining services for oem market.our machining service provides value-added to a full range of steel grade solutions, from steel material to semi-finished or finished components. our workshop machining capabilities include cnc lathing, milling, grinding, drilling, high speed machining, surface treatment and so on.
Centrifugal Casting Bronze Bushings Cast Bronze with solid lubricant plugs If you need help in selecting the best sliding bearings Bearings catalog(plain bearings catalog) contains detailed size specifications and material for different bushings categories. Click here to go to our online catalogSLIDE BEARINGS CUSTOMIZE BUSHES CHINA MANUFACTURER... and bronze bearings specifier for all of our metal bushing bearings including stock size downloads.
The VIIPLUS made to order form china for a solid copper alloy bearing cage mold casting produced by centrifugal casting, and belongs to the machining field.
Bedroom centrifuge can produce: φ800*305 within the various grades of copper bushing castings.
Cutting oil grooves in Bushings china Manufacturer Stable quality and high precision Computerized Numerical Control(CNC) Oil groove brass sintered oil bushing,motor bush bearing,sliding sleeves competitve price Analyze parts drawing and make process solutions.In addition to our standard oil groove types we also offer grooves filled with graphite bushings.
C86300 (SAE 430B Material CuZn25Al5Fe3Mn4) Hardened brass Centrifugal Casting Bronze Bushing Custom Size Sliding Bearing Bush made in china
You can search for C86300 bronze bushings products.CAD data downloading is also available for registered members.
We are specialists in cutting oil grooves bronze bushing bearing Circular Straighg Single Loop & Double Loop,oil grooves Width and depth, bearing tolerance.
So You Can Deliver On The Plain Bearings And Design Goals
Processing method for inner hole oil groove of copper sleeve bushing
Oil groove copper set processing plant, professional casting processing various oil groove copper set, including vertical oil groove, annular oil groove, spiral oil groove, cross oil groove, etc., can be customized according to the figure.
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||

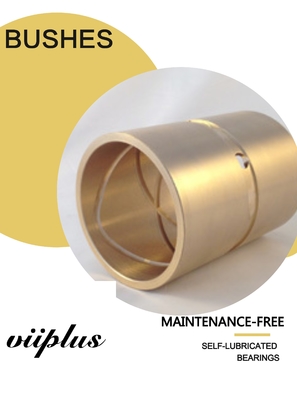

1.Figure "8 "oil groove Bushings

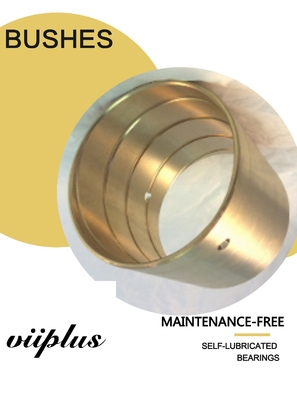

2.Circular groove Bushings

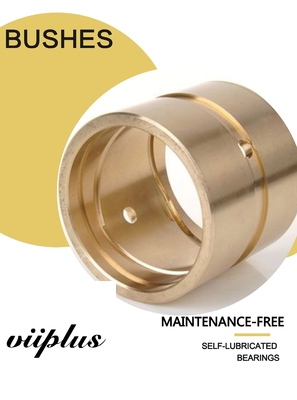

3.Double Loop groove Bushings
In the production of copper sleeve with oil groove
1. When the raw copper sleeve is finished, rough machining shall be carried out first, and a fine copper sleeve shall be made with the allowance of 2mm on one side.
2 and production of oil tank, and both vertical oil tank, the annular groove, spiral groove, or cross groove, the tooling according to the first, and then processing groove, must take into account when processing problem of allowance, tank to do deep and wide, not according to normal process, or at the time of finish machining copper set of finished product will find a problem, need a second car processing, so it will be a great trouble.
3. After the finished copper cover, make an R Angle on the edge of the oil groove to facilitate the flow of oil and avoid hand injury.
Bearing forms available in standard dimensions
· Cylindrical bushes

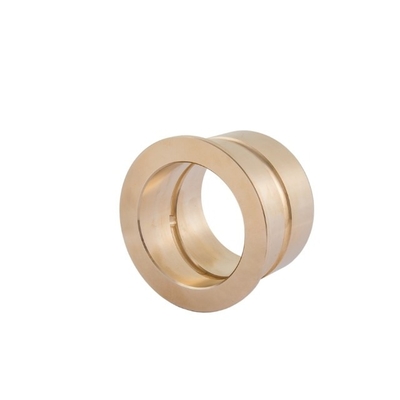

· Flanged bushes
· Sliding plates
|
Cu |
Sn |
Pb |
Zn |
Fe |
Ni |
Sb |
P |
S |
Al |
Mn |
Si |
|
60.00-66.00 |
0.2 |
0.2 |
22.00-28.00 |
2.0-4.0 |
1.0 |
N/A |
N/A |
N/A |
5.0-7.5 |
2.5-5.0 |
N/A |
Mechanical Properties:
|
Tensile Strength (min) |
Yield Strength (at 0.5% extention under load min) |
Elongation (in 2in. or 50mm min, %) |
Brinell Hardness (min) |
||
|
Ksi |
MPa |
Ksi |
MPa |
|
|
|
110 |
758 |
62 |
427 |
14 |
210 |
|
Type |
JDB-1 |
|
Base Material |
CuZn25AL6Mn4 |
|
Base Hardness |
HB210-250(HB270) |
|
Friction Coef(u) |
<0.16 |
|
Temperature Limit |
300°C |
|
Dynamic load limit: |
100N/mm2 |
|
Load Limit Under 1m/mm |
25N/mm2 |
|
Sliding Velocity Limit |
dry0.4m/s oil5m/s |
|
PV Limit |
3.8N/mm2.m/s |
We are leading manufacturer and supplier of Copper Alloy Centrifugal Casting and our product is made up of good quality.These Copper Alloy Centrifugal Casting are extensively used in various applications like automobile and engineering.The Copper Alloy Centrifugal Casting we offer is highly acknowledged amongst the customers for their usability in various industries.
Copper Alloys Centrifugal Casting for:
Brass Bronze Bushing automotive product line,water engineering,dam gate,plastic industries,successive casting machines,steel rollers in metallurgy industry,mineral machines ships,turbo generators,hydraulic turbines and injection molding machines.
Packaging & Shipping
1.Standard export packing:Plastic bag + Carton Box + ploywooden case or as customer's requirement
2.small package sending by courier
3.by air DHL FedEx UPS TNT...
4.bulk order shipping by sea LCL or FCL
VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.
Solid Lubricant Casting Aluminum Bronze Bearings Bushings
with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available
VSB-50 Solid lubricating bearings
1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can be used in wide range of temperature from -40℃-+300℃
VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Our services
1.Sample order is available.
2.Small order is acceptable.
3.Customized is available as per drawing or sample
Original documents
1.B/L(bill of lading )
2.C/O(certificate of origin )
3.Commercial invoice
4.Packing list
After-sale service
1.Goods quality following
2.Accept feedback and solve the problem
3.Regular return visit
