Phosphor Tin Bronze Flange Collar Wrapped Bronze Bushings, crafted from CuSn8 material, feature diamond-shaped grooves that enhance lubrication and wear resistance. The CuSn8 alloy, also known as phosphor tin bronze, possesses exceptional mechanical properties, corrosion resistance, and self-lubricating characteristics.

The flanged collar design provides secure positioning and retention, ensuring stable and reliable operation. The wrapped bronze bushings further increase durability and protect the inner components from dirt and debris.

The diamond-shaped grooves are strategically positioned to distribute lubricant evenly, minimizing friction and wear. This design, combined with the CuSn8 material, ensures that the bushings can withstand heavy loads and operate smoothly, even in harsh environments.

Manufactured with H7 tolerance, these bushings offer precise fit and alignment, crucial for ensuring optimal performance. Phosphor Tin Bronze Flange Collar Wrapped Bronze Bushings with Diamond-Shaped Grooves - CuSn8 Material, H7 Tolerance, are ideal for applications requiring high load capacity, low friction, and long-term reliability.

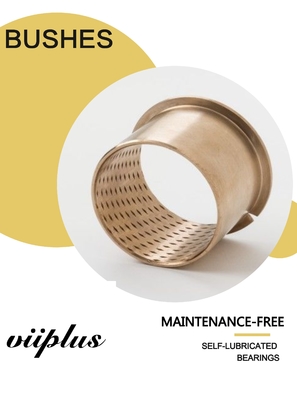

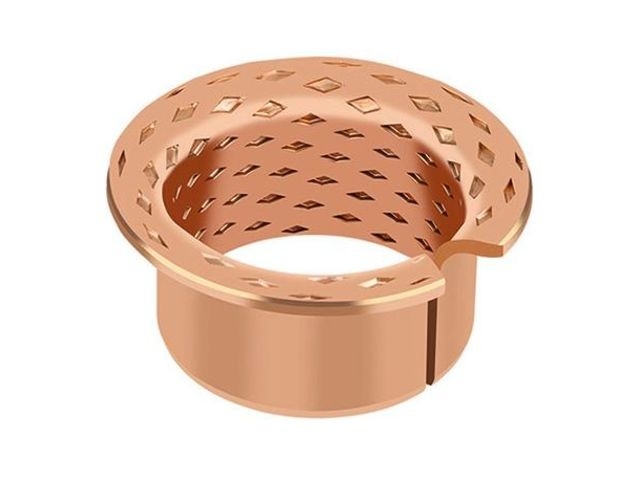

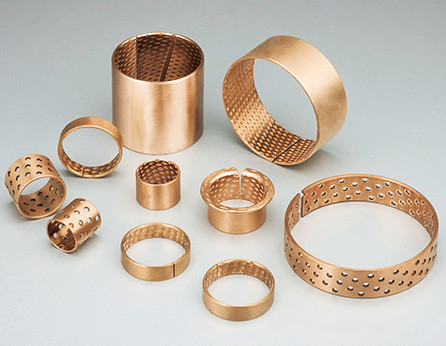

CuSn8 wrapped bronze bushing, diamond oil pockets

Metric Wrapped Bronze Flange Bushing Bearings Plain Bearing

Order Today!

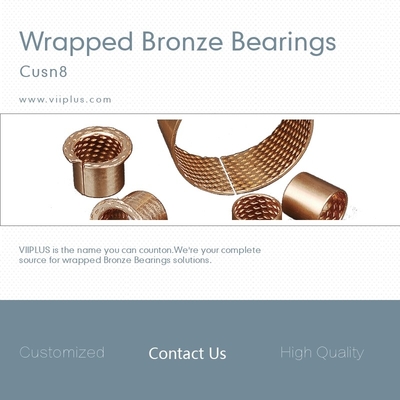

Wrapped Bronze Bearings, gleitlager onlineshop

VIIPLUS is the name you can count on. We're your complete source for wrapped bronze bearings solutions.

The wrapped bronze sleeve bushing is designed with thin-walled structure. As a kind of bearing sleeve, this product features light weight and reduced mechanical volume.

Lubrication pockets help extend the bushing service life. Material: wrapped bronze bushings are made entirely of bronze, CuSn8. The bushings are produced from strips that are then wrapped and calibrated.

Are your bronze bushings worn? Updating your sliding bearing a need quality replacement parts? We carry a complete line of the bronze sleeve and flanged bushings for just about any industry.VIIPLUS is sourced from the highest quality bushings the world has to offer. Our range of bearings and bushing forms is unmatched throughout the industry. We are able to offer excellent prices and lead times.

Our Bronze sliding bearing stock sizes Sheet & Plate is widely used in many industries: Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment, etc.

Bronze Bushings Assembly

The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.

Rolled Flange Bronze Bearings Bushings With Lubrication Pockets.

Bushing Customized Manufacturing

We can offer special sizes, shapes, forms, or lengths upon request. Please contact us for a quotation or more information.

Self-Lubrication Bearing

Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.
If, however, you cannot find what you are looking for please do not hesitate to contact our sales team who will be happy to hear from you and address your requirements accordingly. Rolled flanged bearing with oil pockets collar Wrapped Bronze Bush Bronze wrapped bearing with Diamond-shaped holes CuSn8. DIN 17662: FB090 Bronze

Bushing Type:Fb092 Fb092h Wf Wb700 Wb702 Wb800 Wb802

Bronze Bearing Selection

VIIPLUS CHINA ONLINE WEBSITE:http://WWW.BRONZEGLEITLAGER.COM BEARING have developed kinds of bearing material.

According to different work conditions. The user can select the material base on bearing work environment, load speed, wear resistance resistance request, moving method, etc.

Bearing Load: Cylidrncal bushes, flange bushes

P=F/XXL.As the factor of clearance, bushes chamfer, oil groove, etc, The actual load(P)is higher than the theory of calculation(P)

Bearing Load/Rotating motion/Oscillating motion/Rotating motion

PV is the product of the specific bearing load P and the sliding speed V which is a very important design date. We recommend
design lower PV value will lead to longer service life. Also don't exceed the max of material load, speed, temp. and lower if possible.

Sliding Bronze Bearings

The bearing, housing, and fitting tools must be kept clean during fitting. Please give special notice to us if you adopt the soft material for housing produce. To make fitting easy. the shaft ends should be chamfered.

Overview

CuSn8 tin bronze turn over axle sleeve copper sleeve. Belong to the high strength heat-resistant bronze, stable mechanical properties under high temperature (400 ℃), has good anti-friction, in the atmosphere, freshwater and seawater corrosion resistance is very good, hot processing good under pressure, strengthening heat treatment, welding, is not easy to find welding, machinability is good.

We have a large selection of 090 & 092 Cu Sn8. DIN 17662 plain and flanged bearings for various applications. With standard stock and inch dimensions in our warehouse and with the co-operation of skilled subcontractors, we are one of the most reliable suppliers available. With us you can order your bushings products according to your own drawings and specifications or you can choose from our large and wide standard selection. In addition, our short lead times and good logistics make us an efficient and reliable partner.

Bronze Flange Bearing & Bushing Material

The raw material of FB090 is hot - rolled high - grade phosphor-containing tin - green alloy. This type of sliding bearing is mainly designed to withstand heavy loads and impact. The whole bearing sliding surface contains lubricating oil holes, which form a lubricating film during operation and start-up to reduce friction.FB090 for radial, swinging, and axial motion, especially for medium to high loads.

Metal Bronze raw materials are the most important technical and material basis of modern industry

CW453K copper alloy bushing material.

Main bronze bushing products: copper alloy, brass, lead brass, tin brass, tin bronze, phosphorus bronze, aluminum bronze,aluminum brass, tin brass, tin bronze, special specifications can be customized!

Structure Characteristics

1. Save a lot of copper materials and man-hours of making copper sleeve:
2. Lightweight and low cost compared with axle sleeve and rolling bearing;
3. Various holes and pits can be processed on the friction surface, and certain grease can be stored. The time of refueling can be extended 5 times as long as that of the copper sleeve;
4. Extremely high bearing capacity, especially for rough friction surface;
Available products: straight sleeve, thrust gasket, flanged bushing, bearing bush, skateboard, steel sleeve combination. Easy installation/Oil pockets store lubricating oil/High load capacity/Operating well in harsh working conditions

Main Applications

Bronze bushing with oil pockets application for Forestry, construction and agricultural machinery, cranes, forklifts and lifting equipment, etc.

Shape And Type

Plain cylindrical bearing, flanged bearing, thrust washer, slide plate.

Similar Bushing :BK-090, BRM10, COB-090, MBZ-B09, PRM, PRMF, SERIE SBA, SERIE SBB, WB700, WF-WB 700

The Bronze Bushing Installation

The bearing shall be pressed into the bearing seat with H7 tolerance. Bearing inner diameter tolerance H9.
Shaft - bearing fit. Self-lubricating Bearings
Lubrication shall be provided by means of shaft or radial through the bearing housing. All commonly used grease types or oils can be used.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

• Materials: Cu -- 91.3% Sn -- 8.5% P -- 0.2%

• Standard: Cu Sn8. DIN 17662. CW453K

• Sliding surface (thickness): evenly distributed

• Tensile strength Rm: 450N/mm

• Yield strength Rp0.2: 250N/mm

• A10 delay rate of 40%

• Brinell hardness: 90-120 HB

• Friction coefficient: 0.08-0.25

• Thermal conductivity: 60W/m·K

• Temperature range: - 100 ° C / 200 ° C

• Rated static load: 120 N/mm

• Rated dynamic load: 40 N/mm

• Maximum linear speed (under lubrication) : 2.5m /s

• Allowable PV value (MpaXm/s): 2.8

• Materials for mating parts

• Recommended shaft hardness: >210HB

• The recommended shaft surface roughness is 1.6

• Tolerance: e7 - f7

• Bearing block: H7

Non-standard Bronze Bushings size custom

We can recommend the corresponding size, shape, and shape or length according to the requirements. Please contact us for a quotation or more information.
