C86200 Centrifugal Casting Copper Alloy Bronze Bush Bearings Highly Wear Resistance

Place of Origin Graphite Bearings Manufacturers
Brand Name SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Marerial Bronze Graphite Bushing Size Inch Size Bushings
Standard Size C86300,C86200 Type PLUGGED CAST BRONZE
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite impregnated bronze bushings

,

graphite filled bronze bushes

Leave a Message
Product Description

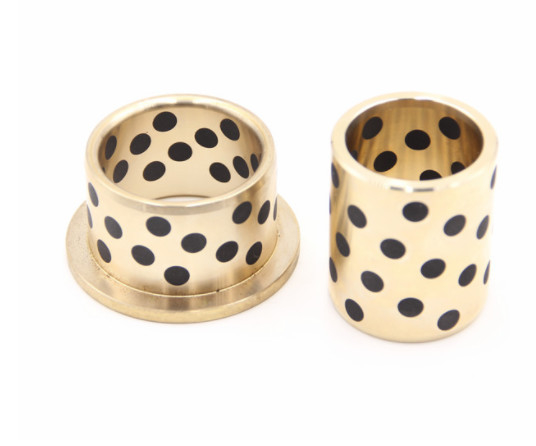

Graphite Plugged Bushings



Oil groove, oil hole, non - standard size customized.Manganese Bronze 5000 kinds of size specifications, large quantity size of stock.High precision, friction resistance, high temperature resistance, maintenance free.C86300/C86200 Bronze Bushing Bearing China Supplier , MADE BY CENTRIFUGAL CASTING Our range of oilless bearings are the perfect solution for projects where lubrication cannot easily be provided or where conventional lubricants may carbonise. The design of oil feeding systems is time consuming and expensive - The use of our oilless bearings can greatly reduce costs of maintenance and oil as it removes any need for such a system.



C86300/C86200 Casting Copper Alloy Bronze Bushing



viiplus can not only manufacture copper alloy material bronze bushings according to China's national standard, but also can produce it as the related standards of the ASTM(UNS,SAE), EU and JIS, etc.What's more,we can also develop the copper alloy material according to the special requirements and drawings of customers



Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

60-66

0.2

3.0-4.9

2.0-4.0

2.5-5.0

1

0.2

_

_

_

Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

621

310

18

180

Note:



1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference



Manganese Bronze  with Graphite Plugs Inch Size



Self-Lubricating Oil-Less Type Bushings

C86300

Dimensions are in inches

Manganese Bronze with Graphite Plugs
Inch Sleeves

(ID x OD x L)

GRAPHITE BUSHINGS

1/2 x 3/4 x 1/2

GRAPHITE BUSHINGS

1/2 x 3/4 x 3/4

GRAPHITE BUSHINGS

1/2 x 3/4 x 1/2

GRAPHITE BUSHINGS

5/8 x 7/8 x 5/8

GRAPHITE BUSHINGS

5/8 x 7/8 x 3/4

GRAPHITE BUSHINGS

5/8 x 7/8 x 1

GRAPHITE BUSHINGS

5/8 x 7/8 x 1-1/4

GRAPHITE BUSHINGS

5/8 x 7/8 x 1-1/2

GRAPHITE BUSHINGS

3/4 x 1-1/8 x 5/8

GRAPHITE BUSHINGS

3/4 x 1-1/8 x 3/4

GRAPHITE BUSHINGS

3/4 x 1-1/8 x 1

GRAPHITE BUSHINGS

3/4 x 1-1/8 x 1-1/4

GRAPHITE BUSHINGS

3/4 x 1-1/8 x 1-1/2

GRAPHITE BUSHINGS

7/8 x 1-1/4 x 3/4

GRAPHITE BUSHINGS

7/8 x 1-1/4 x 1

GRAPHITE BUSHINGS

7/8 x 1-1/4 x 1-1/8

GRAPHITE BUSHINGS

7/8 x 1-1/4 x 1-1/4

GRAPHITE BUSHINGS

7/8 x 1-1/4 x 1-1/2

GRAPHITE BUSHINGS

1 x 1-3/8 x 3/8

GRAPHITE BUSHINGS

1 x 1-3/8 x 1/2

GRAPHITE BUSHINGS

1 x 1-3/8 x 5/8

GRAPHITE BUSHINGS

1 x 1-3/8 x 3/4

GRAPHITE BUSHINGS

1 x 1-3/8 x 1

GRAPHITE BUSHINGS

1 x 1-3/8 x 1-1/4

GRAPHITE BUSHINGS

1 x 1-3/8 x 1-1/2

GRAPHITE BUSHINGS

1 x 1-3/8 x 1-3/4

GRAPHITE BUSHINGS

1 x 1-3/8 x 2

GRAPHITE BUSHINGS

1 x 1-1/2 x 3/4

GRAPHITE BUSHINGS

1 x 1-1/2 x 1

GRAPHITE BUSHINGS

1 x 1-1/2 x 1-1/2

GRAPHITE BUSHINGS

1 x 1-1/2 x 2

GRAPHITE BUSHINGS

1-1/8 x 1-1/2 x 1

GRAPHITE BUSHINGS

1-1/4 x 1-5/8 x 1

GRAPHITE BUSHINGS

1-1/4 x 1-5/8 x 1-1/4

GRAPHITE BUSHINGS

1-1/4 x 1-5/8 x 1-1/2

GRAPHITE BUSHINGS

1-1/4 x 1-5/8 x 1-3/4

GRAPHITE BUSHINGS

1-1/4 x 1-5/8 x 2

GRAPHITE BUSHINGS

1-1/2 x 2 x 1-1/4

GRAPHITE BUSHINGS

1-1/2 x 2 x 1-1/2

GRAPHITE BUSHINGS

1-1/2 x 2 x 1-3/4

GRAPHITE BUSHINGS

1-1/2 x 2 x 2

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 1-1/4

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 1-1/2

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 1-3/4

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 2

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 2-1/2

GRAPHITE BUSHINGS

1-3/4 x 2-1/4 x 4

GRAPHITE BUSHINGS

2 x 2-1/2 x 1-1/4

GRAPHITE BUSHINGS

2 x 2-1/2 x 1-1/2

GRAPHITE BUSHINGS

2 x 2-1/2 x 2

GRAPHITE BUSHINGS

2 x 2-1/2 x 2-1/2

GRAPHITE BUSHINGS

2 x 2-1/2 x 3

GRAPHITE BUSHINGS

2-1/2 x 3 x 3

GRAPHITE BUSHINGS

3 x 3-1/2 x 4

GRAPHITE BUSHINGS

3 x 3-5/8 x 3

GRAPHITE BUSHINGS

3-1/2 x 4-1/8 x 2

GRAPHITE BUSHINGS

3-1/2 x 4-1/8 x 3

GRAPHITE BUSHINGS

3-1/2 x 4-1/8 x 4

GRAPHITE BUSHINGS

4 x 4-3/4 x 2

GRAPHITE BUSHINGS

4 x 4-3/4 x 3

GRAPHITE BUSHINGS

4 x 4-3/4 x 4

GRAPHITE BUSHINGS

5 x 6 x 3

GRAPHITE BUSHINGS

5 x 6 x 4



Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.





Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

  • Inch Sleeves

  • Metric Sleeves

  • Metric Flanges

  • Metric Washers



Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings



Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.



  • Wear Plates

  • Wear Strips

  • Bushings

  • Slide Assemblies

  • Guide Components

graphite plugged bronze bushings

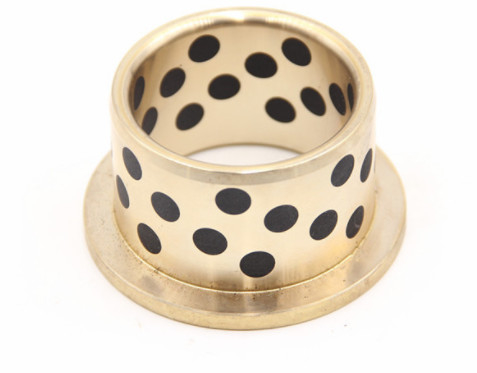

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing




  • Inch Sized Bushings

  • Metric Sized Bushings



Material


C86300 Manganese Bronze




C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.





graphite plugged bronze bushings

Bronze sleeve bearings flanged bronze bushings for sale



C86300 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance



Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds



The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2







Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

 graphite plugged bronze bushings



Applications



Bushings For Construction Equipment, Boom Link Bushings For Power Shovels, Toggle Link & Guide Bushings For Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire And Paper Mill Machinery And Many Other Industrial Applications.
