The C86300 Manganese Bronze Graphite Oilless Standard Bronze Bushing Component is a precision-engineered component made from C86300 manganese bronze alloy, which incorporates graphite as a lubricant. This bronze alloy offers excellent wear resistance, corrosion resistance, and mechanical strength, making it suitable for applications requiring a maintenance-free or oil-free bushing solution.

The graphite inclusion in the alloy provides self-lubricating properties, eliminating the need for external lubricants or oils. This feature significantly reduces maintenance requirements and enhances the longevity of the bushing.

The C86300 manganese bronze graphite oilless bushing component is a standard part that can be easily integrated into various machinery and equipment. It is designed to withstand high loads and frequent operation, ensuring reliable performance over extended periods.

Applications for this type of bushing component include, but are not limited to, heavy-duty industrial machinery, automotive components, and other high-performance applications where wear resistance, corrosion resistance, and low-maintenance requirements are crucial.

When selecting and using C86300 manganese bronze graphite oilless bronze bushings, it is important to ensure that the component is properly installed and maintained to maximize its performance and lifespan. Additionally, consultation with a qualified engineer or manufacturer can provide valuable guidance on the specific requirements and limitations of this material and its applications.

We are a reliable firm counted among the prominent manufacturers and traders of SEMI-AUTOMATIC, AUTOMATIC HIGH-SPEED BOTTLING LINES & PACKAGING MACHINES BRONZE BUSHING (Plug Graphite Bronze Bushing, Bronze Bushing for RINSING, FILLING, SEALING, MONOBLOCKS, COMBIBLOCKS, LABELLING, CASE PACKERS, CONVEYING SYSTEMS, etc.). Made to order from China, we cater to customers all over China and overseas.

C86300 Manganese Bronze Bearings

The robust and corrosion-resistant manganese bronze C86300 (SAE 430B) is ideal for high load, low speed applications that require a combination of excellent abrasion properties and high storage stability.This type of bushing can be used in dry conditions, at high temperatures, high pressures, in corrosive environments, in water or other chemicals where it is not possible to add oil. The graphite bronze bushings are widely used in automotive products, hydraulic engineering, dam gates, plastics manufacturing, later casting machines, steel rollers in metallurgy, mining equipment, ships, turbine generators, water turbines, and injection molding machines.

C86300 Chemical Composition

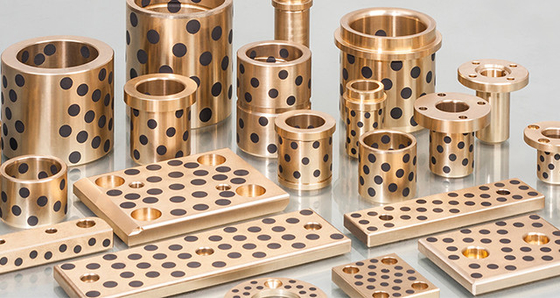

Oilless Bushes and Self-Lubricating Bronze Bearings / Graphite Bearings

Self - lubricating cylindrical bearing with graphite pin embedded oilless Japanese Standard


Self-lubricated bronze bushings that are manufactured with some form of pre lubrication feature Graphite

Standard Bronze Bushing Components for Press Die &  Plastic Moulds

Sleeve lube guide | MOLD AND DIE COMPONENTS

Engaged in manufacturing, marketing, and exporting bronze bushing for SEMI-AUTOMATIC, AUTOMATIC HIGH-SPEED BOTTLING LINES & PACKAGING MACHINES

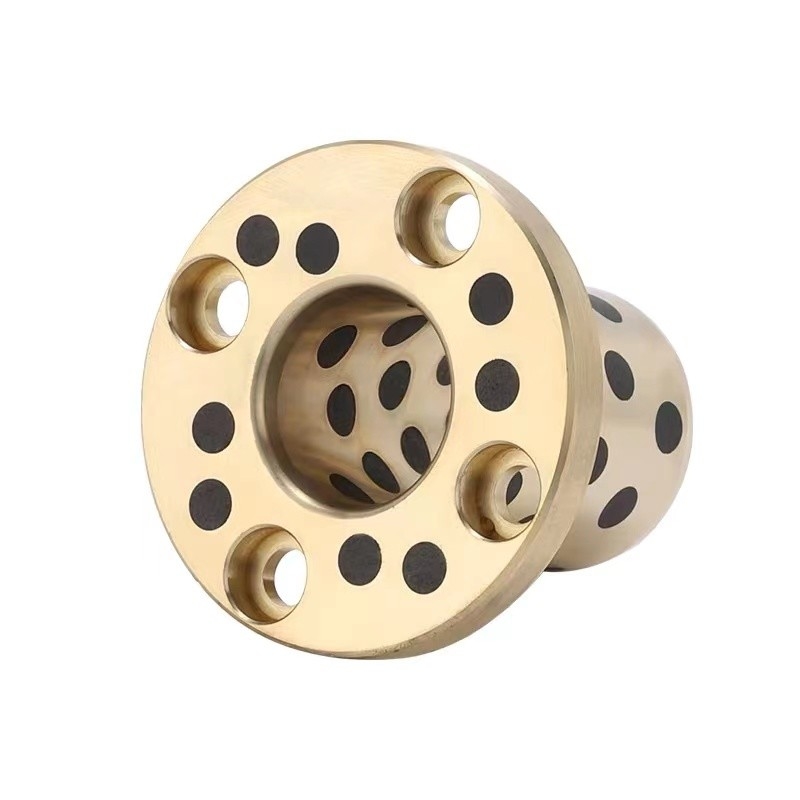

Graphite Plugged Bronze Bushing Flanged - Metric Size

Overview

The product description

The vsb-50 C86300 & C83200 CuZn25Al5 BRONZE is made of exceptionally hard and durable BRONZE, embedded with self-lubricating graphite column pins, maintant-free.This type of bearing is a good choice when it comes to high loads and small movements that are difficult to lubricate.The graphite pin covers about 25-30% of the bearing surface and is positioned so that the entire bearing surface is always lubricated.VIIPLUS sliding elements are available in many designs and can also be manufactured in other alloys to meet specific requirements.


Self Lube Plugged Bearing Bush


Sleeve Lube Guide Bronze Bushings | Mold And Die Components

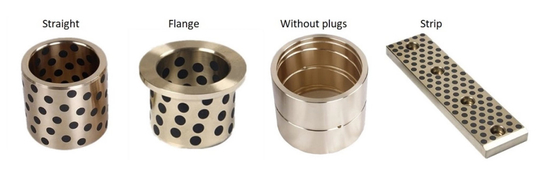

Shape and Type
Guide bushing, fixture, half bearing bush,Wear plate, washer, guide plate, etc.


Features

--Long service life
-- for heavy duty applications
-- maintenance-free (self-lubricating)
--Extreme temperature tolerance


Self-lubricating bearings

The VIIPLUS vsb-50 itself is maintenance-free.However, as an initial step, it is recommended to lubricate the sliding surface during assembly.Common lubricants such as grease or oil can be used.For optimal performance and service life, it is important to thoroughly clean mating surfaces during assembly.
custom-made
According to the request, may provide or produce each kind of sliding element.
Please contact us for more information.


Application Field

Hardware, steel manufacturing, stamping die, automotive industry tools,
Stamping etc.
Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.


• Wear Plates
• Wear Strips
• Bushings
• Slide Assemblies
• Guide Components

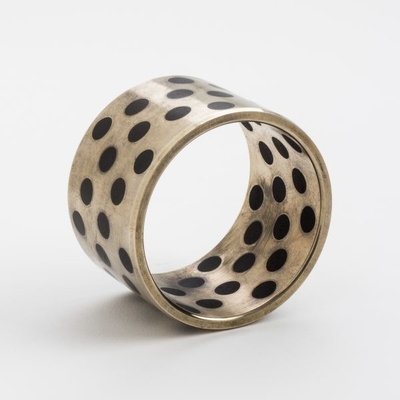

Self Lubricating Graphite Plugged Bronze Sleeve Bushing

Plug Graphite Sleeve Bushing


Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings

• Inch Sized Bushings
• Metric Sized Bushings

Material

C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.

Bronze sleeve bearings flanged bronze bushings for sale

Performance


Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self-lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2
