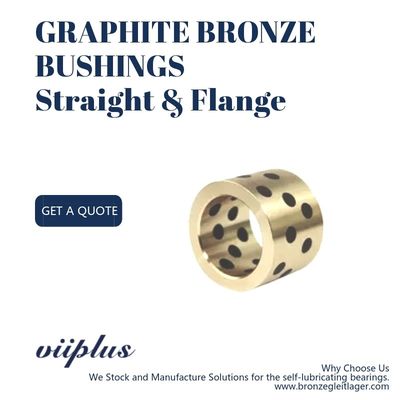

Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet

Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet supplier
Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet supplier Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet supplier Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet supplier Bronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet supplier
Basic Information
Place of Origin: China Straight Bushing Manufacturer
Brand Name: Brand Met:Oiles ,SELF LUBE,AVAILABLE TO ORDER
Certification: Plain Sleeve Bearings Standards met: RoHS
Model Number: Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity: NEGOTIABLE,10 Piece/Pieces Straight Bushing (Min. Order)
Price: US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details: Cartons with good information lable
Delivery Time: Shipped in 3-20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Contact Now

  • Product Description
  • Detail Information

China Bronze Graphite Bushings Lube Oilless Bushing Bronzegleitlager.Com We Specialize In Centrifugal Castings.Custom Large Size & Groove Plugged Graphite Bushing Large Inventory Quick Delivery. Custom Sleeve Bushing Parts Available.Get Your Quation Now

VIIPLUS CHINA Standard stock sizes of sleeve (plain) type bronze bearings listed in this catalog are adaptable to grooving and graphiting. The depth and width of the groove depend upon the wall thickness, bearing diameter and other factors that may vary with the individual
application. Plugged graphited bearing should be ordered or reamed at assembly.plugged bronze bearings are available in inch bore sizes standard tolerances to meet special applications.

Bronze Cast Alloys C86200 Manganese Bronzes Self lubricating bearings with built in graphite pellet INCH SIZE

VIIPLUS Bronze GLEITLAGER offers C86200 Manganese Bronze as Made to Order Castings. Self Lubricating Bronze Wear Plate

Excellent chemical resistance and corrosion resistance
The Iubricant for VIIPLUS BRONZE BUSHING GRAPHITE is formulated out of the abrasion-resistant materials such as graphite and PTEE and has stabilized molecular structure. The metallic matrix can be selected according to the various chemicaI resistance and corrosion resistance accordingly. Therefore, the VIIPLUS SLDING BEARING enjoys high chemicaI resistance and corrosion resistance.
The cost of the products is more competitive and compared with other products of the same kind, the VIIPLUS BEARINGS features in longer service hours, less maintenance, longer replacement period and better performance.

This material is used in a variety of applications. Typical uses for this alloy are: Marine castings, gears, gun mounts, bushings and bearings.

CHARACTERISTICSBronze Cast Alloys Self Lubricating Bearings Built In Graphite Pellet

VSB-50P Sliding Block olid Bronze Metallic Self-lubricating Bearings

Solid Lubricant Cast Bronze Bearings Silde Block With Immediate Running Velocity

Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

Cast Bronze Bearing with Graphite Plugs
VSB-50P Sliding Block

Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines

1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃



Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.

The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

STRUSTURE

VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

TECHNICAL DATA

Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

Chemical Compositions

Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs



TYPICAL APPLICATIONS

This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerance

START YOUR PROJECTWITH AN APPLICATION ENGINEER

thrust washer&plate inch size Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings

Tag:

graphite lube plate,

bronze wear plate

Material: Aluminum-Bronze With Solid Lubricant Types: Silde Block
Description: Solid Lubricating Bearings Application: Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size: Standard,Drawings Shape: Plate
Production Feature: Casting
