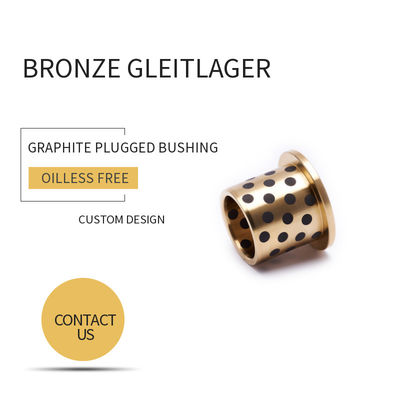

SAE430B C86300 Bronze Bearings & Graphite Plugged Shoulder Bushing

Place of Origin gleitlagerbuchsen china
Brand Name VIIPLUS Sleeve & Bearing
Certification FIBRO Standard
Model Number C86300 BRONZE BUSHINGS
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details Export carton; Wooden case ; Wood pallet.
Delivery Time 2~4 Weeks
Payment Terms T/T, L/C, Western Union,
Supply Ability bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Composition: Bronze (CuZn25Al5) Solid Lubricant,Manganese Bronze SAE 430B Model Number Shoulder Bushing,Cylinder Bearings,Cylinder Bearings With Flange
Feature Self Lubrication Bearings Lubrication Graphite
Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. Type FLANGE/SLEEVE/WASHER
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing Gleitalger A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite bronze bushing

,

graphite plugged bronze bushings

Leave a Message
Product Description

SAE 430B C86300 bronze bearings, also known as manganese bronze bearings, are highly regarded for their excellent mechanical properties and wear resistance. These bearings are widely used in various industrial applications due to their ability to handle high loads and maintain stability over extended periods.

Graphite plugged shoulder bushings are a specific type of SAE 430B C86300 bronze bearing that features a graphite insert or plug. This graphite component provides a self-lubricating effect, significantly reducing friction and wear on the bearing surface. The graphite plug also acts as a shock absorber, helping to protect the bearing from damage caused by sudden impacts or vibrations.

The combination of SAE 430B C86300 bronze and graphite plugging results in a bearing that is not only strong and wear-resistant but also self-lubricating and shock-resistant. This makes it an ideal choice for applications where reliability and long-lasting performance are critical.

Wh you're looking for a replacement bearing for an existing machine or a custom-made solution for a new application, SAE 430B C86300 bronze bearings with graphite plugged shoulder bushings can provide the durability and performance you need. Contact us today to discuss your requirements and learn more about our range of products and services.



Searching By Graphite Plugged Bronze Bushing Size | Oilless Bushes


Factory Direct & Fast Delivery Experienced Manufacturer & Supplier in China



Self-lubricating & maintenance free  bronze gleitlager



Standard material



  • CuZn25A16Fe3Mn3 + Graphite





♦ Unparalleled high load, low speed performance.
♦ Outstanding wear resistance in those places where it is difficult to form an oil film due to reciprocating, oscillating movements and frequently intermittent processes
♦ Remarkable corrosion resistance and resistance to chemical attack
♦ Maintenance-free and saves operating costs.



Bronze Gleitlager



The sizes shown for solid bronze bushes are nominal sizes. Refer to the tolerances listed on our PDF each size. SAE 430B C86300 Bronze Cylindrical Self Lubricating Sleeve Bearings | Cast Bronze Bushes with Graphite

High loads and speeds manganese bronze graphite bushing, such as c863 bearing applications require reliable lubrication. besides excellent mechanical qualities, these c86300 sae 430b sliding bronze bearings have good corrosion resistance.



High strength brass Metal Plain Bearings


A variety of alloys composed of more than two elements is called special brass.Such as by aluminum, lead, tin, manganese, nickel, iron, silicon copper alloy, high strength yellow Copper is one of them.High strength and hardness, high resistance to chemical corrosion.And cutting machines
Also excellent performance.High force brass is often made into the manufacture of plates, bars, rods, pipes, casting parts, etc.

Graphite bronze bushing C86300 Graphite plugged bronze bush,Manganese Bronze bushings Copper Sleeve Bronze Bushing Bearing



Structure Characteristics And Applications


Gleitlagerbuchsen

Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

C86300 Bronze Bushing Composition

  • Bronze (CuZn25Al5)

  • Solid Lubricant



Bearing Forms Available In Standard Dimensions



  • ·Cylindrical bushes
  • · Flanged bushes
  • · Sliding plates



What is Cast Bronze Bushings?



JDB bushing JDB material is made of strong cast bronze based metal with special solid lubricants embedded.

This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.Cast Bronze Bushings is made of Cast Bronze Bushings with Solid Lubricant Inserts, the base metal withstands high load and the graphite provide self-lubrication.



SAE430B C86300 Cast Bronze Bushing With Graphite



C86300 Manganese Bronze SAE 430B

Chemical Composition mass %



Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn



60.0-66.0

0.2

5.0-7.5

2.0-4.0

2.5-5.0

1

0.2





22.0-28.0





Cylindrical Standard Dimensions Bronze Solid Lubricant Sliding Bearings



Festschmierstoff-Gleitlager Plastic Molding Machinery
C86300 Bronze Bushing Characteristics

Solid Lubricant Casting Aluminum Bronze Bearings Bushings with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available.



VSB-50  Solid lubricating bearings


1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃



Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm


Chemical Compositions



Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



MATERIAL :CuZn25AI5Mn4Fe3



Vsb-50 Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed.This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.The lubricator, which is based on maintenance-free solid lubricant or graphite, is embedded into the steel or bronze of the sliding bearing. The lubricator makes it possible, and easier, to work in dry environments.
Viiplus bronze gleitlager sliding bearings are more resistant at higher temperatures com-pared to other types of sliding bearings.



Application In Plastic Molding Machinery



Viiplus graphite bronze bushings widely used in molding machinery injection molding machines, rubber machinery, die-casting machines and other occasions.
Packaging & Shipping



Gleitlagerbuchsen



1. Clear the oiles bearing

2.Pack with plastic paper
3.Pack with foam paper
4.Carton
5.Good quality wood case





Characteristics of Oiles bearing:





  • Various material can be choose based on your design

  • Quick delivery date

  • Flexible design, simple, convenient and it can be used in all kinds of conditions

  • Cost saving

  • Maintenance free

  • Long life
