CUSN6 / CUSN8 - Bronze Bearing Rolled Self Lubricating Plain Bearing | Dry Sliding Bearing Gerollte Trockengleitlager

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze CuSn8 092 Feature High Load
Type Sleeve, Flange, Washer Lubrication Oil Lubrication
Quality OEM Quality Specification Std.size In Stock
Customized Welcome Customized Drawing Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Characteristic Втулки скольжения (биметаллические подшипники скольжения) Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

self lubricating bearing

,

self lubricating bronze bushings

Leave a Message
Product Description

The CUSN6/CUSN8 Bronze Bearing is a rolled self-lubricating plain bearing, also known as a dry sliding bearing or Gerollte Trockengleitlager. This bearing is made of high-quality bronze material, which exhibits excellent wear resistance and load-bearing capabilities. The self-lubricating feature ensures smooth operation without the need for external lubrication, reducing maintenance requirements. The rolled design of the bearing provides additional strength and stability, ensuring reliable performance even under high loads and in harsh environments. Wh used in industrial machinery, automotive applications, or other heavy-duty equipment, the CUSN6/CUSN8 Bronze Bearing offers a durable and efficient solution for dry sliding bearing needs.



Self Lubricating Bearings



Die Guide Bushing Universal Straight Type Components Guide Bushing.Standard Components for Press Die,Standard Components for Plastic Moulds,Standard Components for Sliding Material.Made to order from china.

Rolled dry sliding Bearing Cylindrical Oilless Bushing Manufacture Sleeve Bushes



CUSN6 / CUSN8 - Bronze Bearing Supplier Phosphor tinbronze Straight Bushings Online Catalog CUSN8 FLANGE SLEEVE BRONZE SPILT BUSHING.pdf

Maintenance-Free, Self-Lubricating Bearings. “solid material with solid lubricants” for non-lubricated packing rings.


Plain Bearings & Self-lubricating Bushings | VIIPLUS Surface Engineering | Bearing Technology


Material: C 51900, Cu Sn8 P, CW453K, Fosforbrons


VSB-22 FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents

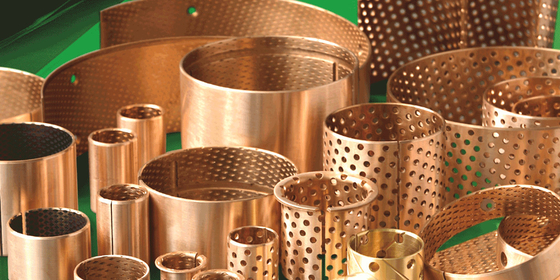

Bronze Wrapped Bearing with Oil Pockets (090 CYLINDRICAL BUSHES)
Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip



Self Lubricating Plain Bearing







Performance 090 Cylindrical Bushes Flange Bushes



  • Bronze Bearing Factory,Bronze Bushing supplier,CuSn8 flange bronze bush

  • Bearing material made of solid bronze strip with indents for lubrication

  • Good wear resistance, suitable for rough conditions

  • Optimum performance under relatively high loads and low speeds

  • Easy for fitting and lubricating

  • High load capacity

  • Inner Diameter machineable parts are available against order

  • High level thermal conductivity

  • Minimum overall dimensions

  • Chemical resistance.

  • Initial pre-lubrication at assembly required



Strusture



Wrapped dry sliding bearings also have a multi-layered composition. A
porous bronze layer is sintered onto a steel or bronze strip. The function
of this layer is to connect the carrier and the sliding layer. It also ensures
that the necessary heat removal can occur.


The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.



Technical Data



Self Lubricating Plain Bearing

Max.Load

Static

120N/mm²

Elongation

40%

Dynamic

40N/mm²

Temp

-100℃~+200℃

Coefficient of friction

0.08~0.25

Max.speed(Lubrication)

Max.Speed

2m/s

Thermal conductivity

58W(m*k)-1

Max.PV

Max.PV

2.8N/mm²*m/s

Coef. of thermal expansion

18.5*10-6K-1

Tensile strength

Tensile strength

450N/mm²





Hardness

Hardness

HB 100-150

Self Lubricating Plain Bearing

Structure And Composition



CUSN6 / CUSN8 - Bronze Bearing Rolled Self Lubricating Plain Bearing | Dry Sliding Bearing Gerollte Trockengleitlager 3

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest





Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents



OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor





Bearing Properties



Availability

  • Bearing forms available in standard dimensions

  • Cylindrical bushes

  • Bearing forms made to order:

  • cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs



Typical Applications


This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.



Viiplus Busings Stock Size



We offer an extensive range of sliding bearings.
