Product Details
Meterial Bronze CuSn8,CuSn6.5 Type 09G CuSn8 Wrapped Bronze Bush, Oil Pocket Filled With GRAPHITES, Metric Size
Feature BRO-MET, FB090, BRM10, WB800 Lubrication Self Lubrication Bronze Bearings
Quality ISO3547 Application Agricultural, Building & Engineering Machines, Etc
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing
Specialty Бронзовые втулки Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

metric bronze bushings

,

wrapped bronze bushings
Leave a Message
Product Description

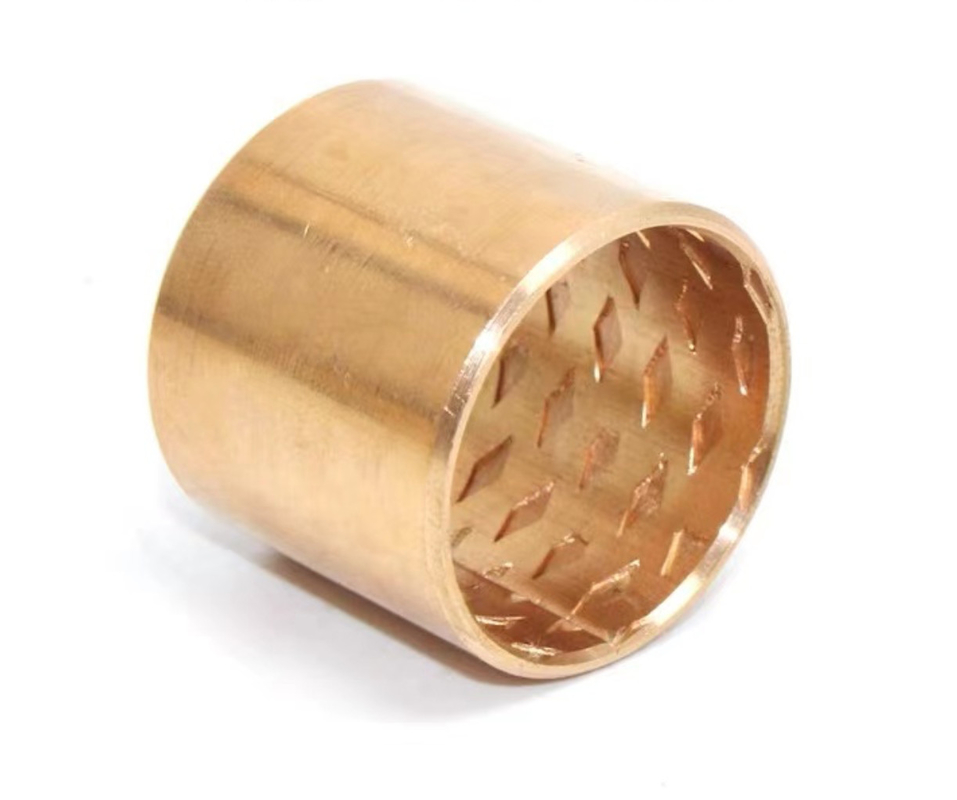

Oil-lubricated CuSn8 bronze bushings are specifically designed for offshore applications where durability, corrosion resistance, and reliable performance are critical. These bushings, made from CuSn8 alloy, offer excellent mechanical properties and wear resistance, making them suitable for harsh environments such as offshore drilling platforms, oil rigs, and other marine structures.

The oil lubrication system in these bushings ensures continuous and effective lubrication, reducing friction, wear, and downtime. The CuSn8 alloy, with its high tin content, provides excellent corrosion resistance, even in saltwater environments, ensuring the bushings' longevity and performance.

Additionally, bronze graphite bushings are also widely used in offshore applications. These bushings incorporate graphite particles into the bronze matrix, further enhancing their self-lubricating properties and wear resistance. The combination of bronze's strength and graphite's lubricating effect makes these bushings ideal for high-load, low-speed applications where smooth operation and reduced maintenance are essential.

Both oil-lubricated CuSn8 bronze bushings and bronze graphite bushings offer reliable and cost-effective solutions for offshore applications, ensuring smooth operation and extended service life under harsh conditions.



Self-Lubricating Oil Lubrication Bronze Sleeve Bushings With Graphite

Cylindrical bushing,flanged bearing and strip are available. Wrapped Bronze Bushing. Bronze Bearing 090G with Graphite.

09G Bronze Wrapped Bearings with Graphite

CuSn8 bronze bush, Graphited & Diamond, 30x34x25 mm, 09G | CuSn8 wrapped bronze bush, oil pocket filled with GRAPHITES, metric size, BOCCOLE BRONZO



CuSn8 Bronze bushings for Offshore 09G bronze wrapped bushings gleitlager bearing with graphite

Feature: high load capacity, excellent wear resistance with lower friction, high level thermal conductivity , minimum overall dimensions, chemical resistance.



bushes - metric size cusn8 bronze material.pdf

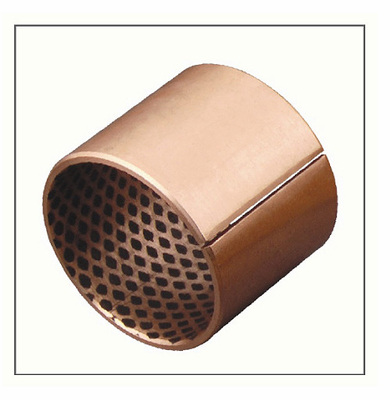

Wrapped bronze bushings with graphite are similar to the wrapped bronze bearing 090, except that there are solid lubricants embedded in the diamond-shaped lubrication recesses in the bearing surface, which provide good lubrication conditions in the initialization stage, even with a lack of oil. Can be used in construction machines, gearboxes, automotive clutch parts etc.



wrapped bronze bearing with graphite



The Features of the Solid-Lubricant-Inlaid Bushing



VIIPLUS self-lubricating bearing parts of the machinery industry, the use of certain generalized. In order to make the mechanical drive is operating normally, a lot of effort. The bearing area is divided into Rolling and plain bearings. Sliding bearings in high-load movement, foreign substances, temperature, fuel, maintenance, imperfect circumstances, can cause galling. Like sliding bearings can not be used under harsh conditions, the solid inlaid metal self-lubricating bearings, wear resistance, resistance to galling, to play the bearings of the due performance, the role of mechanical performance and maintenance-free.

1. No need to oil installations, the filling hole processing tank

The cost of oil installations, processing fees, assembly fees, the extra cost and time savings can significantly reduce manufacturing costs.

2. Lower operating costs

Substantially reduce the use of lubricants and equipment maintenance costs, while also eliminating the risk caused due to insufficient oil supply.

3. The shortening of design time

Non-oil can make the design, structure, and greatly simplify and reduce costs, save design time and to obtain significant results, in addition, the use of self-lubricating bearings can also improve the mechanical properties and extend the service life and higher reliability.

4. Lubricating oil recycling and environmental protection

No need to waste oil recycling, are environmentally friendly.

wrapped bronze bushings with graphite



















































Typical application:



widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and mineral engines．


Bronze Wrapped Bearing with graphite (09G CYLINDRICAL BUSHES )



Bronze Bushes 09G BRONZE BUSHES



Technical Data



Dynamic load limit

70N/mm²

ompostions

 CuSn8P0.3 with graphite

PV limit

 2.8N/mm²*m/s

friction coefficient

90.06~0.2

Speed limit

4m/s

Temp.limit

260°C





Oil Lubrication CuSn8 Bronze bushings for Offshore, Bronze Graphite Bushings 2

VSB-22 Wrapped Bearings


Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip
· Bearing material made of solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds

· 1.Easy for fitting and lubricating
· 2.High load capacity
· 3.Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...



  wrapped bronze bushings









































































SIZE 090 Bronze wrapped bushing



START YOUR PROJECTWITH AN APPLICATION ENGINEER

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings


Bronze wrapped bushing technical data



Data Grade Wrapped bronze bearing 090 Wrapped bronze bearing 092 Wrapped bronze bearing 09G

Material		 CuSn8P CuSn8P CuSn8P+Graphite
Typicai applicaton Products are suitable for lifting machinery, construction machinery, agricultural machinery, forest machinery and so on Products are widely used in agricultural machinery, construction machinery, construction machinery and so on. It has the advantages of low friction coefficient, good wear resistance and so on, and can work under the condition of no oil or little oil. The products are widely used in starting motors and hoist, construction machinery, cars, trucks, tractors and so on.
Densityg/cm3 8.8 8.8 8.8
Max. dynamic loadN/mm2 100 120 100
Max. linear speed (grease lubrication) m/s 2 2.5 2.5
Max. PV value (grease lubrication)N/mm2·m/s 2.8 2.8 2.8
Tensile strength N/mm2 >460 >460 >460



Yield Strength N/mm2

 >280 >280 >280
HB 90~150 90~150 90~150
Matching shaft HRC ≥50 ≥50 ≥50
Roughness 0.4~1.0 0.4~1.0 0.4~1.0
proper temperature ℃ -40~150 -40~150 -40~150
Friction coefficient 0.06~0.15 0.06~0.15 0.03~0.1
Heat conductivity coefficient W/m·K 58 58 58
Coefficient of linear expansion (axial) 18.5×10-6/K 18.5×10-6/K 18.5×10-6/K



Wrapped Bronze Bushings WB800, WF-WB800 Size Bushings - Factory Direct & Fast Shipping - Material: Homogeneous bronze (Cu 91,3%, Sn 8,5%, P 0,2%)



WB800 Bronze Bushings, WF-WB800 Bronze Bushings d D L
150030 Glidlager 12/14X15 WB800 Bronze Bushings 12 14 15
150050 Glidlager 14/16X15 WB800 Bronze Bushings 14 16 15
150055 Glidlager 14/16X20 WB800 Bronze Bushings 14 16 20
150060 Glidlager 15/17X15 WB800 Bronze Bushings 15 17 15
150065 Glidlager 15/17X25 WB800 Bronze Bushings 15 17 25
150070 Glidlager 16/18X15 WB800 Bronze Bushings 16 18 15
150075 Glidlager 16/18X20 WB800 Bronze Bushings 16 18 20
150080 Glidlager 16/18X25 WB800 Bronze Bushings 16 18 25
150085 Glidlager 18/21X15 WB800 Bronze Bushings 18 21 15
150090 Glidlager 18/21X20 WB800 Bronze Bushings 18 21 20
150095 Glidlager 18/21X25 WB800 Bronze Bushings 18 21 25
150100 Glidlager 20/23X15 WB800 Bronze Bushings 20 23 15
150105 Glidlager 20/23X20 WB800 Bronze Bushings 20 23 20
150110 Glidlager 20/23X25 WB800 Bronze Bushings 20 23 25
150115 Glidlager 20/23X30 WB800 Bronze Bushings 20 23 30
150120 Glidlager 22/25X15 WB800 Bronze Bushings 22 25 15
150125 Glidlager 22/25X20 WB800 Bronze Bushings 22 25 20
150130 Glidlager 22/25X25 WB800 Bronze Bushings 22 25 25
150135 Glidlager 22/25X30 WB800 Bronze Bushings 22 25 30
150137 Glidlager 25/28X15 WB800 Bronze Bushings 25 28 15
150140 Glidlager 25/28X20 WB800 Bronze Bushings 25 28 20
150145 Glidlager 25/28X25 WB800 Bronze Bushings 25 28 25
150150 Glidlager 25/28X30 WB800 Bronze Bushings 25 28 30
150160 Glidlager 25/28X50 WB800 Bronze Bushings 25 28 50
150165 Glidlager 28/31X15 WB800 Bronze Bushings 28 31 15
150170 Glidlager 28/31X25 WB800 Bronze Bushings 28 31 25
150175 Glidlager 28/31X30 WB800 Bronze Bushings 28 31 30
150185 Glidlager 30/32X30 WB800 Bronze Bushings 30 32 30
150180 Glidlager 30/34X20 WB800 Bronze Bushings 30 34 20
150183 Glidlager 30/34X25 WB800 Bronze Bushings 30 34 25
150190 Glidlager 30/34X30 WB800 Bronze Bushings 30 34 30
150195 Glidlager 30/34X40 WB800 Bronze Bushings 30 34 40
150200 Glidlager 32/36X20 WB800 Bronze Bushings 32 36 20
150205 Glidlager 32/36X30 WB800 Bronze Bushings 32 36 30
150210 Glidlager 32/36X40 WB800 Bronze Bushings 32 36 40
150220 Glidlager 35/39X20 WB800 Bronze Bushings 35 39 20
150235 Glidlager 35/39X30 WB800 Bronze Bushings 35 39 30
150240 Glidlager 35/39X40 WB800 Bronze Bushings 35 39 40
150260 Glidlager 40/44X20 WB800 Bronze Bushings 40 44 20
150261 Glidlager 40/44X25 WB800 Bronze Bushings 40 44 25
150265 Glidlager 40/44X30 WB800 Bronze Bushings 40 44 30
150275 Glidlager 40/44X40 WB800 Bronze Bushings 40 44 40
150285 Glidlager 40/44X50 WB800 Bronze Bushings 40 44 50
150294 Glidlager 45/50X16 WB800 Bronze Bushings 45 50 16
150295 Glidlager 45/50X20 WB800 Bronze Bushings 45 50 20
150300 Glidlager 45/50X30 WB800 Bronze Bushings 45 50 30
150302 Glidlager 45/50X40 WB800 Bronze Bushings 45 50 40
150310 Glidlager 45/50X50 WB800 Bronze Bushings 45 50 50
150315 Glidlager 45/50X60 WB800 Bronze Bushings 45 50 60
150319 Glidlager 50/55X25 WB800 Bronze Bushings 50 55 25
150325 Glidlager 50/55X30 WB800 Bronze Bushings 50 55 30
150335 Glidlager 50/55X40 WB800 Bronze Bushings 50 55 40
150337 Glidlager 50/55X50 WB800 Bronze Bushings 50 55 50
150340 Glidlager 50/55X60 WB800 Bronze Bushings 50 55 60
150345 Glidlager 55/60X40 WB800 Bronze Bushings 55 60 40
150350 Glidlager 55/60X60 WB800 Bronze Bushings 55 60 60
150360 Glidlager 60/65X30 WB800 Bronze Bushings 60 65 30
150365 Glidlager 60/65X40-L WB800 Bronze Bushings 60 65 40
150375 Glidlager 60/65X45 WB800 Bronze Bushings 60 65 45
150380 Glidlager 60/65X60 WB800 Bronze Bushings 60 65 60
150405 Glidlager 65/70X40 WB800 Bronze Bushings 65 70 40
150410 Glidlager 65/70X60 WB800 Bronze Bushings 65 70 60
150420 Glidlager 70/75X40 WB800 Bronze Bushings 70 75 40
150425 Glidlager 70/75X45 WB800 Bronze Bushings 70 75 45
150427 Glidlager 70/75X50 WB800 Bronze Bushings 70 75 50
150430 Glidlager 70/75X60 WB800 Bronze Bushings 70 75 60
150435 Glidlager 70/75X80 WB800 Bronze Bushings 70 75 80
150445 Glidlager 75/80X40 WB800 Bronze Bushings 75 80 40
150450 Glidlager 75/80X80 WB800 Bronze Bushings 75 80 80
150455 Glidlager 80/85X40 WB800 Bronze Bushings 80 85 40
150459 Glidlager 80/85X50 WB800 Bronze Bushings 80 85 50
150460 Glidlager 80/85X60 WB800 Bronze Bushings 80 85 60
150465 Glidlager 80/85X80 WB800 Bronze Bushings 80 85 80
150475 Glidlager 85/90X40 WB800 Bronze Bushings 85 90 40
150480 Glidlager 85/90X80 WB800 Bronze Bushings 85 90 80
150495 Glidlager 90/95X40 WB800 Bronze Bushings 90 95 40
150497 Glidlager 90/95X50 WB800 Bronze Bushings 90 95 50
150500 Glidlager 90/95X60 WB800 Bronze Bushings 90 95 60
150508 Glidlager 90/95X70 WB800 Bronze Bushings 90 95 70
150505 Glidlager 90/95X90 WB800 Bronze Bushings 90 95 90
150514 Glidlager 100/105X40 WB800 Bronze Bushings 100 105 40
150515 Glidlager 100/105X50-L WB800 Bronze Bushings 100 105 50
150520 Glidlager 100/105X60 WB800 Bronze Bushings 100 105 60
150525 Glidlager 100/105X95 WB800 Bronze Bushings 100 105 95
150529 Glidlager 105/110X50 WB800 Bronze Bushings 105 110 50
150540 Glidlager 110/115X95-L WB800 Bronze Bushings 110 115 95
150550 Glidlager 120/125X50-L WB800 Bronze Bushings 120 125 50
150555 Glidlager 120/125X95-L WB800 Bronze Bushings 120 125 95
150565 Glidlager 125/130X100 WB800 Bronze Bushings 125 130 100
150570 Glidlager 130/135X60-L WB800 Bronze Bushings 130 135 60
150575 Glidlager 130/135X100-L WB800 Bronze Bushings 130 135 100
150578 Glidlager 140/145X50-L WB800 Bronze Bushings 140 145 50
150580 Glidlager 140/145X60-L WB800 Bronze Bushings 140 145 60
150585 Glidlager 140/145X100-L WB800 Bronze Bushings 140 145 100
150605 Glidlager 150/155X60-L WB800 Bronze Bushings 150 155 60
150610 Glidlager 150/155X100-L WB800 Bronze Bushings 150 155 100
150615 Glidlager 160/165X60-L WB800 Bronze Bushings 160 165 60
150620 Glidlager 160/165X100-L WB800 Bronze Bushings 160 165 100
150635 Glidlager 170/175X60-L WB800 Bronze Bushings 170 175 60
150640 Glidlager 170/175X100-L WB800 Bronze Bushings 170 175 100
150645 Glidlager 180/185X60-L WB800 Bronze Bushings 180 185 60
150655 Glidlager 180/185X100-L WB800 Bronze Bushings 180 185 100
150658 Glidlager 190/195X48-L WB800 Bronze Bushings 190 195 48
150660 Glidlager 190/195X60-L WB800 Bronze Bushings 190 195 60
150665 Glidlager 190/195X100 WB800 Bronze Bushings 190 195 100
150675 Glidlager 200/205X200-L WB800 Bronze Bushings 200 205 200





Tags:

metric bronze bushings

wrapped bronze bushings

flanged bronze bushings
