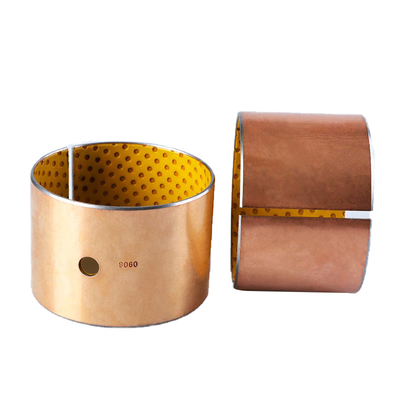

    The wrapped bronze bushings is produced with diamond-shaped lubrication indents on the inner diameter surface which provide lubricant reservoirs that allow for prolonged service.
Contact Person : Tiffany

Valve Polymer Plain Bearings Stainless Steel 316 / Fibres Fabric Thrust Washer And Slide Assembly

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Stainless Steel 316, Fibres Fabric Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Standard Size Available Port Shanhai,or Ningbo
Quality OEM Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Bearing TEX Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings
POM BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ... Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil impregnated brass sleeve bearing

,

flanged plain bearing

Leave a Message
Product Description

Valve Polymer Plain Bearings with Stainless Steel 316 / Fibers Fabric Thrust Washer and Slide Assembly are a type of specialized mechanical components that are designed to provide smooth and reliable operation in valve systems. These bearings incorporate the use of polymer material along with stainless steel 316 for enhanced corrosion resistance and durability. The inclusion of (Polytetrafluoroethylene) fibers in the fabric thrust washer further improves the friction properties, ensuring a low-friction interface between moving parts.
The slide assembly, typically comprising the thrust washer and other components, allows for precise and controlled movement of the valve elements. The combination of stainless steel 316 and fibers fabric provides a robust yet flexible solution that can withstand the rigors of various operating conditions, including high temperatures, pressures, and corrosive environments.
In summary, Valve Polymer Plain Bearings with Stainless Steel 316 / Fibers Fabric Thrust Washer and Slide Assembly offer a reliable and efficient solution for ensuring smooth and controlled operation of valve systems in a wide range of applications.


Sliding Bearing Sliding Washer Selection Sleeve Bushing And Flanged Bearings Press Fit


We are leading Manufacturers of Dry Bearing, sliding bearing, boundary lubrication Bearing, Dry Bearing, Bronze Bearing, Bimetal Bearing, Bearing. Our Manufacturing Unit is located in china. The following are some of the specific applications of sliding bearings, Due to the combination of material properties and performance, VIIPLUS products have been more widely used and promoted than ordinary self-lubricating bearings. Thin-walled structure, small size, lightweight, easy to use sleeve BUSHES. Based on the material properties of the wear-resistant layer of mixture PLAIN BEARINGS products for difficult maintenance can not be refueled or difficult to refuel, with no oil lubrication and less oil lubrication occasions. During use, the mixture forms a transfer film that protects the grindstone shaft from biting. blends offer excellent wear resistance and low coefficient of friction, as well as moderate elastoplasticity, which distributes the stress across a wide contact surface and thereby increases the load-carrying capacity of sliding bearings products. Therefore, BUSHES products are suitable for rotating, Swing, axial sliding, and other occasions.


  • bronze bushings
  • bronze bushing bronze bushing material
  • brass bushings
  • what are bronze bushings
  • bronze bearings
  • brass vs bronze bushings
  • bronze bearing
  • brass bushing material
  • bushing bronze



Wrapped composite sliding bearing Stainless steel 316 / fibers fabric gleitlager valve bushings application | VSB-36



VIIPLUS Sliding bearing solutions for your applications



• Pre-finished metal sliding bearings

• Spherical plain bearings

• Rod ends



Sliding Bearing


Bearing Press Fit



Roll Sleeve Bushings Detection


In the free state, there is a certain opening seam in the rolling shaft sleeve, so it is not possible to measure the outer diameter and inner diameter accurately.Therefore, the inner and outer diameters of rolling bearings should be equipped with professional measuring tools and equipment
Outside diameter detection
The shaft sleeve is forced into the ring gauge through gauge (maximum adding force 250N)
Use the same method and the same force to press the ring gauge end without passing
Inside diameter detection
When the shaft sleeve is pressed into the ring gauge, the through end of the plug gauge is applied with a small force, and the end of the plug gauge is applied with a greater force not exceeding 250N
Note: bushing pressure ring gauge, bushing outside diameter may be permanently reduced
Wall thickness measurement
Shaft sleeve wall thickness measurement: according to the height of the shaft sleeve in the shaft upward measurement point, two points or three points.


Technische Daten

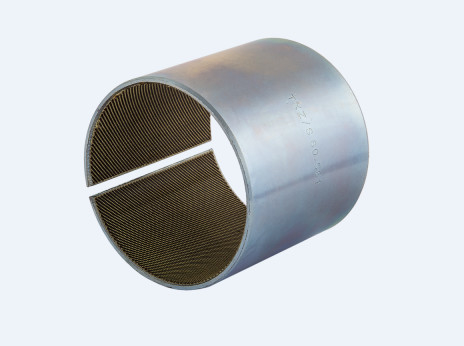

  • Wrapped composite sliding bearing
  • Carbon-steel / fibres fabric
  • Maintenance-free
  • Available on request



Properties


  • Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption



Materials



  • Support material carbon steel
  • Sliding layer  fibers fabric
  • Support material: Stainless steel and bronze on request



Material Properties



  • Specific load capacity static≤ 350 [N/mm2]
  • Specific load capacity dynamic≤ 180 [N/mm2]
  • Sliding speed< 0.5 [m/s] 1 [m/s] lubricated
  • Friction value ***0.03 [µ] to 0.20 [µ]
  • Temperature strain– 50 [°C] to + 250 [°C]
  • Max. PV-value1.8 [N/mm² x m/s]



Mounting Advice



  • The application of an adequate force-fitting mandrel is advisable



Tolerance Details



  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8




Tech.Data

Max.Load

Static

350N/mm2



Temp.

-50°C~+250°C

Dynamic

180N/mm2

Friction coefficient

0.03~0.20

Max.speed

Dry

0.5m/s

Thermal conductivity

42W(m x K) 1

Grease

1m/s~3m/s

Max.PV(Dry)

Short-term

3.6N/mm2 m/s

Coefficient of thermal
expansion

11 x 10- 6 x K-1

Continuous

1.8N/mm2 m/s





Sliding Bearing washer


Maintenance



  • is a dry sliding bearing with glued fibres fabric overlay. Lubrication is therefore not necessary and not allowed.



Range Of Application



  • Machine and crane construction, apparatus engineering, agricultural machines, fittings, water pumps, chemical industry



Application


Now, this product has been used like suspension and auxiliary of agriculture and construction machines, cranes and hydraulic and mechanical jibs, ball butterfly and sluice valves, water pumps, chemical industries, etc.





Caption



This sliding bearing type and special dimensions are only available on request
