Multi-layer bearings with POM (Polyoxymethylene, also known as acetal plastic) wrapped FRI-MIX bushings offer a unique combination of properties that make them suitable for various demanding applications. POM, a highly versatile engineering plastic, is known for its excellent wear resistance, dimensional stability, and low friction coefficient. When combined with FRI-MIX bushings, these multi-layer bearings provide enhanced performance and durability.

FRI-MIX bushings are typically made of a composite material that combines the advantages of different materials. This allows for the optimization of properties such as wear resistance, friction coefficient, and mechanical strength. When wrapped with POM, the resulting multi-layer bearing offers superior sliding properties, low friction, and high wear resistance.

These multi-layer bearings are suitable for applications that require precise positioning, smooth operation, and long service life. They are commonly used in automotive components, machine tools, and other industrial equipment where reliability and performance are crucial.

The combination of POM and FRI-MIX bushings in multi-layer bearings provides a robust and reliable solution for demanding applications. Wh it's for reducing friction, improving wear resistance, or ensuring precise positioning, these bearings are designed to meet the challenges of modern industrial applications.

Wrapped Steel Backed Bronze Bushing, Multilayer material type ,  Replacement parts

viiplus® bushing: the best ever global industry standard for marginally lubricated metal polymer plain bearings made to order from china. Cylindrical bushes.Competitively Priced vs  BUSH,Provides Composite Bushings & Thrust Washers Solutions.

Triple-layer bushing dimensions Wrapped bearing with acetalplastic

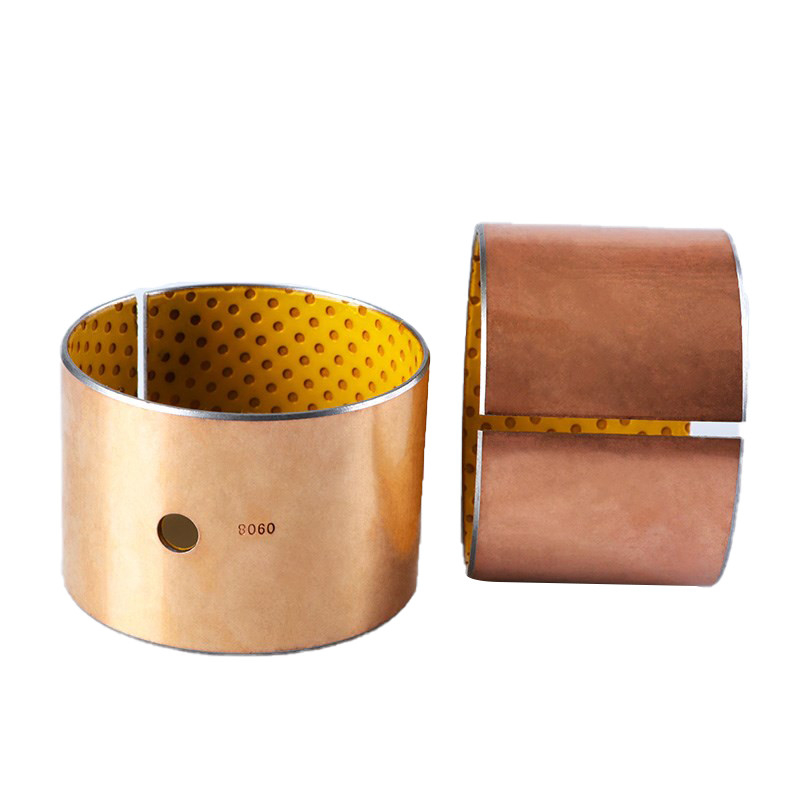

Multi-layer bearings is a 3-layer bearing, wrapped of copper-plated steel with a layer of POM. Composite Self-Lubricating Bushings Steel Shell with POM Plastic Liner - Inch and Metric

Choose below to go to either our metric or inch series online sliding bearings catalog METRIC BEARING POM BUSHES WITH OIL HOLES.pdf and product specifier for POM Series Bushings including size and tolerance downloads.

Tolerances : Shaft dia: f7 (< 55 mm id.) h8 (> 55 mm id.) Housing: H7

Material: Triple-layer bushing

Copper plated steel-layer (anti-corrosive) Sintered, multiporous bronze layer Acetal plastic layer (with grease pockets)

·Inch Dimension, Straight Bushings

·Inch Dimension, Thrust Washer Bushings

·Metric Dimension, Straight Bushings

·Metric Dimension, Thrust Washer Bushings

·Metric Dimension, Strip Bushings

Porous bearing,Sliding bearing, Self-lubricating bearing, Solid lubricants embedded bearing Steel Shell with POM Plastic Liner - Inch and Metric

Tolerance Details

• Housing ØH7
• Bushing inner-Ø after mountingIn the range of D
• Shaft toleranceh

POM  Boundary Lubricating Bearings | VIIPLUS Bushings online sale FRIMIX bushing bearing

Multi-layer Bearings Plain bearings with resin sliding surface on thin back steel.
Demonstrate superior sliding peformance, wear resistance and thermal conductivity.

Bronze Bushing Multi Layered Bearings refer to plain bearings of thin walled with self-lubricating functions.
They are high performance, high quality, lubrication-free and maintenance-free bearings for various industries.

A wide variety of viiplus bushing options are available to you, such as free samples. bronze backing with lined SF-1B Bushing , S-PM  POM steel backed plastic covered bush , bushing FRIMIX Glyco PG A

Description

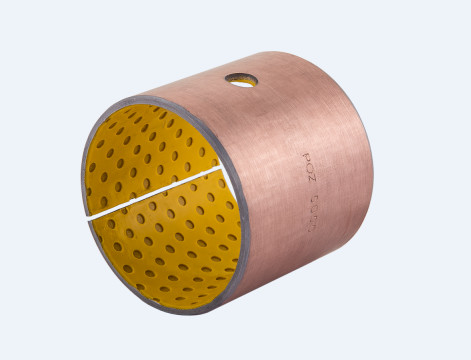

The VSB-20 FRI-MIX  consists of a steel back, sintered porous copper powder interlayer and a surface modified polyformaldehyde (POM) sliding layer to form a surface rolling oil storage pit, thus achieving good lubrication between friction pairs.POM plain bush, yellow POM SF-2 slide bushing,  sleeve bushIt has good wear resistance and bearing capacity.The steel backing provides higher mechanical strength and carrying capacity of the bushing. In addition, the surface of the steel backing is corrosion-resistant.VSB-20 series products are widely used in automobile chassis, forging press, crane, press, agricultural equipment, etc

Technische Daten

• Wrapped composite sliding bearing
• Tin-plated steel / acetal resin (POM)
• Low-maintenance
• With lubrication pockets
• Flanged sliding bearings on request

Properties

• Suitable for grease or oil lubrication and all kinds of movement, good load capacity, robust and insensible to dirt.

Materials

• Support material steel tin-plated
• Intermediate layerSintered bronze
• Sliding layerAcetal resin / POM

Material Properties

• Specific load capacity static≤ 250 [N/mm2]
• Specific load capacity dynamic≤ 140 [N/mm2] at low sliding speed
• Sliding speed≤ 2.0 [m/s]
• Friction value ***0.03 [µ] to 0.20 [µ] depending on lubrication
• Temperature strain– 195 [°C] to + 280 [°C]
• Max. PV-value1.8~3.6 [N/mm² x m/s]

Maintenance

• is a low-maintenance composite sliding bearing with a POM coating? Primary lubrication is necessary. Oil or grease lubrication is possible. Because of lubrication pockets, lubrication clearances are reduced to a minimum!

Specifications
TRIMIX bushing bearing POM bushing

We are supplying all kinds of oilless bushings in good prices and quality.

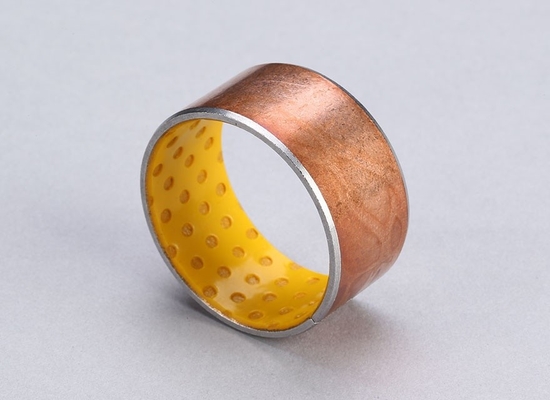

FRIMIX is a steel bearing with an internal plastic layer with grease pockets.

FRIMET is a bearing with steel backing (or bronze) and an internal layer. DRINOX is a bearing with a stainless steel backing and internal layer.

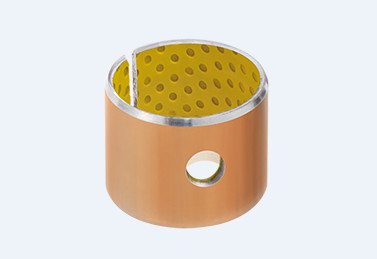

SF-2(SF-2Y,without lead) is made of triple layer composites:

low-carbon steel as base, porous bronze interlayer, POM&Pb(or non-Pb mixture) surface layer.

The products are widely used in machinery industry, such as auto machines, punch machine, forging and pressing machine, vehicle chassis, lifting equipments, mining machinery, steel industry, etc.

Features:

1. It fits for low speed, heavy duty

2. Well anti-wear
3. Low vibration, low noise. compact and light

Professional Manufacture for Bushings.

Produce by your Requirments. We Welcome your Inquiry!

MOQ: 100pcs ,For Standard Sizes

RANGE OF APPLICATION

• Machine construction, apparatus engineering, agricultural and construction machines, hydraulic cylinders

Caption

*Flanged sliding bearings and special dimensions are only available on request

Produce by your Requirments. We Welcome your Inquiry!

(MOQ: 100pcs ,For Standard Sizes.)You can use our “Enquiry Form” to get in touch with us. One of our sales team will contact you immediately.

Shipping

1.Delivery Time : Usually 15-20 days.Depends on your quantity.

2.Generally, Free of standard size sample within 5 days.

Supply Ability

10000 Piece/Pieces per Day mixture order is ok
Packaging & Delivery
Packaging Details:Carton and Pallet
PortShanghai
Lead Time :30 days
