• Thrust washers

Standard dimensions for maintenance free thrust washer


• Flanged bearings

Standard dimensions for cylindrical plain bearings with flange


• Cylindrical bearings

Standard dimensions for cylindrical plain bearings

Application Data

temperature range  -40 up to +150 °C

grease lubricated
max. PV value 2,8 MPa m/s
max. sliding velocity 2,5 m/s
max. surface pressure stat. 120 MPa - dyn. 40 MPa

thermal expansion 18 x 10-6 °C-1

frictional coefficient:

grease lubricated μ = 0,06 up to 0,2

Bearing Design

Recommended fitting

• shaft f7
• housing H7
• bearing according to DIN ISO 3547-1 (formerly DIN 1494)

Thermal expansion has to be taken into account at temperatures above 80 °C.

Mating Material

• surface roughness Ra = 0,4 μm
• minimum hardness > 200 HB

The Wrapped Bronze Bearing series of wide application in many area.

Plain Bearing Application

• Mechanical plant and steel hydraulic engineering
• General machine building industry
• Metallurgical plant and rolling mill facilities
• Mining and construction equipment
• Firefighting equipment

Self Lubricating Plain Bearing

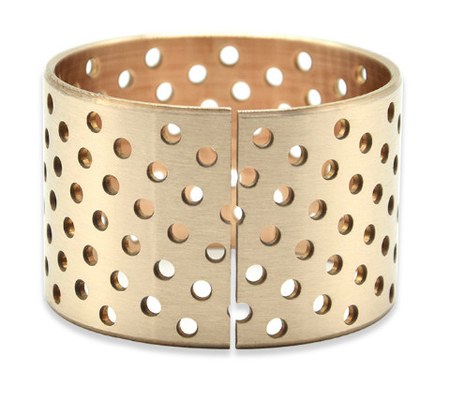

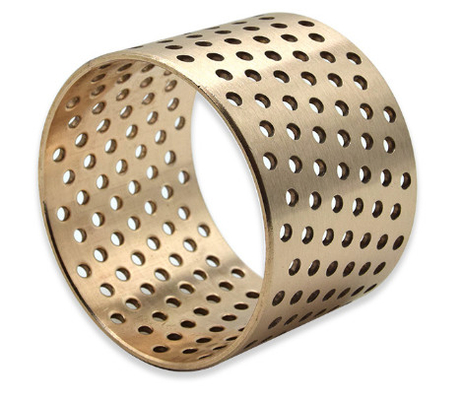

Bronze Plain Bearings With Grease Holes Cylindrical Bushes ,Bronze Sleeve Bushing Made-To-Order From China; Made Of Material Cusn8p (Din 17662);Din 1494 / Iso 3547;Low Maintenance;With Lubrication Hole.http://BRONZEGLEITLAGER.COM,

China specializes in the trade and production of metal and composite plastic sliding bearings, ranging from steel, bronze, stainless steel or bimetallic sliding bearings to sintered metal bushing.

Availability

Bearing forms available in standard dimensions
· Cylindrical bushes.Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs.

Special manufacturing Bronze Sleeve Bushings.We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.

Bushings Assembly

The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.

Characteristics

– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble

Lubrication 092 bush | Bronze Plain Bearings with Grease Reservoirs

Bronze Wrapped Bearing with Oil Pockets(092 CYLINDRICAL BUSHES)

Vsb-22 092 Cylindrical Bushes

The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

Bearing Properties
