When it comes to cylindrical bearing bushings, having metric standard sizes available is crucial for a wide range of applications. Composite bushings, specifically those made of metal polymer composite (MPC) materials, offer several advantages for cylindrical bearing applications.

Metric standard size cylindrical bearing composite bushings are designed to fit into standard metric-sized bearing housings and shafts. This ensures compatibility and ease of installation in various machinery and equipment.

MPC composite bushings offer several key benefits:

High load capacity: MPC materials are reinforced with metal compounds, providing excellent strength and durability to handle heavy loads and torques.
Low friction: The combination of metal and polymer compounds results in a low-friction material, reducing wear and energy loss.
Self-lubricating: MPC bushings do not require external lubrication, making them maintenance-free and reducing the risk of contamination or leakage.
Chemical resistance: MPC bushings are resistant to chemicals and harsh environments, making them suitable for demanding applications.
Metric standard size cylindrical bearing composite bushings are available in various diameters, lengths, and wall thicknesses to meet specific application requirements. They can be easily installed into existing bearing housings using standard tools and techniques.

Overall, metric standard size cylindrical bearing composite bushings provide an effective solution for various machinery and equipment, offering high load capacity, low friction, and chemical resistance while requiring minimal maintenance.

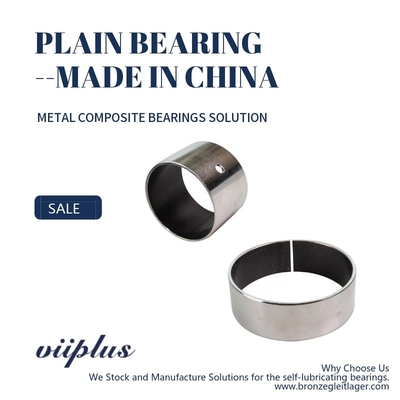

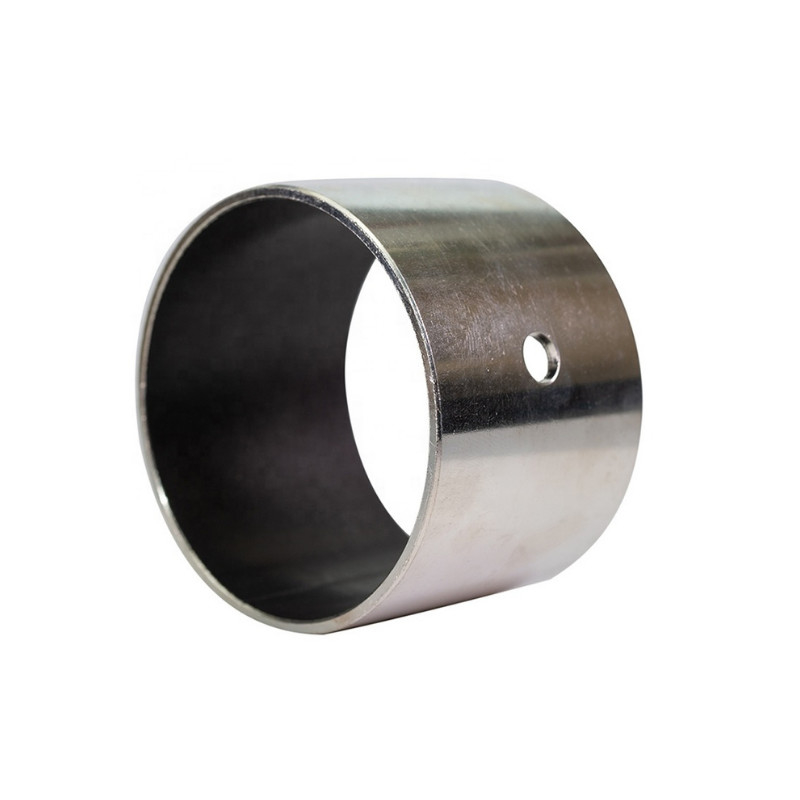

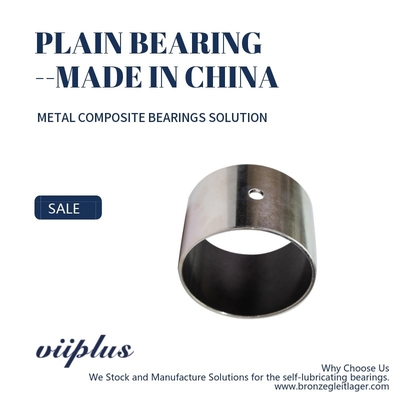

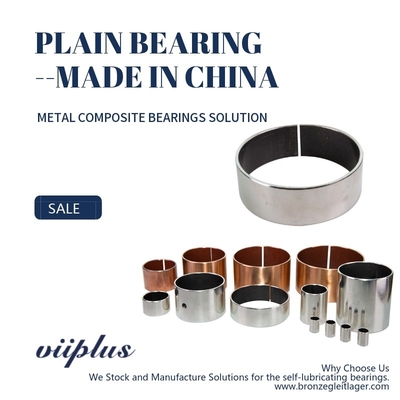

Metric Standard Size Available Cylindrical Bearing Composite Bushing

Metric Standard Size Available Cylindrical Bearings - Composite Bushing.Made in China Manufacture of slide bearing,bronze bushing,solid cast bronze bearing,oilless bushing,wrapped bronze bushing,bimetal bushing, bushing,etc.Bronze Bushing Bearing,WB FB Bronze Bushing, Bush,Composite Bushing: SF-1  PAP PAF PAS P10 P20 SF-2 POM

• Bronze /
• Maintentance-free

Properties

• Excellent sliding and wear behaviour, for all types of movement, high load capacity, good corrosion resistance, non-magnetic

Materials

• Support Material Bronze or steel
• Intermediate layer Sintered bronze
• Sliding layer

Material Properties

• Specific load capacity static≤ 200 [N/mm2]
• Specific load capacity dynamic≤ 140 [N/mm2] at slow sliding speed
• Sliding speed≤ 2.5 [m/s]
• Friction value ***0.02 [µ] to 0.25 [µ]
• Temperature strain– 200 [°C] to + 280 [°C]
• Max. PV-value1.8 [N/mm² x m/s]

Tolerance Details

• Housing ØH7
• Bushing inner-Ø after mountingH9
• Shaft tolerancef7 to h8

Maintenance

• is a dry sliding bearing with a sliding layer. Lubrication is therefore not necessary, but basically possible!

Range Of Application

• Machine and plant construction, textile processing and agricultural maschines, automotive industry

Caption

Special dimensions are only available on request.*If you like to use lubrication nonetheless, please remember to lubricate the sliding bearing regularly
