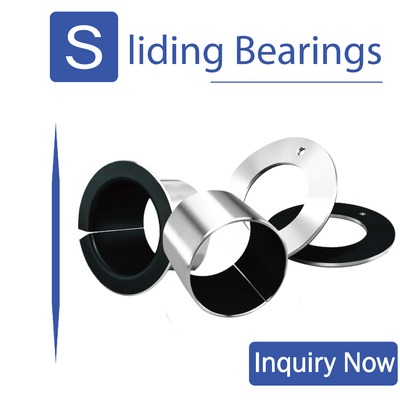

Dry Corrosion Resistant P10 Polymer Plain Bearings, china supply, Low friction and high wear

Place of Origin CHIINA
Brand Name viiplus Self-lubricating composite bearing
Certification ISO 9001
Model Number High performance P10 oil-free self-lubricating bearings
Minimum Order Quantity 0-10pcs
Price Quote according to size
Packaging Details Wooden packing
Delivery Time 5-25days
Payment Terms T/T
Supply Ability There are some standard sizes in stock according to actual specifications

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel+P10 Supply Ability Have Standing Stock
Size Customization Type Composite Bushing
Service Customization & OEM Service,high Quality Sample Available / Free
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

P10 Bearings

,

dry Polymer Plain Bearings

Leave a Message
Product Description

P10 Dry friction bearing Material information



P10 is a dry friction bearing, with good wear resistance, the result is hard and reliable because of the lead, suitable for dry and not long-term maintenance of the field, P10 dry friction bearing can add grease but its role is general, it is not recommended



Addition of solid lubricant

P10 material is copper powder sintered on steel base to form a certain sliding clearance, which is then formed by rollers. Because the clearance is between 0.2-0.35mm, the thickness of P10 corresponds to it 0.03mm





Annotation

P10 bearing has lead added, so it cannot be used in medicine, video and other industries with environmental requirements



The company produces P10 bearing types

ptfe composite bushing types





P10 Material properties

1. Low adhesion with parts during movement

Low friction and high wear resistance

3. The material has certain clearance and deformation, which can absorb the impurities produced by the movement and thus improve the life.

4 Corrosion resistance can be based on the actual use of galvanized and other solutions.

The stainless steel matrix has good chemical resistance







1. Running-in layer Dry friction bearing Material information

PTFE matrix with bulking agent
Layer thickness [mm]: max. 0.03



2. Sliding layer

Tin-lead-bronze
Layer thickness [mm]: 0.20–0.35
Pore volume [%]: approx. 30



3. Bearing back

Steel
Steel thickness [mm]: Variable
Steel hardness [HB]: 100–180













shaft housing ID OD Wall thickness Oil hole L 0
-0.40
h8 H7 d D T h- 10 12 15 20 25 30
10 0
-0.022
12 +0.018
0
10 12 0.980
0.955
4 1010 1012 1015 1020
12 0
-0.027
14 " 12 14 " " 1210 1212 1215 1220 1225
14 " 16 " 14 16 " "     1415 1420 1425
15 " 17 " 15 17 " " 1510 1512 1515   1525
16 " 18 " 16 18 " "     1615 1620 1625
18 " 20 +0.021
0
18 20 " "     1815 1820 1825
20 0
-0.033
23 " 20 23 1.475
1.445
"     2015 2020 2025 2030
22 " 25 " 22 25 " 6     2215 2220 2225 2230
24 " 27 " 24 27 " "     2415 2420 2425 2430
25 " 28 " 25 28 " "     2515 2520 2525 2530
28 " 32 +0.025
0
28 32 1.970
1.935
"       2820 2825 2830
30 " 34 " 30 34 "         3020   3030
32 0
-0.039
36 " 32 36 " "       3220   3230
35 " 39 " 35 39 " "       3520   3530
36 " 40 " 36 40 " "
37 " 41 " 37 41 " "       3720
40 " 44 " 40 44 " 8       4020   4030
45 " 50 " 45 50 2.460
2.415
"       4520   4530
50 " 55 +0.030
0
50 55 " "
55 0
-0.046
60 " 55 60 " "       5520
60 " 65 " 60 65 " "



For more information click here Wrapped Composite Sliding Bearing .pdf



Printing machines, lifts, textile machines, tobacco machines, fitness machines, hydraulic trucks, micromotors, solenoid valves, automobiles, motorcycles and agricultural and forestry machinery.



Use of self - lubricating bearings in motorcycle field           The use of oil-free self-lubricating composite bearings in the printer field



Poly tetra fluoroethylene(PTFE)



It is a polymer made of tetrafluoroethylene as monomer.White waxy, translucent, good heat and cold resistance, can be used in -180 ~ 260 C for a long time.This material has the characteristics of anti - acid, anti - alkali, anti - various organic solvents, almost insoluble in all solvents.At the same time, ptfe has the characteristics of high temperature resistance, its coefficient of friction is very low, so it can be used for lubrication, but also become easy to clean the ideal coating of the inner layer of the water pipe;Toxic, human carcinogen.





Performance indicators date
Maximum load P Static load 250N/mm²
Dynamic load 140N/mm²
Maximum linear velocity V Dry friction 2.5m/s
Oil lubrication 5.0m/s
High PV value Dry friction 3.8N/mm²・m/s
Oil lubrication 50N/mm²・m/s
Coefficient of friction 0.04~0.20
The use of temperature
-195℃~+280℃
Coefficient of thermal conductivity
50W/m・K



P10 self - lubricating oil - free bearing bearing of the molding process



Process of stainless steel self-lubricating oil-free bearing

You can choose, and choose the galvanized steel base outside, or copper plating, in order to achieve better surface salt fog test requirements, you can choose special PTFE material to reach to the requirement of the friction in the part of the parts, you can also customize the thickness of the copper powder, improve performance of shaft oilless bearing strength, so contact us, we can help you to design the bearing.





Composite oil - free self - lubricating bearings can be customized to CAD drawings
