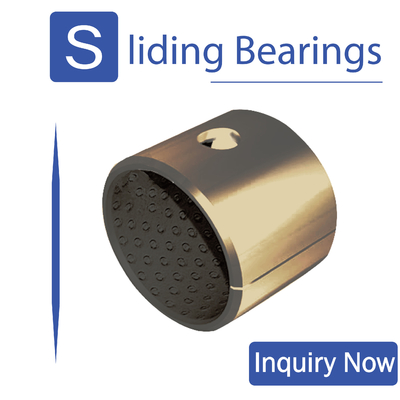

Low Maintenance Standard Solution P20 Composite Bearing

Place of Origin China
Brand Name viiplus P20 composite bearing
Certification ISO 9001
Model Number Low oil self-lubricating bearings
Minimum Order Quantity 10pcs
Price According to the size of the product
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 5-25 work days
Payment Terms T/T
Supply Ability Production capacity is enough
Product Details
Material P20+steel Area Of Use POM Bushes Are Suitable For Rotational And Oscillating Movements
Application Attachment Lugs Of Pneumatic And Hydraulic Cylinders Conveyor-belt Systems, Textile Machinery, Automobiles ...
High Light

Self lubricating composite sleeve bearings

,

pom bushes

Leave a Message
Product Description

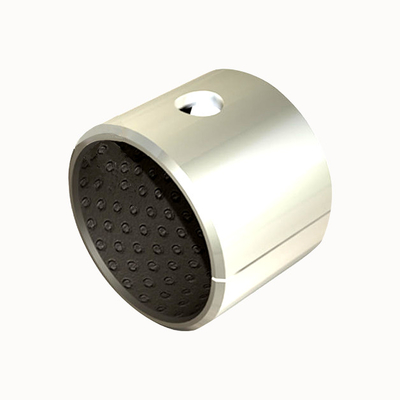

P20 Self-lubricating bearing



The P20 bearings will be distributed by the orifice according to process characteristics according to ISO 3547 with a sliding wall in advance on the surface in contact with the parts. This design is well suited for ground maintenance of grease or liquid lubrication applications.





P20 Material properties

1. Low adhesion with parts during movement

Low friction and high wear resistance

3. The material has certain clearance and deformation, which can absorb the impurities produced by the movement and thus improve the life.

4 Corrosion resistance can be based on the actual use of galvanized and other solutions.

The stainless steel matrix has good chemical resistance







1. Running-in layerLow Maintenance Standard Solution P20 Composite Bearing 0

PTFE matrix with bulking agent
Layer thickness [mm]: max. 0.03



2. Sliding layer

Tin-lead-bronze
Layer thickness [mm]: 0.20–0.35
Pore volume [%]: approx. 30



3. Bearing back

Steel
Steel thickness [mm]: Variable
Steel hardness [HB]: 100–180







Base material: POM+ bronze powder + steel back + electroplating (copper/tin)

Ultimate dynamic load: 140N/mm

Maximum PV value: grease lubrication: 2.8n /mm. M /s

Friction coefficient: 0.05~0.25

Maximum load P: static: 250N/mm dynamic: 150N/mm

Maximum operating temperature: 130℃

Maximum sliding speed: grease lubrication :2.5m/s

Thermal conductivity: < 42W/m.k

Processing: standard | to figure processing

Available form: bushing sliding block sliding plate bearing bush







shaft housing ID OD Wall thickness Oil hole L 0
-0.40
h8 H7 d D T h- 10 12 15 20 25 30
10 0
-0.022
12 +0.018
0
10 12 0.980
0.955
4 1010 1012 1015 1020
12 0
-0.027
14 " 12 14 " " 1210 1212 1215 1220 1225
14 " 16 " 14 16 " "     1415 1420 1425
15 " 17 " 15 17 " " 1510 1512 1515   1525
16 " 18 " 16 18 " "     1615 1620 1625
18 " 20 +0.021
0
18 20 " "     1815 1820 1825
20 0
-0.033
23 " 20 23 1.475
1.445
"     2015 2020 2025 2030
22 " 25 " 22 25 " 6     2215 2220 2225 2230
24 " 27 " 24 27 " "     2415 2420 2425 2430
25 " 28 " 25 28 " "     2515 2520 2525 2530
28 " 32 +0.025
0
28 32 1.970
1.935
"       2820 2825 2830
30 " 34 " 30 34 "         3020   3030
32 0
-0.039
36 " 32 36 " "       3220   3230
35 " 39 " 35 39 " "       3520   3530
36 " 40 " 36 40 " "
37 " 41 " 37 41 " "       3720
40 " 44 " 40 44 " 8       4020   4030
45 " 50 " 45 50 2.460
2.415
"       4520   4530
50 " 55 +0.030
0
50 55 " "
55 0
-0.046
60 " 55 60 " "       5520
60 " 65 " 60 65 " "





A brief introduction to polyformaldehyde (POM) materials



1, with high mechanical strength and rigidity;
2. The Maximum fatigue strength;
3. Good environmental resistance and organic solvent resistance;
Strong resistance to sustained impact;
5. Widely used temperature ranges from -40℃ to 120℃.
6. Good electrical properties.
7. Good recovery.8, with their own lubrication, good wear to hold;9. Excellent dime



Melting point of 175 ° C
Density 1.42 g/mL at 25 °C
Flash point 158 °F storage condition 2-8°C



No oil, composite bearing Bronze Bearing characteristics





Performance indicators Date
Maximum load P Static load 250N/mm²
Dynamic load 150N/mm²
highest line speed V Grease lubrication 2.5m/s
High PV value Grease lubrication 3.6N/mm²・m/s
Coefficient of friction Grease lubrication 0.05~0.25
The use of temperature
-40℃~+130℃
Coefficient of thermal conductivity 4W/m・K
Coefficient of thermal expansion 12×10-6/K








You can customize various POM oil-free self-lubricating bearings from us, and design related drawings

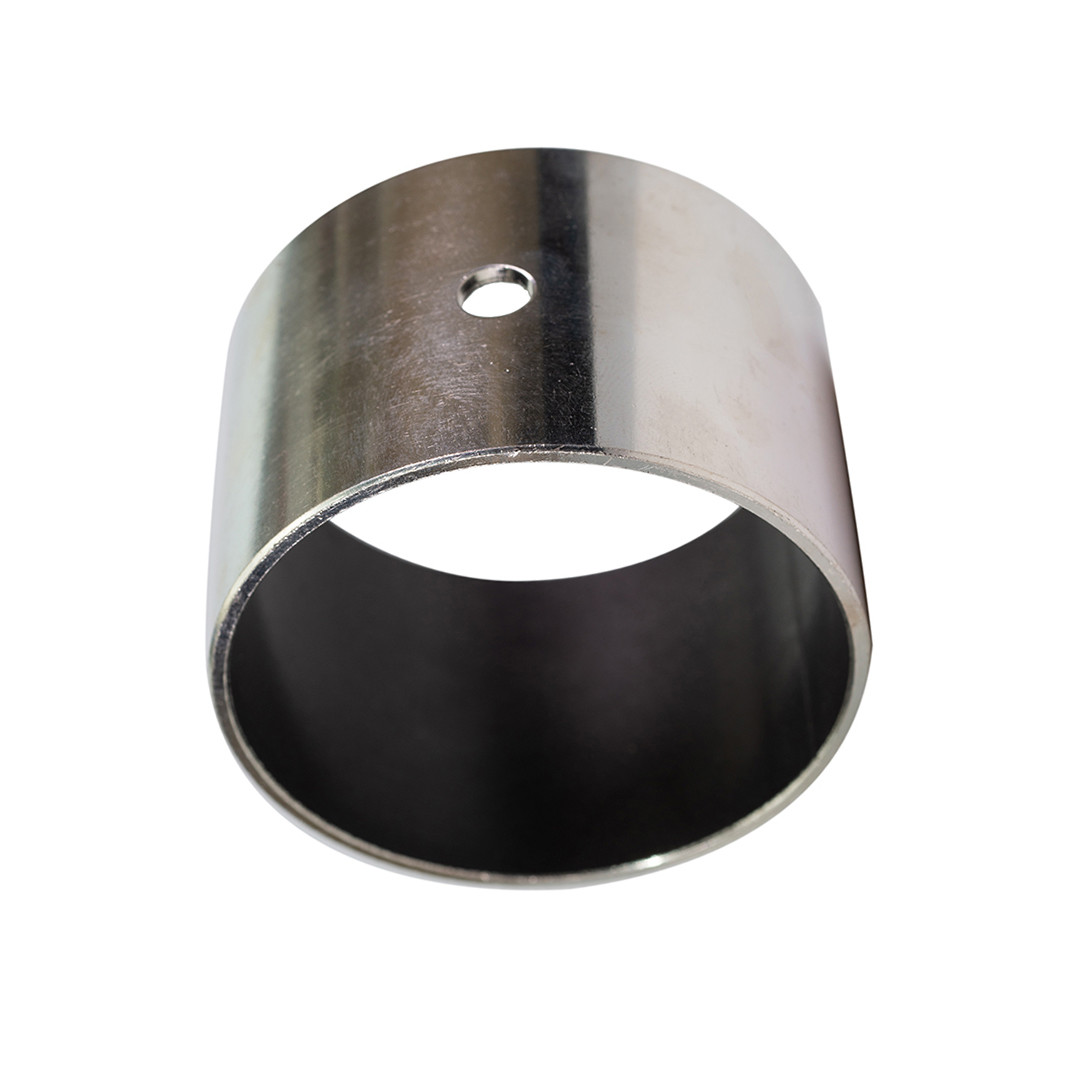

Low Maintenance Standard Solution P20 Composite Bearing 1



Here you can choose the bearing size of the type part, more sizes you can refer to PDF.



Click here for PDF for more product information

Wrapped Composite Sliding Bearing .pdf
