Cast Bronze Bushes Material Self Lubricating Bronze Bushings / Bearing Low - Maintenance

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable
Delivery Time 10~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS
Product Details
Material C95500 Aluminum Bronze Type CAST BRONZE
Sliding Bearings Maintenance-free Code Self-lubricating Bushings
High Light

wrapped bronze bushings

,

graphite sleeve bearings

Leave a Message
Product Description



Durable C95500 Self Lubricating Bronze Bushings / Bearing Low - Maintenance



Your complete source for Bronze Bushings C95500 Aluminum Bronze, Brass, and Copper Alloys sleeve bushings in industry standard sizes.

C95500 Aluminum Bronze Bushes

Cast Bushings



Aluminum bronze is the highest strength standard copper based alloy. VIIPLUS produces C95400, C95500 and C95900 in standard sizes of bushings. Aluminum in conjunction with iron and nickel in C95500 acts as a strengthener in these alloys. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.



it is a self-lubricating bearing material that consists of a high quality bearing bronze with solid lubricant pockets. A thin film of solid lubricant aids the running-in process if required.



Material CuZn25Al5 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile strength N/mm2 >750 >200 >600 >260 >540
Yeild strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of
linear expansion
1.9x10-5/°C 1.8x10-5/°C 1.6x10-5/°C 1.8x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max. load N/mm2 100 60 50 70 150
Max. speed (Dry) m/min 15 10 20 10 15
Max. PV
N/mm2*m/min (Lubrication)
200 60 60 80 200
Compression deformation
300N/mm2
<0.01mm <0.05mm <0.04mm <0.05mm <0.005mm

Solid lubricants plugs



viiplus graphite allows replacement for lubricated bronze bearings with a maintenance-free alternative.

- is suitable for large dimensions
- has a low friction coefficient
- has a high wear resistance
- allows a high durability



Symbol:C95500 Casting Copper Alloy

Type:Aluminum Bronze Bronze Bushings



Chemical Composition mass/%
Cu Sn Al Fe Mn Ni Pb Si P Zn
Min78.0 - 10.0-11.5 3.0-5.0 3.5 3.0-5.5 - - - -





Mechanical properties
Tensile strength Mpa(Min) Yield strength MPa(Min) Elongation % Brinell hardness(HB)
655 290 10 192





Note:

1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference

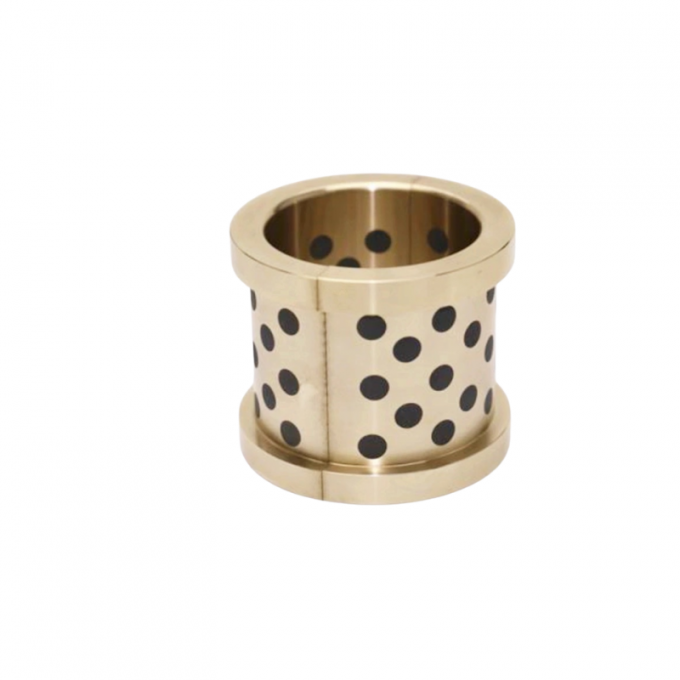

graphite plugged bronze bushing





Application



  • Bronze Bushings
  • Light Duty Gears
  • Sprockets
  • Liners
  • Wear Strips
  • Washers
  • Impellers
  • General Bearings
  • Automotive Fittings
  • Suspension Bushings
  • Shaft Bushings
