European Standard Tin Bronze Brass Bushing CuSn5Zn5Pb5 Material Long Life
| Place of Origin | Graphite Bearings Manufacturers |
|---|---|
| Brand Name | OILLESS BUSHES |
| Certification | C83600 Bronze |
| Model Number | Solid Bronze Bearings |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Bushing Parts Factory Price |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | TT IN ADVANCE, Western Union |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Marerial | Bronze Graphite Bushing,cusn5pb5zn5 | Size | ID*OD*H |
|---|---|---|---|
| Standard Material | C83600 Bronze,CuSn5ZnPb5 Brass Bushing | Type | Plugged Graphite,or Groove |
| Application | Stamping Tooling Standard Parts | Feature | High Precision Brass Bearings |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Self-Lubricating Sintered Bronze Bushing | Characteristic | Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800) |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | wrapped bronze bushings,graphite sleeve bearings |
||
Product Description
European Standard Tin Bronze Bushing Cast Bronze Bearing CuSn5Zn5Pb5 Material,Huge Bushings Type & Size Selections & Savings.
BRONZE BUSHING PRODUCTION PROCESS(OD≤120MM)
continuous casting
BRONZE BUSHING PRODUCTION PROCESS(OD>120MM)
centrifugal casting
CASTING BRONZE BEARINGS PARTS
Through decades of experience, VIIPLUS has proven that superior bronze bearing plugged graphite products are created through vertical or horizontal continuous casting methods. The preferred casting technique is determined by the alloy and by the size range being produced.
Vertical continuous casting has been the strength of viiplus’s production for all the time. As the metal flows down into a water-cooled die at the bottom of the crucible during vertical continuous casting, solidification of the alloy occurs. The cast product continues smoothly downward through rollers beneath the die. With precise temperature control, the rollers carefully withdraw the cast metal to determine its grain structure and metallurgical properties.
Horizontal continuous casting is best suited for aluminum bronzes due to the material's metallurgy. As a result, our factory has been dedicated almost exclusively to the production of aluminum bronze graphite bearings. During horizontal continuous casting, metal flows out the front of the crucible and into a water-cooled die where solidification takes place. Drive rollers pull the bar along roller tables that support the weight of the bar while it casts. With precise control of temperature, the desired grain structure and metallurgical properties are created.
Parts classification: European standard tin bronze sliding bearings
DIN EN 1982:2016 CC491K, element content: Cu83~87,Pb4.0~6.0,Sn4.0~6.0,Zn4.0~6.0, tensile strength ≥250MPa, yield strength ≥110MPa, elongation ≥13%, hardness ≥65HBW
Your Best bronze bearing bushing groove supplier in China
Bronze Bearings Type
-

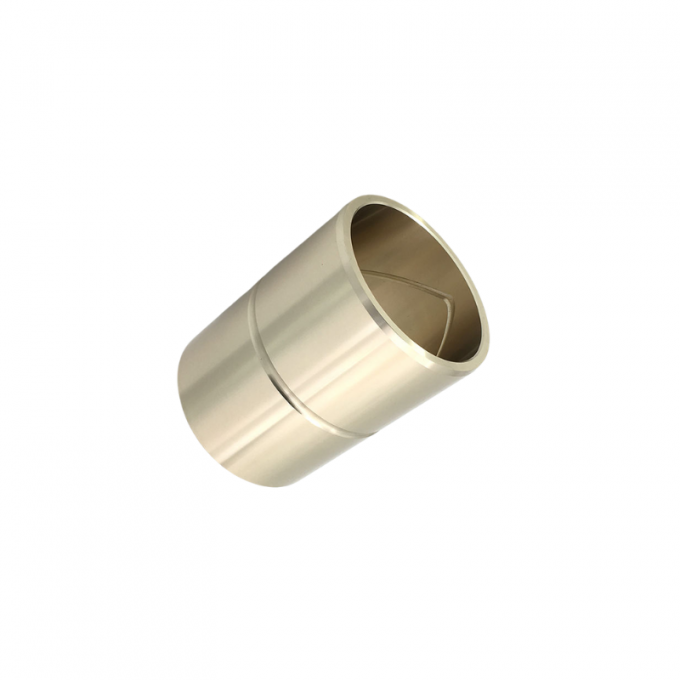

Straight bushings
-

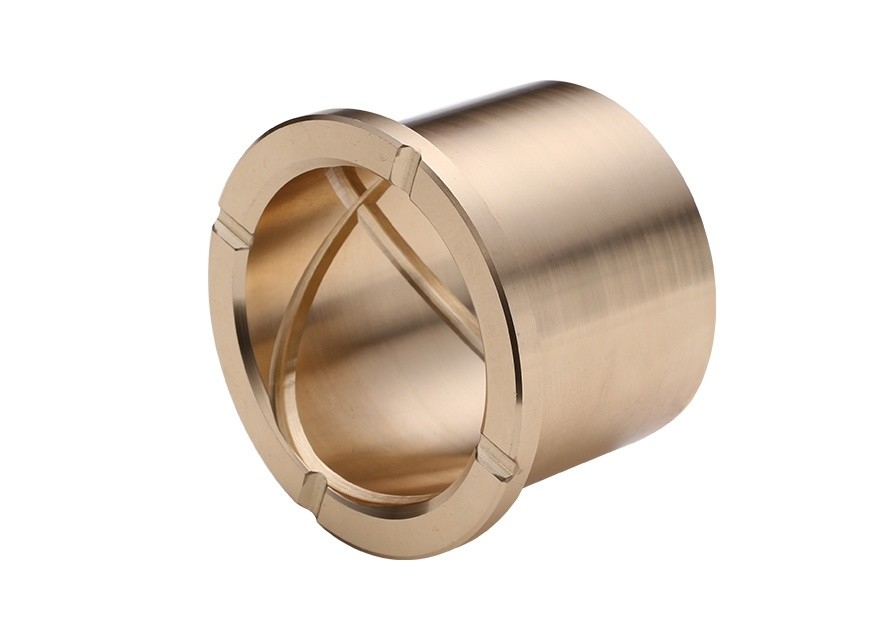

Flange bushings
-
Thrust washer
-
Wear plate
-
Non-standard products are also avalidable.
Feature
-
May work without any oil for long period
-
Extremely high load capacity, good anti-wear and low friction
-
Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
-
Good chemical resistant and anti-corrosion characteristics
-
Excellent resistance against chemical attacks and low friction. Temp limit 400℃
Grooving
When your application calls for lubrication for either the housing or the shaft, an oil or grease groove is essential. At Bronze Bearings, we can groove parts to our customer’s specifications, including single loop, figure eight, double loop, double figure eight, half figure eight, straight, and circular groove patterns.
Product quality control, excellent quality, durable
Independent production of raw materials: select high quality raw materials, produce and pour by ourselves, prevent defective products from the source to ensure product quality
Strictly check the production process: monitor the production process, test and control the material composition in front of the furnace, and test the products behind the furnace regularly to ensure that the material composition meets the needs of customers
Regular national testing of finished products: regularly entrust national testing institutions to test material components and mechanical properties, and provide testing reports.
Patented production technology to meet production needs
Industry experience, with a number of invention patents and practical patent products
Centrifugal pouring and processing are completed by ourselves, which can be rationally adjusted according to different needs of customers, adjust product size and material composition, and provide customers with the most suitable self-lubricating bearings.
Strong production capacity, guaranteed delivery time
24/7 Online Support
VIIPLUS is always here to support your business.
Competitive Price
Get better bronze bushing price to reduce your costs.
Safe & On Time Delivery
Leave your bronze bushing goods and let viiplus handle the rest.
| Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| HB hardness | >210 | >70 | >150 | >95 | >280 |
| Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
| Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
| Elongation % | >12 | >15 | >10 | >8 | >0.3 |
| Coefficient of linear expansion |
1.9x10-5/°C | 1.8x10-5/°C | 1.6x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C |
| Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
| Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
| Max. PV N/mm2*m/min (Lubrication) |
200 | 60 | 60 | 80 | 200 |
| Compression deformation 300N/mm2 |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |
Integrated production saves time: from material to processing integrated production, strong production capacity and quick reaction speed organize material production for customers in the first time, shorten the production cycle
Advanced production equipment production capacity: advanced CNC machine tools, CNC lathes, processing centers and other major equipment more than 80 sets, the production capacity is super
