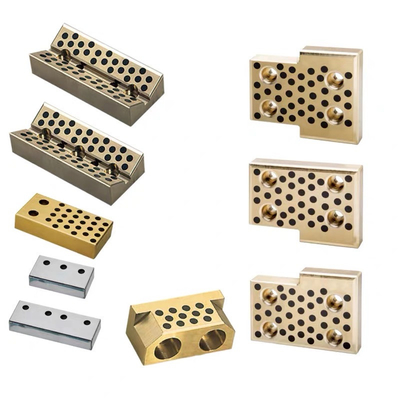

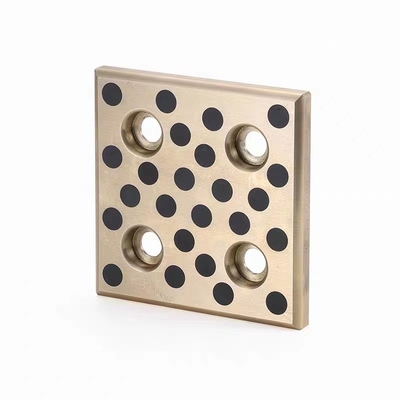

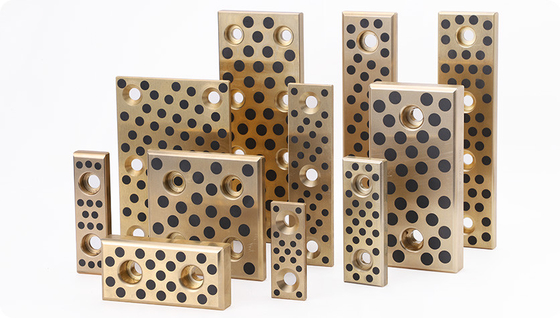

Smooth Surface Self Lube Wear Plates With 100mm Length And CuZn25AI5Mn4Fe3 Material
| Place of Origin | CHINA |
|---|---|
| Brand Name | VIIPLUS.COM |
| Model Number | BRONZELUBE |
| Minimum Order Quantity | 500 |
| Price | can be negotiated |
| Packaging Details | EXPORT CARTONS |
| Delivery Time | 15-35 BUSINESS DAYS |
| Payment Terms | TT |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Matrrial | CuZn25AI5Mn4Fe3 | Parts | Self Lube Wear Plate |
|---|---|---|---|
| Load Capacity | High | Standard | INW |
| Thickness | 6mm | Surface Finish | Smooth |
| Items | Wear Products | Length | 100mm |
Product Description
Product Description:
Self Lube Wear Plates
Introducing our Smooth Surface Self-Lube Wear Plates, specifically designed with a 100mm length and constructed from the high-performance CuZn25Al5Mn4Fe3 material. These wear plates are an excellent choice for applications that require a durable and friction-resistant surface.
The smooth surface of these wear plates ensures smooth and efficient operation, minimizing friction and wear. The self-lubricating feature further enhances their performance, eliminating the need for regular lubrication and reducing maintenance requirements.
The CuZn25Al5Mn4Fe3 material used in the construction of these wear plates offers excellent wear resistance and durability. It can withstand high loads and frequent use, maintaining its performance and integrity over time.
With a length of 100mm, these wear plates are suitable for a wide range of applications, including machinery, equipment, and industrial processes. They can be easily integrated into existing systems, providing a robust and reliable solution for wear protection.
In summary, our Smooth Surface Self-Lube Wear Plates with 100mm length and CuZn25Al5Mn4Fe3 material offer a high-performance and low-maintenance solution for reducing friction and wear in various industrial applications.
Self Lube Wear Plates are a type of oil free slide plates that are designed to provide smooth and efficient movement in various industrial applications. Made from high quality bronze plate, these wear plates offer superior strength and durability to withstand heavy loads and harsh environments.
Product Overview
Self Lube Wear Plates are designed to provide smooth and efficient movement in various industrial applications. These wear plates are made from high quality bronze plate and feature a smooth surface finish for optimal performance. They are known for their self-lubricating properties, making them ideal for applications where frequent lubrication is not possible or desired.
Features
- Surface Finish: Smooth
- Bushings: Plug Graphite Bearings
- Standard: INW
- Wear Resistance: High
- Length: 100mm
Benefits
- Oil Free: Self Lube Wear Plates do not require any additional lubrication, making them ideal for applications where oil or grease cannot be used.
- Smooth Movement: The smooth surface finish of these wear plates ensures smooth and efficient movement, reducing friction and wear on the equipment.
- High Wear Resistance: Made from high quality bronze plate, these wear plates offer high wear resistance, extending the lifespan of the equipment.
- Easy to Install: Self Lube Wear Plates are easy to install and can be used in various industrial applications.
Applications
Self Lube Wear Plates are commonly used in the following applications:
- Conveyor Systems
- Machinery and Equipment
- Automotive Industry
- Packaging Industry
- Material Handling Equipment
Conclusion
Self Lube Wear Plates are a reliable and cost-effective solution for smooth and efficient movement in industrial applications. Made from high quality bronze plate and featuring self-lubricating properties, these wear plates offer high wear resistance and easy installation. Choose Self Lube Wear Plates for superior performance and durability in your equipment.
| Material composition and properties table | |||||||||||
| Grade | Bronze Alloy Material | ||||||||||
| Material | CuZn25A15Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | |||||||
| Density | 8 | 8.9 | 7.8 | 8.9 | |||||||
| HB Hardness | >210 | >70 | >150 | >95 | |||||||
| N/mm² Tensile Strengt |
>750 | >200 | >600 | >260 | |||||||
| N/mm² Yield Strength | >450 | >90 | >260 | >150 | |||||||
| % Elongation |
>12 | >15 | >10 | >8 | |||||||
| Coefficient Linear Expansion | 1.9x10-5/C | 1.8x10-5/C | 1.6×10-5/℃ | 1.8×10-5/℃ | |||||||
| ℃ Max.Temp. |
-40～+300 | -40~+400 | -40～+400 | 40～+400 | |||||||
| N/mm² Max.Load |
100 | 60 | 50 | 70 | |||||||
| m/mm Max.Load(Dry) |
15 | 10 | 20 | 10 | |||||||
| N/mm²*m/mm Max.PV(Lubrication) |
200 | 60 | 60 | 80 | |||||||
| 300N/mm² Copression Deformation |
<0.01mm | <0.05mm | <0.04mm | <0.05mm | |||||||
Features:
- Product Name: Self Lube Wear Plates
- Shape: V Block
- Thickness: 6mm
- Material: CuZn25AI5Mn4Fe3
- Bushings: Plug Graphite Bearings
- Length: 100mm
- Bronze Guide Rail
- CuAl1Ni
- CuAl10Ni5Fe4
- Maintenance-free
Technical Parameters:
| Load Capacity | High |
|---|---|
| Thickness | 6mm |
| Temperature Range | -40°C To 150°C |
| Shape | V Block |
| Items | Wear Products |
| Bushings | Plug Graphite Bearings |
| Standard | INW |
| Application | Heavy Duty Machinery |
| Parts | Self Lube Wear Plate |
| Length | 100mm |
| Composition | CuAl10Ni5Fe4 |
| Additional Features | Oil Free Slide Plates |
| Alternative Material | CuAl1Ni5Fe4 |
Applications:
Self Lube Wear Plates - VIIPLUS.COM
Essential Components for Heavy Duty Machinery
Product Description
Self Lube Wear Plates, also known as slide plates, are essential components for heavy duty machinery used in various industries. These plates are designed to reduce friction and wear between moving parts, ensuring smooth operation and extended lifespan of the machinery. Made from high quality materials, these plates provide excellent wear resistance and durability, making them a reliable choice for heavy duty applications.
Brand Name: VIIPLUS.COM
| Model Number | BRONZELUBE |
|---|---|
| Place of Origin | CHINA |
| Minimum Order Quantity | 500 |
| Price | Can be negotiated |
| Packaging Details | EXPORT CARTONS |
| Delivery Time | 15-35 BUSINESS DAYS |
| Payment Terms | TT |
Material
The Self Lube Wear Plates from VIIPLUS.COM are made from high quality materials such as CuZn25AI5Mn4Fe3, CuAl1Ni, CuAl10Fe5Ni5, CuAl10Ni5Fe4, CuSn10Pb10, CuSn12, and CuSn8. These materials are known for their excellent wear resistance and durability, ensuring a longer lifespan for your machinery.
Temperature Range
The Self Lube Wear Plates from VIIPLUS.COM can withstand a temperature range of -40°C to 150°C, making them suitable for use in various environments.
Items
VIIPLUS.COM offers a wide range of wear products, including Self Lube Wear Plates, to meet the needs of different industries and applications.
Bearings
Our Self Lube Wear Plates can also be used as slide plate continuous casting for heavy duty machinery. These plates act as bearings, reducing friction and wear between moving parts, ensuring smooth operation and extended lifespan of the machinery.
Application
The Self Lube Wear Plates from VIIPLUS.COM are suitable for use in heavy duty machinery in various industries, such as mining, construction, agriculture, and more. These plates are designed to withstand high loads and harsh environments, making them an ideal choice for heavy duty applications.
Why Choose VIIPLUS.COM?
- High quality materials for excellent wear resistance and durability
- Wide range of products to meet different industry needs
- Temperature range of -40°C to 150°C for versatile use
- Customizable according to specific requirements
- Competitive prices and flexible payment terms
- Timely delivery within 15-35 business days
- Minimum order quantity of 500 for bulk orders
- Export carton packaging for safe transportation
- Reliable customer service for a hassle-free experience
Customization:
Customized Service for Self Lube Wear Plates
Brand Name: VIIPLUS.COM
Model Number: BRONZELUBE
Place of Origin: CHINA
Minimum Order Quantity: 500
Price: can be negotiated
Packaging Details: EXPORT CARTONS
Delivery Time: 15-35 BUSINESS DAYS
Payment Terms: TT
Load Capacity: High
Bushings: Plug Graphite Bearings
Material: CuZn25AI5Mn4Fe3
Maintenance: Low
Bearings: Slide Plate Continuous Casting
Key words: Graphite Plate, Oilless Plate, CuAl10Fe5Ni5
Packing and Shipping:
Packaging and Shipping
Self Lube Wear Plates are carefully packaged and shipped to ensure safe delivery to our customers. Each plate is individually wrapped in protective material and placed in a sturdy box to prevent any damage during transit.
We offer various shipping options to meet our customers' needs, including standard ground shipping and expedited shipping. Our dedicated shipping team works closely with trusted carriers to ensure timely delivery and proper handling of our products.
For international orders, we use specialized packaging materials and work with experienced freight forwarders to ensure smooth customs clearance and delivery.
At Self Lube Wear Plates, we take great care in packaging and shipping our products to ensure they arrive in perfect condition. We are committed to providing our customers with a hassle-free ordering and delivery process.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is VIIPLUS.COM.
- Q: What is the model number of this product?
- A: The model number of this product is BRONZELUBE.
- Q: Where is this product manufactured?
- A: This product is manufactured in CHINA.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 500 pieces.
- Q: Is the price of this product negotiable?
- A: Yes, the price of this product can be negotiated depending on the quantity ordered.
- Q: How is this product packaged?
- A: This product is packaged in export cartons to ensure safe delivery.
- Q: How long is the delivery time for this product?
- A: The delivery time for this product is 15-35 business days.
- Q: What are the accepted payment terms for this product?
- A: The accepted payment terms for this product are TT (telegraphic transfer).
