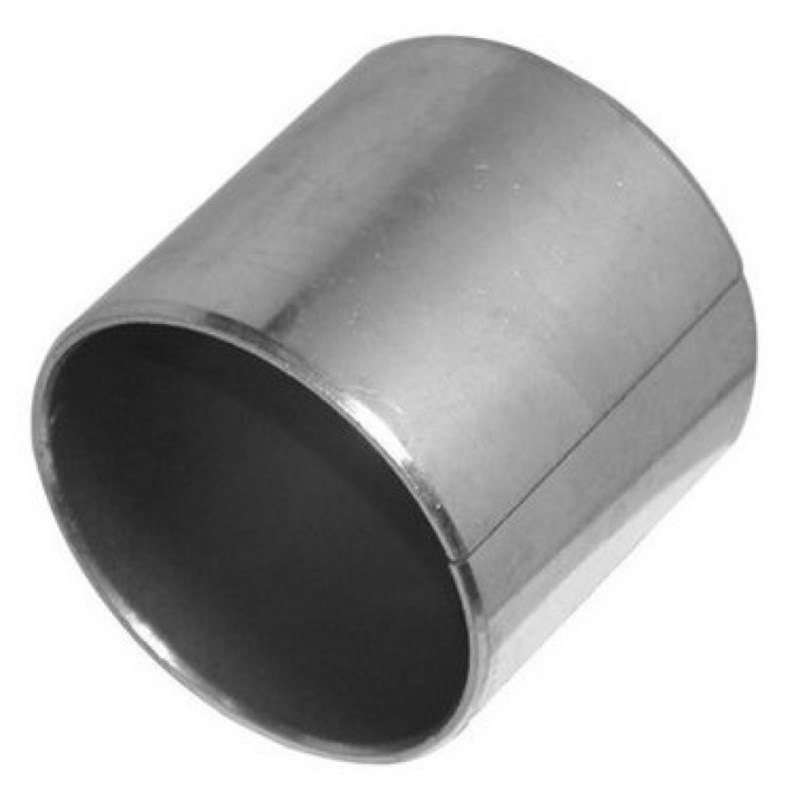

KU Sleeve Thrust Plain Bearing With Coating KX Bushes

Name: KU Sleeve Thrust Plain Bearing With Coating KX Bushes
Brand: JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
SKU: BUSHINGS
Price: 0.05 USD
Availability: InStock

Brand Name:	VIIPLUS BUSHINGS SUPPLIER
Model Number:	BUSHINGS
MOQ:	1000 Piece/Pieces
Price:	$0.05 - $1.00 / Pieces
Payment Terms:	TT in advance,Western Union
Supply Ability:	Special Customized Lubricating Bushings Manufacturing

Detail Information

Product Description

Detail Information

Place of Origin:

Composite plain cylindrical bushings manufacturer

Certification:

ISO 3547 DIN 1494 Assembly Standard Tolerance

Meterial:

Carton Steel , Bronze ,

Plating:

Tin Or Copper

Characteristic:

Low-maintenance And Maintenance-free Plain Bearings

Type:

Bushes, Collar Bushes, Washers, Strips Or Special Designs

Size:

Standard Size Available

Quality:

OEM

Port:

Shanghai

Application:

DMFW Bushing

Bearing Bushing Factory Price:

Tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

Https://www.viiplus.com/

High Light::

Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing

Characteristic:

Втулки скольжения (биметаллические подшипники скольжения)

Dry Slide Bearing:

Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.

Bush Bearings Manufacturers Suppliers Exporters:

Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/

Packaging Details:

Packaging: Export carton; Wooden case ; Wood pallet.

Supply Ability:

Special Customized Lubricating Bushings Manufacturing

Highlight:

Coating Plain Bearing

Plain Bearing With Coating

Coating Thrust Plain Bearing

Product Description

The KU Sleeve Thrust Plain Bearing with Coating KX Bushes is a high-performance bearing solution designed to provide smooth and reliable operation in various industrial applications. The coating offers excellent wear resistance and low friction, making it suitable for use in high-load and high-speed environments. The KX bushes, as an integral part of the bearing system, contribute to its overall stability and durability. This bearing is an ideal choice for those seeking a long-lasting and efficient bearing solution.

KU Sleeve Thrust Plain Bearing With Coating, KU Sleeve Thrust Plain Bearing With Coating KX Bushes

slip sleeves are suitable for high loads with a requirement for maintenance-free operation. Operating temperature range 200 - 250C. Shaft tolerance f6 - h7. Tolerance of housing H7.

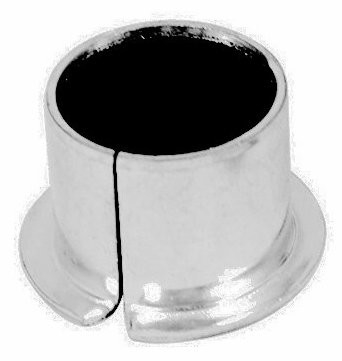

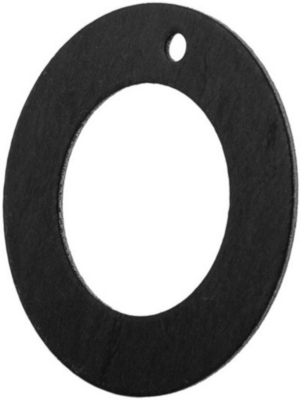

Thrust plain bearing with coating. flange BEARING

Metal-polymer bearings BUSH WITH BRONZE BACKING for dry and lubricated applications in corrosive environments. Cylindrical & flanged bushes, thrust washers.

Metal-Polymer Anti-Friction Plain Bearings

Tin Coating Bush, Material Bushing,Bronze Copper ...

CODE	ITEM
160030305	KU 0303 (3x5x3) Kluzné pouzdro s kompozitem
1600510	KU 0510 Kluzné pouzdro s kompozitem
1600605	KU 0605 Kluzné pouzdro s kompozitem
160080605	KU 0806 Kluzné pouzdro s kompozitem
1601008	KU 1008 Kluzné pouzdro s kompozitem
16012101	KX 1210 Kluzné pouzdro s kompozitem POM
16014153	KX 1415 Kluzné pouzdro s kompozitem POM
1601416125	SF-1F 14120 ( PCMF 141612 E ) Kluzné pouzdro s kompozitem přírubové
1601520	KU 1520 Kluzné pouzdro s kompozitem
1601625	KU 1625 Kluzné pouzdro s kompozitem
1602023165	SF-1F 20165 ( PCMF 202316.5 E ) Kluzné pouzdro s kompozitem přírubové
1602525	KU 2525 Kluzné pouzdro s kompozitem
1602530	KU 2530 Kluzné pouzdro s kompozitem
16028252	KU 2825 Kluzné pouzdro s kompozitem
1603020	KU 3020 Kluzné pouzdro s kompozitem
160302005	KX 3020 Kluzné pouzdro s kompozitem POM
16030305	KX 3030 Kluzné pouzdro s kompozitem POM
1603040	KU 3040 Kluzné pouzdro s kompozitem
16035206	KX 3520 Kluzné pouzdro s kompozitem POM
1603530005	KX 3530 Kluzné pouzdro s kompozitem POM
1603540	KU 3540 Kluzné pouzdro s kompozitem
1604020	KU 4020 Kluzné pouzdro s kompozitem
1604040	KU 4040 Kluzné pouzdro s kompozitem
16050601	KX 5060-22 Kluzné pouzdro s kompozitem POM
1605540	KU 5540 Kluzné pouzdro s kompozitem
1606060	KU 6060 Kluzné pouzdro s kompozitem
1606550	KU 6550 Kluzné pouzdro s kompozitem
1606570	KU 6570 Kluzné pouzdro s kompozitem
1607030	KU 7030 Kluzné pouzdro s kompozitem
1608030	KU 8030 Kluzné pouzdro s kompozitem
16080400	KU 8040 Kluzné pouzdro s kompozitem
16110605	KU 11060 Kluzné pouzdro s kompozitem
16120605	KU 12060 Kluzné pouzdro s kompozitem
16130500	KU 13050 Kluzné pouzdro s kompozitem
16130600	KU 13060 Kluzné pouzdro s kompozitem
16A 32 KU	A32 KU axiální (PCMW 325401.5 B)
16A 40 KU	A40 KU axiální
16KU 10570	KU 10570 Kluzné pouzdro s kompozitem

COMPOSITION

Metal-Polymer Composite Material
Bronze Back + Porous Bronze Sinter +
+ Lead

competitive prices for below bearing bushing products to start our cooperation with you
PAP 1615 P10 PAP 1620 P10
PAP 2015 P10
PAP 2525
PAP 1212
PAP 2520
PAP 2020 P10
PAP 1640 P10
PAP 1830 P10

Metal-Polymer Bronze Backed Plain Bearing

AVAILABILITY

Bearing forms available in standard dimensions

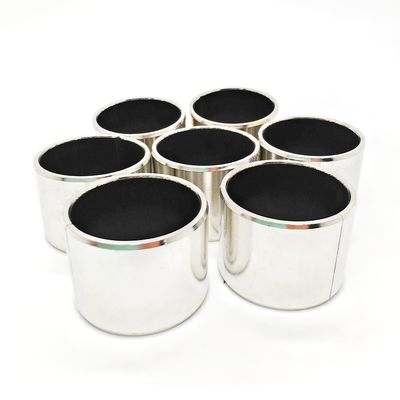

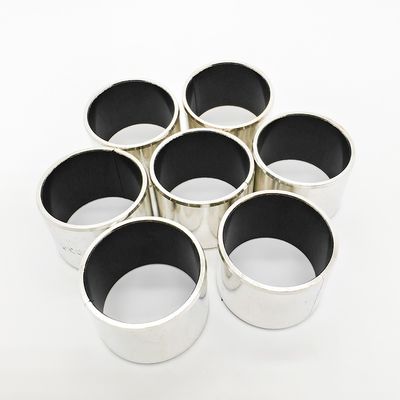

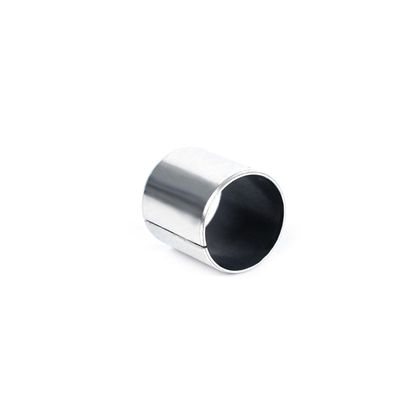

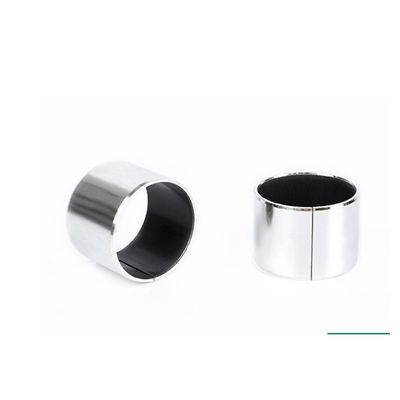

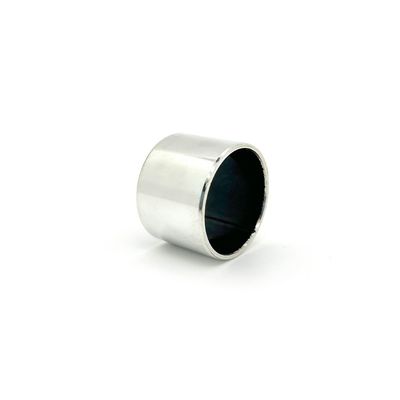

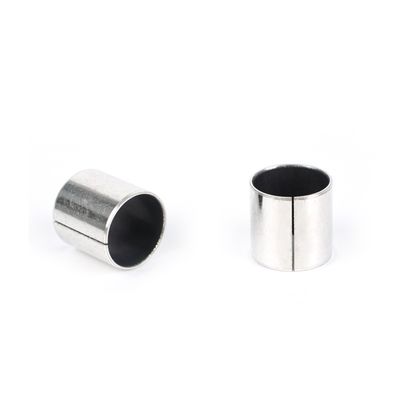

Cylindrical bushes
Flanged bushes
Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

CHARACTERISTICS

BUSH WITH BRONZE BACKING offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

Bushing material suitable for lubricated applications
Anti-friction bearing suitable for linear, oscillating and rotating movements
Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications
Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment
Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact VIIPLUS for further details.

BUSH WITH BRONZE BACKING
Dry Operation	Very Good
Lubricated Operation	Good
Greased Operation	Fair
Machinable	Consult with Applications Engineer
RoHS Compliant	Not compliant
Standard Sizes	Available
Application Excellence

Metal-Polymer Low Friction Plain Bearings®
Good
Very Good
Good
Consult with Applications Engineer
Compliant
Available

DP10
Good
Good
Fair
Consult with Applications Engineer
Compliant
Not Available

ADVANTAGES

Improved energy efficiency with the low friction performance of -enriched overlay;
Extended service life with a high wear-resistant bronze layer;
Zero maintenance as self-lubricating bearings can operate dry without grease;
Greater reliability than bimetallic bearings by avoiding potential shaft/bearing seizure under boundary lubricated conditions and frequent stop/start operation;
Compact, lightweight designs with thin-wall bearing construction;
Reduced noise with no metal-to-metal contact between the bearing and the shaft;
Quick, simple assembly without expensive mounting tools.

Usage Range

dry	very good
oil lubricated	good
grease lubricated	fair
water lubricated	good
process fluid lubricated	fair

Physical & Mechanical Properties

Items	Value	Unit
Thermal Conductivity	18	W/mK
Maximum Operating Temperature	280	°C
Minimum Operating Temperature	-200	°C
Compressive Yield Strength	300	N/mm2
Maximum Static Load	140	N/mm2
Maximum Dynamic Load	140	N/mm2
Maximum Sliding Speed -dry	2.5	m/s
Maximum PV Factor-dry, continuous operation	1.8	N/mm2 * m/s
Maximum PV Factor-dry, intermittent operation	3.5	N/mm2 * m/s
Coefficient of friction -dry	0.02-0.25
Coefficient of friction -oil lubricated	0.02-0.12
