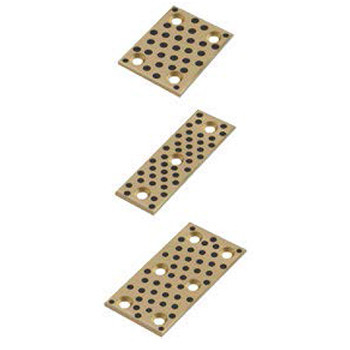

2.0966 Material CuAl10Ni; CuAl10Ni5Fe4 Slide Plate Graphite

Place of Origin Self Lube Bearings
Brand Name bronzelube.com
Certification Plain Sleeve Bearings Standards met: RoHS
Model Number Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free
Minimum Order Quantity Bronze Precision Wear Plates & Lubricating Parts made to order
Price US$0.11 - US$21.11 / Pieces,NEGOTIABLE
Packaging Details Cartons with good information lable
Delivery Time Shipped in 3-20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability Self Lube Bearing Manufacturing Dimensions Tolerance Assembly
Product Details
Material Aluminum-Bronze With Solid Lubricant Types Silde Block
Description Solid Lubricating Slide Plate Application Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.
Size Standard, Drawings Shape Slide Plate Design
Production Feature Casting Bronze Slide Plate Manufacturer Items Tin Bronze Wear Plate Supplier
Slide Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Material Designation CuAl10Ni; CuAl10Ni5Fe4 Slide Graphite Plate Feature Low Coefficient Of Friction Slide Plate
High Light Manufactures Wear Plates Industry Standards (VDI, JIS, NAAMS, SMC). Our Wear Plates Come In A Broad Range Of Standard Inch And Metric Wear Plate High Light Bronze Wear Plates , Self Lubricating - Special Brass Alloy
Leave a Message
Product Description

2.0966 Material CuAl10Ni; CuAl10Ni5Fe4 Slide Plate Graphite   graphite plate slide plates manufacturer, tiffany@viiplus.com

cw307g r740

C63200 C63000 Casting Bronze Bushing CuAl10Ni CW307G

Comparable Specifications: CuAl10Ni5Fe4, 2.0966, DIN 17665. C63200, C63000 UNS CA 104, BS 2872, 2874, 2875. High strength even at higher temperatures slide plate

NUMERICAL DESIGNATION: 2.0966
Material designation: CuAl10Ni; CuAl10Ni5Fe4
Standard: DIN
low coefficient of friction  with a counter part made of 2.0966 material.
Solid Lubricating slide plate




C95500 | One-Stop Bronze Bushings Oilless Parts Supplier GB-CuAl10Ni Material | viiplus.com‎

✔ STANDARD-STOCKED PRODUCT

Cast Bronze Solid Lubricating slide plate

Aluminum bronze bushings is the highest strength standard copper-based alloy. VIIPLUS produces C95400, C95500, aluminum bronze plugged graphite Solid Lubricating slide plate as standard-stocked products in standard sizes of Solid Lubricating slide plate.



Self-lubricating bronze Solid Lubricating slide plate, good lubrication. Technical Data Sheet. CuAl10Ni. Aluminum bronze. Continuous Cast Solid Lubricating slide plate Bushings.



Graphite Inlaid Bushings & Platesbronze, Brass, And Copper Alloys Tin Bronze/High Strength Brass Material Bronze Bushing Gleitlager | Vsb-50p



Your Complete Source For Bronze, Brass, And Copper Alloys



C86300 Manganese Bronze / C863 Manganese Bronze




Solid Sliding Solid Lubricating slide plate Bushing  Materials





Alloy Description

American Spec.

American Spec.

German Spec.

British Spec.

Typical Material Applications



UNS

SAE

alloy

alloy



Cu85 Sn5 Zn5 Pb5
Leaded Gunmetal

C83600

40

CuSn5ZnPb

LG2

Pump components, small gears, Solid Lubricating slide plate, impellers, flanges, low pressure valves and fittings.

Cu83 Sn3 Zn8 Pb6
Leaded Gunmetal

C84400

-

CuSn2ZnPb

*LG1

Light duty Solid Lubricating slide plate, general hardware, fixtures, low pressure valves and fittings.

Cu63 Al6 Fe3 Mn3 Zn25

C86300

430B

-

-

Heavy duty high strength alloy for gears, cams, Solid Lubricating slide plate, screw down nuts.

Cu88 Sn8 Zn4
Tin Bronze

C90300

620

-

-

Bearings, bushings, piston rings, valve components, seal rings, steam fittings and gears.

Cu88 Sn10 Zn2
Tin Bronze

C90500

62

CuSn10Zn

*G1

Marine pumps, valves, Solid Lubricating slide plate, bushings, piston rings, steam fittings and gears.

Cu89 Sn11
Tin Bronze

C90700

65

CuSn12

*PB1

Heavy duty gears, high load Solid Lubricating slide plate, bushings, and worm wheels.

Cu88 Sn6 Zn4 Pb2
Leaded Tin Bronze

C92200

622

-

LG3

Valves, fittings, Medium-pressure hydraulic and steam pressure parts for use up to 550 F (287 C)

Cu87 Sn11 Ni2
Leaded Tin Bronze

C92500

640

CuSn12Ni

CT2

Gears, worm wheels - Good shock resistance, Automotive synchronizer rings.

Cu87 Sn11 Pb2
Leaded Tin Bronze

C92700

63

CuSn12Pb

LB3

Heavy duty Solid Lubricating slide plate, bushings, piston rings, valve components, steam fittings, gears.

Cu83 Sn7 Zn3 Pb7
Leaded Tin Bronze

C93200

660

CuSn7ZnPb



General utility Solid Lubricating slide plate, bushings and wear plates for medium speeds and pressures.

Cu85 Pb10 Sn5
High Leaded Tin Bronze

C93500

66

-

LB4

high speed Solid Lubricating slide plate, bushings, high speed light loading and light pressure parts.

Cu80 Pb10 Sn10
High Leaded Tin Bronze

C93700

64

CuPb10Sn

Solid Lubricating slide plate

for high speed and heavy pressures, pump parts, pressure tight castings.

Cu78 Pb15 Sn7
High Leaded Tin Bronze

C93800

67

CuPb15Sn

LB1

Turbocharger Solid Lubricating slide plate, bearings for general service and moderate pressures, railroad applications.

Cu75 Pb20 Sn5
High Leaded Tin Bronze

C94100

94

CuPb20Sn

LB5

High speed Solid Lubricating slide plate for moderate loads, anti-seizing, conforms to shaft irregularities.

Cu87 AI10 Fe3
Aluminum Bronze

C95400

-

CuAI10Fe

-

High strength Solid Lubricating slide plate bushings, gears, worms, wear plates, valve seats and guides.

Cu81 AI10 Ni5 Fe4
Ni Aluminum Bronze

C95500

-

CuAI10Ni

-

High-strength Solid Lubricating slide plate, corrosion-resistant parts, aircraft valve guides, and seats.

Cu80 AI10 Ni6 Fe4
Ni Aluminum Bronze

C95800

-

CuAl10Ni

AB2

Anti-fouling salt water corrosion resistant parts and general marine hardware.



Cored Bar Stock
Solid Round Bar Stock
Plate Stock



Tin bronze material bronze bushing gleitlager



These alloys are stocked in various shapes including bars, tubes, plates, and sheets.We maintain one of the largest inventories of nonferrous copper alloys in the country. We specialize in Bronze, Brass, and Copper.



Solid Lubricating slide plate



Typical Applications





Solid Bronze bushings are intended for oscillating movements in both rotational and axial directions.
Solid Bronze bushings are not intended for rotating movements at medium or high speeds.
Examples of applications are:
• construction machinery
• transport equipment
• pulp and papermaking machinery
• off-shore equipment



Characteristics



VSB-50P Sliding Block solid Bronze Metallic Self-lubricating Bearings Solid Lubricating slide plate

Solid Lubricant Cast Bronze Bearings Slide Block With Immediate Running Velocity



Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine

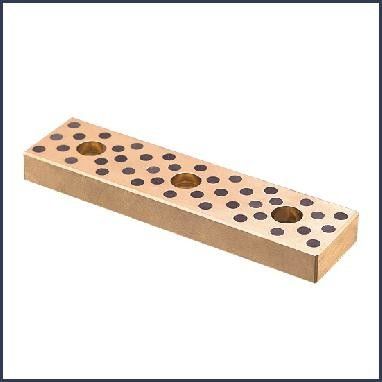

Cast Bronze Bearing with Graphite Plugs

VSB-50P Sliding Block

Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in wide range of temperature from -40℃-+300℃

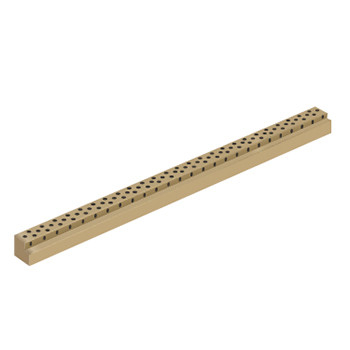

Aluminum-Bronze With Solid Lubricant Casting Bronze Silde Block

Aluminum-Bronze Solid Lubricating Silde Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.



Aluminum-Bronze Solid Lubricating Silde Block is widely used conditions with mediate load but higher temperature and condition with mediate running velocity etc.



The surface of Aluminum-Bronze Solid Lubricating Silde Block is regularly and finely machined with sockets in which particular solid lubricant is filled.

2.0966 Material CuAl10Ni; CuAl10Ni5Fe4 Slide Plate Graphite

Strusture



VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm



Chemical Compositions



Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



Availability



Bearing forms available in standard dimensions



· Cylindrical bushes

· Flanged bushes

· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
