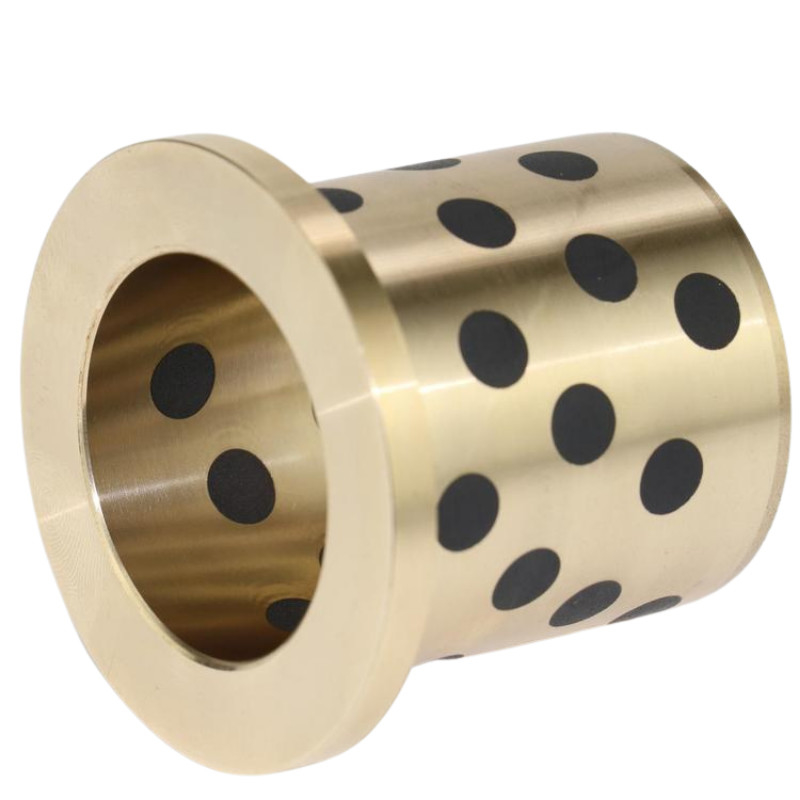

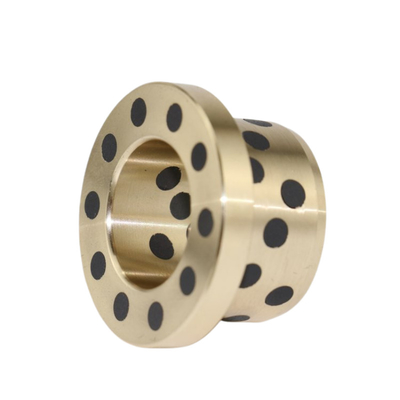

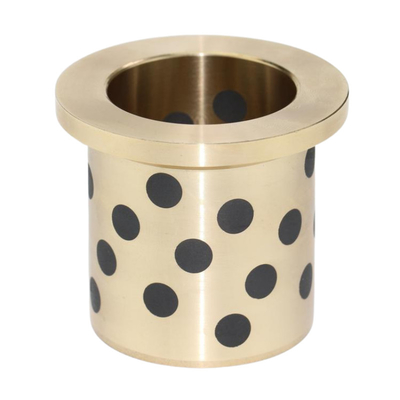

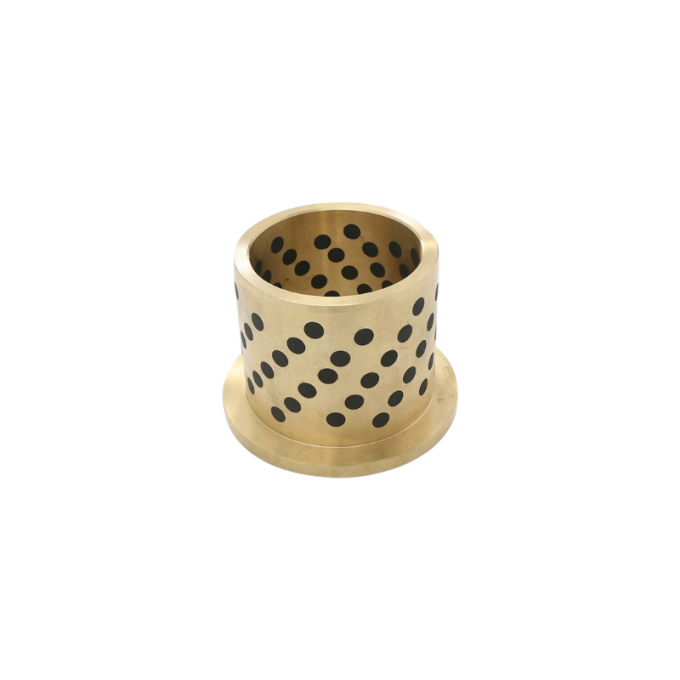

Graphite Plugged Flanged Bronze Bushing JFB SL2

Place of Origin Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number JFB SL2 Graphite Plugged Flanged Bronze Bushing
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable,Wooden Cases
Delivery Time 15~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material CuZn25Al6Fe3Mn3 +SL2 Model Number Flange Bearings, Oilless Bearings With Flange
Feature Self-lubrication Bearings, Extreme Temperatures Lubrication Graphite,Self Lubricating Bushes, Maintenance Free
Application Hardware And Steel Fabrication, Stamping Dies, Tooling Components For The Automotive Industry, Sheet Pressing Etc. Type Sliding, Sleeve,Flanged,Washers,Plates,Strips,Customized
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

Plugged Flanged Bronze Bushing

,

Graphite Flanged Bronze Bushing

,

Flanged Bronze Bushing JFB SL2

Leave a Message
Product Description

Graphite Plugged Flanged Bronze Bushing JFB SL2 is a high-performance bearing component designed for demanding industrial applications. Constructed from bronze material with graphite plugs, it offers excellent wear resistance and self-lubricating properties, ensuring smooth and reliable operation. The flanged design provides additional support and stability, while the JFB SL2 specification ensures compatibility with a wide range of machinery and equipment. This bushing is suitable for high-load and high-speed applications, where durability and reliability are critical.



JFB SL2 Graphite Plugged Flanged Bronze Bushing



Copper Alloy Straight Column Bushing guide bushing of Self Lubricating



Bronze Sleeve Bushing, Flange Size JFB SL2 Graphite Plugged Flanged Bronze Bushing



Solid Lubricants Inlaid graphite self-lubricating Bearing Flange Sleeve Bearing Cast Brass Bushings



JFB SL2 Graphite Plugged Flanged bronze bushing



Guide Bushes DIN 9834 / ISO 9448, Bronze, Maintenance-Free With Collar Standard SO#50SP2



RELATED PRODUCTS
JDB SL2 Graphite Plugged Bronze Bushing
JDB SL2 Graphite Plugged

JDB SOB SPB SL2 Graphite Lubricants Plugged Solid Bronze Bus...

JDB-P SL2 Graphite Plugged Bronze Slide Plate
JDB-P SL2 Graphite P

SOL CBS SGL HCS JDB-P oils 500sp101 SL2 Graphite Plugged Br...

JDB-W SL2 Graphite Plugged Bronze Slide Washer
JDB-W SL2 Graphite P

SOL CBS SGL HCS JDB-P oils 500sp101 SL2 Graphite Plugged Br...



Standard Size List:



d D

ID

E7

OD

r6

F L1
-0.10
L -0.10
-0.30



15 20 25 30 35 40 50 60 80 100
10 14 10 +0.040
+0.025
14 +0.034 +0.023 22 2 1015 1020
12 18 12 +0.050
+0.028
18 25 1215 1220
13 19 13 19 26 1315 1320
14 20 14 20 27 3 1415 1420
15 21 15 21 28 1515 1520 1525 1530
16 22 16 22 29 1615 1620 1625 1630
20 30 20 +0.061
+0.040
30 40 2015 2020 2025 2030 2040
25 35 25 35 +0.050
+0.034
45 2515 2520 2525 2530 2540
30 40 30 40 50 3020 3025 3030 3035 3040 3050
31.5 40 31.5 +0.075
+0.050
40 3120 3135
35 45 35 45 60 5 3520 3530 3540 3550
40 50 40 50 65 4020 4030 4040 4050
45 55 45 55 +0.060
+0.041
70 4530 4540 4550 4560
50 60 50 60 75 5030 5040 5050 5060
55 65 55 +0.090
+0.060
65 80 5540 5560
60 75 60 75 +0.062
+0.043
90 6040 6050 6080
63 75 63 75 85 6367
70 85 70 85 +0.073
+0.051
105 7050 7080
75 90 75 90 110 7560
80 100 80 100 120 8060 8080 80100
90 110 90 +0.107
+0.072
110 +0.076
+0.054
130 9060 9080
100 120 100 120 150 10080 100100
120 140 120 140 +0.088
+0.063
170 12080 120100



Solid Bronze Bearing is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuZn25Al6Fe3Mn3 with graphite (SL2) plugged, we also provide widely optional choice from CuSn5Pb5Zn5, CuAl10Fe5Ni5, CuSn12, and other standards materials.



Especially our company has developed the SL4 solid lubricants for water contacting applications like jet, propeller, ship, boatyard, offshore platform, hydraulic turbine etc.

These products are mainly used in applications of high load & moderate speed. It has the ability to withstand temperature up to 400oC. We also have the capability to develop these bushes and plates as per any specifications of our clients.



NO. DIN Material No. Designation ASTM Standard Proportional Density (g/cm³) 0.2% Strain (MPa) Tensile Strength (MPa) Strain (%) E-modulus (MPa) Hardness (HB) Applications
1 1705 2.1090.01 CuSn7ZnPb B 584 Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 8.8 120 240 15 106,000 65 Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance.
2.1090.03 CuSn7ZnPb B 271 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 130 270 13 106,000 75
2.1090.04 CuSn7ZnPb B 505 Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 8.8 120 270 16 106,000 70
2 1705 2.1061.01 CuSn12Pb Not yet standardized Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 8.7 140 260 10 112,000 80 Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications.
2.1061.03 CuSn12Pb Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 150 280 5 112,000 90
2.1061.04 CuSn12Pb B 505 Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 7 112,000 85
3 1714 2.0975.01 CuAl10Ni B 584 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 270 600 12 122,000 140 Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments.
2.0975.02 CuAl10Ni B 30 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 600 14 122,000 150
2.0975.03 CuAl10Ni B 271 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
2.0975.04 CuAl10Ni B 505 Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 7.6 300 700 13 122,000 160
4 1709 2.0598.01 CuZn25Al5 B 584 Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest 8.2 450 750 8 115,000 180 Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack.
2.0598.02 CuZn25Al5 B 30 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 8 115,000 180
2.0598.03 CuZn25Al5 B 271 Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 8.2 480 750 5 115,000 190
5 1705 2.1052.01 CuSn12 Not yet standardized Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 8.6 140 260 12 110,000 80 Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/
2.1052.03 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.6 150 280 8 110,000 90
2.1052.04 CuSn12 Not yet standardized Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 8.7 140 280 8 110,000 95
Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting.



JFB SL2 Graphite Plugged Flanged Bronze Bushing



Technical Data



  Bronze material

CuZn25Al6Fe3Mn3

+SL2

CuSn5Pb5Zn5

+SL2

CuAl10Fe5Ni5

+SL2

CuSn12

+SL2

Cu% Rest 85 80 88
Sn% -- 5 -- 12
Pb% -- 5 -- --
Zn% 25 5 -- --
Al% 6 -- 10 --
Ni% -- -- 5 --
Fe% 3 -- 5 --
Mn% 3 -- -- --
Density 8.2 g/cm3 8.8 g/cm3 8.5 g/cm3 8.8 g/cm3
Hardness >HB210 >HB70 >HB150 >HB80
Max. Load Pressure 100 N/mm2 40 N/mm2 50 N/mm2 45 N/mm2
Max. Linear Speed 0.5 m/s(dry) 0.4 m/s(dry) 0.25 m/s(dry) 0.5 m/s(dry)
Max. PV 1.65 N/mm2 * m/s 1.00 N/mm2 * m/s 1.25 N/mm2 * m/s 1.20 N/mm2 * m/s
Tensile Strength >750 N/mm2 >200 N/mm2 >500 N/mm2 >360 N/mm2
Elongation >12 % >15 % >10 % >8 %
  Temperature Limit -40 ~ +300 oC -40 ~ +250 oC -40 ~ +400 oC -40 ~ +300 oC

Products Standard: ISO 4379 (replaces DIN 1850)





Solid Lubricants





Code Material Features Application
SL2 Graphite composite

Low friction

Chemical resistant

Low cost

Temperature limit 400oC

Widely used for machinery
SL4 +MoS2 composite

Water contacting lubricating

Longer life

Temperature limit 300oC





Flanged Bush Size:
