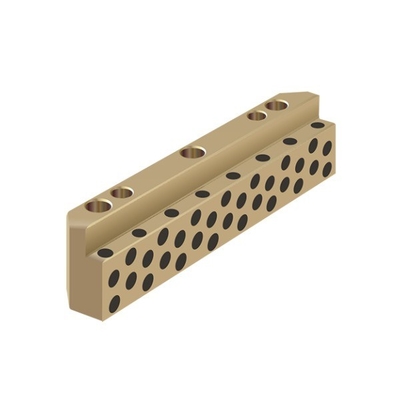

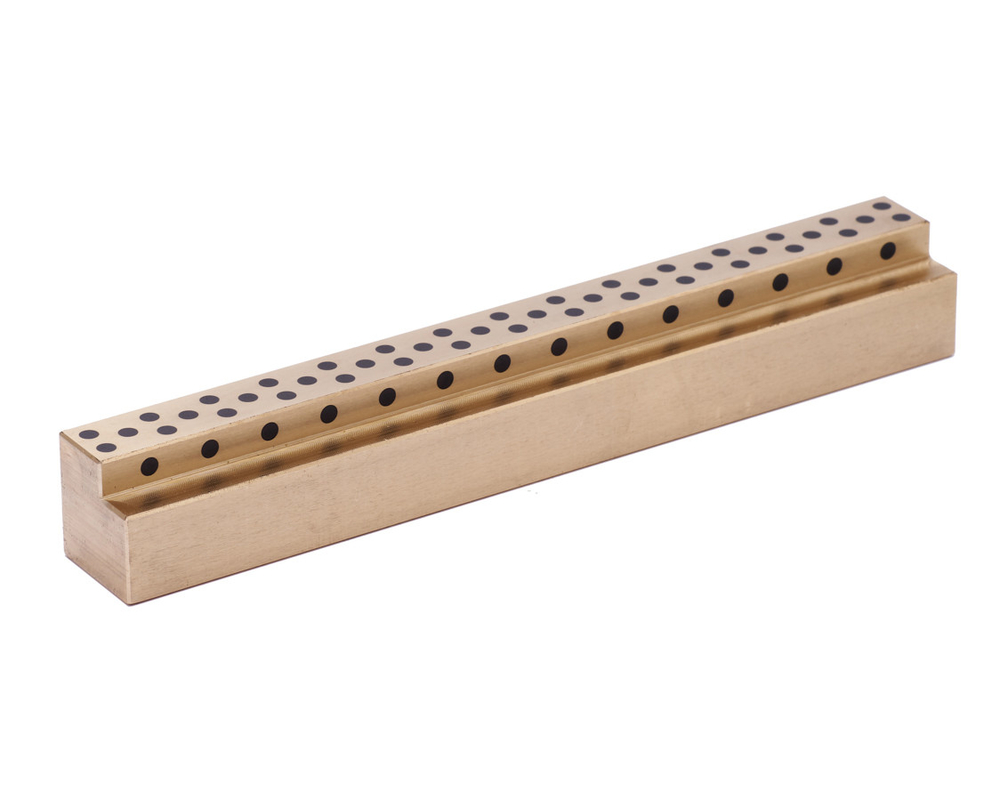

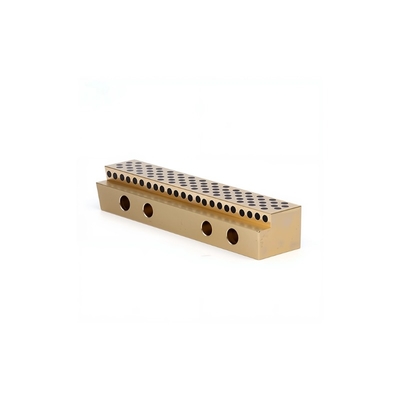

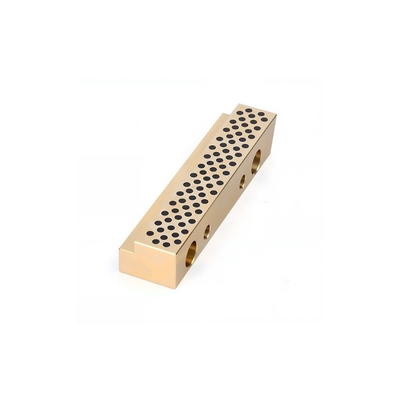

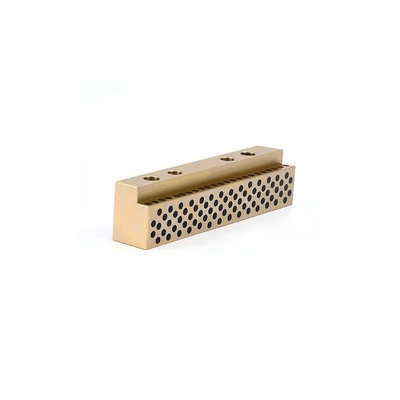

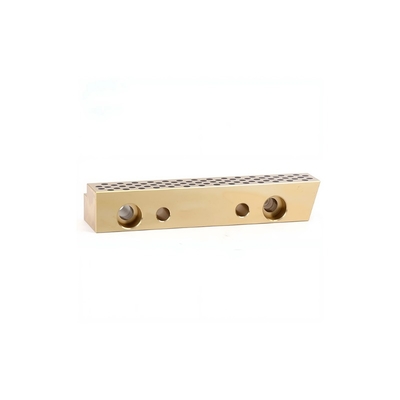

Standard L-Shaped Plates SOVL

Oil free slide plates SOVL with copper alloys, Size - Thickness - mm, Width -mm & Length -  mm with self-lubricating holes.

Standard L-Shaped Plates SOVL, Oil-free slide plates

SOVL Standard L-Shaped Plates: Revolutionizing Industrial Applications with Copper Alloys

Bronze Standard L-Shaped Plates SOVL are designed to offer oil-free self-lubricating performance in a variety of industrial applications. The bronze material used in their construction provides exceptional wear resistance and durability, making them suitable for high-load and high-friction environments.

The L-shaped design of these plates allows for easy installation and integration into various machinery and equipment. Their self-lubricating properties mean that they require no additional lubrication, reducing maintenance costs and operational downtime.

The SOVL plates are manufactured to strict standards, ensuring consistent quality and reliability. Wh used in conveyors, pumps, motors, or other industrial components, they provide a smooth and efficient operating surface that helps reduce friction and wear.

Overall, Bronze Standard L-Shaped Plates SOVL are a cost-effective and long-lasting solution for industrial applications that require oil-free self-lubricating components.

Introduction

In the realm of industrial applications, the demand for high-quality, durable, and efficient materials is ceaseless. Responding to this need, the SOVL Standard L-Shaped Plates have emerged as a groundbreaking solution, particularly for those seeking reliable and maintenance-free components. These plates, crafted from superior copper alloys, boast a unique oil-free design, making them a game-changer in various industrial settings.



Composition and properties
  dg DIN Material
No.
delivery form1)
Designation ASTM standard Proportional weights Physical properties (min.)
          Standard Alloy
No.
DIN ASTM Density 0.2%
Strain
Tensile
strength
Strain Emodulus Hardness Application
Symbol                 ρ δy δT
Unit             % % g/cm³ MPa MPa % MPa HB
  01 1705 2.1090.01 CuSn7ZnPb B 584 C932 00 Cu 81 - 85
Sn 6 - 8
Zn 3 - 5
Pb 5 - 7
permissible
max. portions
Ni 2.0
Sb 0.3
Cu 81 - 85
Sn 6.3 - 7.5
Zn 2 - 4
Pb 6 - 8
Ni 1
Sb 0.35
8.8 120 240 15 106.000 65 Standard
material for the
most applications
international
standardized
2.1090.03 CuSn7ZnPb B 271 C932 00 8.8 130 270 13 106.000 75
2.1090.04 CuSn7ZnPb B 505 C932 00 8.8 120 270 16 106.000 70
02 1705 2.1061.01 CuSn12Pb not yet standardized Cu 84 - 87
Sn 11 - 13
Pb 1 - 2
permissible Ni 0.8 - 1.5
max. portions
Ni 2.0
Sb 0.2
P 0.2
Cu 85 - 88
Sn 10 - 12
Pb 1 - 1.5
8.7 140 260 10 112.000 80 Material for high
loads and/or
corrosion stress
attack international
only partially
standardized
2.1061.03 CuSn12Pb not yet standardized 8.7 150 280 5 112.000 90
2.1061.04 CuSn12Pb B 505 C925 00 8.7 140 280 7 112.000 85
03 1714 2.0975.01 CuAl10Ni B 584 C955 00 C u min. 75
Al 8.5 - 11.0
Ni 4.0 - 6.5
Fe 3.5 - 5.5
permissible
max. portions
Mn 3.3
Cu min. 78
Al 10 - 11.5
Ni 3 - 5.5
Fe 3 - 5
Mn max. 3.5
7.6 270 600 12 122.000 140 Material for
extreme loads
and/or high
corrosive
environments
international
standardized
2.0975.02 CuAl10Ni B 30 C955 00 7.6 300 600 14 122.000 150
2.0975.03 CuAl10Ni B 271 C955 00 7.6 300 700 13 122.000 160
2.0975.04 CuAl10Ni B 505 C955 00 7.6 300 700 13 122.000 160
04 1709 2.0598.01 CuZn25Al5 B584 C863 00 Cu 60 - 67
Al 3 - 7
Fe 1.5 - 4
Mn 2.5 - 5
Zn rest
permissible
max. portions
Ni max. 3
Cu 60 - 66
Al 5 - 7.5
Fe 2 - 4
Mn 2.5 - 5
Zn 22 - 28
Ni max. 1
8.2 450 750 8 115.000 180 Material for
highest loads
without
corrosive attack.
international
partially
standardized to
a large extend
2.0598.02 CuZn25Al5 B 30 C863 00 8.2 480 750 8 115.000 180
2.0598.03 CuZn25Al5 B 271 C863 00 8.2 480 750 5 115.000 190
05 1705 2.1052.01 CuSn12 not yet standardized Cu 84 - 88
Sn 11 - 13
Pb 1
Ni 2.0
Sb 0.2
P 0.2
Cu 85 - 88
Sn 10 - 12
Pb 1 - 1.5
Ni 0.8 - 1.5
8.6 140 260 12 110.000 80 Material with
good wear resis-
tance. corrosion
and seawater
resistant
international
partially
standardized
2.1052.03 CuSn12 not yet standardized 8.6 150 280 8 110.000 90
2.1052.04 CuSn12 not yet standardized 8.7 140 280 8 110.000 95
  1 ) delivery form: .01 = sand casting. .02 = gravity casting. .03 = centrifugal casting. .04 = continuous casting

Unveiling the SOVL Standard L-Shaped Plates

Unique Composition and Design

The SOVL Standard L-Shaped Plates are engineered from high-grade copper alloys, known for their excellent thermal and electrical conductivity, corrosion resistance, and mechanical strength. The choice of copper alloy as the material enhances the plates' suitability for challenging industrial environments where durability and reliability are paramount.

Oil-Free Innovation

One of the standout features of these plates is their oil-free design. Traditional components often require regular lubrication to maintain smooth operation and prevent wear and tear. However, the SOVL plates are designed to eliminate this need, reducing maintenance requirements and increasing efficiency. This feature is particularly beneficial in sectors where lubrication can contaminate products or is difficult to manage.

Dimensions and Customization

The SOVL Standard L-Shaped Plates are available in specific dimensions, tailored to meet diverse industrial requirements. Customers can select plates with a thickness of [insert thickness] mm, a width of [insert width] mm, and a length of [insert length] mm, ensuring a perfect fit for their specific applications. This level of customization allows for greater versatility and adaptability in various uses.

Self-Lubricating Holes for Enhanced Performance

Another innovative aspect of these plates is the inclusion of self-lubricating holes. These holes are strategically designed to enhance the plates' performance and longevity. They provide a constant source of lubrication from within, further reducing the need for external maintenance and ensuring smooth operation over an extended period.

Applications and Benefits

Wide Range of Industrial Uses

The SOVL Standard L-Shaped Plates find applications in numerous industrial sectors, including manufacturing, automotive, aerospace, and construction. Their robustness and efficiency make them ideal for high-stress environments where component failure is not an option.

Longevity and Cost-Effectiveness

The durability and low-maintenance nature of these plates translate into significant cost savings for businesses. By reducing the frequency of replacements and minimizing downtime due to maintenance, these plates offer a cost-effective solution over their lifespan.

Environmental Impact

The oil-free design of the SOVL plates not only reduces maintenance costs but also minimizes environmental impact. By eliminating the need for lubricants, these plates contribute to a cleaner and more sustainable industrial process.

Conclusion

The SOVL Standard L-Shaped Plates represent a significant advancement in industrial materials. Their unique copper alloy composition, oil-free design, customizable dimensions, and self-lubricating features make them an invaluable asset in various industrial applications. By enhancing performance, reducing maintenance needs, and offering environmental benefits, these plates stand out as a testament to innovative engineering and sustainable practices in the industrial sector.



SOVL 15-205-12 15 205 12 5 5
SOVL 20-205-17 20 205 17 7 5
SOVL 20-320-17 20 320 17 7 5
SOVL 20-605-17 20 605 17 7 5
SOVL 20-205-22 20 205 22 7 5
SOVL 20-320-22 20 320 22 7 5
SOVL 20-605-22 20 605 22 7 5
SOVL 28-205-27 28 205 27 10 8
SOVL 28-320-27 28 320 27 10 8
SOVL 28-605-27 28 605 27 10 8
SOVL 28-205-36 28 205 36 10 8
SOVL 28-320-36 28 320 36 10 8
SOVL 28-605-36 28 605 36 10 8
SOVL 28-205-46 28 205 46 10 8
SOVL 28-320-46 28 320 46 10 8
SOVL 28-605-46 28 605 46 10 8
SOVL 40-205-66 40 205 66 22 12
SOVL 40-320-66 40 320 66 22 12
SOVL 40-605-66 40 605 66 22 12
SOVL 40-205-86 40 205 86 26 12
SOVL 40-320-86 40 320 86 26 12
SOVL 40-605-86 40 605 86 26 12
Article name Width W Length L Height H h l



Bronze plugged Oil free slide plates with copper alloys wear plates give products exceptional strength plus the lubricity and other desirable qualities of bronze. Advanced in design, each Bronze, Brass, and Self Lubricating Products is measured to precise standards and is distortion-free for reliable performance and excellent wearability. graphite plugs cover 25-30% of the area requiring lubrication.



Properties: "SOVL"
Sliding speed v: 30 m/min
Base Material: Special Brass (SO#50SP2)
Self-lubricating: Yes
Lubricant: Graphite
Surface Pressure P: 100 N/mm²
P*v-value: 200 N/mm² x m/min
Operating temperature: -50°C / +200°C (max. 300°C)
Friction coefficient: 0,07

Applications: High-strength bearings, bushings, gears, worms, Oil-free slide plates with copper alloys wear plates, valve seats, and guides.



groove bronze plate



Can be used for long periods without maintenance.
Designed for very high static and dynamic loads.
has a very low and smooth coefficient of friction with no "sticking".
Resistant to dust, corrosion, impact and edge loading.
Good shock absorption of metal substrates.
Ability to be used over a wide temperature range.
Suitable for applications where frequent start-ups such as reciprocating, rotating and oscillating are difficult to form an oil film.
Has an extremely low wear rate and a long service life.



Wear Block Rear with graphite | Cast Bronze Self Lube Oil-free slide plates with copper alloys Wear  Plates, Plug Graphite Lube Plate C86300 C95400  Aluminum Bronze



Reasons for Selecting Plug Graphite Self-Lubricating Products



Plug Graphite Bearings Production



  • Bronze Wear Plates Oil-free slide plates with copper alloys
  • Pillar and Bushes
  • Slide elements
  • Cam components
  • Cam units
  • Retainers
  • Plastic mold components


STRUCTURE



VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.



CHARACTERISTICS



1. May work without any ol for long period

2. Extremely high load capacity, good anti-wear and lower friction

3. Particularly appropriate for low speed and high load

4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed

5. Good chemical resistant and anti-corrosion characteristics

6. Can b€ used in a wide range of temperature from -40℃-+300℃



TECHNICAL DATA



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm





Chemical Compositions



Product NO.

Chemical Compositions

    VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2



Processing Bearing Equipment
High precision processing equipment is like a strong force magic weapon of surprise



AVAILABILITY



Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates



Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs.
