C86300 Bronze JIS, HBSC4 Copper Alloy previously Special Solid Lubricant Embedded
Place of Origin | Self Lube Bearings |
---|---|
Brand Name | bronzelube.com |
Certification | Plain Sleeve Bearings Standards met: RoHS |
Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
Packaging Details | Cartons with good information lable |
Delivery Time | Shipped in 3-20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Product Details
Material | Aluminum-Bronze With Solid Lubricant | Types | Silde Block,Plate |
---|---|---|---|
Description | Solid Lubricating Bearings | Application | Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc. |
Size | Standard,Drawings | Production Feature | Casting |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Manufactures Wear Plates Industry Standards (VDI, JIS, NAAMS, SMC). Our Wear Plates Come In A Broad Range Of Standard Inch And Metric Wear Plate | High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy |
Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | graphite lube plate,bronze wear plate |
Product Description
Check out Oil-Free Slide Plates for the most current pricing and lead time, made to order from china, with holes, different plate thickness.
Material: Material: C86300 Bronze (JIS, HBSC4 Copper Alloy previously) Special Solid Lubricant Embedded. Initial greasing is recommended for more effective use. Oil-Free Slide Plates Copper Alloy
Oil-Free Slide Plates – Copper Alloy
Sliding Bearings Need to be purposefully designed and manufactured. Bearing, per se, usually less costly. The overall cost is less for small bearing systems. Service life not predictable, but can be
capable of providing unlimited life. Offer more design flexibility and versatility to a broader spectrum of materials.
More tolerant of abuse. May require periodic maintenance.
Can provide high levels of beneficial damping.
Sometimes higher friction. Wear, under favorable conditions, can approach zero. Little outside help available.
Rolling Element Bearings Off-the-shelf finished bearings available.
The lower overall cost for larger bearings. Small bearings may have higher relative costs.Statistically predictable finite life.
Limited by available standard sizes, configurations, and materials.
Very sensitive to abuse. Minimal maintenance, short of replacement.
Minimal damping characteristics.Finite, generally low friction and wear.Lots of outside help available(suppliers).
C86300 casting bronze graphite oilless bush bushing plates with graphite inlaid

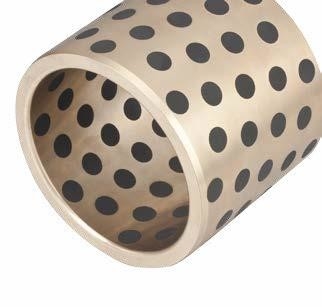

Casting bronze bearing with graphite plugs
The solid bronze/iron material is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates.Plug Graphite Bearings. Plug graphite bearings are primarily used in applications that need continual lubrication in hard to reach areas. Graphite is mechanically forced into the holes/grooves under extreme pressure. A film of lubricant is transferred to the shaft as it begins to turn.
VIIPLUS bronze graphite oilless bush is a material suitable for heavy loads at low sliding speed, the solid lubricant is provided by Graphite with additive, which is inserted into the bronze structure of the bearings.
The base material is CuZn25Al5. The available items in this material are the cylindrical and flanged bush, washers, strips, and special parts on customer requests.
C83600 plates with graphite inlaid, C86300, C95400, SAE40, SAE66 aluminum-bronze bushings, brass bronze copper alloy bushings, bronze alloys bushings, bronze bar stock, cast bronze bearing, copper alloys bushes, manganese bronze bushings, aluminum bronze bearings, phosphorous bronze bushings

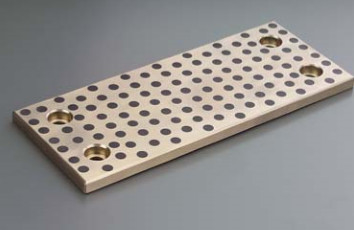

Graphite Inlaid Bushings & Oil-Free Slide Plates Copper Alloy
Plates China, Casting bronze bearing with graphite plugs
Solid Bronze Sliding Block Plug Graphite Cast Bronze Bearing Solid Bronze Plate C86300 | VSB-50 PLATE
Applications
Inlaid Plate, Inlaid Plate Suppliers, and Manufacturers.
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water, or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines.
CHARACTERISTICS
Material Properties
● Allows maintenance-free and long-life operation;
● Suitable for high static and dynamic loads;
● With low and smoothly coefficient of friction and without stick-slip effects;
● Suitable for dirty, corrosion, impact load and edge loading;
● The base material provided a good shock-absorbing capacity;
● Can be used over a large temperature range;
● Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
● With low wear rate and long life service.
VSB-50P Sliding Block solid Bronze Metallic Self-lubricating Bearings
Solid Lubricant Cast Bronze Bearings Slide Block With Immediate Running Velocity
Metric Bronze Bushings Block Tin-Bronze For Metallurgy / Drying Machine
Cast Bronze Bearing with Graphite Plugs
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Feature
Solid Bronze bushings are intended to be lubricated with oil or grease. Lubrication not only
improves the sliding properties but also reduces wear and prevents corrosion. Grease is usually
used when lubrication is periodical
VSB-50P Sliding Block oilless slide plate, wear plate, graphite plugged
Copper Cast Bronze Bearings Slide Block Anti Abrasion For Transportation Machines
1. May work without any oil for a long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can be used in a wide range of temperature from -40℃-+300℃
Aluminum-Bronze With Solid Lubricant Casting Bronze Slide Block
Aluminum-Bronze Solid Lubricating Slide Block is backed with Aluminum-Bronze alloy with good capability of mechanics, castings, and anti-erosion. The surface of Aluminum-Bronze Solid Lubricating Slide Block is regularly and finely machined with sockets in which a particular solid lubricant is filled.
Aluminum-Bronze Solid Lubricating Slide Block has widely used conditions with a mediate load but higher temperature and condition with mediate running velocity etc.
The surface of Aluminum-Bronze Solid Lubricating Slide Block is regularly and finely machined with sockets in which a particular solid lubricant is filled.
STRUCTURE
VSB-50P Sliding Block material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature at low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
TECHNICAL DATA
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Chemical Compositions
Product NO. |
Chemical Compositions |
||||||||
VSB-50 |
Cu |
Zn |
Al |
Fe |
Mn |
Si |
Ni |
Sn |
Pb |
60~66 |
22~28 |
5.0~8.0 |
2.0~4.0 |
2.5~5.0 |
<0.1 |
<0.5 |
<0.2 |
<0.2 |
AVAILABILITY

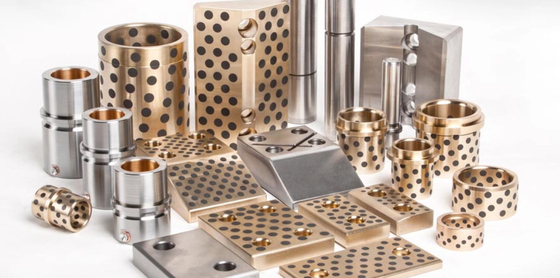

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs
Solid Bronze Metallic Self-lubricating CUSTOMER SIZE Dimensions and Tolerances
