High Load Capacity Bronze Bushing Without Perforation / Flange

Brand Name:	REPLACEMENT PLAIN BEARINGS
Model Number:	Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
MOQ:	MATE-TO-ORDER CUSTOM BUSHINGS
Price:	Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms:	T/T
Supply Ability:	bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Detail Information

Product Description

Detail Information

Place of Origin:

gleitlagerbuchsen china

Certification:

DIN 1494 / ISO 3547

Bushing Однородная бронза:

(Cu 91,3%, Sn 8,5%, P 0,2%)

Feature:

High Temperature Resistance,Wear Resistance,corrosion Resistance

Performance:

High Load Capacity And Long Life

Type:

Sleeve,Flange,Thrust Washer

Bushings Thinkness:

Bushing Max. Thickness Of 2.5mm.

Self-lubricating Bushings:

Bronze Bushing 60-65-60mm, Perforated

Application:

Agricultural Machinery, Brakes And Certain Construction Machinery.

Bushing Size:

Special Dimensions And Imperial Sizes Are Available On Request

Model Number::

E90F E92F E90 E92 BUSHINGS

Logo:

Customized Logo

Get A Better Quote:

Tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

Https://www.viiplus.com/

High Light::

Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger:

A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain

Bush Bearings Manufacturers Suppliers Exporters:

Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/

Packaging Details:

EXPORT CARTON WOOD PALLET WOODEN CASE

Supply Ability:

bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Highlight:

Bronze Bushing High Load Capacity

High Load Capacity Bronze Gleitlager

Bronze Gleitlager Without Perforation

Product Description

Bronze Bushing Without Flange Without Perforation

The high load capacity bronze bushing without perforation or flange is a robust component designed to handle heavy loads and demanding operating conditions. Constructed from high-quality bronze, it offers excellent wear resistance, durability, and corrosion resistance, ensuring reliable performance even in harsh environments. The bushing's smooth surface and precise dimensions minimize friction and ensure a smooth operation, while its solid construction provides maximum stability and support. Ideal for use in heavy machinery, industrial equipment, and other high-load applications, this bronze bushing is a trusted choice for ensuring long-term performance and reliability.

BRONZE SLEEVES WITHOUT FLANGE WITHOUT PERFORATION
PLACE AN ORDER TO ASK A QUESTION
We offer bronze sleeves of different diameters - with notches and surface rifling. Can be used for greasing for a long time without additional maintenance. The grease is applied beforehand and is very economical.
Technical characteristics
Material: Homogeneous Bronze (Cu 91.3%, Sn 8.5%, P 0.2%)
Yield strength: (Rp0.2) Ca 300 N/mm2
Tensile strength: (Rm) Ca 450 N/mm2
Hardness: Ca 125-150 HB
Friction: 0.08-0.25 µ
Maximum speed: 2.5 m/s
Temperature range: -100 / +200 °C

Load Rate
Ca: 280 N/mm2 0 m/s
80 - 120 N/mm2 0.01 m/s
30 - 40 N/mm2 2,0 m/s

Bronze Sleeves Straight and Flange With Perforation

BRONZE SLEEVES WITHOUT FLANGE WITHOUT PERFORATION SIZE

d — внутренний диаметр	D — внешний диаметр	L — длина втулки
12	14	15
14	16	15
14	16	20
15	17	15
15	17	25
16	18	15
16	18	20
16	18	25
18	21	15
18	21	20
18	21	25
20	23	15
20	23	20
20	23	25
20	23	30
22	25	15
22	25	20
22	25	25
22	25	30
25	28	15
25	28	20
25	28	25
25	28	30
25	28	50
28	31	15
28	31	25
28	31	30
30	32	30
30	34	20
30	34	25
30	34	30
30	34	40
32	36	20
32	36	30
32	36	40
35	39	20
35	39	30
35	39	40
40	44	20
40	44	25
40	44	30
40	44	40
40	44	50
45	50	16
45	50	20
45	50	30
45	50	40
45	50	50
45	50	60
50	55	25
50	55	30
50	55	40
50	55	50
50	55	60
55	60	40
55	60	60
60	65	30
60	65	40
60	65	45
60	65	60
65	70	40
65	70	60
70	75	40
70	75	45
70	75	50
70	75	60
70	75	80
75	80	40
75	80	80
80	85	40
80	85	50
80	85	60
80	85	80
85	90	40
85	90	80
90	95	40
90	95	50
90	95	60
90	95	70
90	95	90
100	105	40
100	105	50
100	105	60
100	105	95
105	110	50
110	115	95
120	125	50
120	125	95
125	130	100
130	135	60
130	135	100
140	145	50
140	145	60
140	145	100
150	155	60
150	155	100
160	165	60
160	165	100
170	175	60
170	175	100
180	185	60
180	185	100
190	195	48
190	195	60
190	195	100
200	205	200

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Bornze Gleitlager CuSn8 Chemical Composition

Part No	Material	Cu	Sn	P	Pb	Zn
E92 & E92F	CuSn8	91.3%	8.5%	0.2%	/	/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

FB090 bronze bushing with holes

Product description:
FB090 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price

‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

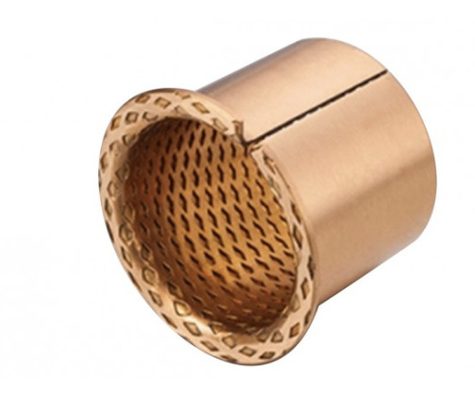

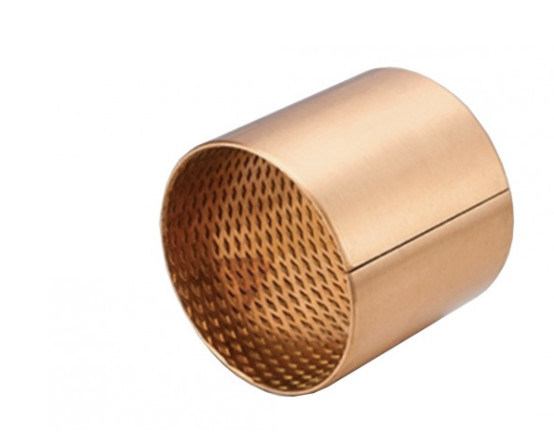

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

Technical Details

Specific load capacity static< 120 [N/mm2]
Specific load capacity dynamic< 40 [N/mm2]
Sliding speed≤ 2.5 [m/s]
Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
Temperature strain- 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
The percentage of contact area on the ID is > 75%
