| Brand Name: | VIIPLUS |
| Model Number: | Straight Bronze Bushings |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 7000000 Piece/Pieces One week |

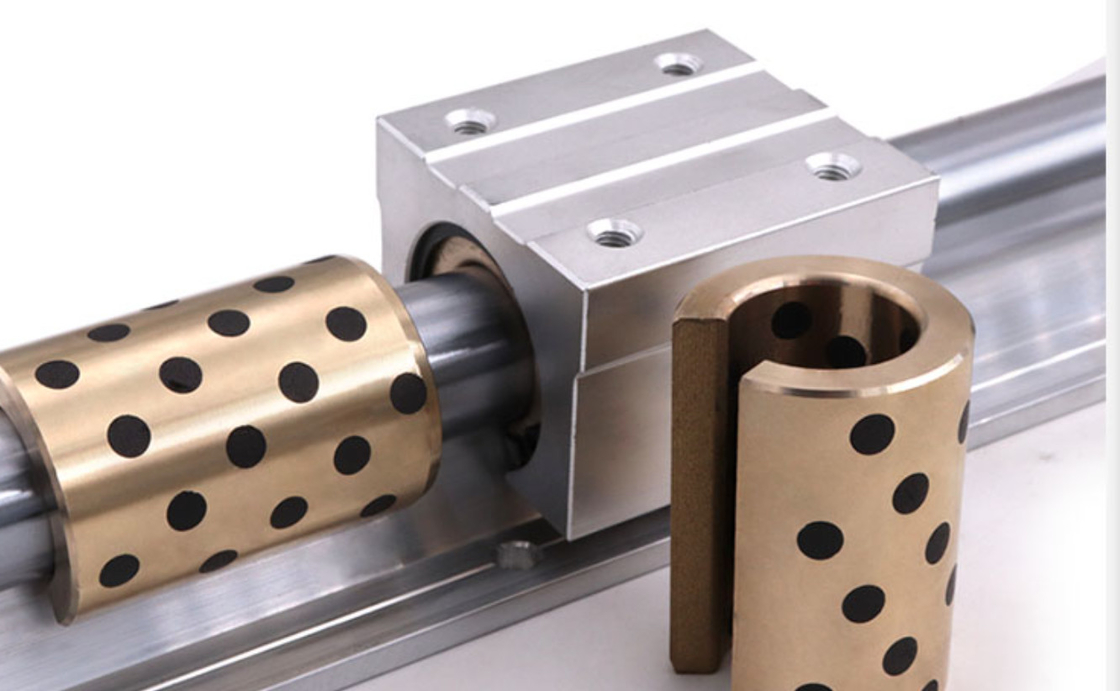

Solid Cast Bronze Self-Lubricating Guide Bushings Low Noise are precision-made components designed to provide smooth and reliable operation with minimal noise generation. These bushings are cast from solid bronze, a material known for its excellent wear resistance and mechanical properties.
The self-lubricating feature of these bushings is achieved through the use of special materials and coatings that naturally generate lubrication during operation. This lubrication effect significantly reduces friction and wear, ensuring smooth movement and extended service life.
Additionally, the solid cast construction of these bushings ensures high stiffness and stability, reducing vibrations and noise levels during operation. This makes them ideal for use in applications where low noise is a critical requirement, such as in precision machinery, medical equipment, and other noise-sensitive environments.
The guide bushings are also designed for easy installation and replacement, minimizing downtime and enhancing the overall efficiency of the system. They are suitable for use in a wide range of industrial applications, including pumps, motors, conveyors, and other rotating equipment.
In summary, Solid Cast Bronze Self-Lubricating Guide Bushings Low Noise offer a robust and reliable solution for reducing noise and wear in industrial applications. Their precision casting, self-lubricating properties, and low-noise characteristics ensure smooth and efficient operation with minimal maintenance requirements.
With ample stock levels and rapid delivery schedules for standard Oiless Bush parts manufactured in its factory in China.
DIN9834 / ISO9448 guide bushing, european standard, SO#50SP2 with graphite
DIN 9834,DIN 9448 Bronze Collar Guide bush
Huge Stocks
Material: Bronze with solid lubricant, oilless lubricating
| Type | Straight | Bushing Material | Graphite Impregnated Brass |
|---|---|---|---|
| I.D. d(mm) | 6 | O.D. D(mm) | 10 |
| Overall Length L(mm) | 10 | Maximum Allowable PV Value Range(N/mm2•m/s) | 1.1~2.0 |
| Maximum Allowable PV Value(N/mm2•m/s) | 1.65 | Maximum Allowable Load(N/mm2) | 29 |
| Maximum Allowable Velocity(m/s) | 0.5 | Mounting Hole Fits | H7 |
| Operating Temperature Range(℃) | -40~150 | Operating Temperature Range (No Lubrication) Min | -40 |
Advantage
1. Total Self-Lubricating:No oil or grease required
The self-lubricating features allow bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
2. Excellent Wear Resistance:
Excellent wear resistance is achieved under severe working conditions, such as heavy load, low velocity, reciprocating, oscillating and intermittent motions where the formation of oil film is difficult.
3. Low Coefficient of Friction: 0.04 to 0.2 typical:
Self-lubrication with specially embedded solid lubricants reduces friction.
4. Wide Operating Temperature Ranges: -40 °C to +300 °C
Superior performance is exhibited under high and low temperature conditions.
5. Corrosion and Chemical Resistance:
Performance is not affected by water and caustic chemicals.
6. Designed to Exceed Your Requirements:
High precision products with close tolerances.
7. Cost Competitive:
Maintenance, replacement, and end-item downtime cost reduced due to the exceptional service life compared to similar self-lubricating products.
Inner diameter d
Please choose
Outer diameter D
Please choose
Length L
Please choose
Price and delivery time on request
| Base Material: | Special Brass (SO#50SP2) |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| Sliding speed v: | 30 m/min |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +200°C (max. 300°C) |
| Friction coefficient: | 0,07 |
APPLICATION:
Self Lubricated Guide Bushings for in pressing tools, injection molds and general engineering.
Self Lubricated Guide Bushings, Gleitlagerbock SO#50SP2 for Pillow-block housing
Pillow blocks bearings, Pillow Block Bearings & Inserts graphite bushings SOB 8-12-8
Pillow block bronze bushing graphite bearings, flange bearing graphite units, Pillow Block Flange Graphite Bushings blocks, and take-up Pillow Block Flange Graphite Bushings units all consist of a housing with a Pillow Block Flange Graphite Bushings mounted in it. They are available in a variety of materials, mounting configurations, and various Pillow Block Flange Graphite Bushings features. Each mounted unit, including a mounted Pillow Block Flange Graphite Bushings, acts as a system to position the bearing securely for reliable operation. Read more about each type of pillow block bearing using the links below.
Reduced Lubrication Burden, Applicable to Severe Environment, Easy Installation
OILES bronze graphite Pillow Block demonstrates superior performance even in bad conditions and at portions where lubrication is impossible.
