Normal Tin Plating Bimetal Bearing Bushes CuPb10Sn10 Alloy
Place of Origin | Bimetal Bearing Manufacturers |
---|---|
Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
Certification | Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
Model Number | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
Price | $0.20 - $2.00 / Pieces ,Negotiable |
Packaging Details | export & import bimetal bushings International carton standard |
Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
Payment Terms | TT IN ADVANCE Western Union |
Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Steel+CuPb10Sn10 Alloy | Plating | Tin Or Copper |
---|---|---|---|
Characteristic | Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
Size | Standard Size Available | Quality | OEM |
FEATURES | Normal Cylindrical Bushes, Grooves, Oil Holes, Slots, Etc. | MAJOR APPLICATIONS | Engine Bearings, Automotive Parts, General Industrial Machinery, Food Machinery And Household Electric Appliances |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | Tin Plate Bimetal Bearing Bushes,CuPb10Sn10 Alloy Bimetal Bearing Bushes,Normal Bimetal Bearing Bushes |

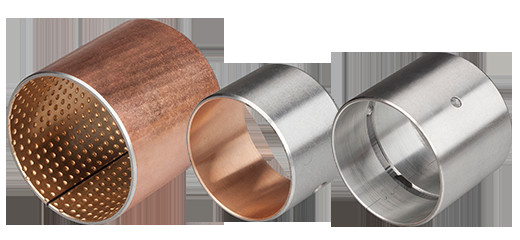

Normal Tin Plating Bimetal Bearing Bushes made of CuPb10Sn10 Alloy refer to a type of bearing bush that is constructed using a bimetal material, specifically the CuPb10Sn10 alloy. This alloy is composed of copper (Cu), lead (Pb), and tin (Sn) in specific proportions, with 10% lead and 10% tin content. The tin plating on the surface of these bearing bushes provides additional corrosion resistance and wear resistance, improving their durability and longevity.
CuPb10Sn10 alloy is often chosen for bearing applications due to its excellent machinability, wear resistance, and self-lubricating properties. The bimetal design, which typically consists of a steel backing with a CuPb10Sn10 alloy overlay, allows for the bearing bush to withstand high loads and provide stable performance under demanding operating conditions.
The tin plating on the CuPb10Sn10 alloy surface not only enhances corrosion resistance but also acts as a protective layer, reducing the chances of damage from debris, moisture, or other contaminants. This makes the bearing bushes suitable for use in a wide range of industrial applications, including automotive, machinery, and heavy equipment.
In summary, Normal Tin Plating Bimetal Bearing Bushes made of CuPb10Sn10 Alloy are reliable and durable components that offer excellent wear and corrosion resistance, making them suitable for demanding bearing applications.
Bimetal Bushing SY Bearings DIN-CuPb10Sn, SAE-797, JIS-LBC3, -SY, GLYCO-66, FEDERAL MOGUL-HF2, DAIDO-L10, ACL-F100
offers high-quality genuine spare bronze bushings parts for construction and agricultural machinery. Discover our bronze bushings product range.
JF800 Alloy Code & Corresponding International Code | |||
Product Code | Alloy Code | Alloy Hardness | Corresponding International Code |
JF800 | CuPb10Sn10 | 69-90 HB | DIN-CuPb10Sn, SAE-797, JIS-LBC3, -SY, GLYCO-66, FEDERAL MOGUL-HF2, DAIDO-L10, ACL-F100 |
We carry a full range of Bimetal (split) Bushings
Material Steel+CuPb10Sn10,Steel+CuPb24Sn4,Steel+CuPb24Sn,Steel+CuPb30 Steel+CuPb10Sn10+Graphite.You can order online for fast and immediate shipping. Please give us a call or send us an e-mail on bushings to help with product selection or to find bushings not listed on our web site.Bushings Catalog (Plain Bearings Catalog) Bimetal Wrapped Steel with Bronze Series Bushings Catalog - Metric [Also available in Flanged type]
BIMETAL BUSHING BEAINGS VSB-800.pdf BIMETAL STEEL BRONZE SLEEVE BUSHES MANUFACTURER.pd...
Manufacturer & Exporter Bimetal, Trimetal and Solid Cast Metal Bearings & Bushings,Bimetal Bearings_SAE 797, SAE 799, SAE 783, SAE 48, SAE 49,Manufacturers of Reference And Material Characteristics Customized bimetal sleeve bushings manufacturing, supplier of bronze steel bushing and self-lubricating bearing,and other self-lubricating bearings. Specializing in plain bearings solutions.www.bronzegleitlager.com is the leading bimetal bearings sourcing and sliding bearing
supplier discovery online website for procurement professionals, engineers, plant & facility management and business...
Steel backed Leaded Bronze:
Standard For Bimetallic Materials
DIN CuPb10Sn, SAE797, UNS C93700, federal Mogul / Talho HF2, Glacler SY,SAE792
CuPb24Sn4, SAE799, DAIDO L23,JIS-LBC6, GLYCO-68, ACL-F250, SAE794
Steel backed Copper-Lead Alloy: CuPb24Sn SAE-49, ACL-F780 CuPb30, SAE-48, JIS-KJ3.
JF800 Bimetallic Bearing's steel-bronze bushes with oil holes China The source for Pumps bushings & Bimetal Bearing online sale Bimtel Bearing: BM JF600 JF650 JF700 JF720 Description
Bimetallic bushing is formed from steel strips with alloy lining material. The alloy lined surface can be machined oil grooves, holes, formed Indentations etc according to different application. It is suitable for high load, lower speed oscillation & rotation movement.
VIIPLUS china BiMetal bushing Load capability can be improved by oil holes, grooves, etc., depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.
Bimetallic bearing is steel back as the matrix, surface sintered copper, tin alloy, rolled rolling bearings, standard alloy materials are: CuPb10Sn10, CuSn6Zn6Pb3, CuPb24Sn4, CuPn30, AlSn20Cu.
Since the base plate is made of low carbon steel, the machining accuracy of the outer diameter of the shaft sleeve is guaranteed. Moreover, there is no need for screw fixation after the product is loaded into the seat hole. Interference fit can be relied on to prevent the appearance of external circle.
The change of the chemical composition of the alloy on the inner surface can meet the requirements of different bearing pressure, different service temperature and different sliding speed. The oil groove with different structure is designed for the friction surface in the production, and the oil cavity can meet the requirements of different ways of oiling and prevent the phenomenon of axle biting.
PART NO. | TECHNICAL DATA | |||||||||
VIIPLUS | Nominal Diameter | Wall Thickness s3 | Width | Shaft-φ Dj,h8 | Housing φ DH, H7 |
Bush-φ Di,a Ass. in H7 housing | Clearance CD | Oil Hole φ | ||
Di | Do | max. min. |
B | max. min. |
max. min. |
max. min. |
max. min. |
dl | ||
PM2015SY | 20 | 23 | 1.490 1.430 |
15 | 20.000 19.967 |
23.021 23.000 |
+ 0.161 + 0.020 |
0.194 0.020 |
4 | |
PM2025SY | 20 | 23 | 25 | |||||||
PM2030SY | 20 | 23 | 30 | |||||||
PM2215SY | 22 | 25 | 15 | 22.000 21.967 |
25.021 25.000 |
6 | ||||
PM2220SY | 22 | 25 | 20 | |||||||
PM2225SY | 22 | 25 | 25 | |||||||
PM2230SY | 22 | 25 | 30 | |||||||
PM2515SY | 25 | 28 | 15 | 25.000 24.967 |
28.021 28.000 |
|||||
PM2520SY | 25 | 28 | 20 | |||||||
PM2525SY | 25 | 28 | 25 | |||||||
PM2530SY | 25 | 28 | 30 | |||||||
PM2815SY | 28 | 32 | 1.980 1.920 |
15 | 28.000 27.967 |
32.025 32.000 |
+ 0.185 + 0.040 |
0.218 0.040 |
||
PM2820SY | 28 | 32 | 20 | |||||||
PM2825SY | 28 | 32 | 25 | |||||||
PM2830SY | 28 | 32 | 30 | |||||||
PM3015SY | 30 | 34 | 15 | 30.000 29.967 |
34.025 34.000 |
|||||
PM3020SY | 30 | 34 | 20 | |||||||
PM3025SY | 30 | 34 | 25 | |||||||
PM3030SY | 30 | 34 | 30 | |||||||
PM3040SY | 30 | 34 | 40 | |||||||
PM3230SY | 32 | 36 | 30 | 32.000 31.961 |
36.025 36.000 |
0.224 0.040 |
||||
PM3240SY | 32 | 36 | 40 | |||||||
PM3515SY | 35 | 39 | 15 | 35.000 34.961 |
39.025 39.000 |
|||||
PM3520SY | 35 | 39 | 20 | |||||||
PM3525SY | 35 | 39 | 25 | |||||||
PM3530SY | 35 | 39 | 30 | |||||||
PM3535SY | 35 | 39 | 35 | |||||||
PM3540SY | 35 | 39 | 40 | |||||||
PM3545SY | 35 | 39 | 45 | |||||||
PM3550SY | 35 | 39 | 50 | |||||||
PM4020SY | 40 | 44 | 20 | 40.000 39.961 |
44.025 44.000 |
8 | ||||
PM4030SY | 40 | 44 | 30 | |||||||
PM4040SY | 40 | 44 | 40 | |||||||
PM4050SY | 40 | 44 | 50 | |||||||
PM4060SY | 40 | 44 | 60 | |||||||
PM4530SY | 45 | 50 | 2.460 2.400 |
30 | 45.000 44.961 |
50.025 50.000 |
+ 0.225 + 0.080 |
0.264 0.080 |
||
PM4540SY | 45 | 50 | 40 | |||||||
PM4550SY | 45 | 50 | 50 | |||||||
PM4560SY | 45 | 50 | 60 | |||||||
PM5020SY | 50 | 55 | 20 | 50.000 49.961 |
55.030 55.000 |
+ 0.230 + 0.080 |
0.269 0.080 |
|||
PM5030SY | 50 | 55 | 30 | |||||||
PM5040SY | 50 | 55 | 40 | |||||||
PM5050SY | 50 | 55 | 50 | |||||||
PM5060SY | 50 | 55 | 60 | |||||||
PM5535SY | 55 | 60 | 35 | 55.000 54.954 |
60.030 60.000 |
0.276 0.080 |
||||
PM5540SY | 55 | 60 | 40 | |||||||
PM5555SY | 55 | 60 | 55 | |||||||
PM5560SY | 55 | 60 | 60 | |||||||
PM6030SY | 60 | 65 | 30 | 60.000 59.954 |
65.030 65.000 |
|||||
PM6040SY | 60 | 65 | 40 | |||||||
PM6060SY | 60 | 65 | 60 | |||||||
PM6070SY | 60 | 65 | 70 | |||||||
PM6540SY | 65 | 70 | 40 | 65.000 64.954 |
70.030 70.000 |
|||||
PM6550SY | 65 | 70 | 50 | |||||||
PM6560SY | 65 | 70 | 60 | |||||||
PM6570SY | 65 | 70 | 70 | |||||||
PART NO. | TECHNICAL DATA | |||||||||
VIIPLUS | Nominal Diameter | Wall Thickness s3 | Width | Shaft-φDj,h8 | Housing φ DH, H7 |
Bush-φ Di,a Ass. in H7 housing | Clearance Co | Oil Hole 0 | ||
D, | Do | max. min. | B | max. min. | max. min. | max. min. | max. min. | dl | ||
PM7030SY | 70 | 75 | 2.460 2.400 |
30 | 70.000 69.954 |
75.030 75.000 |
+ 0.230 + 0.080 |
0.276 0.080 |
8 | |
PM7040SY | 70 | 75 | 40 | |||||||
PM7045SY | 70 | 75 | 45 | |||||||
PM7050SY | 70 | 75 | 50 | |||||||
PM7065SY | 70 | 75 | 65 | |||||||
PM7080SY | 70 | 75 | 80 | |||||||
PM7540SY | 75 | 80 | 40 | 75.000 74.954 |
80.030 80.000 |
+ 0.235 + 0.080 |
0.281 0.080 |
9.5 | ||
PM7560SY | 75 | 80 | 60 | |||||||
PM7580SY | 75 | 80 | 80 | |||||||
PM8040SY | 80 | 85 | 40 | 80.000 79.954 |
85.035 85.000 |
|||||
PM8060SY | 80 | 85 | 60 | |||||||
PM8075SY | 80 | 85 | 75 | |||||||
PM8080SY | 80 | 85 | 80 | |||||||
PM8560SY | 85 | 90 | 60 | 85.000 85.946 |
90.035 90.000 |
0.289 0.080 |
||||
PM9040SY | 90 | 95 | 40 | 90.000 89.946 |
95.035 95.000 |
|||||
PM9070SY | 90 | 95 | 70 | |||||||
PM9090SY | 90 | 95 | 90 | |||||||
PM10040SY | 100 | 105 | 40 | 100.000 99.946 |
105.035 105.000 |
|||||
PM10050SY | 100 | 105 | 50 | |||||||
PM10060SY | 100 | 105 | 60 | |||||||
PM10080SY | 100 | 105 | 80 | |||||||
PM10095SY | 100 | 105 | 95 | |||||||
PM12050SY | 120 | 125 | 50 | 120.000 119.946 |
125.040 125.000 |
+ 0.240 + 0.080 |
0.294 0.080 |
|||
PM13560SY | 135 | 140 | 60 | 135.000 134.937 |
140.040 140.000 |
0.303 0.080 |
||||
VIIPLUS | Inside φ Dj max. min. |
Outside φ Do max. min. |
Thickness ST max. min. |
Dowel Hole φ Dd max. min. |
Pitch Circle φ dP max. min. |
Recess Depth Ha max. min. |
||||
WC30SY | 32.00 32.25 |
54.00 53.75 |
1.45 1.41 |
4.125 4.375 |
43.12 42.88 |
0.95 1.20 |
||||
WC35SY | 38.00 38.25 |
62.00 61.75 |
50.12 49.88 |
|||||||
WC40SY | 42.00 42.25 |
66.00 65.75 |
54.12 53.88 |
|||||||
WC45SY | 48.00 48.25 |
74.00 73.75 |
1.95 1.92 |
61.12 60.88 |
1.45 1.70 |
|||||
WC50SY | 52.00 52.25 |
78.00 77.75 |
65.12 64.88 |
Metal-Polymer Anti-Friction Plain Bearings
Rolled Dry Sliding Bearings ()
Steel + Bronze Powder + CuPb24Sn4 and Or other
CuPb24Sn4 Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with CuPb24Sn4
Typical Applications
The application of bimetal, must be designed with oil lubrication conditions, suitable for high load and low speed rotation, swing motion.At present, it has been widely used in automobile balance bridge, spring plate seat hole, brake shoes, steering knuckles, motion connecting rod, punch sliding parts, bulldozer support, heavy driving wheel, gear box, oil pump, cylinder, engine, clutch and so on.Also widely used in mining machinery, turbo - car, construction machinery, agricultural machinery, steel rolling machinery and so on.
1.Api Process Pumps Bronze Bushings
2.Bronze Bushings
3.Chemical Process Pumps Bronze Bushings
4.Industrial Process Pumps Bronze Bushings
5.Slurry Pumps Bronze Bushings
6.Solids Handling Pumps Bronze Bushings
Strusture
Carbon Steel + Copper Powder
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Parts are available in standard sizes for a wide range of bearing products with basic dimensions (inner diameter, outer diameter, length, etc.) in accordance with international standards. Special bearings with additional functions can be manufactured according to customer specifications and requirements.
START YOUR PROJECT With an Application Engineer BIMETAL BUSHING
viiplus products are widely used in all industrial fields
Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
