Metric Sizes Spring Leaf Bush Bimetallic Lead Free
| Place of Origin | Bimetal Bearing Manufacturers |
|---|---|
| Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
| Certification | Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
| Model Number | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
| Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
| Price | $0.20 - $2.00 / Pieces ,Negotiable |
| Packaging Details | export & import bimetal bushings International carton standard |
| Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
| Payment Terms | TT IN ADVANCE Western Union |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Bimetal Lead-Free | Characteristic | Plain Bearings |
|---|---|---|---|
| Size | IMPERIAL & METRIC SIZES,Standard Size Available | Type | Cylindrical Bushes Thrust Washers, Strips Or Special Designs |
| Bearing | Spring Leaf Bush Suppliers Bimetallic Bushes | Bushing Sample | Available Imetal Bushing Bearing Manufacturer | Cylindrical Steel Bronze Bushing Series |
| Bimetal Bearings Application | Is Used In Track Rollers, Truck Brakes And Agriculture Machinery, Agricultural, Mechanical Handling And Lifting Applications | Bimetal Bushings | With Non-standard Dimensions, RoHS Customized Bearing Designs |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | Bimetallic Spring Leaf Bush,Metric Sizes Spring Leaf Bush,METRIC SIZES Bimetallic Bushes |
||
Product Description
Metric Sizes Spring Leaf Bush Bimetallic Lead-Free are a range of high-performance bushings specifically designed to meet the demands of various industrial and automotive applications. These bushings feature a unique bimetallic construction that combines the benefits of two or more metals, creating a material that is both strong and wear-resistant.
The key feature of these bushings is their lead-free composition, which makes them environmentally friendly and safe to use. The absence of lead not only reduces the potential health hazards associated with lead exposure but also contributes to a more sustainable manufacturing process.
Furthermore, the spring leaf design of these bushings allows them to adapt to different loading conditions and maintain a consistent level of performance. This flexibility ensures that the bushings can effectively reduce friction and wear, even under high loads and variable operating conditions.
Available in a range of metric sizes, these bimetallic lead-free spring leaf bushings can be easily integrated into a wide variety of mechanical systems. Their versatility and high-performance characteristics make them an ideal choice for use in automotive engines, industrial machinery, and other applications where durability and reliability are crucial.
In summary, Metric Sizes Spring Leaf Bush Bimetallic Lead-Free are high-performance bushings that offer exceptional wear resistance, adaptability, and environmental friendliness. Their unique bimetallic construction and lead-free composition make them a superior choice for various industrial and automotive applications.
Spring Leaf Bush Suppliers Bimetallic Bushes
Bimetallic Bushes
JF-800 Bimetallic Bush Self-Lubricating Bearing Spring Leaf Bush Suppliers
Passion times 5
JF-800 series bimetallic bushings, shaft tiles and thrust washers are made of high quality low carbon steel with sintered bronze powder on the surface, which are suitable for rotating and swinging motion under high load and low speed. With low friction coefficient, good wear resistance, long service life and good anti-bite performance, the copper alloy layer can be processed to various types of oil cavities and oil grooves according to requirements. The products are widely used in mining machinery, steam locomotive, construction machinery, agricultural machinery, steel rolling machinery, etc.
The bimetal bushing is steel backed with high-quality with tin-
Spring Leaf Bush Suppliers Bimetal Bushing are widely used in various past of automobile industries such as engine, transmission cases, vehicle
Spring Leaf Bush Suppliers
Support wheel Bushings, guide wheel bushing, bushing replacement parts
- Con Rod Bearing Bush
- Sleeve Bush for Rocker Arm
- Cam Shaft Bearing Bush
Bimetal Lead-Free Plain Bearings
JF-800
Bimetal Lead-Free Plain Bearings |
JF-720 | JF-700 | JF-20 | JF-930 | JF-08G | |
| CuPb10Sn10 | CuPb24Sn4 | CuPb30 | AlSn20Cu | CuPb6.5P0.1 | CuPb10Sn10 | |
| 70～100HB | 45～70HB | 30～45HB | 30～40HB | 69～90HB | 70～100HB | |
|
SAE-797. DIN CuPb10Sn.JIS-LBC3. UNS C93700.Clevite F100.Daido L10. D. A. B. D57.Federal Mogul HF2. Low Friction BushingSY. Glyco66. Miba2. 1010.Taiho HF2.Kar l SchmiatKS940SSAE-797.DIN CuPb10Sn. JIS-LBC3. UNS C93700. CleviteF100. DaidoL10. D. A. B D57. Federal Mogul HF2 Low Friction BushingSY. Glyco66. Miba2. 1010. Taiho HF2. KarlSchmiat Ks940s |
SAE=799. GLYCO 68. JIS-LBC6. DAIDO L23. Claciersx. ACLF250 |
SAE-783. GLYCO74. JIS-AJL |
SAE-48. JIS-KJ3 |
Bushings Selection
Bimetal bearing bushes have high-performance environmentally friendly dual metal bearings that are customer-specified products. bimetal bearing bushes use low-carbon steel plate as supporting base and powder metallurgy sintering and rolling processes to form a leadless CuSn8Ni steel-copper alloy product. The materials in this product meet RoHS directory/regulation/rule, under certain circumstances can substitute for JF800 products. bimetal bearing bushes have a high load-bearing capacity and good wear-resistance. Its shortcoming is that it cannot be used without oil lubrication. In places where oil lubrication is sufficient, bimetal bearing bushes have superior performance.
Our sales assistant team will provide bronze bushings service for each of your needs.
Quick Response
Once we receive your request, we will contact you, and the sliding bushings qualified type will be recommended to you within 24 hours.

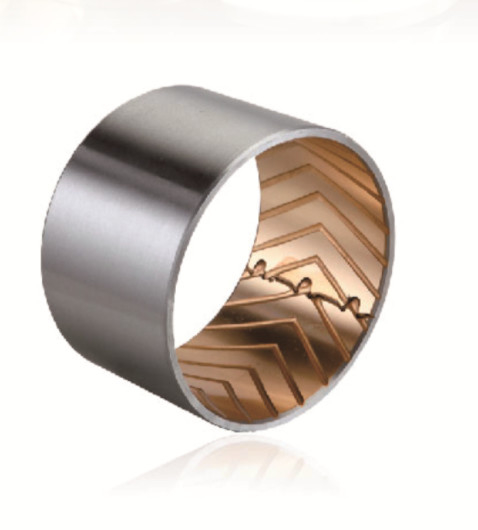

Bimetal Lead-Free Plain Bearings Imperial & Metric Sizes Bush With Grooves.Thin-walled bearing Metal, Bimetal & Steel Bearings, Sintered Bronze Bushings made-to-order from china. Bimetal Plain Bearings to Standard alternatives.Bimetal Bushing Bearing Manufacturer | Cylindrical Steel Bronze Bushing Series.Cylindrical Bushes Thrust washers, Strips, Or Special Designs. Specialized Bi-Metal Sintered Bushings (steel-backed bronze bushings) sliding bearing materials with the various configurations have been assembled as a free service guide for engineering support. The online website bronzegleitelager.com of Bi-metal bushing information will assist you in choosing the correct Bi-metal bushing and sliding bearings for your applications along with helpful design tips.
Bearing forms made to order: Cylindrical bushes and sliding plates with non-standard dimensions, RoHS customized bearing designs.OEM Manufacturing Partner for Custom Parts, Components & Bimetal Bushings Products
Bimetal bearings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements.
Metal and Bimetal Guide Bushings carbon steel or bronze backing
BIMETAL BEARINGS Normal cylindrical bushes, grooves, oil holes, slots, etc.Bimetal Wrapped Steel with Bronze Series - Metric Sliding Bearings. Click here to go to our online Bimetal Wrapped Steel Bushing catalog BIMETAL PLAIN BEARINGS AND SLEEVE BEARINGS MADE IN...and sleeve split bearing specifier for the bimetal Series Bushings with inch size products including material bushings downloads.
| The designing of oil indentations | ||||||
| In order to fully lubricate the bush when in the performance, the indentations with size as following are recommended. They should be manufactured according to the standard below if without special requirements. | ||||||
| Bush O.D | More than to | 14~22 | 22!44 | 40~50 | 50~100 | 100~180 |
| Lubricating hole | 3 | 3 | 3 | 6 | 7 | |
| The lubricating hole should be away from the butt joint and loading area and designed to be easy-oil-feeding as well. | ||||||
| Normal thickness of the JF bimetal and their tolerances | ||||||||
| Tolerance Thickness | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 |
| Thickness of steel backing |
0.6 | 1 | 1.4 | 1.9 | 2.3 | 2.8 | 3.2 | 4 |
| Thickness of bronze layer |
0.4 | 0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 1.0 |
| Manufacturable wall thickness |
1+0.25 +0.15 |
1.5+0.25 +0.15 |
2+0.25 +0.15 |
2.5+0.25 +0.15 |
3+0.25 +0.15 |
3.5+0.25 +0.15 |
4+0.25 +0.15 |
4+0.25 +0.15 |
| Manufactured wall thickness |
1-0.025 | 1.5-0.03 | 2-0.035 | 2.5-0.04 | 3-0.045 | 3.5-0.05 | 4-0.055 | 4-0.06 |
| JF JF Bimetal Bushing chemical composition | ||||
| Tolerance Thickness | JF-800 | JF-720 | JF-700 | JF-20 |
| Cu | Remainder | Remainder | Remainder | 0.7~1.3 |
| Pb | 9.0~11.0 | 21.0~27.0 | 26.0~33.0 | - |
| Sn | 9.0~11.0 | 3.0~4.5 | 0.5 | 17.5~22.5 |
| Zn | 0.5 | 0.5 | 0.5 | - |
| P | 0.1 | 0.1 | 0.1 | |
| Fe | 0.7 | 0.7 | 0.7 | 0.7 |
| Ni | 0.5 | 0.5 | 0.5 | 0.1 |
| Sb | 0.2 | 0.2 | 0.2 | - |
| Ai | - | - | - | |
| Si | - | - | - | 0.7 |
| Mn | - | - | - | 0.7 |
| Ti | - | - | - | 0.2 |
| Other | 0.5 | 0.5 | 0.5 | 0.5 |
| JFBimetel Bushing Physical properties | |||||
| Physical properties | JF-800 | JF-720 | JF-700 | JF-20 | |
| Max. static load pressure N/mm2 |
150 | 130 | 120 | 100 | |
| Tensile strength N/mm2 |
150 | 150 | 200 | 200 | |
| Max. speed(oil) m/s | 5 | 10 | 15 | 25 | |
| Friction coef(Oill) | 0.06~0.14 | 0.06~0.16 | 0.08~0.16 | 0.08~0.17 | |
| PV limit N/mm2 m/s |
Grease | 2.8 | 2.8 | 2.5 | - |
| Oil | 10 | 10 | 8 | 6 | |
| “Sapphire Fatigue Calss Mpa | 125 | 115 | 105 | 85 | |
Type:-Flanged
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated
Application
The bimetal bushing will most notably benefit transmissions and truck brakes as well as agricultural, mechanical handling and lifting applications. They boast a high load capacity and very good resistance to fatigue strength at high temperatures.
Bimetal bearings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements.VIIPLUS is available with stainless steel, carbon steel, or bronze backing.
Bushings are made of Steel backed lead bronze lined bushings and have the following layers:
- Sinter bronze powder: good wear resistance and excellent load-carrying capacity.
- Steel backing gives exceptionally high load carrying capacity, excellent heat dissipation.
- Copper plating 0.002mm, good corrosion resistance.
Bimetal bearings thin-walled bushings are available with stainless steel, carbon steel, or bronze backing. Bimetal Bushings are able to handle heavy loads and shock-loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements.
This is a bimetal bearing material in which aluminum alloy and copper alloy comprise a two- or three-layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation.
It can be made from a variety of different materials, depending on the application, use conditions, and lubrication.
Load capability can be improved by oil holes, grooves, etc., depending on lubrication conditions. In some cases, a dry bearing can also be used under lubricated conditions.
Carrier Roller Bushings
Viiplus offers a broad range of sizes, forms, and materials in monometallic and bimetallic bearings. Bimetal and metal bearings offer excellent corrosion resistance in industrial outdoor applications and in water, marine, and offshore environments.
What is Bimetal Bearings & Bushings?
Bimetallic bearing is one of the bearing lubrication systems, the product is high-quality low carbon steel back as substrate, the bronze alloy on the surface, through several high-temperature sintering and density and rolled copper and steel bimetallic strip coiling, suitable for medium and high impact load under bush and thrust washer and so on many kinds of USES.
Bimetal Bearing Bushings are composed of two metal strips, in two different materials; The first is normally in steel/bronze / stainless steel backed with low friction and excellent wear resistance.
- JF800 Oilless Bimetal Sliding Self Lubricating Bearing Bushing
- JF800 Steel + Lead Bronze Powder Conventional lubricating
Characteristic
Oilless Bimetal Bronze Steel Bearing Bushes, Split Bush Bearing VSB-80 Standard Size Custom composite CuPb10Sn10 bimetal bush high-quality oilless JF800 Bimetal Metal Bushing
- Wrapped composite sliding bearing
- Copper-plated or tin-plated steel/bronze
- Low-maintenance
- With lubrication pockets
Steel backing gives exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder gives good wear resistance and excellent load-carrying capacity. Copper plating has good corrosion resistance.

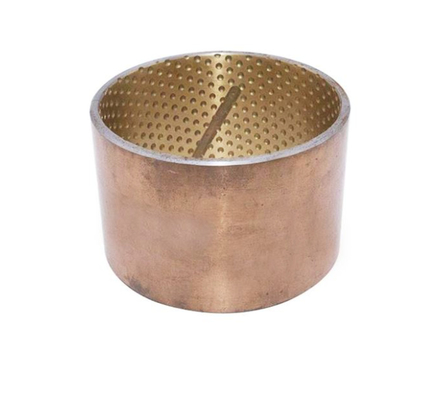

Bimetal bearing with steel backing and bronze overlay
Lead-free bearing composition with indents as reservoir for the grease, also available without indents
High load capacity, very good resistance to fatigue strength at high temperatures
Suited to harsh operating conditions
Particularly suitable for high specific loads with oscillating motion and low frequency
Fine turned shafts suitable
Typical Application
This material is recommended to be used under the medium speed and medium load condition with oil or grease lubricating. It is widely used for motor rod ends, Kingpin bushing, undercarriage rollers, hydraulic cylinder rod eyes of construction machines, and spherical joint bearings of agricultural machines. Because this material is with lead, the specific parts are not allowed to be used according to certain laws or regulations. Widely used in the automotive, common industrial-like steering gear, power steering, pedal bushes, king-pin bushes, tailgate pivots, mechanical handling, lifting equipment, hydraulic motors, agricultural machines, etc.
- Forklifts bushing
- Pallet Trucks bushing
- Cranes bronze bushes
- Excavators bearing bronze
Technical Data
|
Dynamic load limit |
60N/mm² |
|
Static Load |
120N/mm² |
|
frictional coefficient |
0.08~0.2 |
|
PV limit |
2.8N/mm²*m/s |
|
Max Speed |
＞2m/s |
|
Temp.limit |
-40°C~+250°C |
Properties
- For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.
Materials
- Support material Steel copper-plated / tin-plated
- Sliding layerCuPb10Sn10
Tolerance Details
- Housing ØH7
- Bushing inner-Ø after mountingH9
- Shaft tolerancef7 to h8
Maintenance
- is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!
Bimetal Bushings Size
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Caption
Special dimensions are available on request
