Rocker Arm Bushing Bimetal Bearing Bushes

Place of Origin Bimetal Bearing Manufacturers
Brand Name VIIPLUS
Certification ISO 9001
Model Number Bimetal Bushing
Minimum Order Quantity negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-20 work days
Payment Terms MoneyGram, Western Union, T/T
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Product Details
BiMetal Bushings Material Bimetal Bearing,Steel Backed Bronze Bushings Bushing Type Engine Bearings, Bushes And Thrust Washer Manufacturing
Bushing Feature Thin Walled Bearings Copper Steel Backed Alloy CuPb24Sn4,Bimetal
Bushing Design Groove Or Lubricating Holes, Oil Tank, Bimetal Bushing Application Connecting Rod Bushing
Plating Copper Plating / Tin-Plating
High Light

Bimetal Rocker Arm Bushing

,

Steel Backed Bronze Rocker Arm Bushing

,

Thin Wall Bimetal Bearing Bushes

Leave a Message
Product Description

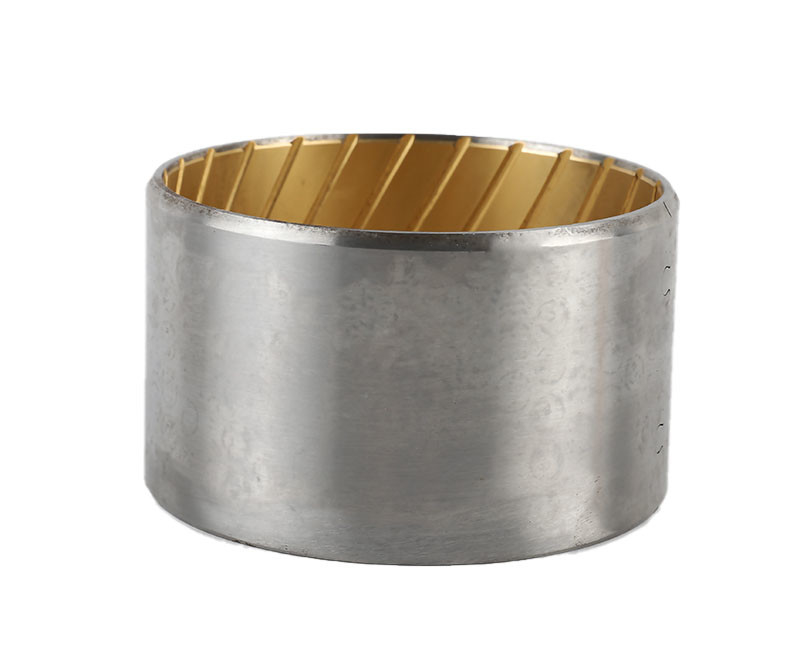

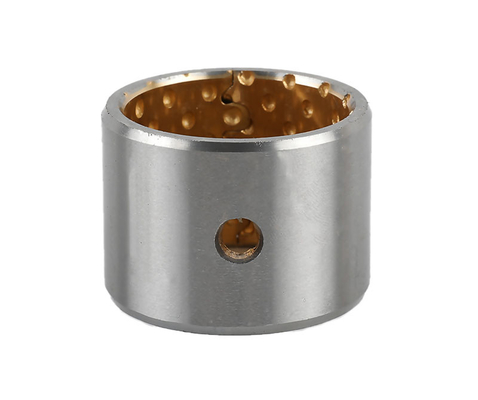

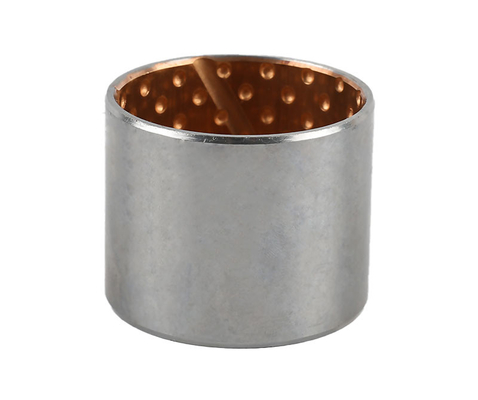

Rocker Arm Bushing

We are the professional Rocker arm bush producers. Our products perform well under high load conditions. Our bushings maintain tight dimensional tolerances, have an excellent surface finish, are machine-friendly, and have a tapered wire at each end for easy installation.



Rocker Arm Bushing



Bimetal bearing supplier

Two available Materials:



Copper Lead

· High-quality general polish

· Minimal relief between bearing layer and steel backing to facilitate the assessment of the bond integrity.

· Fully developed and polished islands of Lead to ensure consistency of comparative analysis with standards.



SAE Chemical Composition
792 CuPb10Sn10
  CuPb17Sn5
797 CuPb24Sn4
49 CuPb24Sn
48 CuPb30



Aluminium Tin



· High-quality general polish.

· Minimal relief between bearing layer, intermediate foil, and steel backing in order to facilitate the assessment of

the bond integrity.

· Also to ensure consistent comparative analysis of type, size, and distribution of different

phases present in the range of alloys.



SAE Glacier Daido Miba Chemical Composition
        AlSn6Cu
    A600/A590   AlSn6Si4CuMnCr
    A500   AlSn8Si2.5Pb2CuCr
SAE770       AlSn6.5Cu
SAE783 AS16     AlSn20Cu
  AS20     AlSn6Si2.5CuNiMnV
SAE788   A17X   AlSn12Si2.5Pb1.7Cu
SA260       AlSn7CuSi2.5CrZr
  AS104     AlSn10Si4Cu
    A370   AlSn20CuMn
      AlZn4.5Mg AlZn4.5Mg




Find here online price details of bimetal bushings which are produced from bimetallic strips with sintered copper-lead-bronze coating and steel as support material.The steel back provides extra strength, while the sintered bronze coating provides a bearing surface which results in reduced friction and wear. Bimetal bushings are widely used for applications with vibrating loads, impacts and friction area.



Types of Oil Pockets for bimetal bushings



Sintered Bimetal Bearings SAE799 Layer + Steel Backed Bushings + Copper Plating / Tin-Plating

Bimetal bearing is a steel-backed bushing plate as the matrix, the surface of sintered CuPb24Sn4 alloy material products. The bimetal bushings have good anti-fatigue strength and bearing capacity. Suitable for medium speed medium load. There are occasions for oil sliding. When the surface is plated with soft alloy, it can be used as bearing and connecting rod bushing for the high-speed internal combustion engines to achieve good wear resistance and fatigue resistance.



Technical parameters



Maximum dynamic load 120P N/mm² MAX Temperature°C Grease lubrication 150°C
Maximum linear velocity Grease lubrication 2.5Vm/s Fluid lubrication 250°C
MAX PV 2.8N/mm². m/s Match the diameter of axle HRC ≥ 48
μ 0.05~0.15 Ra 0.16~0.63
Maximum linear velocity Fluid lubrication 10 Alloy layer hardness 45~70
MAX PV 10 Coefficient of thermal conductivity 60W/mk
μ 0.04~0.12 Linear expansion coefficient (axial) 19×10-6/K



Thickness tolerance between inner hole machining and non-machining for bimetal bearings




Nominal Thickness

Tolerances of Series B (non-machinable)

Tolerances of Series C (non-machinable)
1.0 -0.025 +0.25
+0.15
2.0 -0.030 +0.25
+0.15
2.5 -0.035 +0.25
+0.15
3.0 -0.040 +0.30
+0.15
3.5 -0.045 +0.30
+0.15
3.5 -0.050 +0.30
+0.15



Bimetallic boundary lubricated bearings, engine bearings



Manufacturer of Self Lubricating Bushing - Self Lubricating Graphite Bush, Self Lubricating Bimetal Bushings

We take quality as the core value of the enterprise.



Bimetal Bearing Material



Bimetal composite bearings with high-quality low carbon steel as substrate, the surface of the sinter with low friction properties of copper alloy CuPb24Sn4 as wear-resisting layer of bearing.



Bimetal Bearing Raw material to produce

Bimetal Bearing Design



We can design bimetal bearings according to the operating conditions of copper alloy surface processing of various types of oil tank, oil hole, hole, etc., in order to suit cannot continue to go hard or go occasion. Good bonding strength and optimum bearing capacity can be obtained by secondary sintering and secondary extrusion.



Types of Oil Pockets for bimetal bushings

  1. Oil Holes Form

  2. Diamond Form

  3. Smooth (No Oil Pocket)

Types of Oil Grooves for bimetal bushings



bimetal bushing oil tank oil holes

Types of Butt Jionts for bimetal bushings (Slit & Clinch)

Bimetal Bearings Bushings Buckle Form





bimetal bushing buckle



The Bimetal Bearings Bushing Solution
