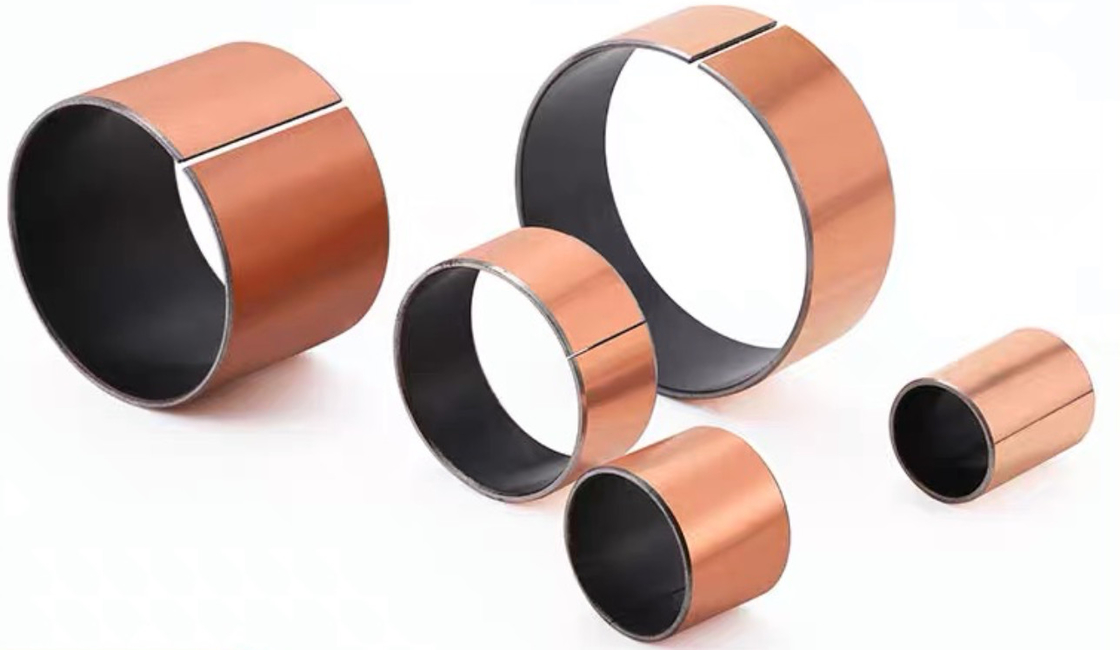

PAP P20 Porous Bronze Self Lubricating Plain Bearing DIN 1494

Brand Name:	REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Model Number:	BUSHING TYPE FLANGED PLAIN SLEEVE
MOQ:	NEGOTIABLE
Price:	Competitively Priced vs PTFE POM, Provides Lubricating Bush
Payment Terms:	TT IN ADVANCE WESTERN UNION
Supply Ability:	Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Detail Information

Product Description

Detail Information

Place of Origin:

Self Lubricating Bearings Manufacturers

Certification:

DIN 1494, ISO 3547 STANDARD BUSHING

Meterial:

Low-Carbon Steel + Porous Bronze +

Plating:

Tin Or Copper

Types:

FLANGE/SLEEVE/WASHER

Application::

Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc.

Production Feature:

Wrapped Polymer Plain Bearing

Feature:

Dry Running Self-lubricating

Bearing Bushing Factory Price:

Tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer:

Https://www.viiplus.com/

High Light::

Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing

Characteristic:

Втулки скольжения (биметаллические подшипники скольжения)

Dry Slide Bearing:

Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.

Bush Bearings Manufacturers Suppliers Exporters:

Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/

Packaging Details:

WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS

Supply Ability:

Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Highlight:

PAP P20 Self Lubricating Plain Bearing

Porous Bronze Self Lubricating Plain Bearing

DIN 1494 Sintered Self Lubricating Bushes

Product Description

The PAP P20 Porous Bronze Self-Lubricating Plain Bearing DIN 1494 is a high-performance bearing designed to provide exceptional wear resistance and smooth operation without the need for external lubrication. Constructed from porous bronze, this bearing incorporates a unique self-lubricating feature that allows it to operate efficiently in a wide range of industrial applications.

The porous structure of the bronze material allows for the retention of lubricating oil, ensuring a continuous supply of lubrication during operation. This eliminates the need for regular lubrication and maintenance, reducing downtime and operational costs.

The PAP P20 bearing meets the DIN 1494 standard, ensuring its compatibility and interchangeability with other bearings in the same category. Its precision manufacturing ensures a secure and reliable fit in machinery, providing stable and long-lasting performance.

Wh you're upgrading existing equipment or designing new machinery, the PAP P20 Porous Bronze Self-Lubricating Plain Bearing DIN 1494 is an excellent choice for improving efficiency, reducing wear, and extending the service life of your industrial operations. Contact us today to learn more about this bearing and how it can enhance the performance of your equipment.

PAP P20 Plain Bushing

Specialist for repairing industrial metal bearings Pap 3015 P10 Plain Bushes Metal-Polymer Bearings Metric Bushing, Bushing Dimensions made to order from china. bushing for EV application

OUR MATERIALS, PROCESSES, AND PEOPLE ALLOW US TO CREATE THE
ENGINE & TRANSMISSION AFTERMARKET SLIDE BEARINGS PRODUCTS.

Dimensions (mm)					Dimensions (mm)

Product No.	d	D	l±0.25	H	Product No.	d	D	l±0.25	H
PAP0608-P20	6	8	8	•	PAP2010-P20	20	23	10	4
PAP0610-P20	6	8	10	•	PAP2012-P20	20	23	12	4
PAP0710-P20	7	9	10	•	PAP2015-P20	20	23	15	4
PAP0808-P20	8	10	8	4	PAP2017-P20	20	23	17	4
PAP0810-P20	8	10	10	4	PAP2020-P20	20	23	20	4
PAP0812-P20	8	10	12	4	PAP2025-P20	20	23	25	4
PAP1008-P20	10	12	8	4	PAP2030-P20	20	23	30	4
PAP1010-P20	10	12	10	4	PAP2215-P20	22	25	15	6
PAP1012P20	10	12	12	4	PAP2220-P20	22	25	20	6
PAP1015-P20	10	12	15	4	PAP2222 P20	22	25	22	6
PAP1020-P20	10	12	20	4	PAP2225-P20	22	25	25	6
PAP1210-P20	12	14	10	4	PAP2230-P20	22	25	30	6
PAP1212P20	12	14	12	4	PAP2415-P20	24	27	15	6
PAP1215-P20	12	14	15	4	PAP2420-P20	24	27	20	6
PAP1220-P20	12	14	20	4	PAP2425-P20	24	27	25	6
PAP1225-P20	12	14	25	4	PAP2430-P20	24	27	30	6
PAP1310-P20	13	15	10	4	PAP2510-P20	25	28	10	6
PAP1414-P20	14	16	14	4	PAP2515-P20	25	28	15	6
PAP1415P20	14	16	15	4	PAP2520-P20	25	28	20	6
PAP1420-P20	14	16	20	4	PAP2530-P20	25	28	30	6
PAP1422 P20	14	16	22	4	PAP2540-P20	25	28	40	6
PAP1425-P20	14	16	25	4	PAP2550-P20	25	28	50	6
PAP1432-P20	14	16	32	4	PAP2820-P20	28	32	20	6
PAP1510-P20	15	17	10	4	PAP2825-P20	28	32	25	6
PAP1512P20	15	17	12	4	PAP2828-P20	28	32	28	6
PAP1515P20	15	17	15	4	PAP2830-P20	28	32	30	6
PAP1520-P20	15	17	20	4	PAP3015-P20	30	34	15	6
PAP1525-P20	15	17	25	4	PAP3020-P20	30	34	20	6
PAP1610-P20	16	18	10	4	PAP3025-P20	30	34	25	6
PAP1612P20	16	18	12	4	PAP3030-P20	30	34	30	6
PAP1615-P20	16	18	15	4	PAP3040-P20	30	34	40	6
PAP161GP20	16	18	16	4	PAP3220-P20	32	36	20	6
PAP1620-P20	16	18	20	4	PAP3225-P20	32	36	25	6
PAP1625-P20	16	18	25	4	PAP3230-P20	32	36	30	6
PAP1815-P20	18	20	15	4	PAP3235-P20	32	36	35	6
PAP1818-P20	18	20	18	4	PAP3240-P20	32	36	40	6
PAP1820-P20	18	20	20	4	PAP3515-P20	35	39	15	6
PAP1825-P20	18	20	25	4	PAP3520-P20	35	39	20	6
PAP3525-P20	35	39	25	6	PAP6070-P20	60	65	70	8
PAP3530-P20	35	39	30	6	PAP6530-P20	65	70	30	8
PAP3535-P20	35	39	35	6	PAP6540-P20	65	70	40	8
PAP3540-P20	35	39	40	6	PAP6550-P20	65	70	50	8
PAP3550-P20	35	39	50	6	PAP6560-P20	65	70	60	8
PAP3635-P20	36	40	35	6	PAP6565-P20	65	70	65	8
PAP3720-P20	37	41	20	6	PAP6570-P20	65	70	70	8
PAP3730-P20	37	41	30	6	PAP7030-P20	70	75	30	8
PAP4020-P20	40	44	20	8	PAP7040-P20	70	75	40	8
PAP4025-P20	40	44	25	8	PAP7050-P20	70	75	50	8
PAP4030-P20	40	44	30	8	PAP70G0-P20	70	75	60	8
PAP4040-P20	40	44	40	8	PAP7065-P20	70	75	65	8
PAP4050-P20	40	44	50	8	PAP7070-P20	70	75	70	8
PAP4520-P20	45	50	20	8	PAP7080-P20	70	75	80	8
PAP4525-P20	45	50	25	8	PAP7540-P20	75	80	40	9.5
PAP4530-P20	45	50	30	8	PAP7560-P20	75	80	60	9.5
PAP4535-P20	45	50	35	8	PAP7575-P20	75	80	75	9.5
PAP4540-P20	45	50	40	8	PAP7580-P20	75	80	80	9.5
PAP4545-P20	45	50	45	8	PAP8040-P20	80	85	40	9.5
PAP4550-P20	45	50	50	8	PAP8050-P20	80	85	50	9.5
PAP5020-P20	50	55	20	8	PAP8055-P20	80	85	55	9.5
PAP5025-P20	50	55	25	8	PAP8060-P20	80	85	60	9.5
PAP5030-P20	50	55	30	8	PAP8080-P20	80	85	80	9.5
PAP5040-P20	50	55	40	8	PAP80100-P20	80	85	100	9.5
PAP5050-P20	50	55	50	8	PAP8530-P20	85	90	30	9.5
PAP505S-P20	50	55	55	8	PAP8540-P20	85	90	40	9.5
PAP5060-P20	50	55	60	8	PAP8550-P20	85	90	50	9.5
PAP5520-P20	55	60	20	8	PAP8560-P20	85	90	60	9.5
PAP5525-P20	55	60	25	8	PAP8580-P20	85	90	80	9.5
PAP5530-P20	55	60	30	8	PAP8585-P20	85	90	85	9.5
PAP5540-P20	55	60	40	8	PAP85100-P20	85	90	100	9.5
PAP5550-P20	55	60	50	8	PAP9040-P20	90	95	40	9.5
PAP5555 P20	55	60	55	8	PAP9060-P20	90	95	60	9.5
PAP5560-P20	55	60	60	8	PAP9080-P20	90	95	80	9.5
PAP6030-P20	60	65	30	8	PAP9090-P20	90	95	90	9.5
PAP6040-P20	60	65	40	8	PAP90100-P20	90	95	100	9.5
PAP6050-P20	60	65	50	8	PAP9530-P20	95	100	30	9.5
PAP6060-P20	60	65	60	8	PAP9560-P20	95	100	60	9.5
PAP95100-P20	95	100	100	9.5	PAP13050-P20	130	135	50	9.5
PAP10030-P20	100	105	30	9.5	PAP13060-P20	130	135	60	9.5
PAP10040-P20	100	105	40	9.5	PAP13080-P20	130	135	80	9.5
PAP10050-P20	100	105	50	9.5	PAP130100-P20	130	135	100	9.5
PAP10060-P20	100	105	60	9.5	PAP130130-P20	130	135	130	9.5
PAP10080-P20	100	105	80	9.5	PAP13530-P20	135	140	30	9.5
PAP10090-P20	100	105	90	9.5	PAP13560-P20	135	140	60	9.5
PAP10095-P20	100	105	95	9.5	PAP13580-P20	135	140	80	9.5
PAP100100-P20	100	105	100	9.5	PAP14050-P20	140	145	50	9.5
PAP100115-P20	100	105	115	9.5	PAP14060-P20	140	145	60	9.5
PAP10550-P20	105	110	50	9.5	PAP14080-P20	140	145	80	9.5
PAP10560-P20	105	110	60	9.5	PAP140100-P20	140	145	100	9.5
PAP10580-P20	105	110	80	9.5	PAP140140-P20	140	145	140	9.5
PAP10595-P20	105	110	95	9.5	PAP15050-P20	150	155	50	9.5
PAP105105-P20	105	110	105	9.5	PAP15060-P20	150	155	60	9.5
PAP105110-P20	105	110	110	9.5	PAP15080-P20	150	155	80	9.5
PAP105115-P20	105	110	115	9.5	PAP150100-P20	150	155	100	9.5
PAP11030-P20	110	115	30	9.5	PAP150150-P20	150	155	150	9.5
PAP11050-P20	110	115	50	9.5	PAP16050-P20	160	165	50	11
PAP11060-P20	110	115	60	9.5	PAP16060-P20	160	165	60	11
PAP11080-P20	110	115	80	9.5	PAP16080-P20	160	165	80	11
PAP11095-P20	110	115	95	9.5	PAP160100-P20	160	165	100	11
PAP110110-P20	110	115	110	9.5	PAP160160-P20	160	165	160	11
PAP110115-P20	110	115	115	9.5	PAP17050-P20	170	175	50	11
PAP11550-P20	115	120	50	9.5	PAP17060-P20	170	175	60	11
PAP11570-P20	115	120	70	9.5	PAP17080-P20	170	175	80	11
PAP12040-P20	120	125	40	9.5	PAP170100-P20	170	175	100	11
PAP12060-P20	120	125	60	9.5	PAP170170-P20	170	175	170	11
PAP12080-P20	120	125	80	9.5	PAP18050-P20	180	185	50	11
PAP120100-P20	120	125	100	9.5	PAP18060-P20	180	185	60	11
PAP120110-P20	120	125	110	9.5	PAP18080-P20	180	185	80	11
PAP120120-P20	120	125	120	9.5	PAP180100-P20	180	185	100	11
PAP12550-P20	125	130	50	9.5	PAP180180-P20	180	185	180	11
PAP12560-P20	125	130	60	9.5	PAP19050-P20	190	195	50	11
PAP1258GP20	125	130	80	9.5	PAP19060-P20	190	195	60	11
PAP125100-P20	125	130	100	9.5	PAP19080-P20	190	195	80	11
PAP125110-P20	125	130	110	9.5	PAP190100-P20	190	195	100	11
PAP125125-P20	125	130	125	9.5	PAP190120-P20	190	195	120	11
PAP190190-P20	190	195	190	11.0	PAP250100-P20	250	255	100	12
PAP20050-P20	200	205	50	11.0	PAP250120-P20	250	255	120	12
PAP20060-P20	200	205	60	11.0	PAP250250-P20	250	255	250	12
PAP20080-P20	200	205	80	11.0	PAP26050-P20	260	265	50	12
PAP200100-P20	200	205	100	11.0	PAP26060-P20	260	265	60	12
PAP200120-P20	200	205	120	11.0	PAP26080-P20	260	265	80	12
PAP200200-P20	200	205	200	11.0	PAP260100-P20	260	265	100	12
PAP2205O-P2O	220	225	50	12.0	PAP260120-P20	260	265	120	12
PAP2206O-P2O	220	225	60	12.0	PAP26O26O-P2O	260	265	260	12
PAP2208O-P20	220	225	80	12.0	PAP28050-P20	280	285	5O	12
PAP22010O-P20	220	225	100	12.0	PAP28060-P20	280	285	60	12
PAP22012O-P20	220	225	120	12.0	PAP28080-P20	280	285	80	12
PAP22022O-P2O	220	225	220	12.0	PAP280100-P20	280	285	100	12
PAP24050-P20	240	245	50	12.0	PAP280120-P20	280	285	120	12
PAP24060-P20	240	245	60	12.0	PAP280280-P20	280	285	280	12
PAP24080-P20	240	245	80	12.0	PAP30050-P20	300	305	50	12
PAP240100-P20	240	245	100	12.0	PAP30060-P20	300	305	60	12
PAP240120-P20	240	245	120	12.0	PAP30080-P20	300	305	80	12
PAP240240-P20	240	245	240	12.0	PAP300100-P20	300	305	100	12
PAP25050-P20	250	255	50	12.0	PAP300120-P20	300	305	120	12
PAP25060-P20	250	255	60	12.0	PAP300300-P20	300	305	300	12

PAP P20 Porous Bronze Self Lubricating Plain Bearing DIN 1494 0

Neutral bushings plain bushing bearing

Steel Backed Lined Flange Bushings | Global Sources

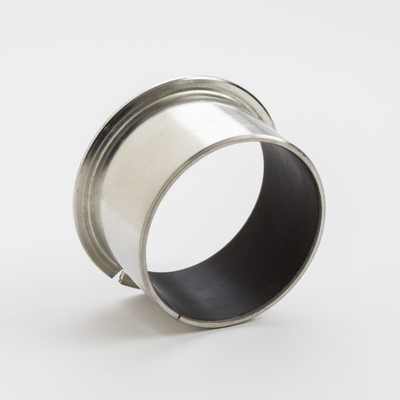

Steel-Backed Lined Flange Bearings

INDUSTRIAL SUPPLY Dryslide Bushings

Metal-Polymer Bearings METRIC BUSHING

Shop Metal-Polymer Bearings Bearings at https://www.bronzegleitlager.com/, which includes; Metric, 20 mm Inner Diameter, ... Self-Lubricating Metric Cylindrical Bushing ...

WE STOCK THE INDUSTRIAL PLAIN BEARING BUSH PARTS YOU NEED

High Quality of Plain Bushes Bearings We Offer

bearings/bushes/plain-bushes

PERMAGLIDE PAP 3015 P10

Continually earn our place as the premier industrial solutions company by:
Providing the preferred customer experience
Energizing our talent
Delivering stakeholder value

P10 Bush 30 x 34 x 15 (PAP 3015 P10)

Radial plain bearing self-lubricating bushing supplier Metal-Polymer Self-Lubricating Bearings

DESCRIPTION
The self-lubricating plain bearing manufactured by viiplus is designed to carry radial loads and light axial loads. It is self-aligning and is insensitive to angular misalignment of the shaft applicable to the housing. The internal radial clearance of the bearing is developed so that it ca be adjusted through an adapter sleeve.

CHARACTERISTICS

Type: radial
Other characteristics: self-lubricating

DESCRIPTION

The self-lubricating plain bearing manufactured by viiplus.com is designed to carry radial loads and light axial loads. It is self-aligning and is insensitive to angular misalignment of the shaft applicable to the housing. The internal radial clearance of the bearing is developed so that it ca be adjusted through an adapter sleeve.

Self-lubricating steel Open plain bearing LBM, Radial plain bearing

Polymer plain bearing dry runningself-lubricating, Cylindrical plain bearing

DIN 1494 STANDARD INCH BUSHING The slit bushing & Open plain bearing LBM for Chemical Machinery application

CHARACTERISTICS

Type

open

Material

bronze, steel, sintered bronze,

Other characteristics

self-lubricating, lead-free

Length

Min.: 3 mm (0.12 in)

Max.: 100 mm (3.94 in)

Inside diameter

Min.: 3 mm (0.12 in)

Max.: 160 mm (6.3 in)

Tags:

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

Oilless Bushes

Solid Bronze Bearing

Wrapped Bronze Bearings

Wrapped Bronze Bushings

Graphite Plugged Bushings

Graphite Bronze Bearing

Bronze Sleeve Bushings

Self Lubricating Plain Bearing

Lined Bushing

Bronze Gleitlager

Polymer Plain Bearings

POM Bushing

Bimetal Bearing Bushes

Bronze Plain Bearings

Self Lube Wear Plates

Stainless Steel Bushings

Cast Bronze Bushings

Bronze Bushing Material

Valve Bushing

Self Lubricating Bronze Bushings

Flanged Sleeve Bearing

Dry Sliding Bearing

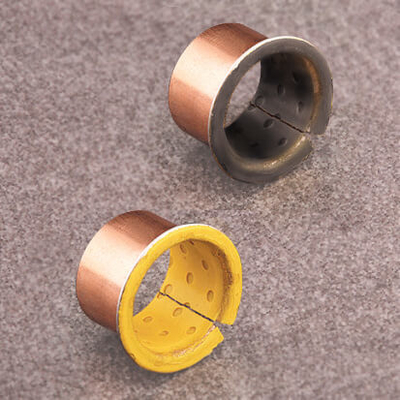

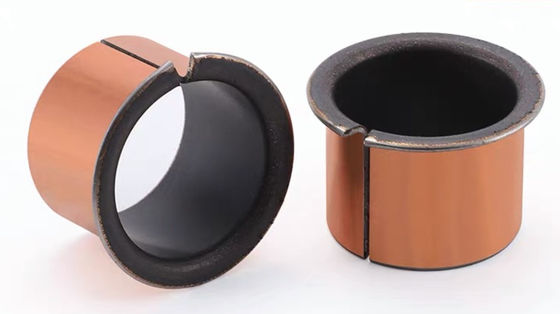

PAP P20 Porous Bronze Self Lubricating Plain Bearing DIN 1494

PAP P20 Porous Bronze Self Lubricating Plain Bearing DIN 1494

PAP P20 Self Lubricating Plain Bearing

Porous Bronze Self Lubricating Plain Bearing

DIN 1494 Sintered Self Lubricating Bushes

PAP P20 Plain Bushing

Specialist for repairing industrial metal bearings Pap 3015 P10 Plain Bushes Metal-Polymer Bearings Metric Bushing, Bushing Dimensions made to order from china. bushing for EV application

Neutral bushings plain bushing bearing

INDUSTRIAL SUPPLY Dryslide Bushings

bearings/bushes/plain-bushes

PERMAGLIDE PAP 3015 P10

Radial plain bearing self-lubricating bushing supplier Metal-Polymer Self-Lubricating Bearings

CHARACTERISTICS

DESCRIPTION

Self-lubricating steel Open plain bearing LBM, Radial plain bearing

DIN 1494 STANDARD INCH BUSHING The slit bushing & Open plain bearing LBM for Chemical Machinery application

CHARACTERISTICS
