Customized Self - Lubricating Bushing In High Temperature Condition, POM
| Place of Origin | Self Lubricating Bearings Manufacturers |
|---|---|
| Brand Name | VIIPLUS |
| Certification | ISO 9001 |
| Model Number | Tin plating /Copper plating |
| Minimum Order Quantity | negotiable |
| Price | Competitively Priced vs , Provides Lubricating Bush |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 3 - 15 BUSINESS DAYS |
| Payment Terms | T/T |
| Supply Ability | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bushing Type | Sleeve Bushing | Self-lubricating | POM |
|---|---|---|---|
| Surface Treatment | Tin Plating /Copper Plating | Bushing Size | Customizable |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing | Characteristic | Втулки скольжения (биметаллические подшипники скольжения) |
| Dry Slide Bearing | Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | self lubricating bearing,sintered self lubricating bushes |
||
Product Description
When it comes to bushings designed for high-temperature environments, a customized approach often yields the best results. POM (Polyoxymethylene), also known as acetal or polyacetal, is a thermoplastic polymer that exhibits excellent mechanical properties, dimensional stability, and resistance to chemicals, making it a suitable choice for self-lubricating bushings in demanding applications.
Customized POM bushings are tailored to meet specific requirements, such as size, shape, load capacity, and operating temperature. Their self-lubricating properties ensure smooth operation with minimal friction and wear, even under extreme conditions. This is achieved through the use of special additives or coatings that enhance the material's lubricity.
In high-temperature environments, POM bushings demonstrate exceptional thermal stability, maintaining their mechanical properties and dimensional accuracy even at elevated temperatures. This allows them to perform reliably in applications such as engines, turbines, and other heavy-duty machinery.
The customization process typically involves detailed consultation with the customer to understand their specific needs and requirements. Based on this information, the bushings are designed and manufactured using advanced techniques and precision equipment. The resulting product is a high-performance, reliable bushing that is ready to meet the challenges of even the most demanding high-temperature applications.

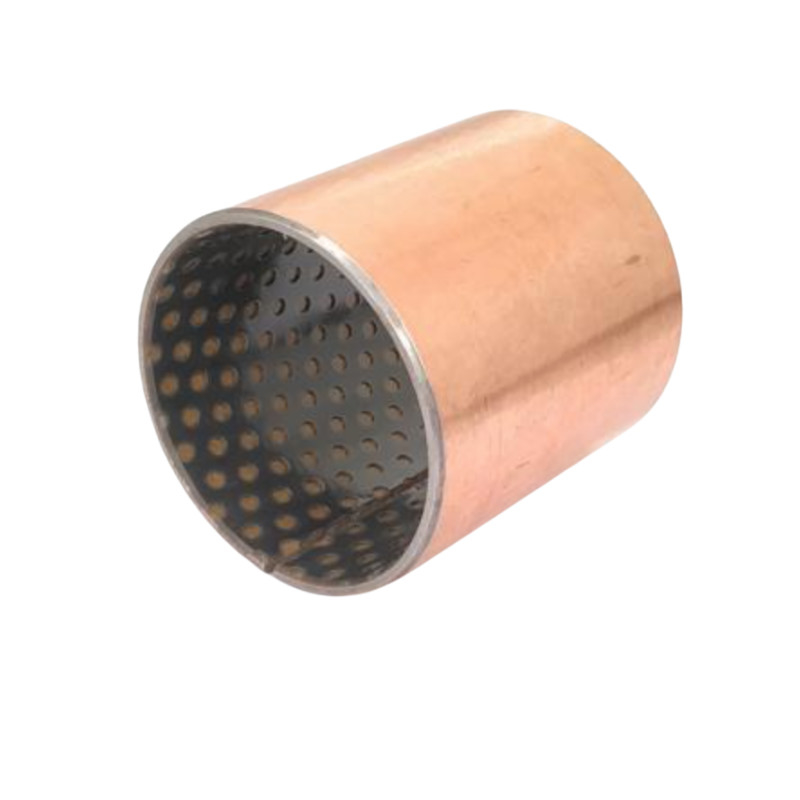

Customized Self-Lubricating Bushing In High Temperature Condition
Overview
Oil-free self-lubricating bearing oil pit polyformaldehyde wear-resistant composite shaft sleeve copper sleeve with oil injection hole
Quick Details
Applicable Industries:Manufacturing Plant
|
Size |
customizable |
|
Certification |
ISO9001 |
|
Processing methods |
Cold-extrusion |
|
Surface treatment |
Tin plating /Copper plating |
|
Operating temperature |
-150~250 |
|
Application field |
High pressure gear pump, High pressure water injection pump, High pressure hydraulic motor, Painting and food processing, etc. |
|
Material |
Steel base+ Bronze powder+(POM) |
Material Features
Marginal Pb-free self-lubricating bearing is used steel-backing as its structure,sintered porous bronze as its interlayer,surface inlaid the modified POM.Suitable for marginally lubricated and dry operation onthe conditions of lubrication in dents grease.It has been widely applied to metallurgical machinery, Mine machinery,water conservancy machinery,vapor lovomotive,building machinery,agriculture machinery,steel rolling industry etc.
Characteristics
- marginally lubricated bushings for grease or oil lubricated applications
- Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
- Optimum performance under relatively high loads and low speeds
- Suitable for linear, oscillating and rotating movements
- Wide range of parts available from standard
Application
1. Good load capacity and anti-wear.
2. It is used in high load capacities and low speed with rotational, oscillating or frequent stop-start motion.
3. It can work long time without oil in the condition of boundary lubrication, under oil or grease lubrication interval, the work is longer.
4. It is machinable for the thicker of POM.
5. The bushes can be applied in auto chassis, forging machine, metallurgical, civil engineering, power station, strip rolling industries etc.
Bearing Properties
|
GENERAL |
|
Unit |
Value |
|
Maximum load, p |
Static Dynamic |
N/mm2 N/mm2 |
140 140 |
|
Operating temperature |
Min Max |
°C °C |
- 40 130 |
|
Coefficient of linear thermal expansion |
Parallel to the surface |
10-6/K |
11 |
|
Normal to the surface |
10-6/K |
29 |
| Carbon steel + Sintered copper powder + POM | |
| Load Capacity | |
| Tin Plating, Copper Plating | |
| Grease lubrication 2.8N/mm2·m/s | |
