| Brand Name: | VIIPLUS |
| Model Number: | Double Mass Flywheel Slide Bushing Sleeve |
| MOQ: | negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | Slide Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |

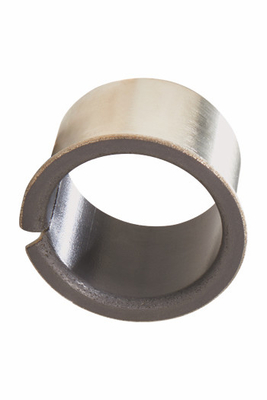

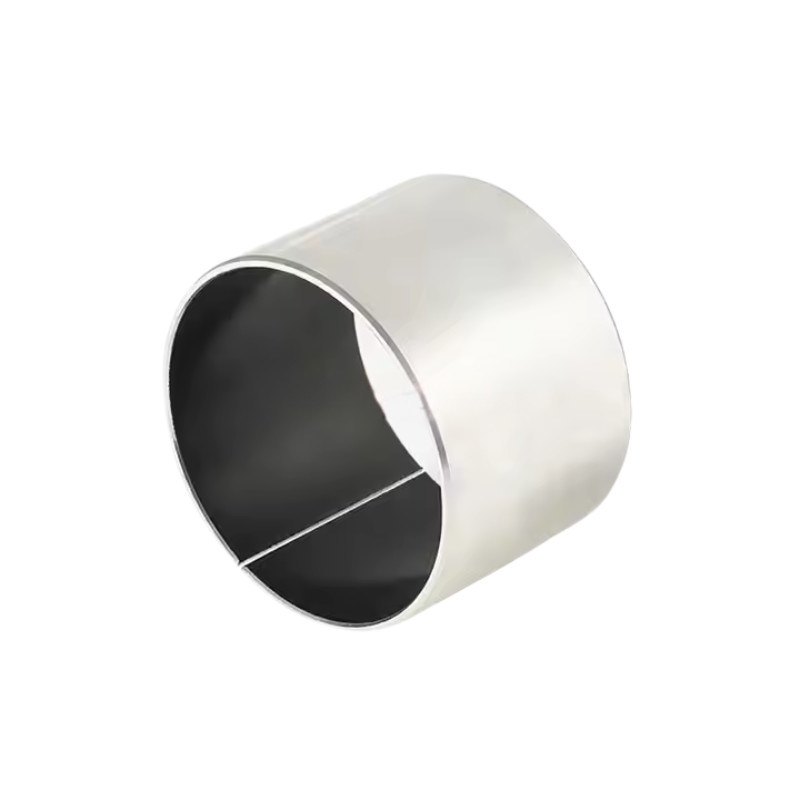

The "Double Mass Flywheel Slide Bushing Sleeve" refers to a component within the double mass flywheel system, which is typically used in automotive applications to reduce engine vibrations and improve ride comfort. The slide bushing sleeve acts as a sliding interface between the two masses of the flywheel, allowing for relative movement between them.
Here's a brief description of the Double Mass Flywheel Slide Bushing Sleeve in English:
The Double Mass Flywheel Slide Bushing Sleeve is a critical component within the double mass flywheel system. It is designed to provide a smooth sliding interface between the primary and secondary masses of the flywheel. This allows for relative movement between the two masses, effectively decoupling the engine's torsional vibrations from the transmission and drivetrain. The slide bushing sleeve is typically made of a wear-resistant material to ensure durability and long-lasting performance. By reducing engine vibrations, the double mass flywheel system, including the slide bushing sleeve, contributes to improved ride comfort and smoother operation of the vehicle.
Please note that the exact terminology and description may vary depending on the specific manufacturer or application.
Double Mass Flywheel Bearing
Flywheel bearing slide bushing, DMFW parts slide bearing supplier
Carbon Steel Backing, Sintered Porous Bronze and Composite Polymer
1. /Fibre mixture 0.01-0.03mm, provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze power 0.20-0.30mm, provides good thermal conductivity away from the bearing surface, also serves as a reservoir for the -lead mixture.
3. Low-carbon steel gives high load carrying capacity, excellent heat dissipation.
Application: textile machines, lift, tobacco machines, fitness equipment, hydraulic systems, automobile, agricultural and forest machines, and so on.
The material is with good wear resistance, low friction coefficient, corrosion resistance and high chemical resistance. It is suitable for the applications where the lubricating is hard to or not accessible. The machining requirement of the mating parts is not critical, so this kind of material is widely used in the general industry.
| Max. load | Static | 250N/mm² | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Operation Temperature range | -195℃～+280℃ | |||||
The -based sliding surface enables smooth running with low friction without lubrication. The presence or continuous supply of oil or other non-corrosive fluids can be beneficial and improve the performance of these bearings.
Advantages of composite plain bearings include:
● maintenance-free operation
● very good frictional properties
● high load carrying capacity
● operation temperatures up to 250°C
● sliding velocity up to 2 m/s
● small operating clearance
Applications include:
● automotive
● material handling equipment
● home appliances and consumer goods
● textile machinery
composite bearings are resistant to oil, acids, and seawater. In addition, there is no lead in the surface layer and is particularly suitable for application in food machines, alkaline flow meters, pump handling elements in pharmaceutical machines, printing machines, chemical engineering machines, and other oceanic industries.
| Manufacturer ID |
Shaft diameter |
Outer diameter |
Width |
Flange diameter |
Flange thickness |
Tread material |

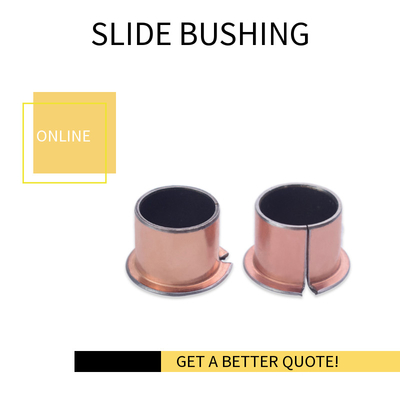

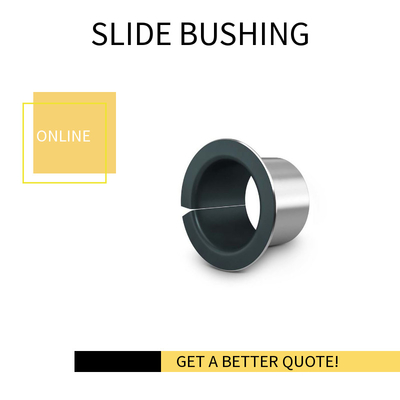

| composite flanged bushing 060804 E | 6 | 8 | 4 | 12 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 060808 E | 6 | 8 | 8 | 12 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 081005.5 E | 8 | 10 | 5.5 | 15 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 081009.5 E | 8 | 10 | 9.5 | 15 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 101207 E | 10 | 12 | 7 | 18 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 101209 E | 10 | 12 | 9 | 18 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 101209 E/ VL097 | 10 | 12 | 9 | 18 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 101212 E | 10 | 12 | 12 | 18 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 101217 E | 10 | 12 | 17 | 18 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 121407 E | 12 | 14 | 7 | 20 | 1 | Polytetrafluoroethy lene () |
| 12 | 14 | 9 | 20 | 1 | ||
| composite flanged bushing 121412 E | 12 | 14 | 12 | 20 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 121415 E | 12 | 14 | 15 | 20 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 121415 E/ VL097 | 12 | 14 | 15 | 20 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 121417 E | 12 | 14 | 17 | 20 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 141612 E | 14 | 16 | 12 | 22 | 1 | Polytetrafluoroethy lene () |
| composite flanged bushing 141617 E | 14 | 16 | 17 | 22 | 1 | Polytetrafluoroethy lene () |
