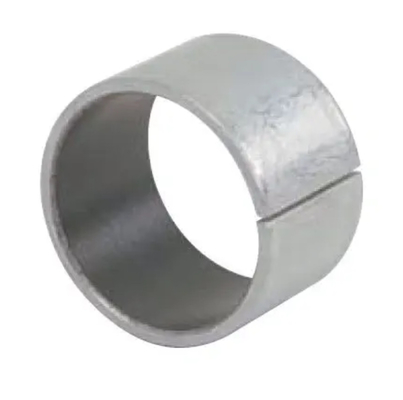

Flywheel Self Lubricating Carton Steel Polymer Plain Bearings Tin Plating

Place of Origin Composite plain cylindrical bushings manufacturer
Brand Name VIIPLUS BUSHINGS SUPPLIER
Certification ISO 3547 DIN 1494 Assembly Standard Tolerance
Model Number DU DX BUSHINGS
Minimum Order Quantity 1000 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details Packaging: Export carton; Wooden case ; Wood pallet.
Delivery Time 7~15 work days
Payment Terms TT in advance,Western Union
Supply Ability Special Customized Lubricating Bushings Manufacturing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , PTFE Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Application DMFW Bushing
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

Carton Steel Polymer Plain Bearings

,

Flywheel Plain Bushes

,

Polymer Plain Bearings Tin Plating

Leave a Message
Product Description

Flywheel Self-Lubricating Carbon Steel Polymer Plain Bearings with Tin Plating are specifically designed to provide smooth and reliable operation in flywheel systems. These bearings are constructed from high-quality carbon steel, ensuring excellent strength and durability.

The polymer plain bearing surface, combined with the tin plating, offers exceptional self-lubricating properties. This eliminates the need for regular lubrication, reducing maintenance costs and downtime. The tin plating also acts as a protective layer, resisting corrosion and enhancing the overall durability of the bearing.

The precision manufacturing of these bearings ensures a perfect fit within the flywheel system, providing seamless operation. Whether you're upgrading an existing flywheel or installing a new one, these self-lubricating bearings are an ideal choice for improving performance and reliability.

Contact us today to learn more about Flywheel Self-Lubricating Carbon Steel Polymer Plain Bearings with Tin Plating and how they can enhance the efficiency and longevity of your flywheel system. Our team of experts is ready to assist you with any questions or requirements you may have.

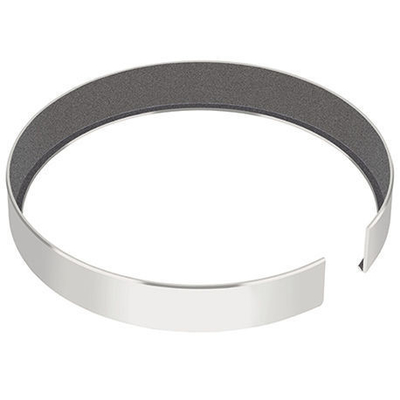

Flywheel Plain Bushes - Self-lubricating Bearing

Double mass flywheel bushings ENGINE PARTS

TRANSMISSION BUSHINGS

Plain Bushing Size Bearing Dimensions
Standard Plain Bearing Sizes - Metric size bushing
Bearings are measured by their inner diameter, outer diameter, and width; the size of a bearing is normally listed as such: ID x OD x W. These measurements are normally taken in millimeters, but can be converted to inches.

Our newest line of aftermarket bushing is available for your Double mass flywheel rebuild needs. Learn More ›

Self-lubricating bearings repair bushing solutions

Metric Size Plain bushes bearings sizes and dimensions.

Flywheel Plain Bushes - Self-lubricating Bearing

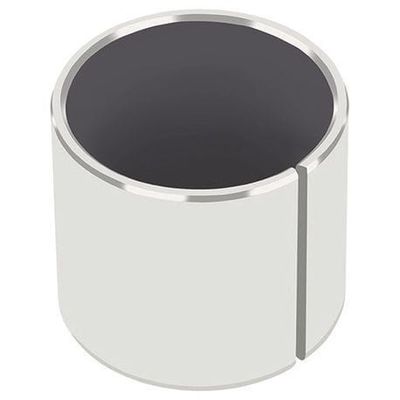

Slide cylindrical bushing
43.5*40.4*15mm
45.1 * 42 *12mm
43.05 *39.95 *12.5mm
45.5 *42.45* 12mm
46.9* 43.8 *11.5mm
40.1* 37 *11.5mm
125* 120*19mm

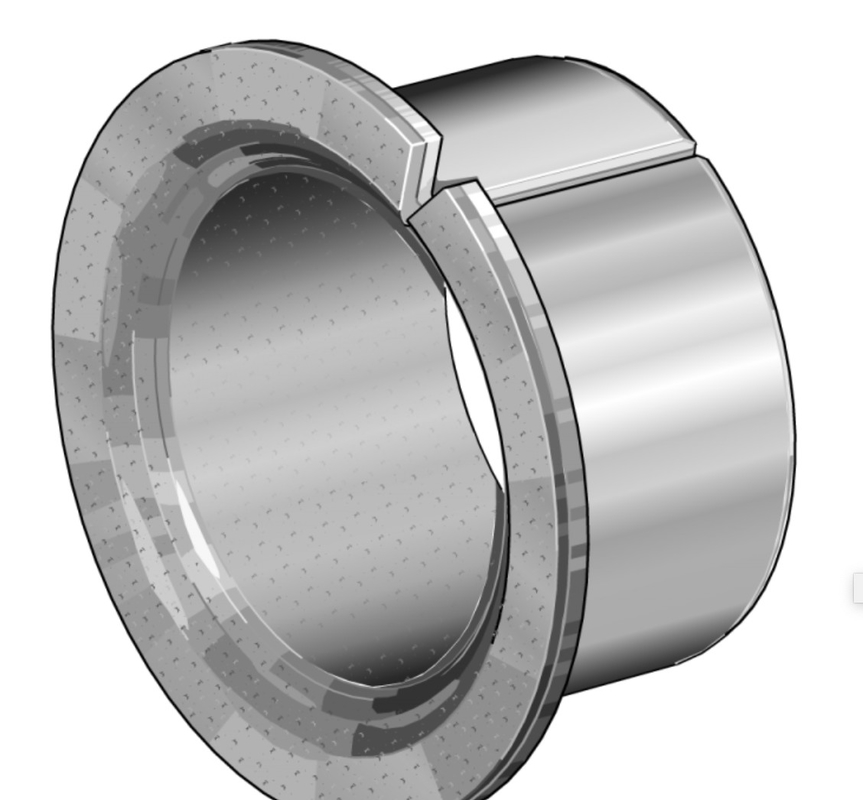

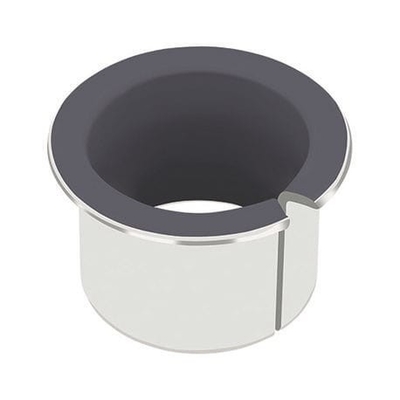

Flange slide bushing
52*44.3*42.25*15mm
52 *45.3* 42.2 *15mm
54* 43.5* 40.4* 16mm
48 *40 *37.95* 15mm
48 *41.1* 38* 15mm
46* 38.1*36* 15mm
52* 44.3* 41.1* 15mm
52* 45.3* 42.15* 15mm
46 *38.1* 35.95*15mm
62 *55.1* 53.05 *18.5mm
103.5* 96.2* 93.2* 15mm
52* 44.3* 42.3 *15mm
47* 39.1* 37 *15mm



Metal Polymer Composites Plain Bearing







Composite dry sliding bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow.



Where to use DU composite bearing?



Because of their good sliding properties and compact design, these plain bearings are particularly suitable for bearing arrangements where:
Maintenance-free operation is a prerequisite
There is a risk of lubricant starvation
Lubricants cannot be used or are forbidden
Space is limited.



Why choose DU composite bearing?



Maintenance-free operation
No lubrication required (PTFE composite)
Initial lubrication required (POM composite)
Minimum wall thickness, minimum space requirements
Accommodation of heavy loads
Wide range of temperatures
Good sliding properties
Virtually no stick-slip
High wear resistance






Typical Applications

Double Mass Flywheel Repair self-lubricating Bearings



Flywheel Self Lubricating Carton Steel Polymer Plain Bearings Tin Plating 0Flywheel Self Lubricating Carton Steel Polymer Plain Bearings Tin Plating 1

Cars

A passenger car with at least 30 parts with self-lubricating bearings. Shock absorbers, brake systems, pedal assembly, seat adjustment systems, door hinges, air conditioning, air conditioning compressors, secondary air valves, fuel pumps, starter motors, gearboxes, steering pumps, Luggage hinges, hood hinges, wiper and so on. At the same time, in various types of commercial vehicles and trucks are also widely used in a variety of self-lubricating bearings, including the engine connecting rod, gearbox, balance shaft and other parts.



In view of the different characteristics of different parts of the car, VIIPLUS developed different self-lubricating sleeves applicable to different parts. Such as: special collar up tight round collar, shock absorber, shock absorber and piston guide assembly, transmission shaft sleeve and sleeve gasket, seat adjustment system, door hinge hinge axle sleeve and trunk, wiper collar, air conditioning compressor shaft sleeve, start the motor shaft sleeve, power steering pump bearing bushings, steering system and brake system and pedal assembly shaft sleeve, etc.





Characteristics



VSB-10 Self-Lubricating Multilayer Composite Bushing

  • Bushing material suitable for lubricated applications

  • self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

  • Anti-friction bearing suitable for linear, oscillating and rotating movements

  • Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.



Strusture





1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Flywheel Self Lubricating Carton Steel Polymer Plain Bearings Tin Plating 2

Technical Data

Carbon Steel + Copper Powder + (PTFE + Pb + Filler)

Structure And Composition

· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead


Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates











 bushings

The main factors affecting the life of self - lubricating bearings


1: load P: the greater the load, the shorter the service life of the bearing;Under no circumstances shall the maximum load exceed the theoretical maximum allowable load.
2: speed V: the higher the speed, the shorter the service life of the bearing;Under no circumstances shall the maximum sliding speed exceed the theoretical maximum allowable value.
3: PV value: the working life of the bearing depends on the PV value, that is, the product of the actual load P and the sliding speed V. The smaller PV value is, the longer the bearing life is.
4: temperature: the life of the bearing also depends on the temperature when the bearing is in use, the higher the temperature, the shorter the life of the bearing, so in the design and selection should try to consider the heat dissipation characteristics of the relevant parts.
5: surface roughness of the grinding parts: alloy steel or hard chromium plated shaft is used for the grinding parts. When the surface roughness Ra=0.4-0.63, the service life of the bearing can be significantly improved.
6: other factors such as bearing design, lubrication conditions, etc





viiplus products are widely used in all industrial fields

Widely used in hydraulic and pneumatic industries, forging machine tool industry, plastics machinery industry, lifting and handling machinery, port machinery, office, fitness machinery, textile machinery, food packaging, filling machinery, chemical machinery, printing and packaging, paper making machinery, automobiles, railways Steam locomotives, shipbuilding industries, presses, metallurgical machinery, construction machinery, etc.
