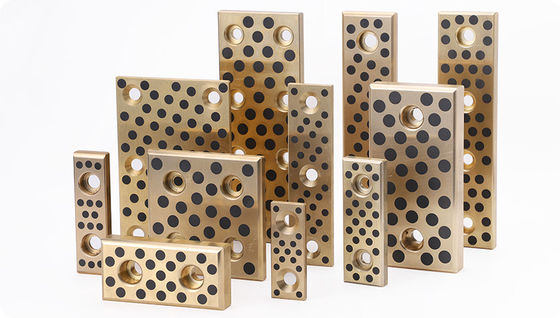

The Bronze Bushing 500SP bearing, featuring oil-free bronze graphite self-lube wear plates, is a revolutionary solution for industrial applications requiring friction reduction and wear resistance. The unique combination of bronze and graphite provides exceptional durability and long-term performance, eliminating the need for external lubrication.
The self-lubricating properties of the graphite material ensure smooth operation even under high loads and speeds, significantly reducing friction and heat generation. This not only enhances the bearing's lifespan but also improves operational efficiency, reducing maintenance costs and downtime.
The Bronze Bushing 500SP bearing is suitable for a wide range of industrial applications, including machinery, equipment, and heavy-duty operations. Its oil-free design makes it particularly suitable for use in environments where lubrication is difficult or impractical, such as in dusty or wet conditions.
In summary, the Bronze Bushing 500SP bearing with oil-free bronze graphite self-lube wear plates offers a reliable and cost-effective solution for industrial applications that demand smooth and efficient operation without the need for external lubrication.
| NO. | DIN | Material No. | Designation | ASTM Standard | Proportional | Density (g/cm³) | 0.2% Strain (MPa) | Tensile Strength (MPa) | Strain (%) | E-modulus (MPa) | Hardness (HB) | Applications |
| 1 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 | 8.8 | 120 | 240 | 15 | 106,000 | 65 | Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance. |
| 2.1090.03 | CuSn7ZnPb | B 271 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 130 | 270 | 13 | 106,000 | 75 | |||
| 2.1090.04 | CuSn7ZnPb | B 505 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 120 | 270 | 16 | 106,000 | 70 | |||
| 2 | 1705 | 2.1061.01 | CuSn12Pb | Not yet standardized | Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 | 8.7 | 140 | 260 | 10 | 112,000 | 80 | Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications. |
| 2.1061.03 | CuSn12Pb | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 150 | 280 | 5 | 112,000 | 90 | |||
| 2.1061.04 | CuSn12Pb | B 505 | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 7 | 112,000 | 85 | |||
| 3 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 270 | 600 | 12 | 122,000 | 140 | Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments. |
| 2.0975.02 | CuAl10Ni | B 30 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 600 | 14 | 122,000 | 150 | |||
| 2.0975.03 | CuAl10Ni | B 271 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 2.0975.04 | CuAl10Ni | B 505 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 4 | 1709 | 2.0598.01 | CuZn25Al5 | B 584 | Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest | 8.2 | 450 | 750 | 8 | 115,000 | 180 | Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack. |
| 2.0598.02 | CuZn25Al5 | B 30 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 8 | 115,000 | 180 | |||
| 2.0598.03 | CuZn25Al5 | B 271 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 5 | 115,000 | 190 | |||
| 5 | 1705 | 2.1052.01 | CuSn12 | Not yet standardized | Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 | 8.6 | 140 | 260 | 12 | 110,000 | 80 | Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/ |
| 2.1052.03 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.6 | 150 | 280 | 8 | 110,000 | 90 | |||
| 2.1052.04 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 8 | 110,000 | 95 | |||
| Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting. | ||||||||||||
Shop China for all your Oil-Free Slide Plates and Oil-free Slide Plates needs. we offer free CAD download, short lead times, competitive pricing

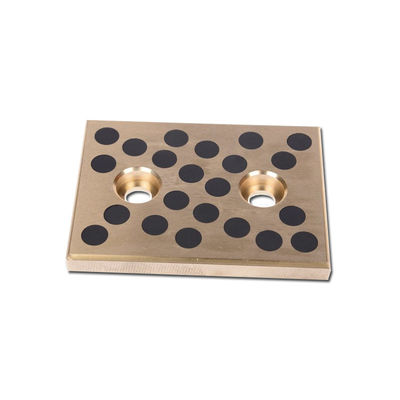

| Standard Parts Bronze Bushing #500 SWP Oilless Thin Wear Plate (All dimensions in MM) |
|
Size
|
Customized
|
|
Material
|
CuZn25AI5Mn4Fe3
|
|
Color
|
Natural
|
|
Certification
|
ISO9001, TS16949
|
|
Density
|
8g/cm³
|
|
Hardness
|
>210HB
|
|
Tensile strength
|
>750N/mm²
|
|
Yeild strength
|
>340N/mm²
|
|
Elongation
|
>12%
|
|
Coefficient of linear expansion
|
2.2*10-5/℃
|
|
Heat-conducting Coefficient
|
38~55W(/m.k)
|
|
Flexibility Coefficient
|
100~140KN/mm²
|
|
Temp. Limits
|
-40~+200 ℃
|
|
Max. Dynamic Load
|
98 N/mm²
|
|
Max.speed
|
Dry Lubrication 0.3m/s,Oil Lubrication 1m/s
|
|
Max.PV
|
Dry Lubrication 1.65N/mm²*m/s,Oil Lubrication 3.25N/mm²*m/s
|
|
Friction
|
Dry Lubrication 0.12~0.16,Oil Lubrication 0.03~0.08
|
|
Application
|
consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine
|
| Standard No | W | L | a | b | Sketch |
| SWP -18*50 | 18 | 50 | - | 20 | A |
| SWP -18*75 | 75 | 45 | |||
| SWP -18*100 | 100 | 70 | |||
| SWP -18*150 | 150 | 60 | B | ||
| SWP -28*50 | 28 | 50 | - | 20 | A |
| SWP -28*75 | 75 | 45 | |||
| SWP -28*100 | 100 | 70 | |||
| SWP -28*150 | 150 | 60 | B | ||
| SWP -38*50 | 38 | 50 | - | 20 | A |
| SWP -38*75 | 75 | 45 | |||
| SWP -38*100 | 100 | 70 | |||
| SWP -38*150 | 150 | 60 | B | ||
| SWP -48*75 | 48 | 75 | - | 45 | A |
| SWP -48*100 | 100 | 70 | |||
| SWP -48*125 | 125 | 95 | |||
| SWP -48*150 | 150 | 60 | B | ||
| SWP -75*75 | 75 | 75 | 45 | 45 | C |
| SWP -75*100 | 100 | 70 | |||
| SWP -75*125 | 125 | 95 | |||
| SWP -75*150 | 150 | 60 | D | ||
| SWP -100*100 | 100 | 100 | 70 | 70 | C |
| SWP -100*125 | 125 | 95 | |||
| SWP -100*150 | 150 | 60 | D |
| Bronze Bushing 500SP Bearing | |
| Content | SPB,SPF,SPFG,SPW,SGF,SGB,SWP,SLP,SLC,SLI,JEGB, JNA,JESW,JSPW,HGB250,JCBS,JCBSP,JDBS series... |
