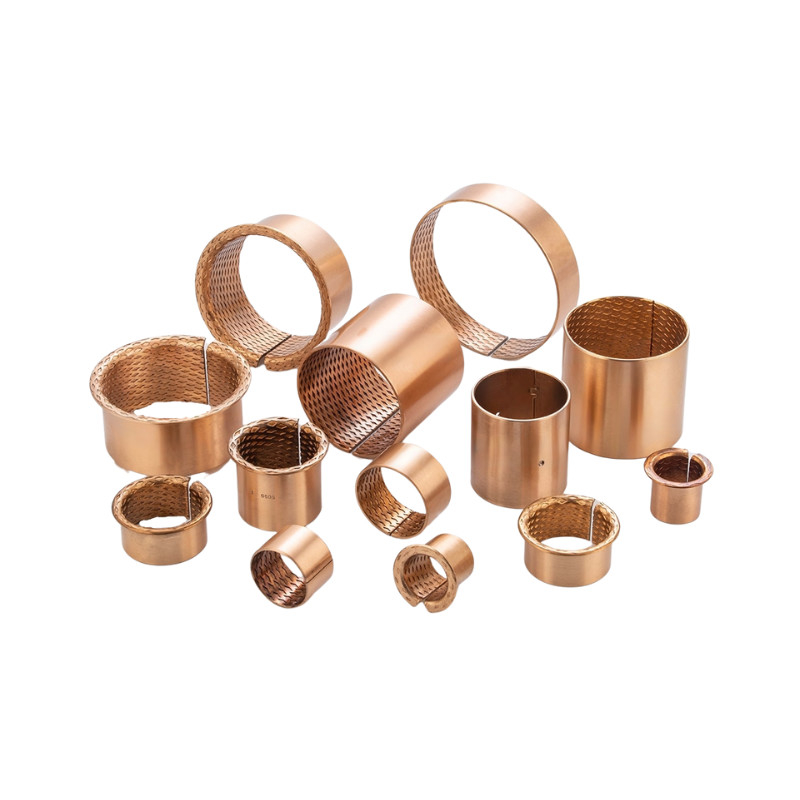

CuSn8 Metallic Perforated Flanged Bronze Bushings FB092

CuSn8 Metallic Perforated Flanged Bronze Bushings FB092
CuSn8 Metallic Perforated Flanged Bronze Bushings FB092 CuSn8 Metallic Perforated Flanged Bronze Bushings FB092

Large Image :  CuSn8 Metallic Perforated Flanged Bronze Bushings FB092

Product Details:
Place of Origin: china
Brand Name: viiplus.com
Certification: Plain Sleeve Bearings Standards met: RoHS
Model Number: wrapped bronze bushing
Payment & Shipping Terms:
Minimum Order Quantity: Bronze Precision Wear Plates & Lubricating Parts made to order
Price: Contact us
Packaging Details: Standard package, Pallet or container, As per customized specifications
Delivery Time: Shipped in 3-20 work days
Payment Terms: TT IN ADVANCE,L/C,Western Union
Supply Ability: bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

CuSn8 Metallic Perforated Flanged Bronze Bushings FB092

Description
Meterial: Cusn8 Certification: ISO9001 /TS16949
Types: Wrapped Bronze Bushing Application:: Impact Load And Dusty Environment
Parts: Bushings Thrust Washers Strips Categories: Plain Bearings
Feature: Collar Bush Price: Factory Prixe
High Light:

Perforated Flanged Bronze Bushings

,

CuSn8 Flanged Bronze Bushings

,

FB092 Flanged Bronze Bushings

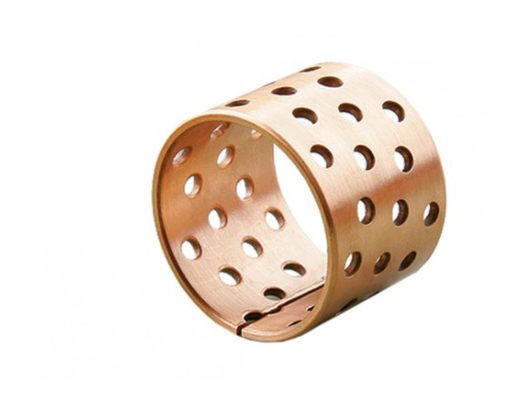

Bronze Alloy CuSn8 Metallic Perforated Collar Bush

Bronze alloy CuSn8 Metallic marginal-lubricating bearings > CSB-T90 Perforated Collar Bush, ID50mm*OD55mm*Length50mm/Flange65mm,

 FB092/50*55*50/65





Perforated Collar Bush equivalent, Export quality brass bushes manufactured under a team of highly professional experts in the Industry.

The miniature motor is a vibrating motor or a rotary motor.

Collar Bush at Best Price in China

BB25283530DIN Plain bearing bush supplier, BMB4025 bronze bush with collar CuSn8P, WF800 bronze sliding bearing bush factory

Rotary motor collar bush,131683 BMB9030 Bronze bearing, MBZ-90 flanged bronze bushing bearing

Rotary motor

CuSn8 Metallic Perforated Flanged Bronze Bushings FB092 0

A linear motor is an electric motor that has had its stator and rotor "unrolled" so that instead of producing a torque (rotation) it produces a linear force along its length. The most common mode of operation is a Lorentz-type actuator, in which the applied force is linearly proportional to the current and the magnetic field .Many designs have been put forward for linear motors, falling into two major categories, low-acceleration, and high-acceleration linear motors. Low-acceleration linear motors are suitable for maglev trains and other ground-based transportation applications. High-acceleration linear motors are normally rather short and are designed to accelerate an object to a very high speed, for example, see the coilgun. High-acceleration linear motors are typically used in studies of hypervelocity collisions, as weapons, or as mass drivers for spacecraft propulsion. They are usually of the AC linear induction motor (LIM) design with an active three-phase winding on one side of the air-gap and a passive conductor plate on the other side. However, the direct current homopolar linear motor railgun is another high acceleration linear motor design. The low-acceleration, high speed and high power motors are usually of the linear synchronous motor (LSM) design, with an active winding on one side of the air gap and an array of alternate-pole magnets on the other side. These magnets can be permanent magnets or energized magnets. The Shanghai Transrapid motor is an LSM.

来源于:维基百科



CSB-T90 Wrapped bronze bearings are ideal for applications where there are high levels of contamination. Their running surface is provided with a hole pattern. The lubrication pockets must be filled with grease when the bearing is installed. The wrapped bronze bearings are produced according to the ISO 3547.



Features



This is a thin wall wrapped bushing. It is suitable for a cost sensitive solution while the tolerance requirement is not critical. The diamond oil deposits hold the grease for the lubricating film establishment during the initial running in of the operation. The ID of the bushing is machinable after assembling. Bronze alloy provides good corrosion resistance and thermal conductivity feature. It is suitable for middle to low load and low speed application and periodically light oil lubricating is recommended.



Structure:



Detail overview of lubrication pockets



Detail overview of lubrication pockets



Chemical Composition



The bronze bearings are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish. The material composition is as follows:
  • Cu - Balance
  • Sn - 8.5%
  • P - 0.2%



Type Cu% Sn% P% Pb% Zn%
CSB-090 91.3 8.5 0.2 / /



Materials



Wrapped bronze bearings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.



Lubrication



Wrapped bronze bearings must be lubricated with grease or oil on installation. A good quality lubricant is essential as it will reduce friction and wear by forming a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing off the bearing. This will protect both the bearing and the lubricant.



Properties CSB-090 CSB-T90
Max. load (Dyn/stat), N/mm2 40 / 120 40 / 120
Max. sliding speed m/s 2.0 2.5
Max. PV value N/mm2 x m/s 2.8 2.8
Temperature range, oC -100 / +200 -100 / +200
Shaft tolerance e7 - f8 - h6 e7 - f8 - h6
Housing tolerance H7 H7

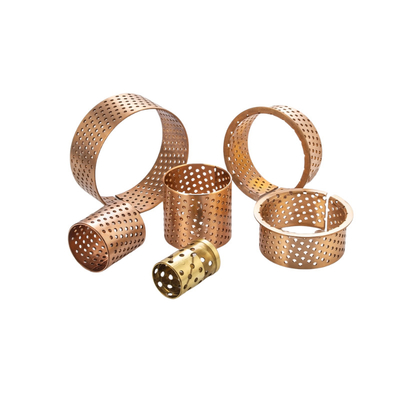

wrapped bronze bushing Perforated Collar Bush equivalent

Typical Applications



The typical applications of this material include the lifting machinery, construction engineering machinery, automotive industry, tractors, trucks, agriculture machinery and mining machines. The available products include bushings, bearing shelves, flanged bushings and thrust washers.

FB092 Wrapped Bronze Flange bushing with Oil Holes,CuSn8,CW708R-Silicon Brass bushing

mining machines
