Collar Type Bimetallic Bearing Bushes For Track Roller
| Place of Origin | Bimetal Bearing Manufacturers |
|---|---|
| Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
| Certification | Bimetal Bush CuPb24Sn4... |
| Model Number | Bimetallic Bearing For Track Roller |
| Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
| Price | $0.20 - $2.00 / Pieces ,Negotiable |
| Packaging Details | export & import bimetal bushings International carton standard |
| Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
| Payment Terms | TT IN ADVANCE Western Union |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Bimetal Bearings | Characteristic | Low-maintenance And Maintenance-free Plain Bearings |
|---|---|---|---|
| Size | Standard Size Available | Port | Shanghai,or Ningbo |
| Quality | OEM High Quality Bushings | Type | Collar Type |
| Bushing Sample | Available | Application | Track Roller |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | Collar Type Bimetallic Bearing Bushes,CuSn10Pb10 Bimetallic Bearing Bushes,Track Roller Bimetal Bearing Bushes |
||
Product Description

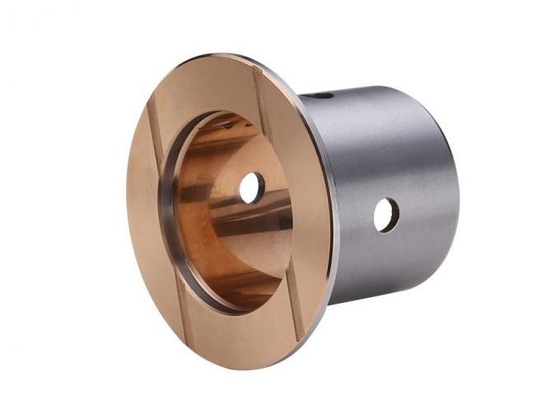

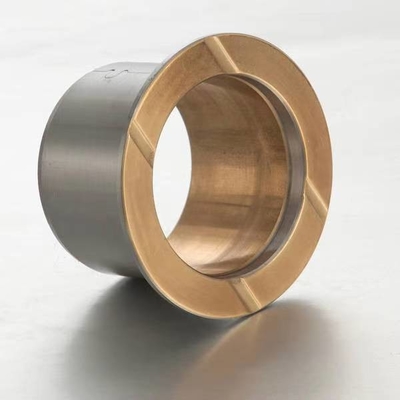

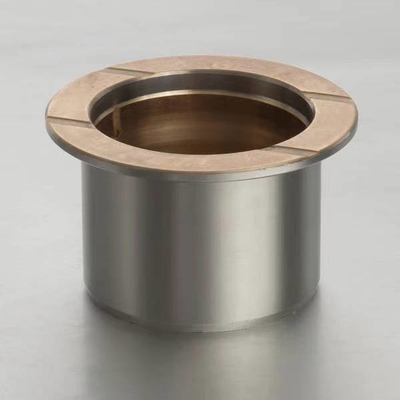

Collar Type Bimetallic Bearing For Track Roller
Professional bimetal bearing supplier, Bimetal Bush Steel+CuSn10Pb10
Collar Type Bimetallic Bearing For Track Roller
Viiplus is able to provide good quality items, aggressive rate and best shopper assistance. It has Collar Type Bimetallic Bear ng For Track Roller that will probably be more conveniently to service our customers and enhance Track Roller service life.
Track roller bearings are used in a number of different applications. At Simply Bearings, we have an extensive range of high-quality Track roller bearings in stock and ready to be delivered to your site. We make it easy to order precisely the right product you need, and our Track roller bearingss are available in various diameters and widths for different situations.
| Load capacity | 150N/mm2 | |
| Speed limit | Oil lubricating | 2.5m/s |
| Dry Friction | 0.4m/s | |
| PV value limit | Oil lubricating | 10N/mm2.m/s |
| Dry friction | 2.8 N/mm2.m/s | |
| Mating axis required | Hardness | >=48~53HRC |
| Roughness | Ra=0.16~0.63 | |
| Friction coef | 0.05-0.22 | |
| Working temperature max. | 200°C |
| Alloy CuPb10Sn10 Chemical Composition ( % ) |
|||||||||||||||||||
|
|||||||||||||||||||
Usage Range:
| dry | poor |
| oil lubricated | good |
| grease lubricated | very good |
| water lubricated | poor |
| process fluid lubricated | poor |
Structure
1.Sinter bronze powder: good wear resistance and excellent load carrying capacity.
2. Steel backing: gives exceptionally high load carrying capacity, excellent heat dissipation.
3.Copper plating 0.002mm, good corrosion resistance.
Steel backed lead bronze lined bearing material for marginal lubrication application. Suitable for oscillation movement or rotation motion with high load capacity and lower speed excellent wear resistance. The bronze layer surface can be machined with various of grooves, oil pockets and oil holes in terms of different work condition, so as to meet the demanding criteria for long life and troublefree performance with or without lubrication.
The bearings can be widely used in construction machineries for track rollers bushes, carrier rollers bushes, front idler bushes and so on..

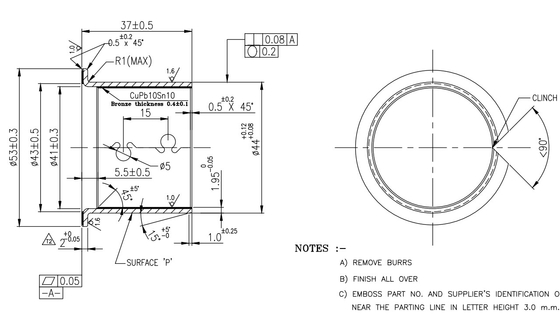

CuPb10Sn10 Track Roller Bearing , Welding Steel Flange Bushing Customizable
Track Roller Bushing Indents Welding Flange Type is made of high quality low-carbon steel(CuPb10Sn10 or CuSn6Zn6Pb3)and sintered and rolled copper alloy as its surface.This product uses copper alloy as sliding material in contact with the shaft, providing good lubrication and protection functions to the shaft and shaft shoulders. The base metal is steel, resulting in higher load bearing capacity, and reduced the material cost.They are important parts used in engineering machines.
Advantages
This Type Bimetal bearing bushing has the best characteristics of all bimetal sliding bearings. It has high faigue strength, load capacity and impact strength,also has good corrosion resistance, suitable for medium speed under medium load and occasions with large impact load.
- Maintenance-free operation
- Minimum wall thickness, minimum space requirements
- Accommodation of heavy loads
- Wide range of temperatures
- Good sliding properties
- Virtually no stick-slip
- High wear resistance
- These bearing can applied with precision machining tooling
