Self Lubricating Fabric Fiberglass Bushing Cylindrical
| Place of Origin | Stainless Steel Backed Bushings |
|---|---|
| Brand Name | CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS |
| Certification | WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
| Model Number | CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE / GLASS FIBERS STAINLESS-STEEL 316 BEARINGS |
| Minimum Order Quantity | >=500 Pieces |
| Price | Negotiable |
| Packaging Details | CARTONS,wOODEN CASES |
| Delivery Time | 3-4 WEEKS |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Stainless Steel 316 With FABRIC | Type | Bushes (cylindrical) |
|---|---|---|---|
| Port | Shanghai | Main Function | Self Lubricating Bearings |
| Quality | OEM | CATALOGUE | Available |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Stainless Steel Bushing Manufacturers | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | oilless plain bearing fiberglass bushing,Self Lubricating fiberglass bushing,cylindrical Fabric fiberglass bushing |
||
Product Description
The self-lubricating fabric fiberglass bushing (cylindrical) is a type of bearing element that combines the durability and strength of fiberglass with a self-lubricating fabric liner. This combination provides a unique solution for applications requiring both high-performance wear resistance and low-friction operation.
The fiberglass material serves as the structural backbone of the bushing, providing excellent strength and dimensional stability. Fiberglass is also resistant to corrosion, chemicals, and high temperatures, making it suitable for demanding environments.
The self-lubricating fabric liner is what sets this bushing apart from traditional metal or plastic bushings. This liner is made from a special fabric that is impregnated with a lubricant. As the bushing rotates or slides against a mating surface, the lubricant is gradually released, creating a thin lubricating film between the bushing and the surface. This film significantly reduces friction and wear, extending the service life of the bushing.
The cylindrical shape of the self-lubricating fabric fiberglass bushing allows it to be easily installed in cylindrical holes or on cylindrical shafts. It can be pressed or slipped into position, depending on the specific application and installation requirements.
In summary, the self-lubricating fabric fiberglass bushing (cylindrical) offers a high-performance bearing solution for applications requiring low-friction, wear-resistant operation in demanding environments. Its unique combination of fiberglass and self-lubricating fabric provides a durable and reliable option for a wide range of industrial applications.

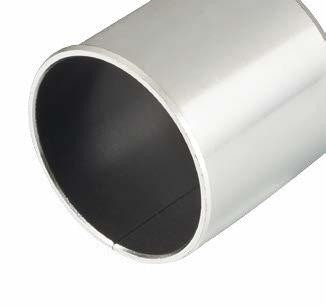

Bushing Fabric Fiberglass Bushing
Stainless steel (aisi 304) or stainless steel backed bushing 316 bushing with in the internal surface
Product introduction:
By the high quality metal as the substrate surface covered with and special fiber woven coiling wear-resisting material, the metal substrate for bearing provides excellent performance and can transfer heat in the process of bearing operation in time, and braid is designed to be used in completely dry friction condition, it has a low friction coefficient and good wear resistance, compared with the traditional bearing in addition to the high load performance can not go outside and was relieved from the process of maintenance, and smooth sliding won't appear "sticky" like now.

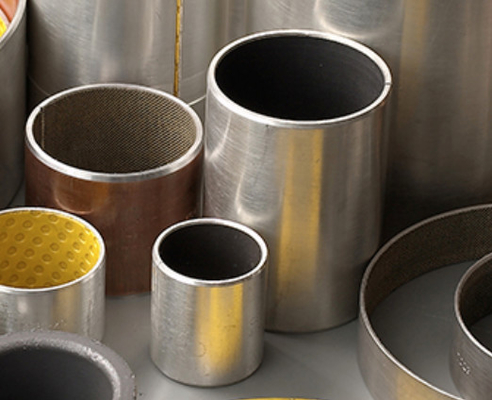

Low Friction Woven Fabric Oilless TEX Bearing
TEX Bushing,Customized Bushing , Fiber Bush
Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with fabric
Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.
metal composite bearing base fabric is based on steel substrate, the surface adhesion of ethylene fiber and aramid fiber woven fabric, after rolling processing into a collar or stamping processing into a variety of forms such as gasket. The product has the characteristics of high precision, high load bearing pressure and excellent low speed and heavy friction performance. It can be widely used in heavy load equipment such as engineering machinery and agriculture and forestry machinery.
Characteristics
VSB-36 Bushing slide bearing bushings, oilless plain bearing
Stainless Steel316+/FABRIC
Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.
VSB-36 Bushing
Stainless Steel316+/FABRIC
is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled being calendered onto the sintered spherical bronze interlayer.
Strusture
Technical data
|
Max. load |
Static |
350N/mm2 |
|
Dynamic |
180N/mm2 |
|
|
Max. speed |
Dry |
0.5m/s |
|
Lubrication |
>1m/s |
|
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
|
Continuous |
1.8N/mm2*·m/s |
|
|
Temp. |
-50℃~+250℃ |
|
|
Friction coefficient |
0.03~0.20 |
|
|
Thermal conductivity |
42W (m·k)-1 |
|
|
Coefficient of thermal expansion |
11*10-6k-1 |
|

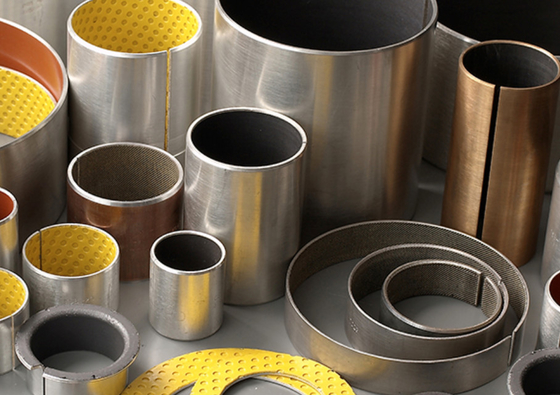

Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Basic advantages of Stainless Steel 316 fabric bushings
ADVANTAGES:
Have a higher carrying capacity.
High-temperature.
Longer life.
Have a higher carrying capacity.
High-temperature.
Longer life.
Typical Applications
VIIPLUS bearing is a leading self-lubricating bearing manufacturer and supplier in China. We are highly proficient in the production of various self-lubricating bearings, bushes, and the sliding blocks, etc. Our main product catalogue now includes the oilless self-lubricating bearing, composite bearing, copper bearing, wrapped bronze bearing, bimetallic bearing, thermoplastic bushes, and more. All our products are characterized by reliable performance and low price. They are very popular and widely applicable in different industries including the automobile, machine tools, moulds, metallurgical machinery, mining machinery, textile machinery, hoisting machinery, construction machinery, printing machines, irrigation machinery, injection molding machines, food machinery, ports, marine machinery, and the agricultural and forestry machinery, etc.
Low friction woven fabric oilless bearing VSB-36 TEX is widely used in high temperature production lines, construction machinery, automobile chassis parts, ball valves, butterfly valves, pumps and chemical industries and high-speed trains and other heavy low and cannot refuel occasion etc.
