INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing

INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing
INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing

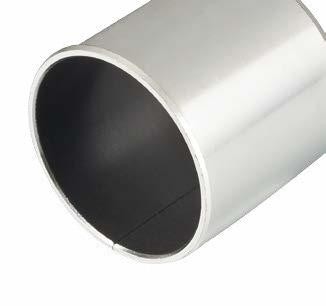

Large Image :  INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing

Product Details:
Place of Origin: Stainless Steel Backed Bushings
Brand Name: CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification: WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number: CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Payment & Shipping Terms:
Minimum Order Quantity: >=500 Pieces
Price: Negotiable
Packaging Details: CARTONS,wOODEN CASES
Delivery Time: 3-4 WEEKS
Payment Terms: TT IN ADVANCE
Supply Ability: Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

INOX Piping and Valve Steam Bushings Stainless Steel Bushes With Low - Maintenance Standardized sliding bushing

Description
Meterial: Stainless Steel 316 With PTFE FABRIC Type: Bushes (cylindrical)
Port: Shanghai Main Function: Self Lubricating Bearings
Quality: OEM CATALOGUE: Available
High Light:

stainless steel sleeve bearing

,

stainless steel bushing sleeve

Stainless Steel Bushings



INOX PTFE INSIDE BUSHING is Italian for stainless steel BUSHING BOCCOLE MADE TO ORDER FROM CHINA.Stainless Steel (Stainless Steel) is short for acid-proof Stainless Steel, resistant to weak corrosive medium such as air, steam, water, or with a Stainless Steel grade is called Stainless Steel;And the chemical corrosion resistant medium (acid, alkali, salt and other chemical corrosion) corrosion of the steel known as acid-resistant steel.Due to the difference in the chemical composition of the two so that their corrosion resistance is different, ordinary stainless steel is generally not resistant to chemical medium corrosion, and acid steel is generally rust resistant.

If your business is in Piping and Valve Steam Pump Bushings , we recommend that you choose our standardized STAINLESS STEEL 316 OR 304 sliding bearings And INOX sleeve bushing. please inform us of your project situation and valve bushes requirements in the inquiry. We will efficiently provide you with product selection solutions and quotations.

PIPINGS Self-Lubricating Bearings SYSTEM INSTALLATION
piping system are safe, efficient and cost-effective, use plain bearing bearing lowering risk during installation.

Self-Lubricating Bearings PTFE/Kevlar Woven Liners bushings

Stainless Steel Bearing Reinforced for Longer Wear

Bearings: Fiberglass and 316 stainless steel with TFE lining



Application


• This Suction Vibration Isolation Pump Drop connects the water flow intake to the pump in the mechanical room.
• Provides noise reduction, expansion, contraction and deflection.

application

Stainless Steel Self-Lubricating Bearing

The fabric self-lubricating liner is the key factor to the performance of self-lubricating spherical bearings with heavy load, impact resistance, and long life and so on.

Woven glide bearing use the PTFE fibres fabric and aramid fiber overlay on metal backings,the fabric have very high load capacity and high accuracygood run with low speed and heavy friction superior performance,widely used in heavy equipment like construction machinery,agriculture machinery.

1. PTFE with oil fibre can protect the shaft, while machine in operation.
2. It is of low friction coefficient, good anti-wear.
3. Good running in property.
4. It fits well in motion of circumgyration, swaying and to-and-fro.
5. Good anti-corrosion.
6. It can be used in food machine, pharmaceutical etc, due to lead-free.
7. It is mainly used in the condition of strong acid and alkali, such as chemical

Industry, pumps, valves etc.



Plain Bearings and Sleeve Boccole Self-Lubricating Bearings, Valve Bush Woven Fabric Stainless Steel 316 Bushes|VSB-36



Bushes (cylindrical) Stainless Steel Bushes


Plain bearing product versions  Low Friction Woven Fabric Oilless TEX Bearing
The relationship between the tribological properties of the bearing and the film-forming properties of PTFE transfer film formed by the liner was studied.There is a certain correspondence between the tribological performance of bearings and the film-forming performance of PTFE transfer film formed in the process of friction and wear, that is, the faster the formation of PTFE transfer film, the better the wear resistance and uniform continuity, and the better the tribological performance of the film formed by friction and wear.

TEX Bushing Customized Bushing Fiber Bush

Plain Bearings and Sleeve Bearings Self-Lubricating Bearings, Liner Type Non-Metallic woven Stainless Steel 316 with PTFE fabric

Stainless steel 316 and steel-base polytetrafluoroethylene aramid fiber braid bearings are self-lubricating materials with wear-resistant fibers as the main surface material.The product has low friction coefficient, good bearing capacity, abrasion resistance and self-lubrication performance, mainly used in various high-grade valves and go-kart.

Metal composite bearing base fabric is based on steel substrate, the surface adhesion of ptfe ethylene fiber and aramid fiber woven fabric, after rolling processing into a collar or stamping processing into a variety of forms such as gasket. The product has the characteristics of high precision, high load bearing pressure and excellent low speed and heavy friction performance. It can be widely used in heavy load equipment such as engineering machinery and agriculture and forestry machinery.

Characteristics
VSB-36 Bushing  slide bearing bushings, oilless plain bearing

Stainless Steel316+PTFE/FABRIC

Apply to the oil or fuel work harder parts,wear resistance,low coefficient of ftiction,long life:good overall performance.Apply to the oil or fuel work harder parts,wear resistance,low coefficient of friction,long life;good iverall perfotmance.


VSB-36 Bushing Stainless Steel316+PTFE/FABRIC

is of oil resistant, acid resistant, alkali resistant and seawater resistant, more over, there is no lead in the PTFE surface layer and so is particularly fit for application in food machinery, alkali flow meters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines and other ocean industry. The bushing is a triple layers composites one, the base material is stainless steel back and a film of heat resistant power filled PTFE being calendered onto the sintered spherical bronze interlayer.

Strusture

1,This new material use the PTFE fibres fabric overlay on metal backings

2,The fabric has very high load capacity and much longer operating life compared with conventional 3-layer bushes.

3,The metal can be Carbon steel , Stainless steel, Bronze etc.

Features:

1,Suitable for rotary and oscillating movement, lower maintenance requirements due to the long re-lubrication intervals.

2,Lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling ,good damping behaviours, good resistance to shock loads.

3,Much long service life under lower speed with high load.


Application:


Now this product has been used like suspension and auxiliary of agriculture and construction machines,cranes and hydraulic and mechani

Technical Data

Max. load

Static

350N/mm2

Dynamic

180N/mm2

Max. speed

Dry

0.5m/s

Lubrication

>1m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-50℃~+250℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1



AVAILABILITY

Bearing forms available in standard dimensions

· Cylindrical bushes

· Flanged bushes

· Sliding plates

· Thrust washers

· Flanged washers

self lubricating plain bushings

Basic advantages of Stainless Steel 316 fabric bushings

Advantages


Have a higher carrying capacity.
High-temperature.
Longer life.

Typical Applications



VIIPLUS bearing is a leading self-lubricating bearing manufacturer and supplier in China. We are highly proficient in the production of various self-lubricating bearings, bushes, and the sliding blocks, etc. Our main product catalogue now includes the oilless self-lubricating bearing, composite bearing, copper bearing, wrapped bronze bearing, bimetallic bearing, thermoplastic bushes, and more. All our products are characterized by reliable performance and low price. They are very popular and widely applicable in different industries including the automobile, machine tools, moulds, metallurgical machinery, mining machinery, textile machinery, hoisting machinery, construction machinery, printing machines, irrigation machinery, injection molding machines, food machinery, ports, marine machinery, and the agricultural and forestry machinery, etc.

Low friction woven fabric oilless bearing VSB-36 TEX is widely used in high temperature production lines, construction machinery, automobile chassis parts, ball valves, butterfly valves, pumps and chemical industries and high-speed trains and other heavy low and cannot refuel occasion etc.

Packaging & Delivery
Packaging Details:CARTON or PALLET
Port:SHANGHAI,NINGBO,ETC.

Bushings,Lubricated Bearings,Composite Bearings,Metal Bearings,Compressor Bearings,Metal-polymer,Filament Wound,Plain Bearings,Flange Bearings,Polymer Bearings,Flange Bushings,Pump Bearings,Flanged Bushes,Thrust Plates,Industrial Bearings VIIPLUS SLDING Bearings for offshore platforms and oil & gas industry | VIIPLUS Bearings Metric Sized Journal Bearings

self lubricating bronze bushings
