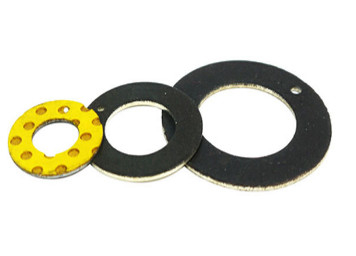

Porous Bronze Metallic Bearings Pom Sliding Washer For Printing
| Place of Origin | Self Lube Bearings |
|---|---|
| Brand Name | bronzelube.com |
| Certification | Plain Sleeve Bearings Standards met: RoHS |
| Model Number | Washer POM Lead Free |
| Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
| Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
| Packaging Details | Standard package, Pallet or container, As per customized specifications |
| Delivery Time | Shipped in 3-20 work days |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Low-Carbon Steel + Porous Bronze + POM | Plating | Tin Or Copper |
|---|---|---|---|
| Types | FLANGE/SLEEVE/WASHER | Application | Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc. |
| Production Feature | Washer | Application | Heavy Industry, General Industry, Automotive Industry |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy | Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | Porous Bronze sliding washer,Metallic Bearings sliding washer,POM Printing sliding washer |
||
Product Description
Porous bronze metallic bearings with POM (Polyoxymethylene) sliding washers are specialized components designed for printing applications. The porous bronze bearing offers excellent wear resistance and self-lubricating properties, while the POM sliding washer provides smooth and reliable operation. The combination of these materials creates a bearing system that is suitable for high-speed and heavy-load applications in printing machinery. The porous bronze material allows for oil or grease to be absorbed and retained within its pores, providing lubrication over extended periods without the need for frequent re-lubrication. The POM sliding washer ensures smooth contact between the bearing and moving parts, reducing friction and wear. This bearing system is commonly used in printing presses, inkjet printers, and other equipment requiring precision and durability.

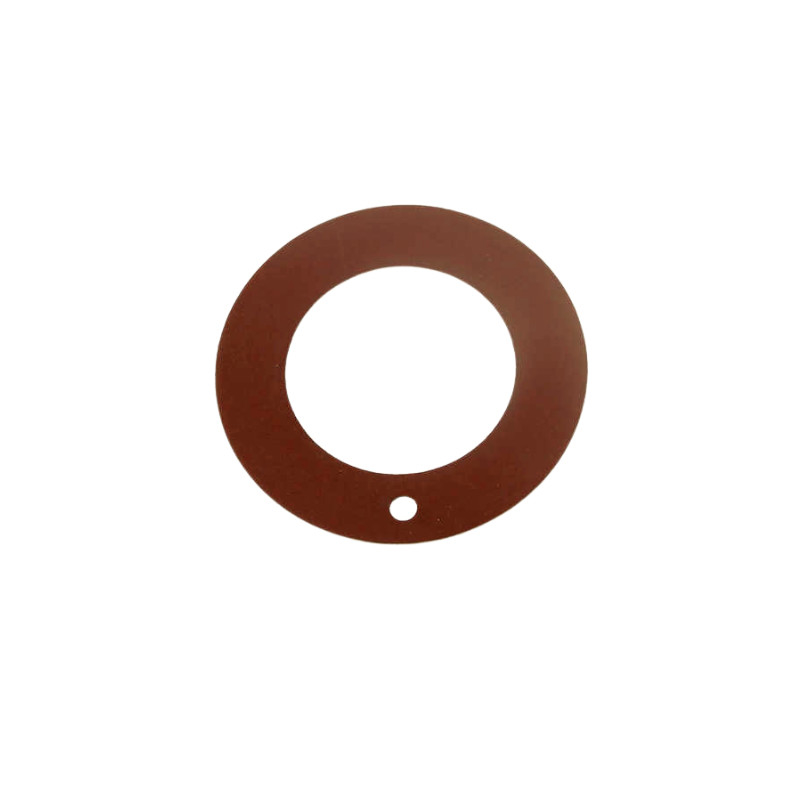

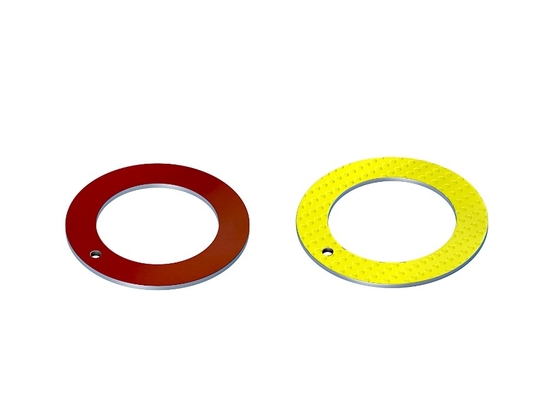

Metallic Bearings Pom Washers
Low-maintenance & maintenance-free plain bearings & washer
Metallic bearings & washer
plain bearings & washers are available as bushes, collar bushes, washers, strips, or special designs.
ONLINE SHOP / CATALOGUE
Search for products across the entire range. Send non-binding enquiries.
Coussinets lisses métalliques Rondelles de butée
Coussinets lisses métalliques POM WASHERS, Buy now for great prices.
Oilless Resin Sliding Materials Bush Washer Sliding Drying Oilless Bush Sliding Bearings Spherical bushings set.
Additional Information: Bushings, washers and strips are provided for maintenance, flanged bushings are made to order from China.
DESCRIPTION
It is made of high quality low-carbon steel with sintering porous bronze as its interlayer, and the compound of POM as its surface. And has good load capacity and wear-resistant. It's applied to vehicle chassis, forming machine tools, metallurgical machinery, mining machinery, hydraulic industry and rolling steel industry, etc. Because of without lead, the product is accord with environmental requirement.
Self Lubricating metal coated POM washer,Oilless Metal Sliding Plate & Washer Lead Free type.Washer dry bearing Lead Free type made to order from china Standard Components for Press Die ... Standard Components for Sliding Material Oilless Metal Sliding Materials Oilless Resin Sliding Materials Oilless Slide Unit. Oilless technology
Factory customized high hardness steel POM coated,Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes,washer and wear plate.
SIZE
| Type | Spec | Type | Spec | ||
| WASHER | 20～10～1.5 | WASHER | 44～26～1.5 | ||
| WASHER | 24～12～1.5 | WASHER | 48～28～1.5 | ||
| WASHER | 26～14～1.5 | WASHER | 54～32～1.5 | ||
| WASHER | 30～16～1.5 | WASHER | 62～38～1.5 | ||
| WASHER | 32～18～1.5 | WASHER | 66～42～1.5 | ||
| WASHER | 36～20～1.5 | WASHER | 74～48～2 | ||
| WASHER | 38～22～1.5 | WASHER | 78～52～2 | ||
| WASHER | 42～24～1.5 | WASHER | 90～62～2 | ||
CHARACTERISTICS
|
Product Name |
POM Washer |
|
Max Load Capacity |
Static load 250N/mm2 ; Dynamic load 140N/mm2 |
|
Max Load Speed |
Dry friction 2.5m/s ; Oil lubrication 5.0m/s |
|
Max PV Value Limit |
Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s |
|
Friction Coefficient |
Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07 |
|
Work Temperature |
-195℃~+280℃ |
|
Thermal Conductivity |
42w/m k |
|
Production Process |
Material cutting~Bronze sintering~POM sintering~Sizing~Coiling~Surface finish~Packing |
|
Application Feature |
Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free |
WASHER SIZE CHART
| Di (mm) | Do (mm) | ST (mm) | dD (mm) | dP (mm) | Ha max. (mm) | Ha min. (mm) | |
| WC08DX | 10 | 20 | 1.58 | 1.2 | 0.95 | ||
| WC10DX | 12 | 24 | 1.58 | 1.75 | 18 | 1.2 | 0.95 |
| WC12DX | 14 | 26 | 1.58 | 2.25 | 20 | 1.2 | 0.95 |
| WC14DX | 16 | 30 | 1.58 | 2.25 | 22 | 1.2 | 0.95 |
| WC16DX | 18 | 32 | 1.58 | 2.25 | 25 | 1.2 | 0.95 |
| WC18DX | 20 | 36 | 1.58 | 3.25 | 28 | 1.2 | 0.95 |
| WC20DX | 22 | 38 | 1.58 | 3.25 | 30 | 1.2 | 0.95 |
| WC22DX | 24 | 42 | 1.58 | 3.25 | 33 | 1.2 | 0.95 |
| WC24DX | 26 | 44 | 1.58 | 3.25 | 35 | 1.2 | 0.95 |
| WC25DX | 28 | 48 | 1.58 | 4.25 | 38 | 1.2 | 0.95 |
| WC30DX | 32 | 54 | 1.58 | 4.25 | 43 | 1.2 | 0.95 |
| WC35DX | 38 | 62 | 1.58 | 4.25 | 50 | 1.2 | 0.95 |
| WC40DX | 42 | 66 | 1.58 | 4.25 | 54 | 1.2 | 0.95 |
| WC45DX | 48 | 74 | 2.6 | 4.25 | 61 | 1.7 | 1.45 |
| WC50DX | 52 | 78 | 2.6 | 4.25 | 65 | 1.7 | 1.45 |
AVAILABILITY
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
-
Technical Date DX agricultural bearings
